Scoothop G1 Electric Scooter Instruction Manual

1. Enfòmasyon enpòtan sou sekirite

Before operating your Scoothop G1 Electric Scooter, please read and understand all safety instructions. Failure to follow these instructions may result in serious injury or property damage.

• Toujou mete yon kas ak ekipman sekirite apwopriye (pwoteksyon jenou, pwoteksyon koud) lè w ap monte bisiklèt.
• Pa monte bisiklèt nan kondisyon mouye, gwo lapli, oswa nan flak dlo.
• Avoid riding on uneven surfaces, loose gravel, or slippery terrain.
• Asire ke tout eleman yo byen tache anvan chak woulib.
• Respekte lwa ak règleman trafik lokal yo.
• Pa kite timoun ki poko gen 16 an kondui scooter a.
• Kenbe yon distans ki an sekirite ak lòt machin ak pyeton.
• Pa fè kaskad oswa manèv toudenkou.
• Maximum weight limit for the rider is 265 lbs (120 kg).

2. Pake kontni

Verifye ke tout atik yo prezan nan pakè a:

• Scoothop G1 Electric Scooter
• Charger
• Manyèl itilizatè
• Reflectors (front and rear)
• Kle

3. Enstriksyon Asanble

The Scoothop G1 Electric Scooter requires minimal assembly. Follow these steps to prepare your scooter for use:

1. Depliye Scooter a: Carefully lift the handlebar stem until it locks into the upright position. Secure the folding mechanism latch.
2. Atache gidon yo: Remove the screws from the top of the handlebar stem. Align the handlebars and secure them with the removed screws using the provided wrench. Ensure they are centered and tightened evenly.
3. Install Reflectors: Attach the front and rear reflectors to their designated positions on the scooter.
4. Tcheke Koneksyon: Ensure all cables and connections are secure and not pinched.

Image: The Scoothop G1 Electric Scooter shown both unfolded (48 inches tall) and folded (19 inches tall, 43 inches long), illustrating its compact design for storage and transport.

4. Operasyon Enstriksyon

Familiarize yourself with the controls and operation of your Scoothop G1 Electric Scooter:

1. Limen/Etenyen: Peze epi kenbe bouton pouvwa a sou ekran LED la pou limen oswa etenn scooter la.
2. Vitès mòd: Briefly press the power button to cycle through the three speed modes: Eco, Drive, and Sport. The current mode will be displayed on the screen.
3. Akselerasyon: Use the thumb lever on the right handlebar to accelerate. For safety, the scooter typically requires a kick-start (push off with your foot) before the motor engages.
4. Frenaj: Use the brake levers on both handlebars to engage the dual braking system. The rear brake light will illuminate when braking.
5. Limyè devan/limyè dèyè: Press and hold the power button for a few seconds to turn the front headlight and rear taillight on or off.
6. Kontwòl kwazyè: Activate cruise control by maintaining a consistent speed for several seconds. The scooter will beep to indicate activation. Press the brake or accelerator to disengage.

Image: The Smart LED Display provides real-time information including current speed, battery level, and selected speed mode for easy monitoring during your ride.

5. Karakteristik

• Pwisan motè: Equipped with a 350W motor for efficient and reliable performance, suitable for urban commuting and gentle slopes.
• Batri Long Distans: Features a 36V 7.5Ah lithium battery, offering a maximum range of up to 16 miles on a single charge. Charging time is approximately 3-4 hours.
• Kawotchou dirab: 8.5-inch solid rubber tires provide good traction and are resistant to punctures, suitable for various urban terrains.
• Sistèm Sispansyon Doub: Front and rear dual suspension absorbs shocks, providing a smoother and more comfortable ride over bumps and uneven surfaces.
• Sistèm frenaj doub: Features both front and rear drum brakes for responsive and reliable stopping power, enhancing safety.
• Ekspozisyon ki ap dirije entelijan: Integrated display shows speed, battery level, and riding mode.
• Sistèm ekleraj doub: Includes a bright front headlight and a rear taillight for improved visibility and safety during night rides.
• Konsepsyon pliable: Quick and easy one-step folding mechanism for convenient storage and portability.

Imaj: Yon imaj detaye view of the 350W high-performance motor, highlighting its robust construction and integration for efficient power delivery.

Imaj: Yon entèn view illustrating the scooter's rechargeable battery, detailing its 36V 7.5A capacity, 16-mile range, and 3-4 hour charging time.

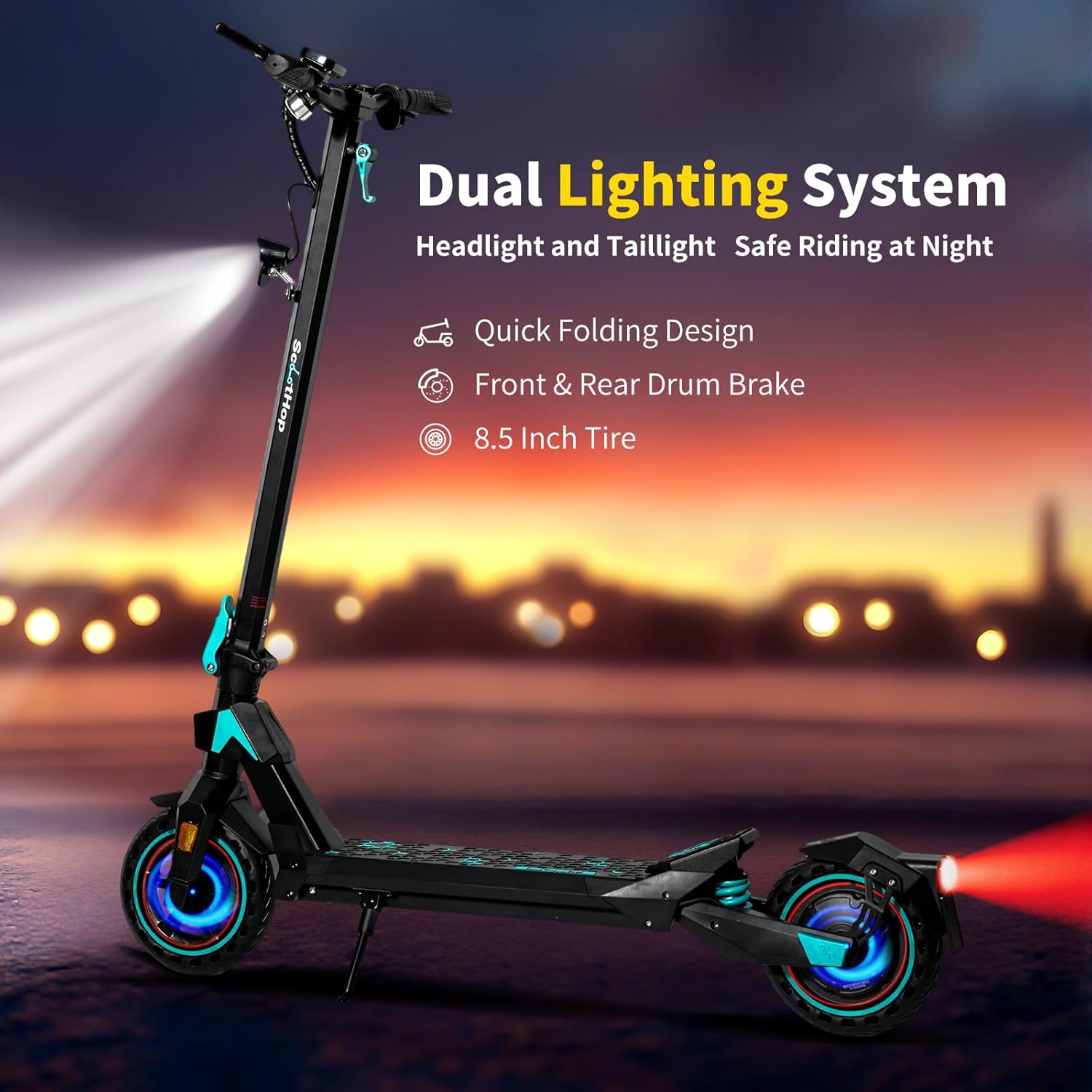

Image: The scooter illuminated at night, demonstrating its dual lighting system for enhanced visibility. Key features like quick folding, drum brakes, and 8.5-inch tires are also highlighted.

6. Antretyen

• Netwayaj: Siye scooter a ak piblisiteamp cloth after each use. Avoid using high-pressure water or harsh chemicals.
• Swen batri: Charge the battery regularly, even if not in use, to prolong its lifespan. Do not fully discharge the battery. Store in a cool, dry place.
• Enspeksyon kawotchou: Regularly check the tires for wear and tear. While solid, ensure no significant damage that could affect performance.
• Ajisteman fren: Periodically check brake responsiveness. If brakes feel loose, consult the detailed user manual for adjustment instructions or seek professional service.
• Tcheke Fastener: Ensure all screws and bolts are tightened before each ride to prevent loosening due to vibrations.

NAN. Depanaj

8. Espesifikasyon

9. Garanti ak sipò

The Scoothop G1 Electric Scooter comes with a 1 ane manifakti limite garanti. For warranty claims, technical support, or service inquiries, please refer to the contact information provided in your included user manual or visit the official Scoothop websit.

Pou plis sipò ak enfòmasyon sou pwodwi a, vizite Scoothop Store on Amazon.
