Toocki Wi-Fi 6 USB Adapter Instruction Manual

Entwodiksyon

This manual provides detailed instructions for the installation, operation, and maintenance of your Toocki Wi-Fi 6 USB Adapter. This device is designed to provide high-speed wireless internet connectivity and Bluetooth 5.4 functionality to your desktop or laptop computer. Please read this manual thoroughly before using the product to ensure proper setup and optimal performance.

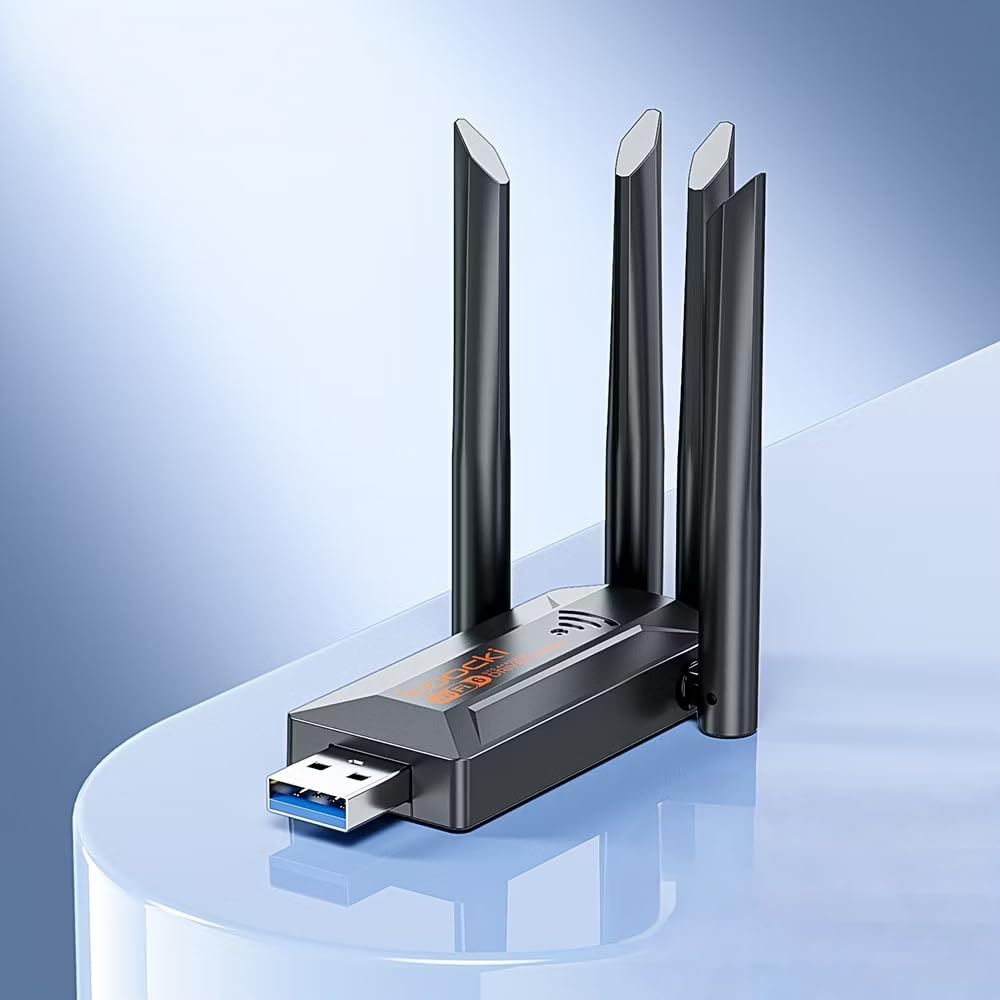

Image: The Toocki Wi-Fi 6 USB Adapter, showcasing its compact design and four adjustable antennas.

Enfòmasyon sou Sekirite

• Keep the device away from water, fire, high humidity, or hot environments.
• Pa eseye demonte, repare, oswa modifye aparèy la.
• Evite ekspoze aparèy la anba limyè solèy dirèk oswa sous chalè.
• Use only with compatible USB ports (USB 3.0 recommended for optimal performance).
• Kenbe soti nan atenn timoun yo.

Kontni pake

Verifye ke tout atik yo prezan nan pakè ou a:

• Toocki Wi-Fi 6 USB Adapter (1 unit)
• Manyèl Itilizatè (dokiman sa a)

Note: The product is designed for driver-free installation on Windows 10/11. No separate driver CD is included.

Pwodwi souview

The Toocki Wi-Fi 6 USB Adapter integrates advanced Wi-Fi 6 technology and Bluetooth 5.4 into a compact USB device. It features four high-gain external antennas for improved signal reception and transmission.

Imaj: Entèn view highlighting the Wi-Fi 6 smart algorithm chip, indicating enhanced signal stability and wider coverage.

Karakteristik kle:

• Sipò Wi-Fi 6 (802.11ax): Provides stronger signal stability and wider coverage.
• Koneksyon Doub Band: Supports both 2.4GHz and 5GHz frequencies for flexible network options and speeds up to 900Mbps.
• Bluetooth 5.4: Enables stable, multi-device connections for peripherals like mice, keyboards, and headphones.
• Four High-Gain Antennas: Enhances signal strength and extends wireless range.
• USB 3.0 Entèfas: Ensures rapid data transfer speeds.
• Enstalasyon san chofè: Plug-and-play compatibility for Windows 10/11.
• Fonksyonalite doub: Acts as a Wi-Fi receiver and an AP/Hotspot.

Enstriksyon Enstalasyon

1. Konekte adaptè a

1. Asire ke òdinatè w lan mache.
2. Locate an available USB 3.0 port on your desktop or laptop. For optimal performance, use a USB 3.0 port (typically blue inside).
3. Carefully insert the Toocki Wi-Fi 6 USB Adapter into the USB port.
4. The operating system (Windows 10/11) should automatically detect and install the necessary drivers. A notification may appear indicating successful installation.

2. Adjust Antennas

The adapter features four adjustable antennas. For best signal reception and transmission, position the antennas vertically or at an angle that provides the strongest signal in your environment. Experiment with different orientations to find the optimal setup.

Image: The Toocki Wi-Fi 6 USB Adapter with its four antennas fully extended, ready for use.

Enstriksyon Operasyon

1. Connecting to Wi-Fi (Receiver Mode)

1. After successful driver installation, click on the Wi-Fi icon in your computer's system tray (usually bottom-right corner for Windows).
2. Yon lis rezo san fil ki disponib yo ap parèt.
3. Select your desired Wi-Fi network (either 2.4GHz or 5GHz band, if both are available).
4. Antre kle sekirite rezo a (modpas) si yo mande w.
5. Click "Connect". Your computer should now be connected to the internet wirelessly.

Image: Illustration of the adapter functioning as a Wi-Fi receiver, enabling a desktop PC to connect to a wireless network without cables.

2. Using as an AP/Hotspot (Transmission Mode)

The adapter can also create a Wi-Fi hotspot, allowing other devices (phones, tablets) to connect to your computer's internet connection.

1. Ensure your computer is connected to the internet via an Ethernet cable or another Wi-Fi adapter.
2. On Windows 10/11, go to Anviwònman > Rezo ak Entènèt > Otspò mobil.
3. Toggle the "Share my Internet connection with other devices" switch to On.
4. You can customize the network name (SSID) and password under "Edit".
5. Other devices can now search for and connect to this hotspot.

Image: Illustration demonstrating the adapter's Wi-Fi transmission function, creating a hotspot from a connected PC to share internet with mobile devices.

3. Koneksyon Bluetooth 5.4

The integrated Bluetooth 5.4 allows for stable connections with multiple Bluetooth-enabled devices.

1. On Windows 10/11, go to Anviwònman > Aparèy > Bluetooth ak lòt aparèy.
2. Ensure Bluetooth is toggled On.
3. Klike sou "Ajoute Bluetooth oswa yon lòt aparèy" epi chwazi "Bluetooth".
4. Put your Bluetooth device (e.g., headphones, mouse, keyboard) into pairing mode.
5. Chwazi aparèy ou an nan lis la epi swiv nenpòt enstriksyon ki parèt sou ekran an pou konplete koneksyon an.

Image: The Toocki Wi-Fi 6 USB Adapter connected to a laptop, symbolizing its Bluetooth 5.4 capability for multiple device connections.

Antretyen

• Keep the adapter clean by wiping it with a soft, dry cloth.
• Avoid using liquid cleaners or solvents.
• Ensure the adapter is not obstructed to allow for proper heat dissipation.
• When not in use for extended periods, it is recommended to safely remove the adapter from the USB port.

Depanaj

Pa gen koneksyon Wi-Fi:

• Tcheke pò USB a: Ensure the adapter is firmly inserted into a working USB port. Try a different USB port, preferably a USB 3.0 port.
• Enstalasyon chofè: For Windows 10/11, the driver should install automatically. Verify in Device Manager (search "Device Manager" in Windows) under "Network adapters" that the Toocki adapter is listed and has no error symbols. If not, try restarting your computer.
• Pozisyon Antèn: Ajiste antèn yo pou yon resepsyon siyal optimal.
• Anviwònman routeur: Ensure your Wi-Fi router is powered on and broadcasting a signal. Check if other devices can connect to the same network.
• Rezo Profile: Forget the network and try reconnecting.

Vitès Wi-Fi ki ba:

• USB 3.0 pò: Ensure the adapter is connected to a USB 3.0 port for maximum speed. USB 2.0 ports will limit performance.
• Fòs siyal: Check your Wi-Fi signal strength. A weak signal can lead to slower speeds. Move closer to the router or adjust antennas.
• Konjesyon rezo a: Too many devices on the same network or channel can cause slowdowns. Try switching to the 5GHz band if available and less congested.
• Entèferans: Other electronic devices (microwaves, cordless phones) can interfere with Wi-Fi signals.

Bluetooth pa fonksyone:

• Bluetooth limen: Verify Bluetooth is enabled in Windows Settings.
• Aparèy Pairing: Ensure your Bluetooth device is in pairing mode and within range.
• Entèferans: Reduce distance between devices and remove any obstructions.
• Rekòmanse: Try restarting your computer and re-pairing the device.

Espesifikasyon

Image: Visual representation emphasizing the 900Mbps dual-band Wi-Fi 6 features for faster, more stable connections.

Enfòmasyon sou Garanti

This Toocki Wi-Fi 6 USB Adapter comes with a 6-mwa garanti from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or external factors. Please retain your proof of purchase for warranty claims.

Sipò pou Kliyan

If you encounter any issues or have questions regarding your Toocki Wi-Fi 6 USB Adapter that are not addressed in this manual, please contact your retailer or the manufacturer's customer support.

For support inquiries, please refer to the contact information provided with your purchase documentation or visit the official Toocki websit.
