Scoothop BE-3 Electric Off-Road Scooter User Manual

1. Entwodiksyon

This manual provides essential information for the safe and efficient operation, maintenance, and care of your Scoothop BE-3 Electric Off-Road Scooter. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize your riding experience.

The Scoothop BE-3 is designed for both urban commuting and off-road adventures, featuring dual 2000W motors, 10-inch off-road tires, and a robust suspension system. It offers a top speed of up to 46 MPH and a range of up to 50 miles on a single charge.

Figure 1: Scoothop BE-3 Electric Off-Road Scooter

Figure 2: Rider on Scoothop BE-3 Electric Off-Road Scooter in a desert environment, demonstrating its off-road capability.

2. Enfòmasyon sou Sekirite

Your safety is paramount. Always adhere to local laws and regulations regarding electric scooter usage. The Scoothop BE-3 electric off-road scooter holds professional UL2272 certification and features a flame-retardant battery case, ensuring safety and reliability.

2.1 Gid Sekirite Jeneral

• Toujou mete yon kas ak ekipman pwoteksyon apwopriye (pwoteksyon jenou, pwoteksyon koud, gan) lè w ap monte bisiklèt.
• Fè yon enspeksyon anvan ou monte: tcheke presyon kawotchou yo, fonksyon fren yo, epi asire w tout konpozan yo byen tache.
• Pa monte anba enfliyans alkòl oswa dwòg.
• Kenbe yon distans ki an sekirite ak lòt machin ak pyeton.
• Evite monte bisiklèt nan gwo lapli, nèj, oswa nan kondisyon glas.
• Familiarize yourself with the scooter's controls before riding at higher speeds.

2.2 Visibility and Lighting

The BE-3 is equipped with a 360-degree lighting system to enhance visibility, especially during low-light conditions. This includes a high-lumen headlamp, brake taillight, direction-indicating turn signals, ambient lights, and stem light-bars. Ensure all lights are functional before riding at night or in dimly lit areas.

Figi 3: Detaye view of the Scoothop BE-3's 360-degree lighting system, including headlamp, taillight, turn signals, ambient lights, and stem light-bars for enhanced visibility.

3. Konpozan souview

The Scoothop BE-3 is engineered with high-performance components for a superior riding experience.

3.1 Karakteristik kle

• Motè doub 2000W: Provides a combined peak power of 4000W for rapid acceleration and climbing 45° inclines.
• Kawotchou 10 pous pou machin tout-teren: Widened, reinforced tubeless tires with anti-slip tread for superior grip on various terrains.
• 60V / 30Ah Battery: High-capacity lithium-ion battery offering up to 50 miles of range.
• Dual Brakes & Suspension: Front and rear disc brakes for balanced stopping power, coupled with double-shock suspension and a professional damping system for a smooth ride.
• 360° Lighting System: Includes headlamp, taillight, turn signals, ambient lights, and stem light-bars for comprehensive visibility.
• Ekspozisyon LCD entelijan: Provides real-time information on speed, battery level, mileage, riding mode, and light indicators.

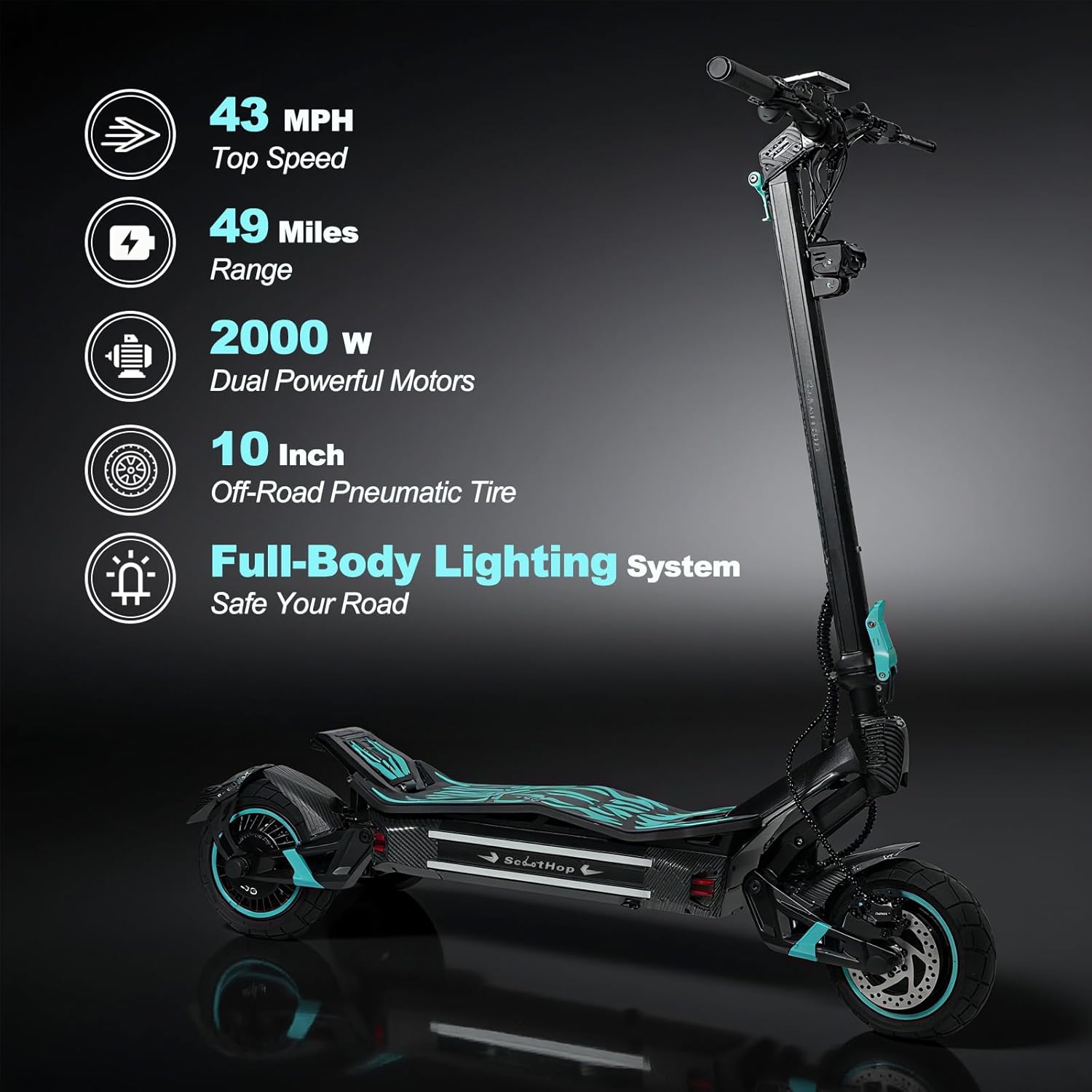

Figure 4: Scoothop BE-3 Electric Off-Road Scooter highlighting key specifications.

Figure 5: Illustration of the Scoothop BE-3's dual 2000W motors.

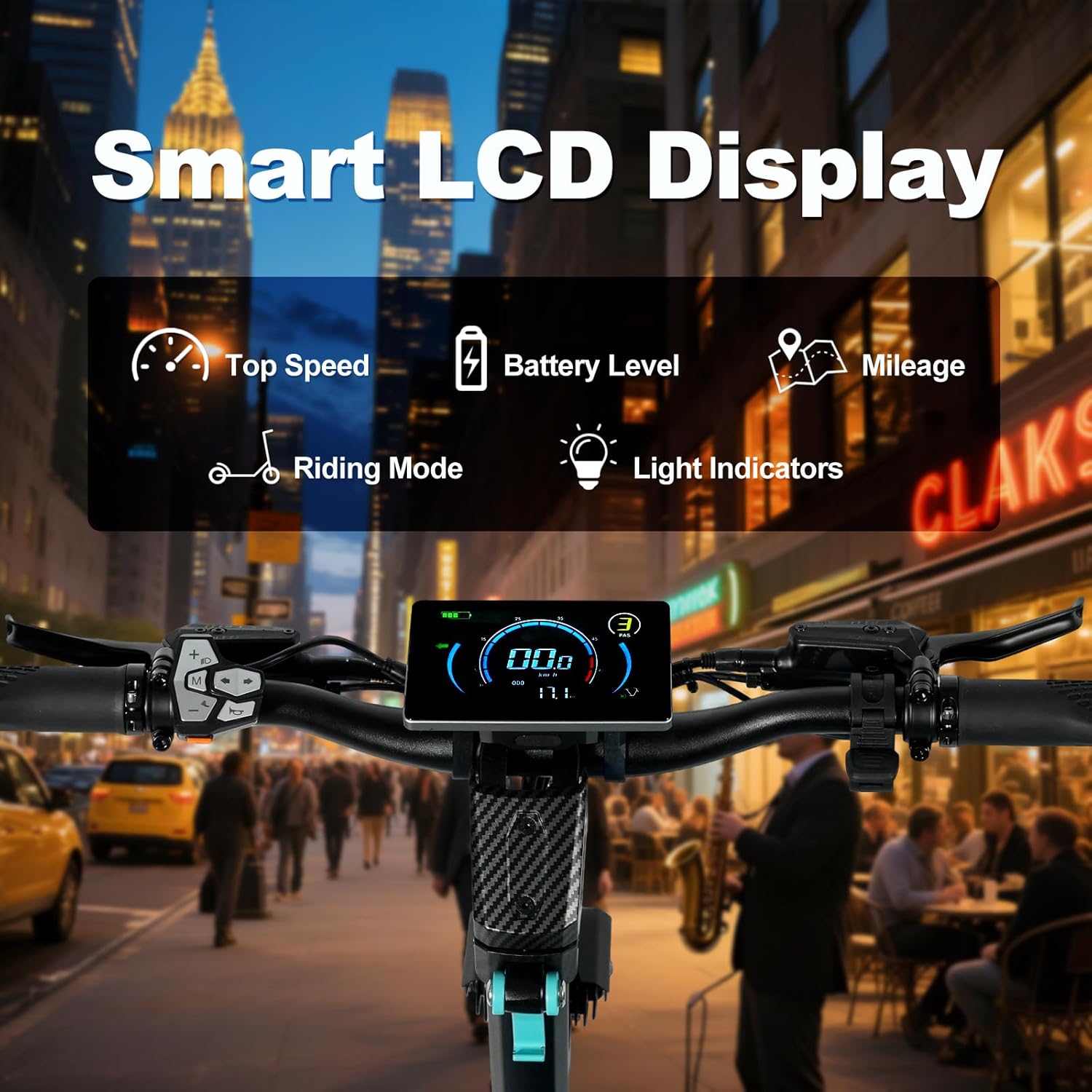

Figure 6: Close-up of the Scoothop BE-3's smart LCD display.

Figure 7: Graphic illustrating the Scoothop BE-3's high-capacity 60V 30Ah battery.

Figure 8: Visual breakdown of the Scoothop BE-3's comprehensive lighting system.

Figure 9: Diagram showing the Scoothop BE-3's dual oil brakes and dual shock absorbers.

4. Enstalasyon

Before your first ride, some initial setup is required.

4.1 Debalaj ak Asanble

1. Ak anpil atansyon retire tout eleman nan anbalaj la.
2. Unfold the scooter frame. Ensure the folding mechanism is securely locked.
3. Attach the handlebars to the stem. Use the provided wrench to tighten all bolts securely.
4. Install any included reflectors as per local regulations.

4.2 Premye Chaj Batri a

For optimal battery life, fully charge the scooter before its first use. Connect the charger to the scooter's charging port and then to a power outlet. The charging time is approximately 11-13 hours for a full charge.

5. Operasyon Enstriksyon

Abitye tèt ou ak kontwòl yo anvan monte.

5.1 Limen/Etenyen

Peze epi kenbe bouton pouvwa a sou ekran LCD a pou limen oswa etenn scooter a.

5.2 Ekran LCD ak Kontwòl

The smart LCD display provides real-time information. Use the control buttons near the handlebar grips to navigate through settings and modes.

• Vitès mòd: The scooter features five speed modes. Use the 'M' button to cycle through these modes, adjusting the maximum speed and power output.
• Kontwòl limyè: Activate the headlamp, taillight, and ambient lights using the designated light button. Turn signals are controlled by separate buttons.
• Seleksyon motè: You can choose to engage the front motor, rear motor, or both for dual-drive performance. Consult the display or specific controls for this function.

5.3 Monte

• Acct: The scooter uses a thumb throttle for acceleration. Apply gentle pressure to increase speed.
• Frenaj: The dual front and rear disc brakes provide strong stopping power. Apply both brake levers simultaneously for effective and controlled deceleration.
• Sispansyon: The advanced suspension system absorbs shocks, providing a comfortable ride even on rough terrain.

6. Antretyen

Regular maintenance ensures the longevity and performance of your scooter.

6.1 Swen Batri

• Avoid completely draining the battery. Charge it regularly, even if not in use for extended periods.
• Do not overcharge the battery. The built-in BMS safety system helps prevent this, but always disconnect the charger once fully charged.
• Sere scooter a nan yon kote ki fre epi sèk, lwen limyè solèy dirèk ak tanperati ekstrèm.

6.2 Tires and Brakes

• Kawotchou: Regularly check the pressure of the 10-inch tubeless tires. Maintain recommended pressure for optimal performance and range. Inspect for wear and tear.
• Fren: Periodically inspect the disc brakes for wear on the pads and rotors. Ensure brake levers operate smoothly and provide adequate stopping power. Adjust or replace components as needed.

6.3 Netwayaj jeneral

Netwaye scooter la ak anonsamp cloth. Avoid using high-pressure water jets directly on electrical components. Do not use harsh chemicals that could damage the finish or components.

NAN. Depanaj

If you encounter issues with your Scoothop BE-3, refer to the following common troubleshooting tips:

• Scooter a pa limen: Check if the battery is charged. Ensure all power connections are secure.
• Rediksyon nan distans oswa puisans: Verify tire pressure. Ensure the battery is fully charged. Riding in colder temperatures or on steep inclines can reduce range.
• Fren yo pa efikas: Inspect brake pads and rotors for wear. Check brake cable tension or hydraulic fluid levels if applicable.
• Bwi etranj: Inspect for loose components, debris in wheels, or issues with the suspension.

For persistent issues or complex repairs, please contact customer support.

8. Espesifikasyon

9. Garanti ak sipò

Scoothop provides a 12-month warranty on motor and battery components from the date of purchase. Additionally, lifetime technical support is available to assist you with any questions or issues you may encounter.

9.1 Kouvèti Garanti

The warranty covers manufacturing defects in the motor and battery. It does not cover damage resulting from misuse, accidents, unauthorized modifications, or normal wear and tear.

9.2 Sipò teknik

For technical assistance, warranty claims, or any other inquiries, please visit the official Scoothop website or contact their customer service department. Please have your model number (BE-3) and purchase information ready when contacting support.
