AGAGA Automatic Window Actuator Opener (300mm WiFi) User Manual

1. Entwodiksyon

This manual provides detailed instructions for the installation, operation, and maintenance of your AGAGA Automatic Window Actuator Opener (300mm WiFi). Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Enfòmasyon sou Sekirite

Obsève prekosyon sekirite sa yo pou evite blesi oswa domaj nan pwodwi a:

• Asire ke ekipman pou pouvwa a dekonekte anvan enstalasyon oswa antretyen.
• Installation should be performed by qualified personnel or under professional supervision.
• Do not operate the device if any part is damaged.
• Kenbe men ak rad ki lach lwen pati k ap deplase yo pandan w ap opere.
• This product is designed for window opening and closing. Do not use it for other purposes.
• Ensure the window is free of obstructions before operation.

3. Pake kontni

Verifye ke tout konpozan yo prezan nan pake a:

• Chain window opener (standard)
• Chain holder (standard)
• Mounting bracket (standard)
• Power supply and remote controller (standard)

Image 1: Main components of the AGAGA Automatic Window Actuator Opener, including the actuator unit, a Tuya-compatible wall switch, and a remote control.

Image 2: The window actuator shown with an alternative remote control and wall switch, alongside examples of its application in various window types, including skylights and standard casement windows.

4. Espesifikasyon

5. Enstalasyon ak Enstalasyon

This section outlines the general steps for installing the window actuator. Specific installation requirements may vary based on window type and mounting surface. Professional installation is recommended.

5.1 Enstalasyon Aktuatè a

1. Detèmine Kote Montaj: Identify a suitable location on the window frame or sash that allows for the full stroke of the actuator without obstruction. Ensure the surface is strong enough to support the actuator's weight and operational forces.
2. Tache Parantèz Montaj: Secure the provided mounting brackets to the window frame and the window sash using appropriate fasteners (not always included, check package). Ensure they are aligned correctly for smooth operation.
3. Monte Aktuatè a: Attach the main actuator unit to the frame-mounted bracket.
4. Connect the Chain: Extend the chain from the actuator and connect it to the chain holder on the window sash. Ensure the chain is securely fastened and allows for the desired window opening angle.

Image 3: An AGAGA Automatic Window Actuator Opener installed on a window frame, with the chain extended and connected to the window sash, demonstrating a typical installation scenario.

5.2 Koneksyon elektrik

• Pwovizyon pou pouvwa: Connect the actuator to an AC220V power source. Ensure all wiring is done according to local electrical codes.
• Koneksyon kontwolè: Connect the Tuya-compatible wall switch and/or the remote control receiver to the actuator's power supply as per the wiring diagram provided with the specific controller.
• Tès: After all connections are made, carefully test the actuator's operation before fully securing all components.

6. Operasyon Enstriksyon

The AGAGA Automatic Window Actuator can be operated via the included remote control or the Tuya-compatible wall switch.

6.1 Sèvi ak kontwòl remote la

• Louvri: Press the "Up" or "Open" button on the remote to extend the chain and open the window.
• Fèmen: Press the "Down" or "Close" button on the remote to retract the chain and close the window.
• Sispann: Press the "Stop" or "Pause" button to halt the window at any desired position.

6.2 Using the Tuya-Compatible Wall Switch

• Louvri: Press the "Open" arrow button on the wall switch to open the window.
• Fèmen: Press the "Close" arrow button on the wall switch to close the window.
• Sispann: Press the "Pause" button (often a circle or square icon) to stop the window's movement.
• Entegrasyon kay entelijan: For Tuya integration, follow the instructions provided with your Tuya smart home application to pair the switch and control the window via your smartphone or voice assistant.

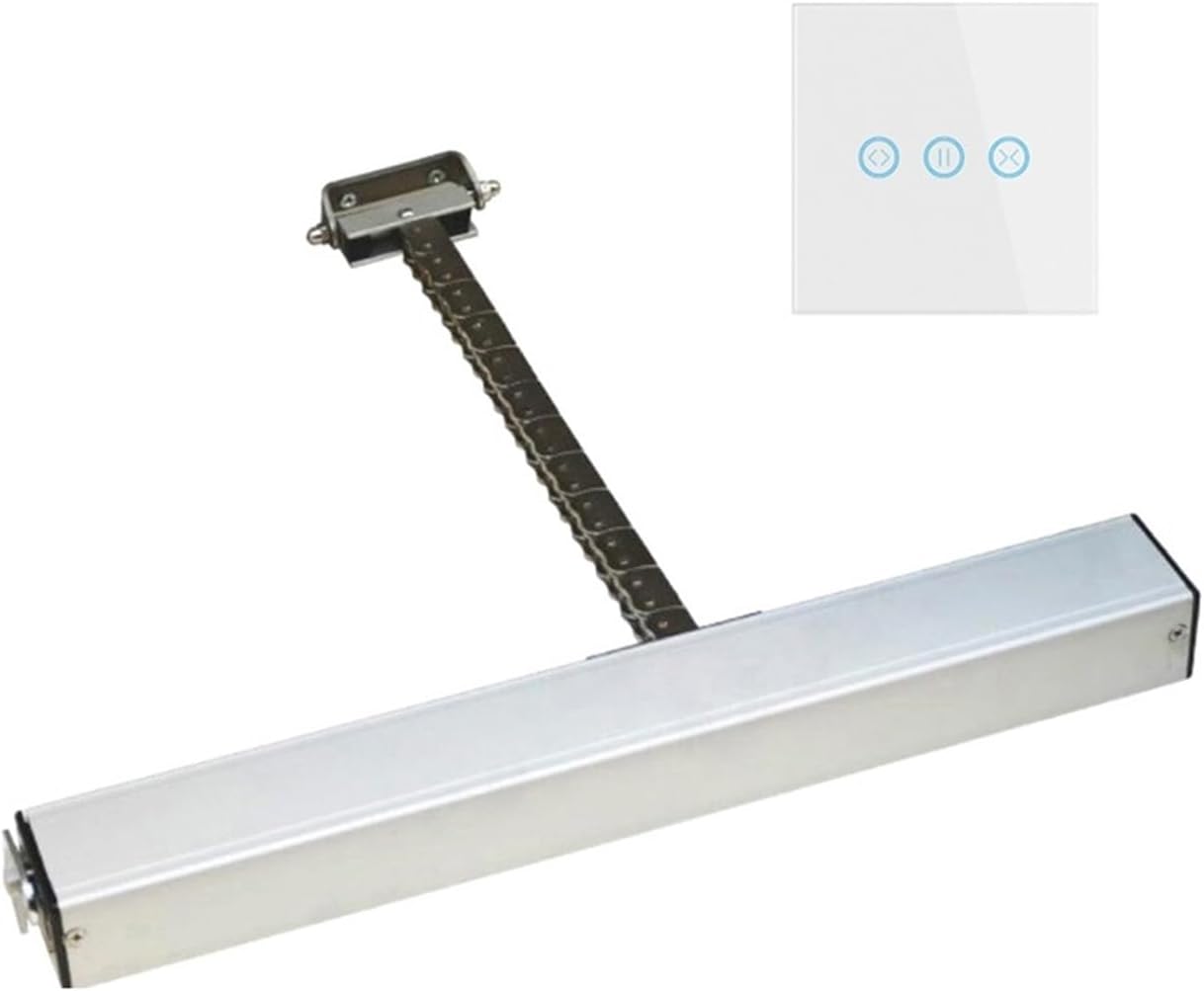

Imaj 4: Yon imaj detaye view of the AGAGA Automatic Window Actuator Opener alongside the Tuya-compatible wall switch, highlighting the control interface.

7. Antretyen

Regular maintenance ensures the longevity and reliable operation of your window actuator.

• Netwayaj: Periodically wipe the actuator and chain with a soft, damp twal. Pa sèvi ak pwodui netwayaj abrazif oswa solvang.
• Enspeksyon: Regularly inspect the chain, mounting brackets, and electrical connections for any signs of wear, damage, or looseness.
• Lubrifikasyon: The chain mechanism is generally self-lubricating. Avoid applying excessive lubricants unless specifically instructed by the manufacturer, as this can attract dust and debris.
• Verifikasyon Obstriksyon: Ensure the window path remains clear of any obstructions that could impede the actuator's movement.

NAN. Depanaj

If you encounter issues with your AGAGA Automatic Window Actuator, refer to the following common problems and solutions:

• Actuator does not respond to remote/switch:
  • Tcheke si ekipman pou pouvwa a konekte epi aktif.
  • Asire w pil kontwòl remote la pa fin itilize.
  • Verify that the remote control or switch is properly paired with the actuator/receiver.
  • Inspect electrical connections for looseness or damage.
• Window does not open/close fully:
  • Check for any physical obstructions preventing the window from moving freely.
  • Inspect the chain for damage or misalignment.
  • Ensure the mounting brackets are securely fastened and correctly aligned.
• Bri dwòl pandan operasyon:
  • Inspect the chain and gears for debris or damage.
  • Ensure the actuator is securely mounted and not vibrating against the frame.
• Overload protection activates:
  • This indicates excessive force is being applied. Check for obstructions or binding in the window mechanism.
  • Reduce the load on the actuator if possible.

Si pwoblèm nan pèsiste apre ou fin eseye solisyon sa yo, kontakte sèvis kliyan.

9. Garanti ak sipò

Specific warranty details are typically provided at the point of purchase or within separate documentation. Please retain your proof of purchase for warranty claims.

For technical support, troubleshooting assistance beyond this manual, or warranty inquiries, please contact your retailer or the manufacturer directly. Refer to the product packaging or the seller's information for contact details.
