1. Pwodwi souview
The Nakamichi TW016 Wireless Earphones offer a premium audio experience with advanced features designed for convenience and high-fidelity sound. These compact and lightweight in-ear earphones utilize Bluetooth 5.4 technology for stable connectivity and include a dedicated game mode for reduced latency. Enjoy clear hands-free calls and extended playback time with the included charging case.
Image 1.1: Nakamichi TW016 Wireless Earphones and Charging Case with Key Features.
Karakteristik kle:
- Konsepsyon kontra enfòmèl ant ak lejè: Each earbud weighs approximately 3g, ensuring comfort during prolonged use. The small charging case fits easily into pockets or small bags.
- Teknoloji Bluetooth 5.4: Equipped with the latest Bluetooth 5.4 chip for enhanced data transfer speed, stable connection, and improved audio-visual synchronization.
- Son Immersion: Features a 13mm dynamic driver unit, delivering balanced sound from deep bass to clear mid-high tones. Supports AAC codec for high-quality audio.
- Clear Hands-Free Calls: Microphones in both earbuds suppress ambient noise, ensuring your voice is transmitted clearly during calls, meetings, or online classes.
- Mòd jwèt: Reduces audio-visual lag for a more immersive gaming experience.
- Lektur pwolonje: Up to 5 hours of music playback on a single charge, extending to approximately 20 hours with the 300mAh charging case.
2. Gid Enstalasyon
2.1 Premye Itilizasyon ak Chaje
Before first use or charging, ensure you remove the protective film from the charging contacts on both earbuds. Place the earbuds back into the charging case to begin charging.
Image 2.1: Remove protective film from earbuds before first use.
2.2 Pairing ak yon Aparèy
- Asire w ke ekoutè yo chaje epi mete yo nan bwat chaje a.
- Louvri kouvèti bwat chaje a. Ekoutè yo ap antre otomatikman nan mòd koneksyon.
- Sou aparèy ou an (telefòn entelijan, tablèt, elatriye), aktive Bluetooth.
- Chèche pou available Bluetooth devices and select "Nakamichi TW016" from the list.
- Yon fwa konekte, w ap tande yon son konfimasyon, epi ekoutè yo ap pare pou itilize.
3. Operasyon Enstriksyon
3.1 Kontwòl manyen
The Nakamichi TW016 earphones feature intuitive touch controls on both earbuds. Refer to the table below for specific functions:
| Kategori Fonksyon | Aksyon | Kontwòl |
|---|---|---|
| Lèktur Klas Mizik | Jwe/Poz | Tap L/R earbud 2 times |
| Previous Track | Tap and hold L/R earbud for 2 seconds | |
| Next Track | Tap and hold L/R earbud for 2 seconds | |
| Jesyon Rele | Reponn Rele | Tap L/R earbud 1 time |
| Fini apèl | Tap L/R earbud 1 time | |
| Rejte apèl | Tap L/R earbud 2 times | |
| Kontwòl Volim | Volim leve | Tap R earbud 1 time |
| Volim desann | Tap L earbud 1 time | |
| Modes & Assistant | Music Mode/Game Mode Toggle | Tap L/R earbud 4 times |
| Aktive Asistan Vwa | Tap L/R earbud 3 times |
3.2 Mòd jwèt
To activate Game Mode, tap either the left or right earbud four times. This mode significantly reduces audio-visual latency, providing a more synchronized and immersive experience for gaming. Tap four times again to switch back to Music Mode.
Image 3.1: Game Mode for reduced latency during gameplay.
3.3 Clear Hands-Free Calling
Both earbuds are equipped with microphones that effectively suppress ambient noise, ensuring your voice is transmitted clearly to the other party. This feature makes the TW016 ideal for stress-free calls, online meetings, and virtual classes, whether you use one or both earbuds.
Image 3.2: Clear Hands-Free Calling with noise suppression.
4. Chaje ak Dire Batri
The Nakamichi TW016 earphones provide extended listening pleasure with their efficient battery system.
4.1 Chaje ekoutè yo ak bwat la
- To charge the earbuds, place them securely into the charging case. Ensure the protective film has been removed from the earbud contacts.
- To charge the charging case, connect it to a power source using the provided USB-C cable. The indicator lights on the case will show the charging status.
4.2 Lavi batri
A single full charge provides approximately 5 hours of music playback for the earbuds. When combined with the fully charged 300mAh charging case, the total playback time extends to approximately 20 hours. This allows for worry-free use throughout the day for music, movies, and gaming.
Image 4.1: Battery life and charging capacity.
5. Antretyen
Proper maintenance ensures the longevity and optimal performance of your Nakamichi TW016 Wireless Earphones.
5.1 Netwayaj
- Netwaye ekoutè yo ak bwat chaje a regilyèman avèk yon twal mou, sèk, epi ki pa gen pousyè.
- Retire tout sir oswa debri ki nan bouch ekoutè yo dousman avèk yon ti bwòs mou oswa yon koton.
- Asire w ke kontak chaje yo sou tou de ekoutè yo ak sou bwat la pwòp epi san pousyè pou kenbe chaj la byen.
- Do not use abrasive cleaners, alcohol, or chemical solvents, as these may damage the product.
5.2 Depo
- Lè w pa ap itilize ekoutè yo, sere yo nan bwat chaje yo pou pwoteje yo kont pousyè, salte ak domaj fizik.
- Store the product in a cool, dry place, away from direct sunlight, extreme temperatures, and humidity.
NAN. Depanaj
If you encounter any issues with your Nakamichi TW016 Wireless Earphones, refer to the following troubleshooting tips:
6.1 Pwoblèm koneksyon
- Ekoutè yo pa konekte ak aparèy la:
Ensure Bluetooth is enabled on your device. Place earbuds back in the case, close the lid, then open it again to re-enter pairing mode. Forget the device from your phone's Bluetooth settings and try pairing again. - Yon sèl ekoutè konekte:
Place both earbuds back into the charging case, close the lid, and then open it again. Ensure both earbuds are charged. Try re-pairing the earbuds with your device.
6.2 Pwoblèm Son
- Pa gen son oswa volim ki ba:
Check the volume levels on both your device and the earbuds. Ensure the earbuds are properly seated in your ears. Clean any debris from the earbud nozzles. - Son tanzantan oswa dekoneksyon:
Ensure you are within the Bluetooth communication range (>10m) of your device. Avoid obstacles between the earbuds and your device. Try disconnecting and reconnecting the Bluetooth connection.
6.3 Pwoblèm chaj
- Ekoutè yo pa chaje:
Ensure the protective film has been removed from the earbud charging contacts. Verify that the earbuds are correctly placed in the charging case. Clean the charging contacts on both the earbuds and the case. - Ka chaje pa chaje:
Ensure the USB-C cable is securely connected to both the case and the power source. Try using a different USB-C cable or power adapter.
7. Espesifikasyon
Detailed technical specifications for the Nakamichi TW016 Wireless Earphones:

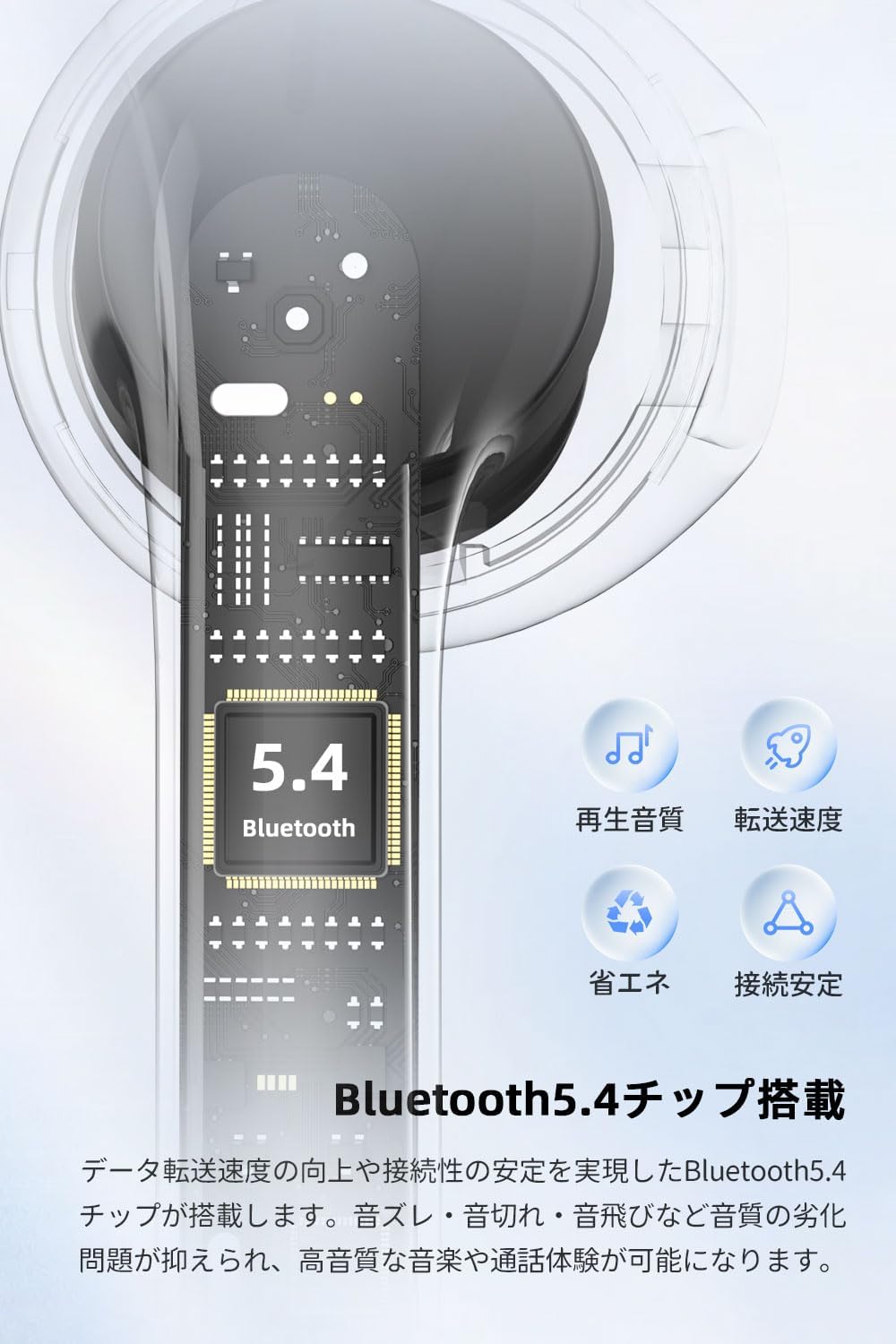

Image 7.1: Bluetooth 5.4 Technology for stable and efficient connection.
| Karakteristik | Spesifikasyon |
|---|---|
| Bluetooth vèsyon | V5.4 |
| Sipò pou Profiles | A2DP, AVCTP, AVRCP, HFP |
| Kodèk sipòte | SBC, AAC |
| Repons Frekans | 20Hz-20KHz |
| Kominikasyon Range | > 10m |
| Gwosè Chofè | 13mm |
| Sansiblite | 117±3dB |
| Enpedans | 32Ω±15% |
| Kapasite batri ekouteur | 35mAh, 3.7V (per earbud) |
| Chaje Ka Batri Kapasite | 300mAh, 3.7V/1.11Wh |
| Antre | DC 5V/0.2A |
| Sòti | DC 5V/300mA |
| Tanperati Fonksyònman | 0 ° C ~ 40 ° C |
| Earbud Pwa | Apeprè 3g (pa ekoutè) |
| Chaje Ka Pwa | Apeprè. 30g |
| Earbud Dimansyon | Apeprè. 31.91 x 17.8 x 16.85mm |
| Chaje Dimansyon Ka | Apeprè. 53 x 24.5 x 47.42mm |
8. Garanti ak sipò
Nakamichi products are manufactured to high standards and undergo rigorous quality checks. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship from the date of purchase. Please refer to the warranty card included in your product packaging for specific terms and conditions.
8.1 Sipò pou Kliyan
If you have any questions, require technical assistance, or need to claim warranty service, please contact Nakamichi customer support through the retailer where you purchased the product or visit the official Nakamichi websit pou enfòmasyon kontak.
Please have your product model number (TW016) and proof of purchase ready when contacting support.
