Entwodiksyon
This manual provides instructions for the Fastrack TIK Tok 5.0 Quartz Analog Watch, model 3330NM01. Please read this manual carefully to understand the functions and proper use of your watch. This timepiece features a distinctive case shape, a slim profile, and a double-layered dial with multifunction movement for day, date, and 24-hour subdials.

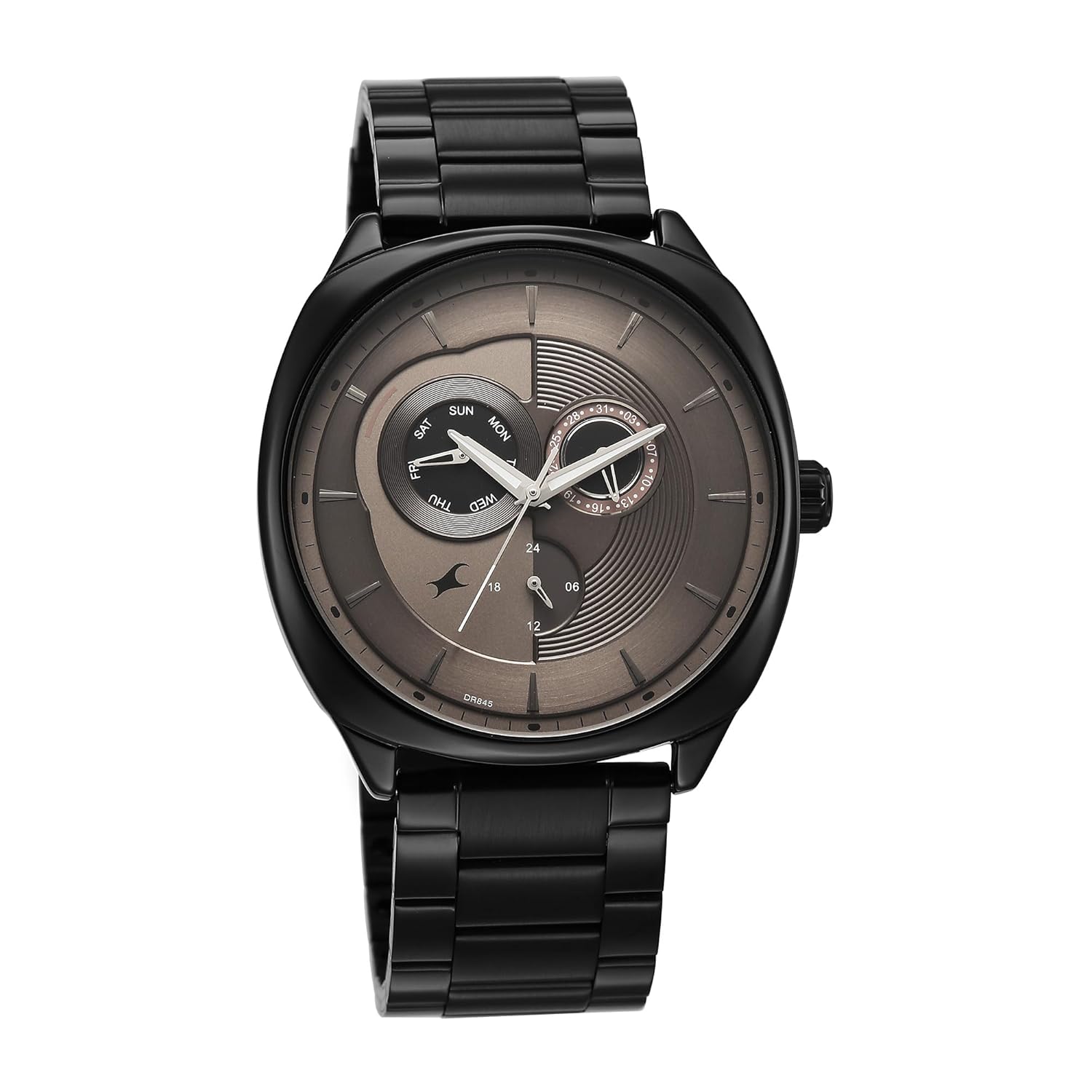

Figi 1: Devan view of the Fastrack TIK Tok 5.0 Quartz Analog Watch.
Enstalasyon ak Ajisteman Inisyal
1. Mete Tan an
- Rale kouwòn lan (ki sitiye sou bò dwat bwat mont lan) jis nan dezyèm pozisyon klik la.
- Rotate the crown to move the hour and minute hands to the correct time. Ensure the 24-hour subdial also aligns correctly if setting AM/PM.
- Pouse kouwòn lan tounen nan pozisyon nòmal li pou kòmanse mont lan.
Figi 2: Side view illustrating the watch crown for adjustments.
2. Fikse Jou a ak Dat la
The watch features day and date subdials. These are typically adjusted via the crown in a different position or using pushers.
- Rale kouwòn lan jis nan premye pozisyon klik la.
- Rotate the crown in one direction to adjust the date. Rotate in the opposite direction to adjust the day. (Note: Some watches may require rotating the crown past 12 AM to change the date, then rotating back to adjust the day. Avoid setting the date between 9 PM and 3 AM to prevent damage to the movement.)
- Once the day and date are set, push the crown back into the normal position.
3. Ajisteman braslè
The stainless steel strap can be adjusted for a comfortable fit. This usually involves removing or adding links. It is recommended to have this procedure performed by a professional watch repair service to avoid damaging the strap or watch.
Itilizasyon Mont Ou a
1. Kontwòl tan debaz
Your Fastrack TIK Tok 5.0 watch operates on a quartz movement, powered by a battery. Once set, the watch will accurately display the time, day, and date.
2. Fonksyon Kronograf
This watch includes a chronograph feature, which functions as a stopwatch. The specific operation of the chronograph (start, stop, reset) typically involves pushers located on the side of the watch case, adjacent to the crown. Refer to the markings on your watch for specific pusher functions.
- Kòmanse/Stop: Press the upper pusher to start and stop the chronograph.
- Reyajiste: Press the lower pusher to reset the chronograph hands to zero when the chronograph is stopped.
3. Rezistans dlo
Your watch is water resistant up to 50 meters (5 ATM). This means it is suitable for everyday use and can withstand splashes, rain, and brief submersion in water. It is pa suitable for swimming, diving, or showering with hot water, as steam and pressure changes can compromise the seals.
Important: Do not operate the crown or pushers when the watch is wet or submerged in water.
Antretyen
1. Netwayaj
To maintain the appearance of your watch, wipe the case and strap regularly with a soft, dry cloth. For stainless steel straps, a slightly damp Ou ka itilize yon twal sèk, epi sèvi ak yon twal sèk. Evite itilize pwodui chimik oswa materyèl abrazif.
2. Ranplasman batri
The quartz movement is powered by a battery. When the watch stops or the second hand begins to skip, it indicates a low battery. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and prevent damage to the movement.
3. Depo
When not wearing your watch, store it in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it away from magnetic fields, which can affect the accuracy of the quartz movement.
Figi 3: Dèyè view of the watch, showing the stainless steel back.
Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Mont lan sispann oswa li mache pa tanzantan. | Batri ki ba. | Ranplase pil la. Konsilte yon teknisyen mont pwofesyonèl. |
| Lè a pa kòrèk. | Crown pulled out; accidental adjustment; magnetic interference. | Push crown fully in. Reset the time. Keep watch away from strong magnetic fields. |
| Date/Day does not change. | Incorrectly set; crown not fully pushed in. | Re-set the date/day. Ensure crown is fully pushed in after setting. |
| Dlo anndan mont lan. | Crown/pushers operated underwater; seals compromised. | Immediately take the watch to a service center. Do not attempt to dry it yourself. |
Espesifikasyon
- Mak: Fastrack
- Modèl: 3330NM01
- Mouvman: Quartz
- Kalite ekspozisyon: Analòg
- Karakteristik espesyal: Chronograph, Day, Date, 24-hour subdial
- Materyèl ka: Nerjaveèi asye
- Materyèl senti: Nerjaveèi asye
- Crystal: Durable Mineral Crystal
- Rezistans dlo: 50 mèt (5 ATM)
- Dimansyon pwodwi: 4.7 x 4.3 x 1 cm
- Pwa atik: 150 g
- Sous pouvwa: Batri Powered
Enfòmasyon sou Garanti
Your Fastrack TIK Tok 5.0 watch comes with a 12-Mwa Garanti from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from improper handling, accidents, unauthorized repairs, or normal wear and tear (e.g., battery, strap, crystal scratches).
For warranty claims or service, please contact Fastrack customer support or an authorized service center. Proof of purchase is required for all warranty services.
Sipò
For further assistance, technical support, or service inquiries regarding your Fastrack TIK Tok 5.0 watch, please refer to the official Fastrack websit oswa kontakte depatman sèvis kliyan yo.
Manifakti: Titan konpayi limite
Enfòmasyon pou kontakte:
- Imèl: corpcomm@titan.co.in
- Telefòn: +91-(0)4344-664199
- Address: #3, Sipcot Industrial Complex, Hosur - 635126, Tamil Nadu, India
Please have your watch model number (3330NM01) and proof of purchase available when contacting support.
