MARS HYDRO iControl Smart Grow Room Controller and Sensor Kit

Entwodiksyon

The MARS HYDRO iControl Smart Grow Room Controller and Sensor Kit provides comprehensive environmental management for your grow tent or room. This system allows for precise control over temperature, humidity, VPD, light intensity (PPFD), CO₂, and soil conditions, ensuring optimal growth environments through automated strategies and remote monitoring.

Figi 1: Plis paseview of the MARS HYDRO iControl system integrated into a grow tent environment, showing the controller, various sensors (light, soil, CO2, humidity, VPD, temperature), and app interface.

Enstriksyon Enstalasyon

1. Debalaj ak Idantifikasyon Konpozan

Carefully unpack all components. Ensure the package contains the iControl unit, power adapter, and any purchased sensors (PPFD, Soil, CO₂). Inspect all items for damage.

2. Connecting the iControl Unit

1. Mount the iControl unit in a suitable location within your grow tent or room, ensuring it is protected from direct water exposure.
2. Connect the power adapter to the iControl unit and plug it into a power outlet.
3. Connect your grow lights, fans, humidifiers, and dehumidifiers to the appropriate ports on the iControl unit or compatible iHub Pro (if applicable). Refer to the device-specific connection diagrams.

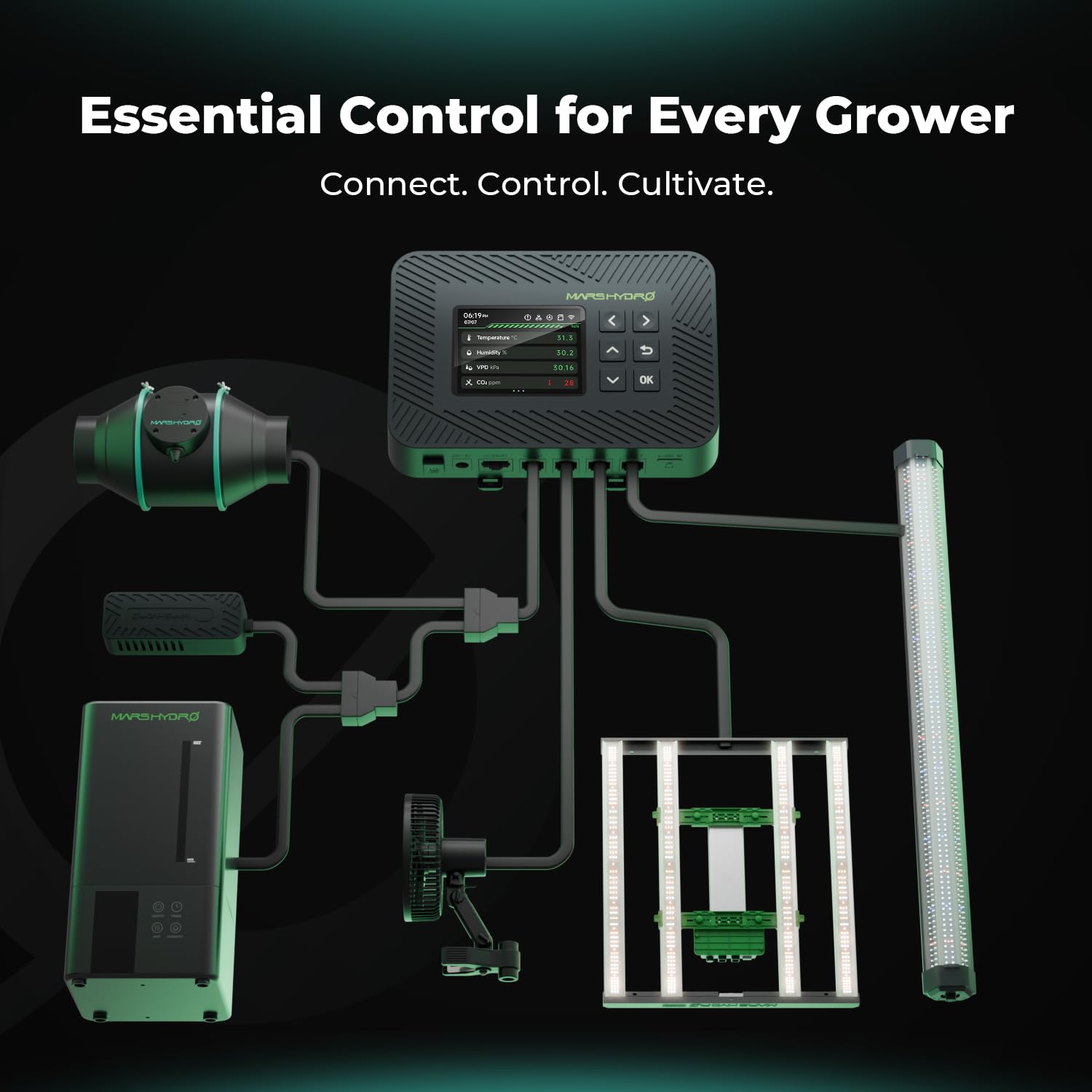

Figure 2: Diagram illustrating the connection points for various grow room devices to the iControl unit.

3. Connecting Optional Sensors

• PPFD Sensor: Connect the PPFD sensor cable to the designated port on the iControl unit. Position the sensor at canopy level to accurately measure light intensity.
• Soil Sensor: Connect the soil sensor cable to its port. Insert the probes into the growing medium, ensuring good contact for accurate temperature, moisture, and EC readings.
• CO₂ Sensor: Connect the CO₂ sensor cable. Place the sensor in a central location within the grow space, away from direct airflow from fans or CO₂ emitters.

4. App Download and Initial Pairing

1. Download the MARS HYDRO iControl app from your mobile device's app store.
2. Follow the in-app instructions to create an account and pair your iControl unit via Wi-Fi. Ensure your mobile device is connected to a 2.4GHz Wi-Fi network during the pairing process.

Enstriksyon Operasyon

1. Environmental-Responsive Control

The iControl system allows you to set target environmental parameters. The controller will automatically adjust connected devices to maintain these conditions.

• Tanperati ak imidite: Set desired temperature and humidity ranges. The iControl will activate fans, humidifiers, or dehumidifiers as needed.
• VPD Monitoring: Monitor Vapor Pressure Deficit (VPD) in real-time. Adjust temperature and humidity settings to optimize VPD for different plant growth stages.

Figure 3: The iControl system managing climate within a grow tent, demonstrating effortless control through the app.

2. Intelligent Stage-Based Automation

Configure automated light and climate strategies for different plant growth stages:

1. Access the 'Scenario' or 'Automation' section in the iControl app.
2. Define parameters (light schedule, temperature, humidity, VPD, CO₂) for each stage (e.g., Seedling, Vegetative, Flowering).
3. Set a timeline for each stage. The system will automatically transition to the next phase based on your preset schedule.

3. Remote App Control, Data Logging & Smart Alerts

• Kontwòl Remote: Manage your grow room settings from anywhere using the iControl app.
• Anrejistre done: The app provides detailed historical data logs for all monitored parameters (temperature, humidity, VPD, PPFD, CO₂, soil conditions). This data can be exported for analysis.
• Alèt entelijan: Configure alerts for critical events such as temperature spikes, low water levels in humidifiers, or disconnected devices. Notifications will be sent to your mobile device.

Figure 4: Remote management of grow environments via the iControl mobile application.

Figure 5: The iControl app's data logging feature, showing historical graphs for various environmental metrics.

4. Sensor-Specific Operations

• PPFD Sensor: Use the app to monitor real-time Photosynthetic Photon Flux Density (PPFD). Set lighting strategies to automatically adjust light output based on desired PPFD levels for different plant stages, optimizing growth and energy efficiency.
• Soil Sensor: The 3-in-1 soil sensor monitors temperature, moisture, and Electrical Conductivity (EC) in real-time. Track these parameters to improve root health and watering/nutrient delivery efficiency.
• CO₂ Sensor: Monitor CO₂ levels in parts per million (ppm). Configure the iControl to trigger a CO₂ generator or ventilation system based on real-time readings to maintain optimal CO₂ concentrations for photosynthesis.

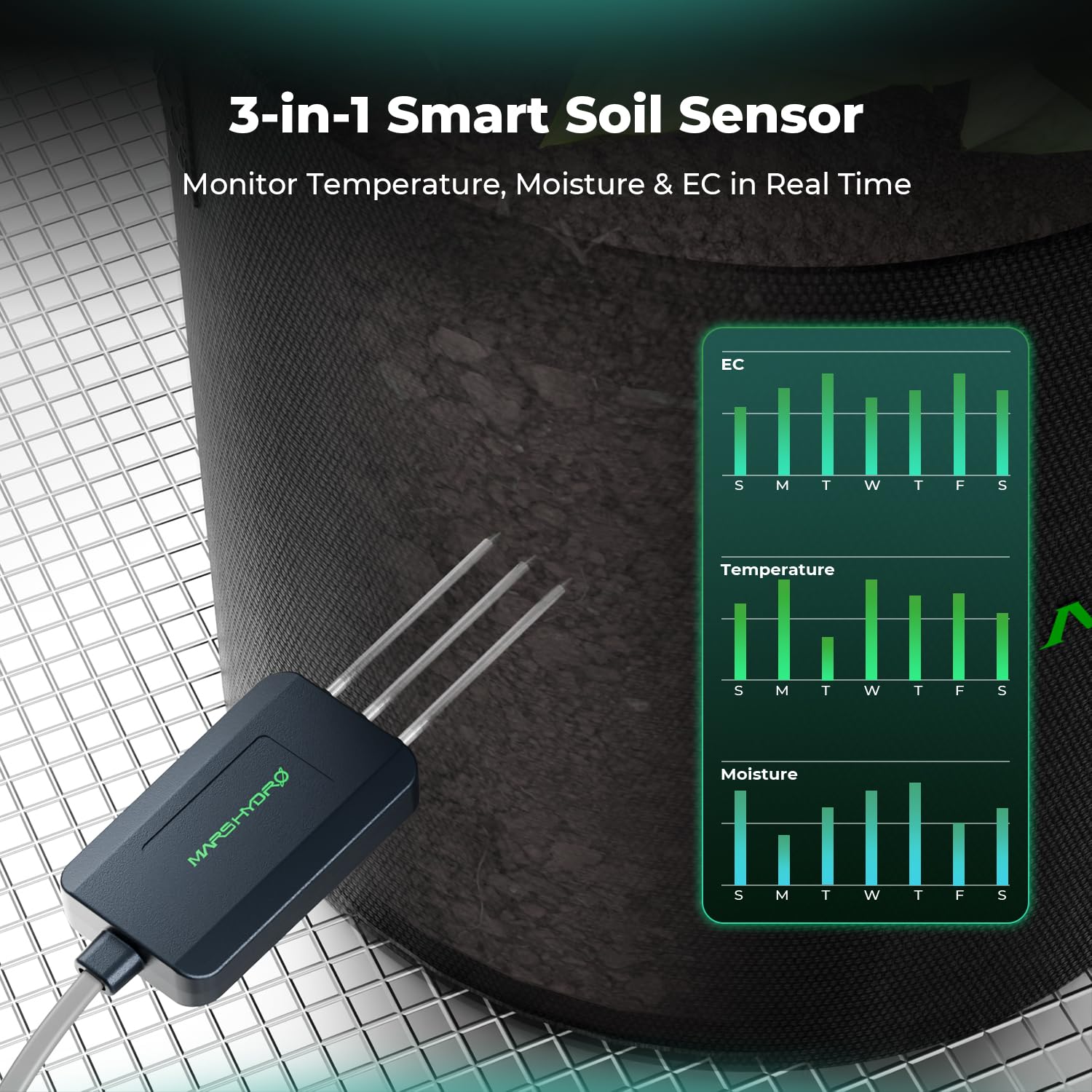

Figure 6: The 3-in-1 Smart Soil Sensor monitoring temperature, moisture, and EC, with corresponding data graphs.

Figure 7: The CO2 sensor in operation, with app interface showing control options for CO2 injection.

Figure 8: The PPFD sensor precisely measuring and controlling grow lights via the app.

Antretyen

• Netwayaj: Periodically wipe the iControl unit and sensors with a dry, soft cloth to remove dust and debris. Do not use harsh chemicals or abrasive materials.
• Kalibrasyon Capteur: Refer to individual sensor manuals for specific calibration procedures, if required. Regular calibration ensures accurate readings.
• Mizajou mikrolojisyèl: Check the MARS HYDRO app regularly for firmware updates for the iControl unit and sensors. Updates often include performance improvements and new features.

Depanaj

• Pa gen pouvwa: Ensure the power adapter is securely connected to the iControl unit and the power outlet. Verify the outlet is functional.
• Pwoblèm Koneksyon: Confirm your Wi-Fi network is active and the iControl unit is within range. Re-pair the device if necessary, ensuring your phone is on a 2.4GHz network during pairing.
• Lekti Capteur ki pa egzak: Check sensor placement and ensure they are clean and free from obstructions. Refer to the sensor-specific instructions for calibration.
• Aparèy ki pa reponn: Verify that connected devices are properly plugged into the iControl or iHub Pro. Check device power and functionality independently.

Espesifikasyon

Garanti ak sipò

For warranty information and technical support, please refer to the official MARS HYDRO websit la oubyen kontakte sèvis kliyan yo dirèkteman. Kenbe resi acha w la pou reklamasyon garanti.
