HUO JI Z-11 Wireless Mechanical Gaming Keyboard User Manual

1. Entwodiksyon

Thank you for choosing the HUO JI Z-11 Wireless Mechanical Gaming Keyboard. This keyboard offers versatile connectivity options, customizable features, and a durable design for an enhanced typing and gaming experience. Please read this manual carefully to ensure proper setup and operation.

Image 1: HUO JI Z-11 Wireless Mechanical Gaming Keyboard overview.

Pwodwi souview Videyo

Videyo 1: Videyo sa a bay yon vizyon souview of the HUO JI Z-11 Wireless Mechanical Keyboard, demonstrating its design, keycaps, and the functionality of the control knob.

2. Enstalasyon

2.1 Konpozan ki enkli yo

• HUO JI Z-11 Wireless Mechanical Gaming Keyboard
• USB Kalite-C kab
• 2.4GHz USB Reseptè
• Two-in-one Key Puller / Switch Puller
• 2x Replacement Red Switches

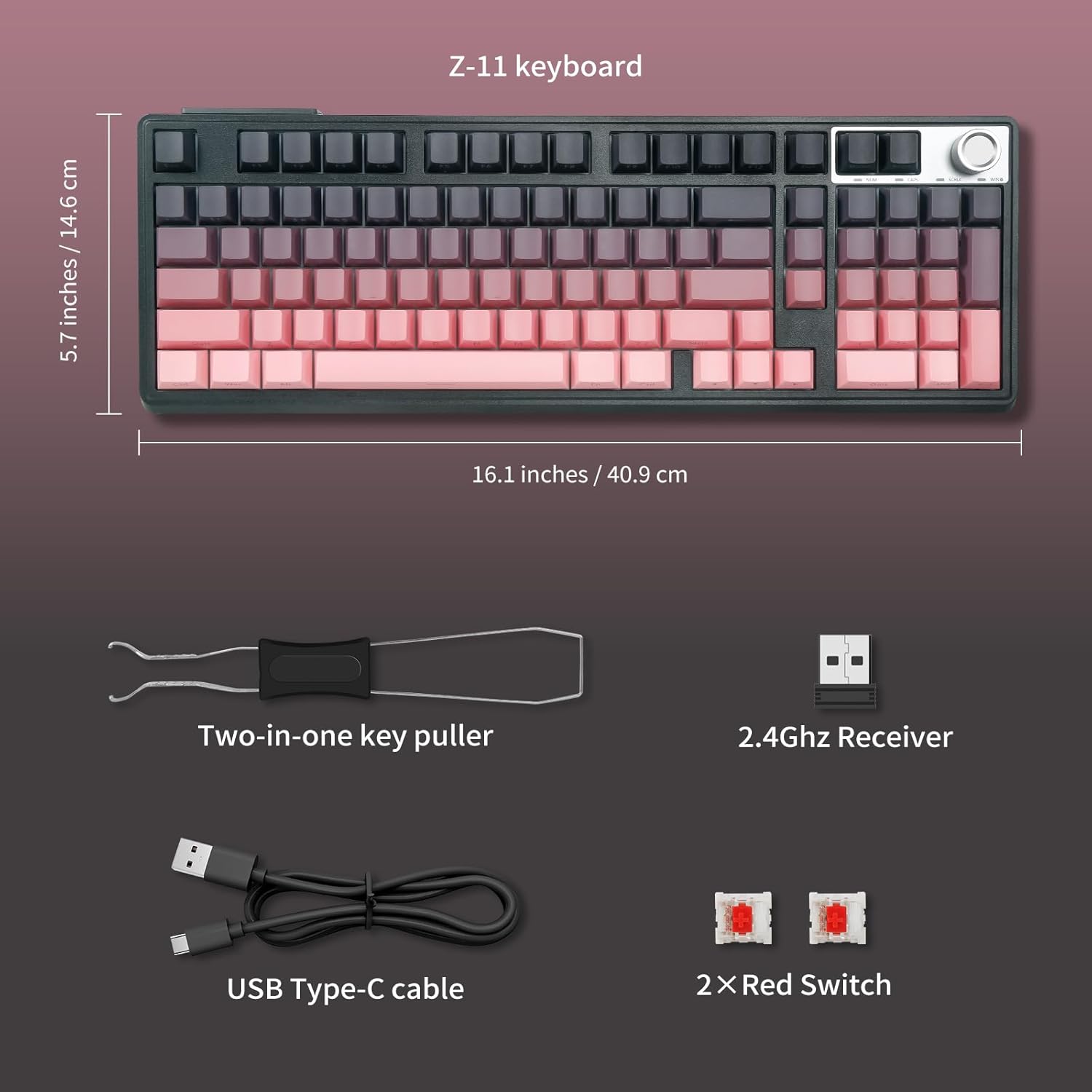

Image 2: The Z-11 keyboard and its included accessories, such as the USB-C cable, 2.4GHz receiver, key puller, and spare switches.

2.2 Mòd Koneksyon

The Z-11 keyboard supports three connection methods: Bluetooth 5.0, 2.4GHz wireless, and USB-C wired. You can connect to up to five devices simultaneously and switch between them using FN+ combination keys.

Image 3: Visual representation of the keyboard's tri-mode connection capabilities.

2.2.1 Mòd san fil 2.4GHz

1. Locate the 2.4GHz USB receiver stored in the compartment on the back of the keyboard.
2. Slide the power switch on the keyboard to the 'ON' position.
3. Ploge reseptè USB 2.4GHz la nan yon pò USB ki disponib sou òdinatè w lan.
4. Peze FN + R on the keyboard to switch to 2.4GHz wireless mode. The indicator light will confirm the connection.

Image 4: The keyboard's adjustable feet and the convenient storage for the 2.4GHz USB receiver.

2.2.2 Bluetooth mòd

1. Slide the power switch on the keyboard to the 'ON' position.
2. Peze FN+Q, FN + W, oswa FN + E to select one of the three Bluetooth channels. The corresponding key will flash, indicating pairing mode.
3. Sou aparèy ou an (òdinatè, tablèt, telefòn entelijan), aktive Bluetooth epi chèche nouvo aparèy.
4. Select "HUO JI Z-11" from the list of available devices to pair. The flashing light will become solid once connected.
5. Pou chanje ant aparèy Bluetooth ki asosye yo, peze FN + Q/W/E.

2.2.3 USB-C Wired Mode

1. Connect the provided USB Type-C cable to the keyboard's USB-C port.
2. Konekte lòt bout kab USB a nan yon pò USB ki disponib sou òdinatè w lan.
3. Peze FN + T to switch to USB-C wired mode. The keyboard will be ready for use.

3. Operasyon Enstriksyon

3.1 Fonksyon debaz

The Z-11 keyboard features a 96% layout with 98 keys, including a dedicated number pad and arrow keys. All keys support anti-ghosting for simultaneous input without conflicts.

3.2 Miltimedya ak Rakoursi Kle

The keyboard includes 12 multimedia key shortcuts accessible via the FN kle:

Image 5: Detailed guide for FN key functions on both Windows and Mac OS.

3.3 Kontwòl ekleraj

The keyboard features multiple rainbow backlight and sidelit lighting effects. Use the following combinations to control the lighting:

• FN + \|: Switch between different lighting modes.
• FN + ↑ / ↓: Ajiste klète limyè dèyè a.
• FN + ← / →: Adjust lighting effect speed.
• FN + espas: Aktive/dezaktive limyè dèyè a.
• FN + R + Ctrl: Switch sidelit lighting on/off.

Image 6: The keyboard showcasing its multiple LED backlighting options and control functions.

3.4 Control Knob Functionality

The multi-function knob on the keyboard allows for quick control of multimedia and lighting settings.

• Peze epi kenbe bouton an pou 3 segonn to switch between Multimedia Mode and Lighting Control Mode.
• In Multimedia Mode:
  • Click the knob to mute/unmute audio.
  • Rotate the knob to adjust volume (Volume+ / Volume-).
• In Lighting Control Mode:
  • Click the knob to switch between lighting effects.
  • Rotate the knob to adjust backlight brightness (Brightness+ / Brightness-).

Image 7: The control knob and its dual functionality for managing audio and lighting settings.

4. Personnalisation

4.1 Switch ki ka ranplase a cho

The Z-11 keyboard features a hot-swappable PCB, allowing you to easily replace 3-pin mechanical switches without soldering. This enables customization of your typing feel.

1. Use the included switch puller to carefully remove the keycap.
2. Insert the switch puller's prongs into the two clips on the top and bottom of the switch.
3. Gently squeeze the clips and pull the switch upwards to remove it.
4. Align the pins of the new 3-pin switch with the holes on the PCB.
5. Press the new switch firmly until it clicks into place. Ensure it is seated correctly to avoid bent pins.
6. Ranplase kouvèti kle a.

Image 8: Illustration of the hot-swappable red switches and the process of replacement.

4.2 Kap kle yo

The keyboard features double-shot injection PBT keycaps with gradient colors and side-engraved legends. These keycaps are designed for durability, resistance to fading, and a soft touch.

5. Antretyen

5.1 Batri Chaje

The keyboard has a built-in 4000mAh rechargeable battery. Connect the USB Type-C cable to the keyboard and a power source (e.g., computer USB port, USB wall adapter) to charge. A full charge provides approximately 30 hours of use with backlighting ON or 200 hours with backlighting OFF.

Image 9: Battery life estimates for the 4000mAh rechargeable battery.

5.2 Auto Power Saving

To conserve battery life, the keyboard will automatically turn off its backlight after 1 minute of inactivity in wireless mode. Press any key to wake up the keyboard.

Image 10: The auto power saving function helps extend battery life.

5.3 Netwayaj

Pou netwaye klavye ou a, siye kouvèti kle yo ak chasi a dousman ak yon twal mou.amp cloth. For deeper cleaning, remove keycaps using the provided key puller and clean underneath. Avoid using harsh chemicals or abrasive materials.

NAN. Depanaj

• Klavye a pa reponn:
  • Asire w ke klavye a limen.
  • Check the connection mode (Bluetooth, 2.4GHz, or wired) and ensure it matches your device's connection.
  • For wireless modes, ensure the battery is charged.
  • Try reconnecting the USB receiver or re-pairing the Bluetooth connection.
  • Test in wired mode to rule out wireless interference.
• Kle yo pa anrejistre oswa yo tape de fwa:
  • Ensure switches are properly seated. If a switch feels loose, remove the keycap and gently press the switch down until it clicks.
  • Consider replacing the affected switch with one of the spare switches provided.
• Limyè dèyè a pa fonksyone oswa li pa konsistan:
  • Check backlight settings using FN + ↑ / ↓ for brightness and FN + \| for modes.
  • Asire w ke limyè dèyè a pa etenn (FN + espas).
• Pwoblèm koneksyon Bluetooth:
  • Ensure the keyboard is in Bluetooth pairing mode (FN + Q/W/E).
  • Forget the device on your computer/device and re-pair.
  • Asire w ke Bluetooth aparèy ou an aktive epi ou ka dekouvri li.
• Pwoblèm koneksyon 2.4GHz:
  • Ensure the USB receiver is securely plugged in.
  • Eseye yon pò USB diferan.
  • Ensure the keyboard is in 2.4GHz mode (FN + R).

7. Espesifikasyon

8. Garanti ak sipò

This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact the retailer. For technical support, product inquiries, or warranty claims, please contact HUO JI customer service through the official websit entènèt la oswa platfòm acha ou a.

We recommend registering your product to receive updates and support.
