ANCEL DS500BT Bidirectional OBD2 Scanner User Manual

1. Entwodiksyon

This manual provides detailed instructions for the operation and maintenance of your ANCEL DS500BT Bidirectional OBD2 Scanner. Please read this manual thoroughly before using the device to ensure proper function and to prevent damage. The ANCEL DS500BT is a professional diagnostic tool designed for comprehensive vehicle system analysis, offering advanced diagnostic and maintenance functions.

2. Ki sa ki nan bwat la

Verify that all items are present upon unboxing your ANCEL DS500BT. If any items are missing or damaged, please contact customer support.

• 1 x 7-inch Tablet - DS500BT OBD2 Scanner
• 1 x TIP-C kab
• 1 x 3-in-1 Charger (Compatible with US, UK, and EU power sockets)
• 1 x Gid Quick Start
• 1 x ka

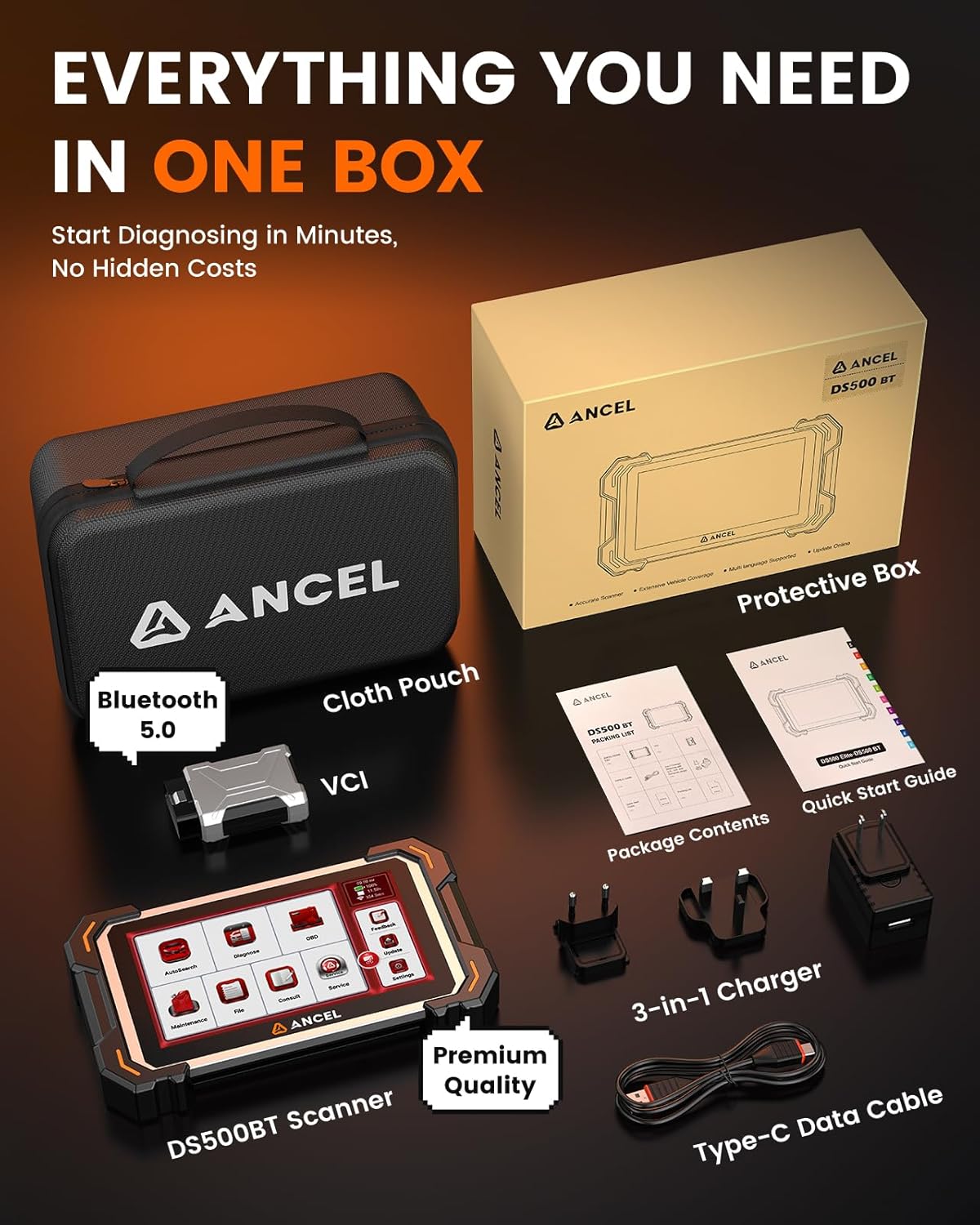

Image: The ANCEL DS500BT scanner and its accessories, including the VCI module, charging cable, power adapter, and carrying case.

3. Enstriksyon Enstalasyon

3.1 Limen ak Konfigirasyon Inisyal

1. Peze epi kenbe bouton pouvwa a pou limen aparèy la.
2. Select your preferred language from the initial setup screen.
3. Connect the device to a stable Wi-Fi network by entering the password. A Wi-Fi connection is necessary for software updates and accessing online features.
4. Review and agree to the terms of service to proceed.

3.2 Vehicle Communication Interface (VCI) Connection

The DS500BT utilizes a Bluetooth 5.0 VCI module for wireless communication with your vehicle, offering a reliable range of up to 10 meters (33 feet).

1. Jwenn pò OBD2 machin ou an, anjeneral anba tablodbò a sou bò chofè a.
2. Insert the VCI module firmly into the OBD2 port.
3. Ensure the VCI indicator light on the scanner confirms a stable communication status.
4. The scanner will automatically attempt to connect to the VCI module via Bluetooth.

Image: A visual comparison highlighting the wireless Bluetooth VCI connection of the DS500BT for enhanced mobility, contrasting it with a traditional wired scanner.

4. Operasyon Enstriksyon

4.1 Auto VIN Function

The Auto VIN function automatically identifies your vehicle's make, model, and year upon connection, streamlining the diagnostic process. For vehicles not automatically recognized, a manual selection option is available.

4.2 Eskane Sistèm Konplè

Perform a comprehensive scan of all available vehicle systems, including Engine, Transmission, ABS, SRS, TPMS, BMS, and more, to identify fault codes and retrieve live data from various electronic control units (ECUs).

Image: A visual representation of the full system scan capability, showing how the DS500BT accesses data from multiple vehicle modules.

4.3 Diagnostic Trouble Codes (DTC) Management

The scanner reads and clears Diagnostic Trouble Codes (DTCs) from all accessible systems. It provides detailed descriptions of fault codes, assisting in accurate problem identification. After repairs, clear the DTCs to turn off warning lights.

Image: The ANCEL DS500BT screen showing options for reading warning codes, resetting fault lights, and verifying parts with testing.

4.4 Difizyon Done An Dirèk

View real-time data parameters from the vehicle's sensors and modules. The DS500BT supports a 4-in-1 graphical display for comparing multiple data streams simultaneously, aiding in performance analysis and intermittent issue diagnosis.

4.5 Preparasyon I / M

Check the readiness status of various emission-related monitoring systems to determine if the vehicle is ready for an emissions test. This function helps identify if any monitors are incomplete or not supported.

4.6 28+ Maintenance Reset Functions

The DS500BT supports over 28 special reset functions for various vehicle maintenance tasks. These functions allow you to perform professional-level services typically found in workshops.

• Reset lwil oliv: Reyajiste limyè sèvis lwil la apre yon chanjman lwil.
• Reyajisteman BMS: Registers a new battery after replacement.
• TPMS Reyajiste: Resets TPMS after tire pressure adjustments or replacements.
• Rejenerasyon DPF: Manages Diesel Particulate Filter regeneration.
• Senyen nan ABS: Removes air from the brake system.
• Reyajisteman SAS: Resets the Steering Angle Sensor.
• Reyajisteman EPB: Retracts the Electronic Parking Brake for brake pad replacement.
• Kodaj enjektè: Kode nouvo nimewo enjektè yo nan ECU a.
• Aprantisaj Ekipman: Relearns crankshaft and camshaft position correlation.
• Reyajisteman sak lè a: Resets the airbag system after repair or replacement.

Note: The availability of specific reset functions varies by vehicle make, model, and year.

Image: A visual guide to the various maintenance reset functions supported by the DS500BT, including oil reset, BMS reset, TPMS reset, ABS bleeding, and injector coding.

4.7 Kontwòl Bidireksyonèl (Tès Aktif)

The bidirectional control feature allows the scanner to send commands to vehicle systems and components to test their functionality directly. This helps in pinpointing the root cause of issues by actively verifying component response.

• Kontwòl limyè: Test vehicle lighting systems.
• Wiper Adjustment: Activate and adjust windshield wipers.
• Kontwòl Fenèt: Open and close vehicle windows.
• Fuel Injector Test: Test the operation of fuel injectors.
• Starting Fuel Pump: Activate the fuel pump for testing.

Note: Available tests vary by vehicle make, model, and configuration.

Image: A visual representation of the bidirectional control capabilities, showing the scanner sending commands to various vehicle components for testing.

4.8 CAN FD Protocol Support

The DS500BT supports the CAN FD (Controller Area Network Flexible Data-rate) protocol, enabling high-speed data transmission and compatibility with newer vehicle models that utilize this advanced communication standard. This ensures future-proofing of your diagnostic capabilities.

Image: An illustration explaining the benefits of CAN FD protocol support, including faster data transfer and compatibility with modern vehicles.

5. Antretyen

5.1 Mizajou lojisyèl

The ANCEL DS500BT comes with lifetime free software updates. Regularly check for and install updates to ensure compatibility with the latest vehicle models and access new features and diagnostic improvements. Connect the device to a Wi-Fi network and navigate to the 'Update' section in the main menu to check for available updates.

Image: A screenshot of the update interface on the DS500BT, indicating the process for downloading and installing software updates.

5.2 Swen Jeneral

• Kenbe aparèy la pwòp epi san pousyè ak imidite.
• Evite lage aparèy la oswa ekspoze li nan tanperati ekstrèm.
• Sèvi sèlman ak chargeur ak kab yo bay yo.

NAN. Depanaj

If you encounter issues with your ANCEL DS500BT, consider the following:

• Aparèy pa soumen: Ensure the device is fully charged or connected to the charger.
• Pa gen kominikasyon ak machin nan: Verify the VCI module is securely connected to the OBD2 port and the vehicle's ignition is on. Check the VCI indicator light.
• Pwoblèm koneksyon Wi-Fi: Ensure the Wi-Fi network is active and the password is correct. Try restarting the device and your Wi-Fi router.
• Software errors: Ensure your software is up to date. If issues persist, contact customer support.

7. Espesifikasyon

8. Garanti ak sipò

8.1 Mizajou gratis pou tout lavi

The ANCEL DS500BT includes genuine lifetime free software updates, ensuring continuous enhancements and compatibility with new vehicle models without additional subscription costs.

8.2 Limit responsabilite nou legal

The vehicle brand name or logo on the detail page is only to describe the product is compatible with one or more specific vehicles. We are not selling products manufactured/sold specific vehicles. The special reset and system functions vary for each car model due to different modules. If you are unsure about compatibility, please provide the car make, year, model, and VIN to customer service for confirmation before purchasing. The number of action tests varies depending on the vehicle model. If you need further information on whether your car supports certain active tests, please contact us.

8.3 Sipò pou Kliyan

For technical support, product information, or after-sales service, please contact ANCEL customer service. You can typically find contact information in the device's 'Service' or 'Consult' menu, or through the official ANCEL websit.
