ICARZONE MA200 V6 OBD2 Scanner User Manual

1. Pwodwi souview

The ICARZONE MA200 V6 is an advanced OBD2 diagnostic scanner designed for comprehensive vehicle analysis. It provides access to professional-level diagnostics, allowing users to read and clear fault codes across various vehicle systems, perform essential maintenance services, and monitor live data. This tool is suitable for home mechanics, DIY enthusiasts, and professionals seeking detailed vehicle insights.

Karakteristik kle:

• Full System Diagnostics (Engine, ABS, SRS, Transmission, etc.)
• 6 Essential Maintenance Services (Oil Reset, EPB, SAS, TPMS, DPF, BMS)
• Full OBDII Functions (Read/Clear Codes, Live Data, I/M Readiness, etc.)
• Battery Test Functionality
• Lifetime Free Software Updates

Konpatibilite: The MA200 V6 is designed for most car models from the following manufacturing groups: BMW, BENZ, PORSCHE, VAG (Audi, Volkswagen, Bentley, Bugatti, Lamborghini, Seat, Skoda), JLR (Land Rover, Jaguar), and VOLVO (Volvo, Saab). Specific compatible brands include Porsche, Benz, Sprinter, Smart, Maybach, Land Rover, Jaguar, BMW, MINI, Rolls Royce, Volvo, Saab, Audi, Volkswagen, Bentley, Bugatti, Lamborghini, Seat, Skoda, MAN LD, Volkswagen CV, and Volkswagen LT3.

Nòt: Compatibility varies by vehicle make, model, and year. Please provide your car's VIN number for a precise compatibility check before use.

Image 1.1: The MA200 V6 scanner is compatible with a wide range of vehicles from major manufacturing groups.

2. Ki sa ki nan bwat la

Lè w ap ouvri pake a, asire w ke tout bagay sa yo la:

• MA200 V6 Main Device
• Bwat anbalaj
• Sak Depo pòtab
• PC Connecting Cable (USB)
• TF Card (contained within the device)
• Lektè kat TF
• Manyèl Itilizatè a (dokiman sa a)

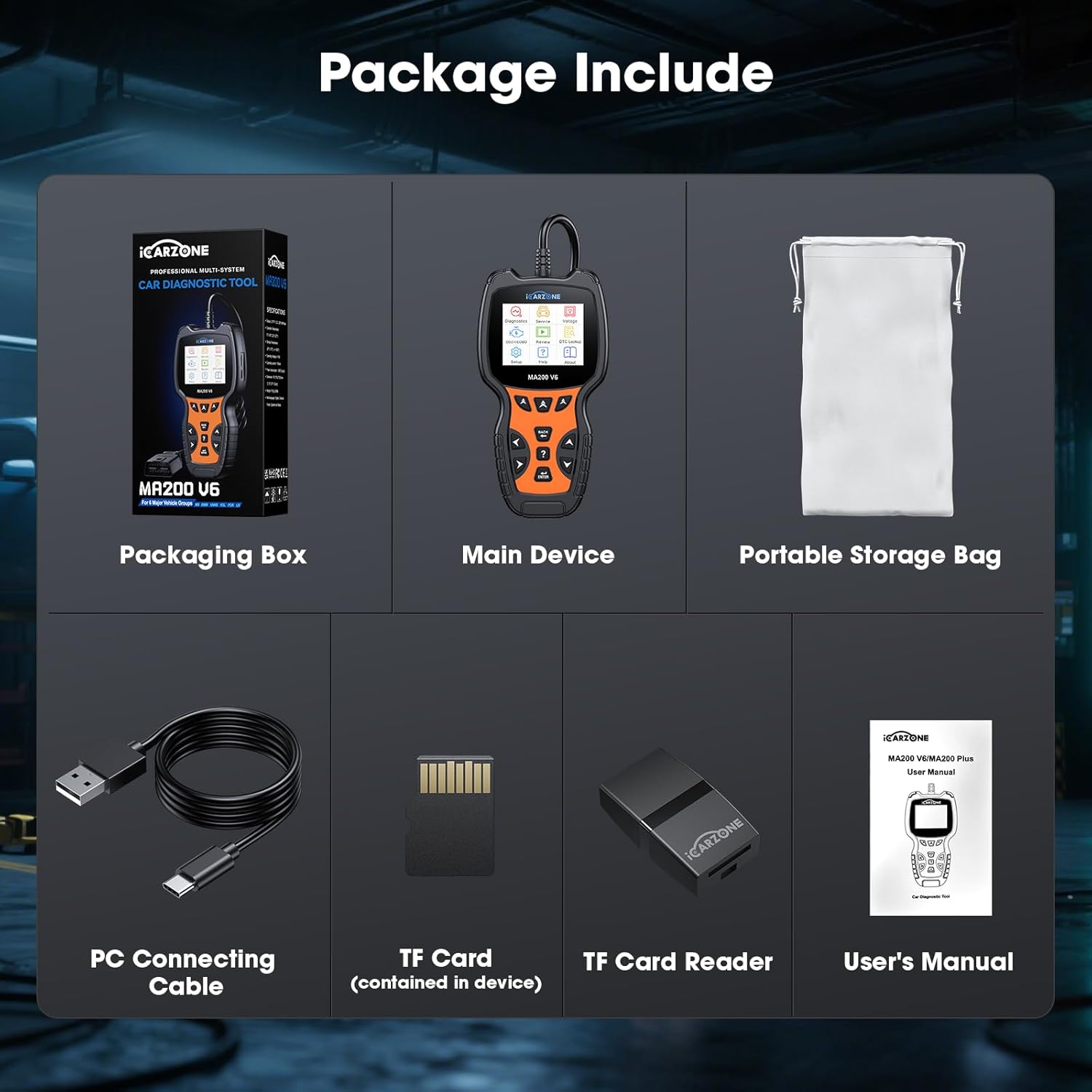

Image 2.1: All components included in the MA200 V6 product package.

3. Enstriksyon Enstalasyon

Follow these steps to set up and begin using your MA200 V6 OBD2 Scanner:

1. Jwenn pò OBD2 a: Pò OBD2 a tipikman sitiye anba tablodbò a sou bò chofè machin nan. Gade manyèl pwopriyetè machin ou an si ou pa ka jwenn li.
2. Konekte eskanè a: Plug the MA200 V6's diagnostic cable connector firmly into the vehicle's OBD2 port. The scanner receives power directly from the vehicle's port, so no external batteries are required.
3. Pouvwa sou: Once connected, the scanner will automatically power on. If it does not, ensure the vehicle's ignition is in the 'ON' position (engine can be off).
4. Premye konfigirasyon: Follow any on-screen prompts for initial language selection or system configuration.

4. Operasyon Enstriksyon

This section details the primary functions and how to operate your MA200 V6 scanner.

4.1. Full System Diagnostic

The MA200 V6 can access and diagnose various electronic control units (ECUs) within your vehicle, including Engine, Anti-lock Braking System (ABS), Supplemental Restraint System (SRS/Airbag), Transmission, and more. This allows for a comprehensive fault code detection beyond basic engine codes.

1. From the main menu, select "Diagnostics."
2. Choose "Auto Scan" to automatically identify your vehicle and scan all available systems, or select "Control Unit" to manually choose a specific system (e.g., Engine, ABS, SRS).
3. The scanner will display any detected fault codes (DTCs) and their descriptions.
4. You can generate a diagnostic report for review or to share with a repair shop.

Image 4.1: The MA200 V6 provides full system diagnostic capabilities, covering various vehicle modules.

4.2. 6 Maintenance Services

The MA200 V6 offers six commonly used maintenance and reset functions:

• Reset lwil oliv: Reyajiste sistèm lavi lwil motè a apre yon chanjman lwil.
• Reyajisteman EPB (Fren Pakin Elektwonik): Essential for safely replacing brake pads on vehicles with electronic parking brakes.
• Reyajisteman SAS (Capteur Ang Volan): Calibrates the steering angle sensor, crucial for vehicle stability control systems.
• Reyajisteman TPMS (Sistèm siveyans presyon kawotchou): Resets the TPMS system after tire rotation, sensor replacement, or tire pressure adjustment.
• DPF Reset (Diesel Particulate Filter): Initiates the DPF regeneration process to clear blockages in diesel vehicles.
• Reyajisteman BMS (Sistèm Jesyon Batri): Registers a new battery with the vehicle's ECU to ensure proper charging and system function.

Nòt: The availability and specific procedures for these services vary by vehicle model. Please check compatibility for your specific car's VIN.

Image 4.2: The MA200 V6 provides 6 essential maintenance services for routine vehicle care.

4.3. OBDII Full Functions

The MA200 V6 supports all standard OBDII protocols, enabling comprehensive diagnostics for all OBDII-compliant vehicles (typically 1996 and newer in the US).

• Li Kòd: Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes.
• Kòd Klè: Erases Diagnostic Trouble Codes (DTCs) and turns off the Check Engine Light (MIL). Note: Codes can only be permanently cleared after the underlying problem is fixed.
• Kouran Done An Dirèk: Montre done an tan reyèl ki soti nan detèktè machin nan nan fòma tèks oswa graf.
• Preparasyon I/M: Checks the readiness of emission-related monitors, indicating if the vehicle is ready for an emissions test.
• Friz done ankadreman: Shows a snapshot of vehicle operating conditions at the time an emission-related fault occurred.
• Tès Capteur O2: Rekipere rezilta tès monitè detèktè O2 a.
• Tès Monitè Abò: Rekipere rezilta tès pou konpozan ak sistèm motè ki gen rapò ak emisyon.
• Enfòmasyon sou machin: Displays the Vehicle Identification Number (VIN), Calibration ID (CALID), and Calibration Verification Number (CVN).
• Tès batri: Evaluates the vehicle's battery health.

Image 4.3: The MA200 V6 provides a comprehensive suite of OBDII functions for standard diagnostics.

4.4. DTC Recherche

The MA200 V6 includes a built-in DTC library to help you understand the meaning of diagnostic trouble codes.

1. From the main menu, select "DTC Lookup."
2. Enter the specific DTC code you wish to look up.
3. The scanner will display a detailed description of the code, helping you identify potential issues.

Image 4.4: The MA200 V6's DTC library assists in understanding and addressing fault codes.

4.5. Auto VIN Function

The Auto VIN feature automatically identifies your vehicle's VIN for quicker diagnostics setup.

• When prompted during a diagnostic session, select "Auto VIN."
• The scanner will attempt to read the VIN from the vehicle's ECU.

Nòt: Auto VIN may not be applicable to all vehicles. For some cars, you may need to manually enter the VIN to proceed with diagnostics.

5. Antretyen

To ensure optimal performance and longevity of your MA200 V6 scanner:

• Mizajou lojisyèl: The MA200 V6 offers lifetime free software updates. Regularly connect your device to a computer using the provided USB cable and visit the official ICARZONE website to download and install the latest software. This ensures compatibility with newer vehicle models and access to updated features.
• Netwayaj: Siye aparèy la avèk yon twal mou epi sèk. Evite itilize pwodui netwayaj abrazif oswa solvan.
• Depo: Store the scanner in its portable storage bag when not in use to protect it from dust and physical damage.

NAN. Depanaj

If you encounter issues while using your MA200 V6 scanner, refer to the following common problems and solutions:

• Eskanè a pa limen:
  • Ensure the scanner is securely connected to the vehicle's OBD2 port.
  • Verifye ke ignisyon machin nan nan pozisyon 'ON'.
  • Check the vehicle's fuse for the OBD2 port (refer to your vehicle's manual).
• Cannot clear fault codes:
  • Fault codes can only be successfully erased after the underlying mechanical or electrical problem has been fixed. If the issue persists, the code will reappear.
• Auto VIN fails to identify vehicle:
  • Auto VIN is not universally compatible with all vehicles. Try manually entering the VIN when prompted.
• Specific diagnostic or service function not working:
  • The compatibility of advanced functions (like maintenance services) varies significantly by vehicle make, model, and year. Contact ICARZONE support with your vehicle's VIN for a compatibility check.
  • Ensure your scanner's software is up to date.
• "Link Error" or "Communication Error":
  • Verify the OBD2 cable connection is secure.
  • Asire w ke ignisyon machin nan limen.
  • Try the scanner on a different OBDII-compliant vehicle to rule out a vehicle-specific issue.

7. Espesifikasyon

8. Garanti ak sipò

ICARZONE is committed to providing reliable products and excellent customer service.

• Garanti: The MA200 V6 OBD2 Scanner comes with a 1-year brand warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
• Mizajou gratis pou tout lavi: Enjoy lifetime free software upgrades for your device. Regularly check the official ICARZONE website for the latest updates to ensure your scanner remains current with new vehicle models and features.
• Sipò teknik: Lifetime technical support is available for all MA200 V6 users. If you have any questions, encounter issues, or require assistance with specific vehicle compatibility, please do not hesitate to contact our support team.

For support, please visit the official ICARZONE websit la oubyen gade enfòmasyon kontak ki vini ak anbalaj pwodwi a.
