Breezary 65-inch 8-Blade Black Ceiling Fan with Lights and Remote User Manual

1. Pwodwi souview

The Breezary 65-inch 8-Blade Black Ceiling Fan with Lights and Remote is designed to provide efficient air circulation and illumination for various indoor spaces, and covered outdoor areas like patios or porches. This fan features a reversible DC motor for year-round use, 6 wind speeds, and convenient remote control operation. Its industrial/modern/rustic design with dual-finish blades (black and dark walnut) complements diverse decor styles.

This image shows the Breezary 65-inch ceiling fan installed on a covered outdoor patio, demonstrating its suitability for such environments.

This image displays the Breezary 65-inch ceiling fan installed in a modern gym, highlighting its large coverage for spacious areas.

This image features the Breezary 65-inch ceiling fan in a contemporary living room, showcasing its aesthetic integration into home interiors.

2. Enfòmasyon sou Sekirite

• Li tout enstriksyon yo ak anpil atansyon anvan ou kòmanse enstalasyon.
• Disconnect power at the main circuit breaker before installation, cleaning, or maintenance.
• All electrical connections must be in accordance with local codes, ordinances, and the National Electric Code. If you are unfamiliar with proper electrical wiring, consult a qualified electrician.
• Asire w ke kote enstalasyon an ka sipòte pwa vantilatè a.
• Pa pliye pòt-lam yo pandan enstalasyon, balansman, oswa netwayaj.
• Kenbe men ou lwen lam vantilatè a lè vantilatè a ap fonksyone.
• This appliance is intended for indoor use and covered outdoor areas only.

3. Pake kontni

Verifye ke tout konpozan yo prezan anvan ou kòmanse enstalasyon an:

• 1 x 65-inch 8-Blade Black Ceiling Fan Light
• 1 x Remote Controller and Receiver Kit
• 1 x manyèl itilizatè
• 3 x Down Rods (5", 10", 15")

4. Enstalasyon

It is recommended that installation be performed by a qualified electrician for safety and proper function.

4.1 Downrod Selection

Three downrod lengths are provided to accommodate different ceiling heights:

• 5-inch downrod: For lower ceilings.
• 10-inch downrod: Standard length for most installations.
• 15-inch downrod: For higher ceilings.

4.2 Ceiling Compatibility

This ceiling fan is compatible with both flat ceilings and sloped ceilings up to a maximum angle of 12 degrees.

This image illustrates the various downrod lengths (5, 10, 15 inches) and overall fan dimensions. It also shows compatibility with both flat and sloped ceilings (up to 12 degrees).

4.3 Fil elektrik ak aliye

Follow the detailed wiring and mounting instructions provided in the included user manual. Ensure all connections are secure and the fan is properly mounted to a ceiling joist or an outlet box marked 'Acceptable for Fan Support of 35 lbs (15.9 kg) or less'.

5. Operasyon

5.1 Fonksyon kontwòl Remote

The included remote control allows for convenient operation of all fan and light functions:

• Mèt switch: Powers the fan and light on/off.
• Limyè ON/OFF: Controls the integrated light kit.
• Fan Speeds (1-6): Ajiste vitès wotasyon vantilatè a.
• Timer (1H, 2H, 4H, 8H): Sets the fan to turn off automatically after a specified duration.
• Van Natirèl: Simile yon briz natirèl lè li varye vitès vantilatè a.
• Fanatik Avant/Anvers: Chanje direksyon wotasyon lam la.
• Anti-theft Function: (Refer to main manual for specific details on this feature).
• Reta Off: (Refer to main manual for specific details on this feature).

This image displays the remote control and its various functions, including power, light control, fan speed settings, timer options, natural wind mode, forward/reverse fan direction, anti-theft function, and delay off.

5.2 Anviwònman Vitès Vantilatè

The fan offers 6 distinct wind speeds to suit your comfort needs:

• Vitès 1-2: Low, comfortable wind for gentle air movement.
• Vitès 3-4: Medium, natural wind for moderate cooling.
• Vitès 5-6: High, cooling wind for maximum airflow.

This image visually represents the six fan speed settings, categorizing them into low (1-2), medium (3-4), and high (5-6) for different comfort levels.

5.3 Motè DC revèsib

The fan features a reversible DC motor, allowing for year-round use:

• Mòd Ete (Koulè Lè Desann): Press the reverse button on the remote to create a downward airflow, generating a cooling effect.
• Mòd Ivè (Sikilasyon Lè Anlè): Press the reverse button again to create an upward airflow, which helps to circulate warm air trapped near the ceiling, balancing room temperature.

The DC motor operates quietly, with a noise level typically under 30dB.

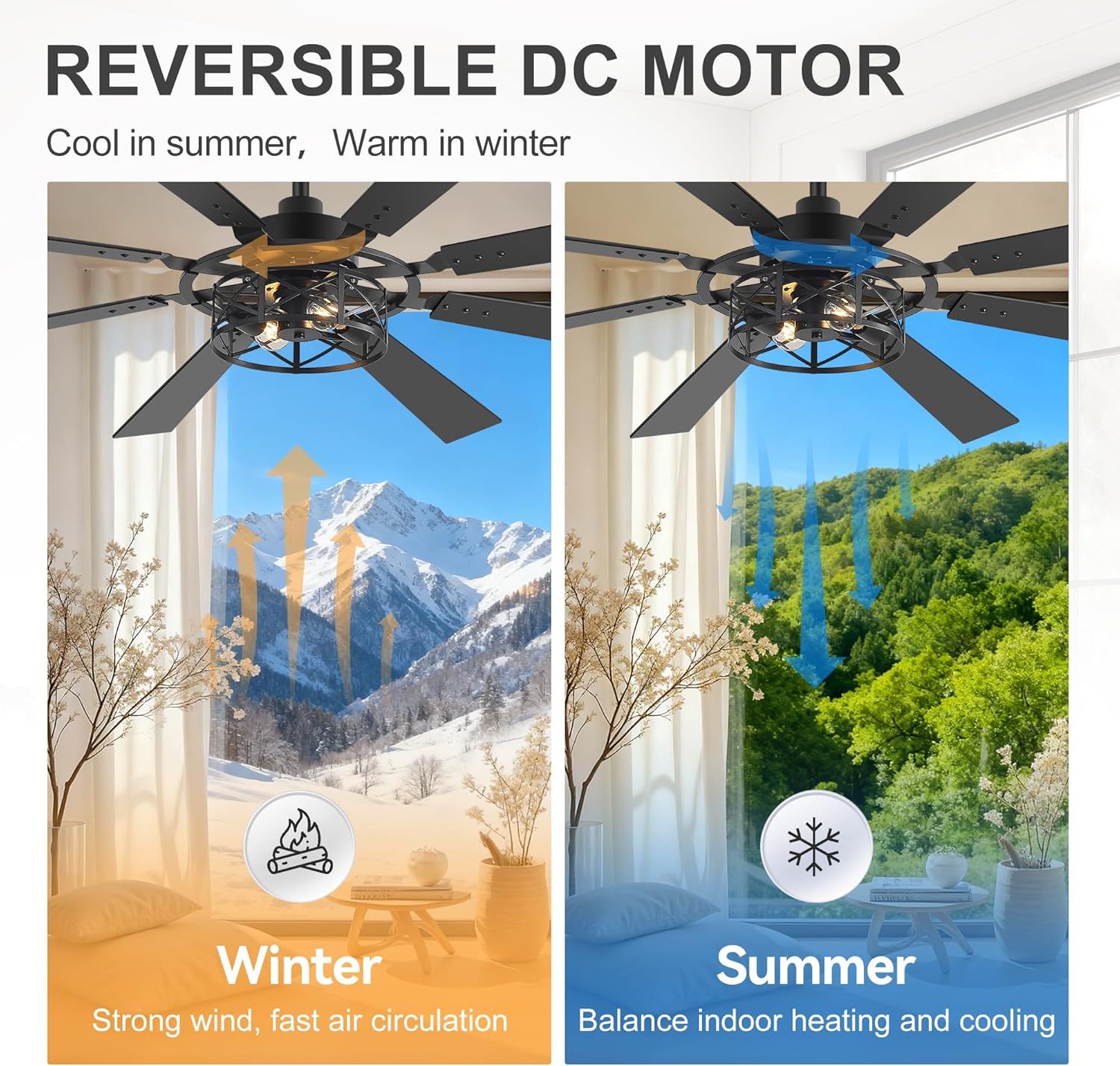

This image illustrates the reversible DC motor function, showing how the fan can circulate cool air downwards in summer and warm air upwards in winter for year-round comfort.

This image highlights the quiet operation of the fan's DC motor, indicating a noise level below 35dB, comparable to a library setting.

6. Antretyen

• Netwayaj: Pou netwaye vantilatè a, siye l ak yon twal mou.amp twal. Pa sèvi ak pwodui netwayaj abrazif oswa pwodui chimik ki agresif, paske sa yo ka domaje fini an.
• Swen lam: Periodically check the blades for dust accumulation. Clean gently to maintain balance and airflow.
• Koneksyon: Regularly inspect all electrical connections and mounting hardware to ensure they remain secure.

NAN. Depanaj

Si ou rankontre pwoblèm ak vantilatè ou a, gade etap depanaj komen sa yo:

• Vantilatè a pa fonksyone:
  • Check that the power supply to the fan is on.
  • Ensure the remote control batteries are installed correctly and are not depleted.
  • Verifye tout koneksyon elektrik yo byen fèm.
• Light Does Not Work:
  • Confirm the light bulbs (E12, not included) are correctly installed and not faulty.
  • Check the wiring connections to the light kit.
• Vantilatè a tranble:
  • Asire w ke tout vis lam yo sere byen sere.
  • Verify the mounting bracket is securely fastened to the ceiling.
  • Check for any bent blade holders.
• Kontwòl Remote pa reponn:
  • Ranplase pil kontwòl remote yo.
  • Ensure there are no obstructions between the remote and the fan receiver.

8. Spécifications pwodwi

9. Garanti ak sipò

Breezary is committed to providing quality products and customer satisfaction. While specific warranty details are not provided here, the product includes after-sales service. For any questions, concerns, or assistance with your Breezary ceiling fan, please contact Breezary customer support through your purchase platform or the official Breezary websit.
