Roborock Floating Main Brush Cover Instruction Manual

1. Pwodwi souview

This manual provides instructions for the installation and maintenance of the Roborock Floating Main Brush Cover, designed as a replacement part for specific Roborock Q10 series robot vacuum models. This cover is essential for maintaining the optimal cleaning performance of your robot vacuum by ensuring the main brush remains in close contact with various floor surfaces.

Image 1: The Roborock Floating Main Brush Cover. This component protects the main brush and helps it adapt to uneven floor surfaces for effective cleaning.

2. Ki sa ki nan bwat la

Lè w fin ouvri pake a, w ap jwenn atik sa yo:

• One (1) Roborock Floating Main Brush Cover

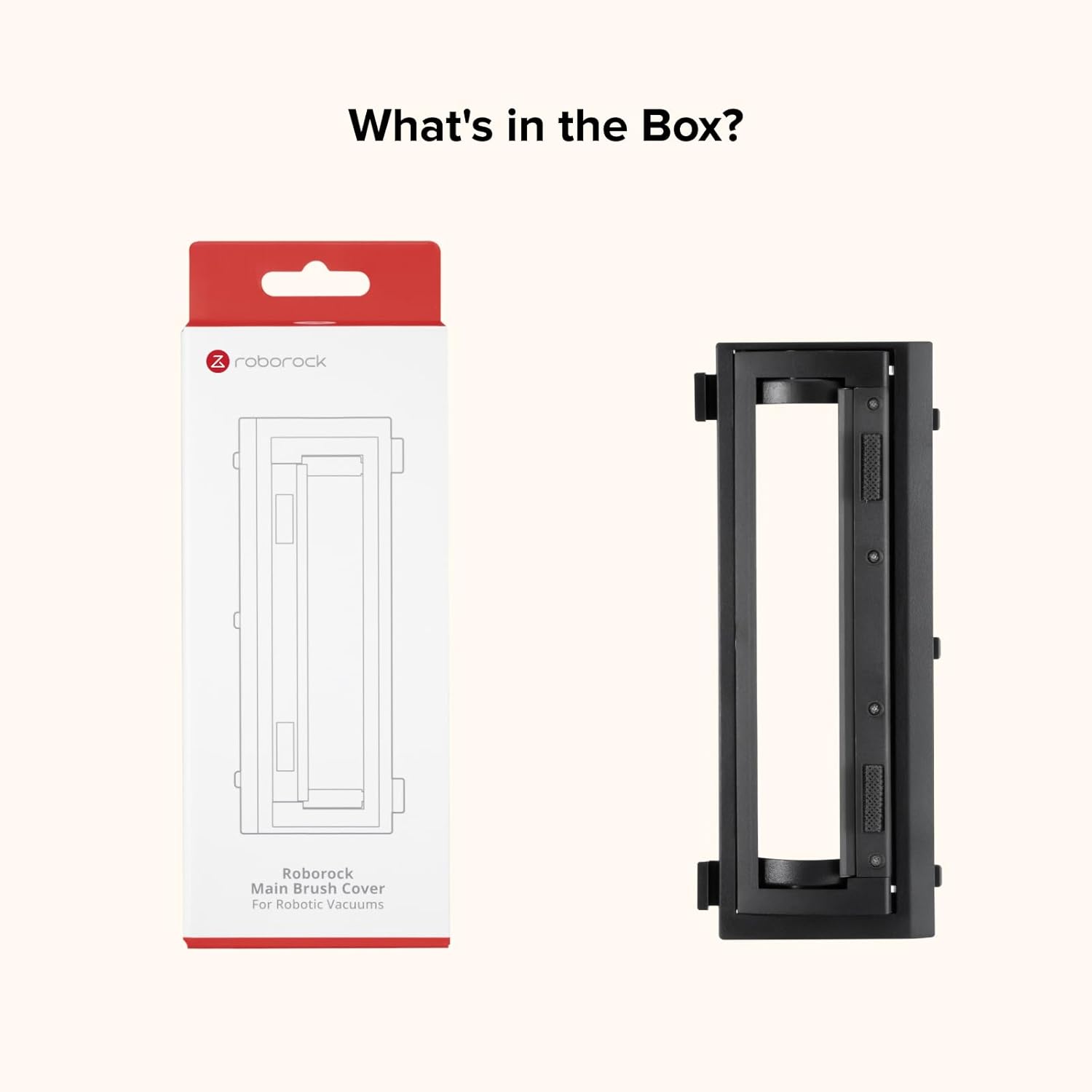

Image 2: The package contents, showing the Roborock Main Brush Cover and its retail packaging.

3. Konpatibilite

This Floating Main Brush Cover is specifically designed for the following Roborock robot vacuum models:

• Roborock Q10 S5
• Roborock Q10 S5+
• Roborock Q10 X5
• Roborock Q10 X5+

Ensure your robot vacuum model is listed above to guarantee proper fit and function.

Image 3: A Roborock Q10 series robot vacuum, illustrating the compatibility with Q10 S5, Q10 S5+, Q10 X5, and Q10 X5+ models.

4. Enstalasyon

Follow these steps to install the Floating Main Brush Cover:

1. Pouvwa Off: Before beginning, ensure your Roborock robot vacuum is powered off and disconnected from its charging dock.
2. Access Brush Area: Carefully flip the robot vacuum over to access the main brush compartment on its underside.
3. Retire ansyen kouvèti a (si sa aplikab): Locate the existing main brush cover. Depending on your model, there may be release tabs or clips. Press these tabs or clips and gently lift to remove the old cover.
4. Konpatiman pwòp: While the compartment is open, it is recommended to clean any accumulated dust, hair, or debris from the main brush and its housing.
5. Enstale nouvo kouvèti a: Align the new Roborock Floating Main Brush Cover with the corresponding slots in the robot vacuum's chassis.
6. Kouvèti an sekirite: Press down firmly on the cover until it snaps securely into place. Ensure all clips or tabs are engaged.
7. Verifye enstalasyon: Gently tug on the cover to confirm it is firmly attached and does not wobble.

Image 4: The underside of a Roborock robot vacuum showing the main brush compartment with the cover being installed or removed.

5. Antretyen

Regular maintenance of the Floating Main Brush Cover helps ensure the longevity and optimal performance of your robot vacuum.

• Enspeksyon regilye: Periodically inspect the cover for any signs of wear, damage, or accumulation of debris.
• Netwayaj: Use a soft, dry cloth to wipe down the cover. If necessary, a slightly damp cloth can be used, but ensure the cover is completely dry before re-installing. Remove any hair or threads that may have wrapped around the brush or lodged in the cover's mechanisms.
• Ranplasman: If the cover becomes damaged or its floating mechanism no longer functions correctly, it should be replaced to maintain effective cleaning.

NAN. Depanaj

If you encounter issues with your Floating Main Brush Cover, consider the following:

• Kouvèti a pa anfòm:
  • Verify that your robot vacuum model is listed under the "Compatibility" section (Q10 S5, Q10 S5+, Q10 X5, Q10 X5+).
  • Ensure the cover is oriented correctly before attempting to snap it into place.
  • Check for any obstructions in the brush compartment that might prevent proper seating.
• Main Brush Not Floating Correctly:
  • Remove the cover and inspect for any debris, hair, or foreign objects that might be impeding the floating mechanism.
  • Ensure the cover is installed securely and all clips are engaged.
  • If the cover itself appears damaged, consider replacing it.

7. Espesifikasyon

8. Garanti ak sipò

For warranty information, technical support, or any questions regarding your Roborock Floating Main Brush Cover, please contact Roborock customer service. It is recommended to purchase replacement parts directly from the official Roborock store to ensure authenticity and compatibility.

You can typically find contact information on the official Roborock websit la oubyen atravè platfòm acha ou a.
