Orion Motor Tech 8kW Portable Diesel Heater User Manual

1. Pwodwi souview

The Orion Motor Tech 8kW Portable Diesel Heater is designed to provide efficient and reliable heating for various environments, including workshops, RVs, cars, trucks, boats, and campsites. This versatile heater operates on both 12V/24V DC and 110V AC power sources, offering flexibility for both stationary and mobile use. Key features include a robust design, advanced safety mechanisms, and convenient control options.

Figi 1: Entèn view of the heater demonstrating its rapid heating capability and coverage area.

2. Enstriksyon Sekirite Enpòtan

Always prioritize safety when operating the diesel heater. Read and understand all safety warnings before use.

• Lojman ki reziste flanm dife: The heater is constructed with a flame-retardant housing to minimize fire risks.
• Pwoteksyon Surchof: An automatic shutdown mechanism activates if internal temperatures exceed 500 °F (260 °C), preventing overheating.
• Real-Time CO Alarm: An integrated Carbon Monoxide (CO) alarm continuously monitors air quality, providing an alert in case of dangerous CO levels. Ensure the CO alarm is functional before each use.
• Vantilasyon: Always ensure adequate ventilation when operating the heater to prevent CO buildup. Do not use in enclosed, unventilated spaces.
• Manyen Gaz: Sèvi ak gaz dyezèl sèlman. Pa sèvi ak gazolin oswa lòt gaz volatil. Ranpli gaz la nan yon zòn ki byen ayere, lwen sous ignisyon.
• Plasman: Mete aparèy chofaj la sou yon sifas ki estab e ki pa ka pran dife. Kenbe yon distans ki an sekirite ak materyèl ki ka pran dife.

Figi 2: Plis paseview of the heater's safety features, including flame-retardant housing, overheat protection, and a real-time CO alarm.

3. Konpozan ak Kontwòl

The heater features an intuitive control panel, a remote control, and smartphone app connectivity for convenient operation.

• Inite Prensipal: Contains the heating elements, fuel pump, and internal components.
• Integrated Fuel Tank: A 1.7-gallon (6.6 L) tank for diesel fuel.
• Kontwòl Panel: Features a smart display for real-time status and temperature monitoring.
• Kontwòl Remote: Allows temperature adjustment from a distance of up to 197 ft (60 m).
• Aplikasyon Smartphone: Provides control over the heater's functions via Bluetooth, with a range of up to 164 ft (50 m).

Figure 3: Control options including the smart display, smartphone app, and remote control.

4. Gid Enstalasyon

4.1 Koneksyon pouvwa

• Pouvwa DC (12V/24V): Connect the heater to a compatible 12V or 24V DC power source, such as a vehicle battery. Ensure correct polarity.
• Kouran AC (110V): For home or workshop use, connect the heater to a standard 110V AC outlet using the provided power adapter.

4.2 Alimantasyon

• Louvri bouchon tank gaz la.
• Carefully pour clean diesel fuel into the 1.7-gallon (6.6 L) tank. Do not overfill.
• Fèmen bouchon tank gaz la byen fèm.

4.3 Plasman

• Mete aparèy chofaj la sou yon sifas ki plat, ki estab, epi ki pa pran dife.
• Ensure adequate clearance around the heater for proper airflow and to prevent fire hazards.
• Position the exhaust outlet away from any obstructions or flammable materials.

Figure 4: Heater setup in 'Home Mode' (AC power) and 'Camping Mode' (DC power), demonstrating vehicle battery compatibility.

5. Operasyon Enstriksyon

5.1 Kòmanse aparèy chofaj la

• Ensure the heater is properly connected to a power source and has sufficient diesel fuel.
• Press the power button on the control panel or remote control to turn on the unit.
• The heater will initiate a startup sequence, which may include a brief pre-heating phase.

5.2 Ajisteman Tanperati

• Use the control panel, remote control, or smartphone app to set your desired temperature. The adjustable temperature range is typically 16 °F to 80 °F (8 °C to 37 °C).
• The smart display will show the current status and set temperature.

5.3 Operasyon otomatik

• The heater is designed to maintain the set temperature. It will automatically adjust its output or cycle on/off to keep the environment within the desired range.
• The heater operates reliably in extreme conditions, from -49 °F (-45 °C) to 124 °F (51 °C), and automatically adapts to altitudes up to 18,000 feet (5500 meters).

5.4 Fèmen

• Press the power button to turn off the heater.
• Allow the unit to complete its cool-down cycle before disconnecting power or moving it. This ensures proper component longevity.

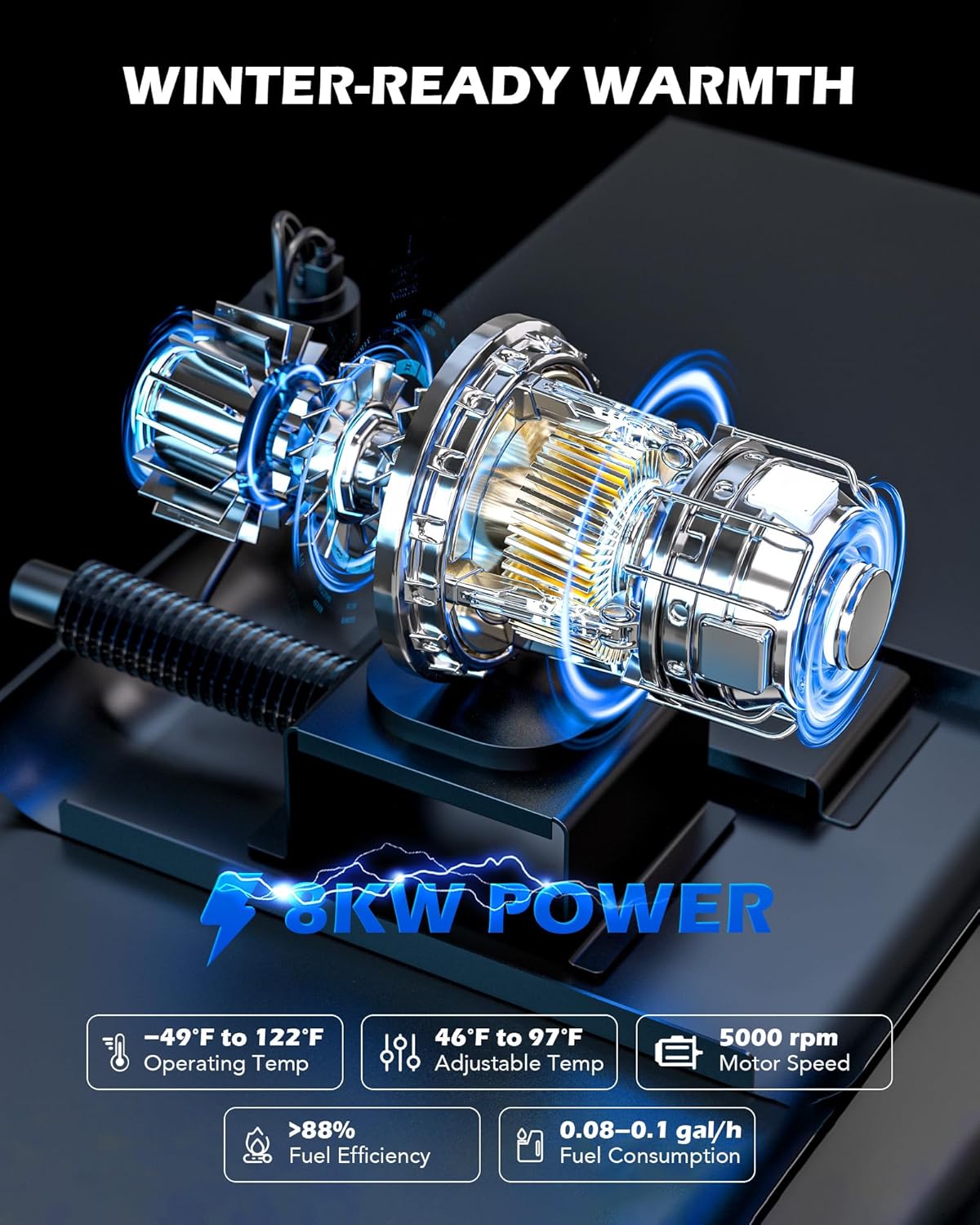

Figure 5: Performance metrics of the 8kW heater, including operating temperature, adjustable temperature, motor speed, fuel efficiency, and fuel consumption.

6. Antretyen

Regular maintenance ensures optimal performance and extends the lifespan of your diesel heater.

• Netwayaj: Netwaye deyò aparèy chofaj la detanzantan avèk yon twal mou, damp cloth. Ensure air intake and exhaust vents are free from dust and debris.
• Filtè gaz: Check and clean or replace the fuel filter as needed, especially if you notice reduced fuel flow or performance issues.
• Sistèm echapman: Inspect the exhaust pipe for any blockages, damage, or leaks. Ensure it is securely connected.
• Koneksyon elektrik: Verifye ke tout koneksyon elektrik yo byen fèm epi yo pa gen korozyon.
• Depo: When storing the heater for extended periods, ensure the fuel tank is empty and the unit is clean and dry. Store in a cool, dry place.

NAN. Depanaj

Si ou rankontre pwoblèm ak aparèy chofaj ou a, gade pwoblèm ak solisyon komen sa yo:

• Chofaj la pa kòmanse:
  • Check power connection and ensure sufficient voltage.
  • Verify fuel level in the tank.
  • Ensure the fuel line is not kinked or blocked.
• Pwodiksyon chalè ki ba:
  • Check for proper ventilation; blocked air intake can reduce efficiency.
  • Inspect the fuel filter for clogs.
  • Ensure the set temperature is appropriate for the environment.
• Bwi oswa odè ki pa nòmal:
  • Fèmen aparèy chofaj la imedyatman.
  • Inspect for loose components or exhaust leaks.
  • Ensure only clean diesel fuel is used.
• Kòd erè: If an error code appears on the display, consult the specific error code section in the full product manual (if available) or contact customer support.

8. Espesifikasyon teknik

Figure 6: Comparison of fuel tank capacity, showing the 1.7-gallon tank for extended operation.

9. Garanti ak Sipò Kliyan

Orion Motor Tech products are designed for durability and performance. For specific warranty information, please refer to the documentation included with your purchase or visit the official Orion Motor Tech websit.

If you require technical assistance, have questions about operation, or need to report a defect, please contact Orion Motor Tech customer support. Have your model number (DAH-8KWK0-AB) and purchase details ready when contacting support.

You can find contact information on the official Orion Motor Tech websit entènèt la oubyen atravè revandè w la.
