Merax XY01082

Manyèl Enstriksyon pou Kabann Murphy Merax gwosè Queen an bwa

Model: XY01082

Brand: Merax

1. Entwodiksyon

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Merax Queen Size Wood Murphy Bed. Please read this manual thoroughly before beginning assembly or use to ensure safe and correct operation.

The Merax Queen Size Wood Murphy Bed is designed to maximize space in guest rooms, bedrooms, or studio apartments, offering a comfortable sleeping solution that folds away into a stylish wall unit with integrated storage.

2. Enfòmasyon sou Sekirite

AVÈTISMAN: Si ou pa swiv enstriksyon sekirite sa yo, ou ka blese gravman oswa domaje materyèlman.

  • Toujou swiv enstriksyon asanblaj yo ak anpil atansyon pou asire estabilite.
  • Do not exceed the weight capacity of the bed frame and mattress combined.
  • Secure the wardrobes and storage shelf to prevent tipping.
  • Be cautious when using the pull-down mechanism to avoid potential pinch points or injury.
  • Ensure the bed is properly secured to a wall stud or appropriate anchoring point before use.
  • Keep children and pets away from the bed during operation (folding/unfolding).

3. Pake kontni

Verify all components are present before beginning assembly. Refer to the included "Assembly Guide" for a detailed list of parts and hardware.

Konpozan tipik yo enkli:

  • Murphy Bed Frame components
  • Wardrobe units (2)
  • Storage shelf components
  • Hardware pack (screws, bolts, connectors, etc.)
  • Gid Asanble

4. Enstalasyon ak Asanble

Assembly is required for this product. It is recommended to have at least two adults for assembly due to the size and weight of the components.

  1. Preparasyon: Clear a spacious area for assembly. Lay out all parts and hardware. Ensure you have the necessary tools (e.g., screwdriver, hammer, wrench).
  2. Follow the Assembly Guide: Refer to the detailed "Assembly Guide" included in your package for step-by-step instructions. Each component is typically numbered for easier identification.
  3. Montaj mi: The Murphy bed unit must be securely anchored to a wall stud or appropriate structural support. This is critical for safety and stability.
  4. Wardrobe Assembly: Assemble the two wardrobe units and integrate the storage shelf as per the instructions.
  5. Tèks final yo: After assembly, ensure all connections are tight and the unit is stable. Test the folding mechanism slowly and carefully.
Merax Queen Size Wood Murphy Bed Dimensions Diagram
Figure 4.1: Detailed dimensions of the Merax Queen Size Wood Murphy Bed. Overall dimensions are 88.77"L x 110.39"W x 88.42"H. This diagram helps in planning the installation space.

5. Operasyon Enstriksyon

5.1. Unfolding the Bed

  1. Ensure the area in front of the Murphy bed is clear of any obstructions.
  2. Gently pull the bed panel downwards from the top handle. The mechanism is designed for smooth operation.
  3. Continue lowering the bed until the support legs are fully extended and the bed frame rests securely on the floor.
  4. Place your Queen size mattress onto the bed frame. (Mattress not included).

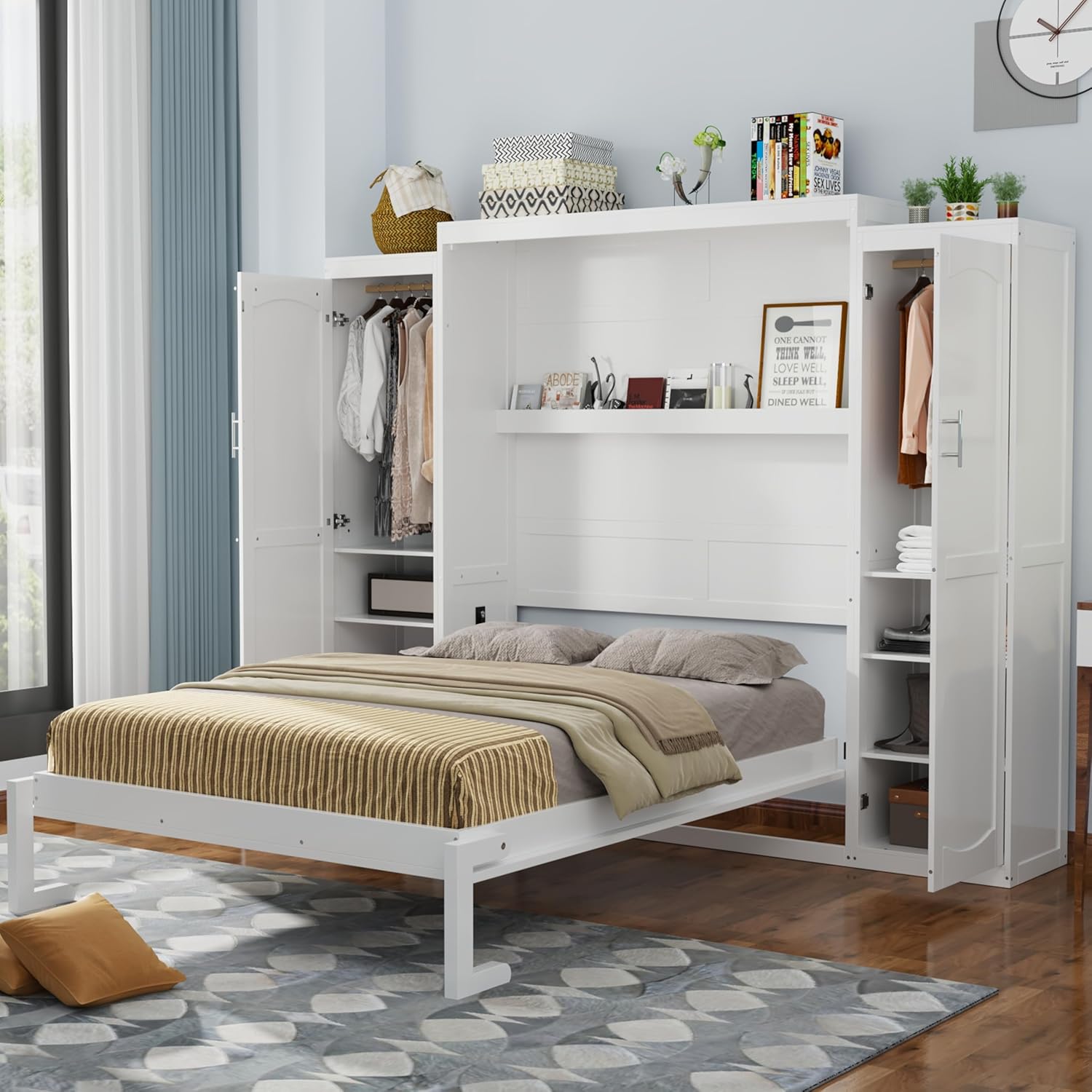

Merax Queen Size Wood Murphy Bed fully open with mattress and open wardrobes
Figure 5.1: The Merax Murphy Bed in its fully open position, ready for use. The integrated wardrobes are also shown open, providing access to storage.
Merax Queen Size Wood Murphy Bed partially open, showing slatted base and open wardrobes
Figi 5.2: A view of the Murphy bed partially unfolded, highlighting the sturdy slatted bed base and the accessible storage within the side wardrobes.

5.2. Folding the Bed

  1. Remove all bedding and the mattress from the bed frame.
  2. Lift the bed frame upwards, guiding it smoothly back into the wall unit.
  3. Ensure the bed panel locks securely into its upright position.
Merax Queen Size Wood Murphy Bed fully closed, appearing as a wall unit
Figure 5.3: The Merax Murphy Bed in its fully closed position, transforming into a compact and elegant wall unit with integrated wardrobes, ideal for saving space.
Video 5.1: Demonstration of the Merax Murphy Bed's folding and unfolding mechanism, showcasing its space-saving functionality and integrated wardrobe storage.

6. Antretyen

  • Netwayaj: Siye sifas yo ak yon mou, damp twal. Evite pwodui chimik ki agresif oswa pwodui netwayaj abrazif.
  • Materyèl: Tcheke tout vis ak boulon yo detanzantan pou asire yo byen sere. Sere boulon yo ankò si sa nesesè.
  • Mekanis: The folding mechanism is designed for durability. Avoid forcing it. If it becomes stiff, consult the troubleshooting section or contact support.
  • Kapasite pwa: Adhere strictly to the recommended weight capacity to prevent damage to the bed frame.

NAN. Depanaj

PwoblèmKòz posibSolisyon
Bed does not fold/unfold smoothly.Obstruction in the path; loose hardware; mechanism issue.Check for obstructions. Ensure all bolts are tightened. If problem persists, contact customer support.
Unit feels unstable.Improper wall anchoring; loose connections.Verify wall anchoring is secure. Retighten all assembly hardware.
Pati ki manke pandan asanblaj la.Erè anbalaj.Contact Merax customer support with your purchase details and the specific missing parts.

8. Espesifikasyon

  • Mak: Meraks
  • Modèl: XY01082
  • Gwosè: Rèn Size
  • Dimansyon pwodwi: 88.77"L x 110.39"L x 88.42"H
  • Koulè: Blan
  • Materyèl: Pine Wood, MDF, Plywood, Engineered Wood
  • Karakteristik espesyal: Integrated 2 Wardrobes & Storage Shelf
  • Gwosè Matla Konpatib: Queen (Mattress not included)
  • Pwa atik: 115.5 liv
  • Asanble obligatwa: Wi

9. Garanti ak sipò

For assistance, warranty information, or to report missing/damaged parts, please contact Merax customer support:

Please have your model number (XY01082) and purchase details ready when contacting support.
