GTRACING DL004 L-Shaped Gaming Desk User Manual

1. Entwodiksyon

Mèsi pou acha aasing the GTRACING DL004 L-Shaped Gaming Desk. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure optimal use and longevity of your desk. Please read this manual thoroughly before assembly and retain it for future reference.

2. Enfòmasyon sou Sekirite

• Toujou monte biwo a sou yon sifas mou epi pwòp pou evite reyur.
• Asire w tout vis ak eleman fikse yo byen sere anvan w itilize yo. Tcheke yo detanzantan epi sere yo ankò jan sa nesesè.
• Do not overload the desk or shelves beyond the specified weight capacity (80 kg).
• Kenbe ti pati ak materyèl anbalaj lwen timoun yo pou anpeche danje toufe.
• Avoid using power tools for assembly unless explicitly instructed, as they may overtighten screws and damage components. A manual wrench is recommended.
• The desk features rounded corners (fillet design) for safety, but exercise caution to prevent injury.

3. Pake kontni

Tanpri verifye ke tout konpozan yo prezan anvan ou kòmanse asanblaj la:

• L-shaped Desktop Panels (A, B)
• Metal Frame Components (D, E, F, G, H)
• Etajè Depo
• Tiwa
• Reglabl kanpe pou kontwole
• Cable Management Grommet
• Hook ekoutè
• Stabilizer Rods (J)
• Materyèl Asanblaj (Vis, Kle Allen)
• Power Outlet Strip (if included with your model)

4. Enstriksyon Enstalasyon

4.1 Nòt Pre-Asanblaj

For a smooth assembly process, please watch the following video for helpful tips. It is recommended to use a manual wrench instead of a power drill to avoid damaging the desk components.

4.2 Etap Asanble

1. Attach Feet to Frame Components: Secure the feet to frame parts D, E, and F. Ensure they are firmly attached.
2. Connect Desktop Panels: Join desktop panel A and side desktop panel B. Use the provided wooden dowels and ensure a tight fit to minimize gaps.
3. Attach Frame G: Secure frame G to the underside of the connected desktop panels. Tighten screws to approximately 70% to allow for adjustments. Do not use a power drill.
4. Attach Frame H: Secure frame H to the underside of the desktop panels. Ensure the four vertical screws and two horizontal screws are tightened to about 70%. The two outermost horizontal holes are not used.
5. Assemble Side Shelves: Attach the side shelves to the frame. Ensure the holes on the surface of the shelf board are facing downwards. Tighten screws to approximately 70%.
6. Install Stabilizer Rods (J): Attach the stabilizer rods (J) to the designated points on the frame to enhance stability.
7. Enstale Sipò Monitè a: Attach the monitor stand to the desktop. Ensure the cylindrical posts are installed vertically and do not overtighten the screws (95% tightness is sufficient). If you prefer more desktop space, the monitor stand can be left unattached for easy movement.
8. Install Cable Management Grommet: Insert the cable management grommet into the designated hole on the desktop.
9. Install Power Outlet Strip: If your model includes a power outlet strip, attach it to the side of the monitor stand or desktop using the provided screws.
10. Mete zen pou kas ekoutè a: Secure the headphone hook to the side of the desk.

5. Operasyon Enstriksyon

5.1 Adjustable Monitor Stand

The monitor stand is designed for ergonomic comfort. Its height can be adjusted to suit your preference, promoting a comfortable posture during use. For maximum desktop space, the monitor stand can be removed or repositioned as needed.

5.2 Storage Shelves and Drawers

The desk features a removable storage shelf on the right side, providing convenient access to essential items. Two fabric drawers offer additional storage for accessories, helping to keep your workspace tidy. The side panels of the desk include anti-drop panels and rounded corners for safety, preventing items from falling and reducing the risk of injury.

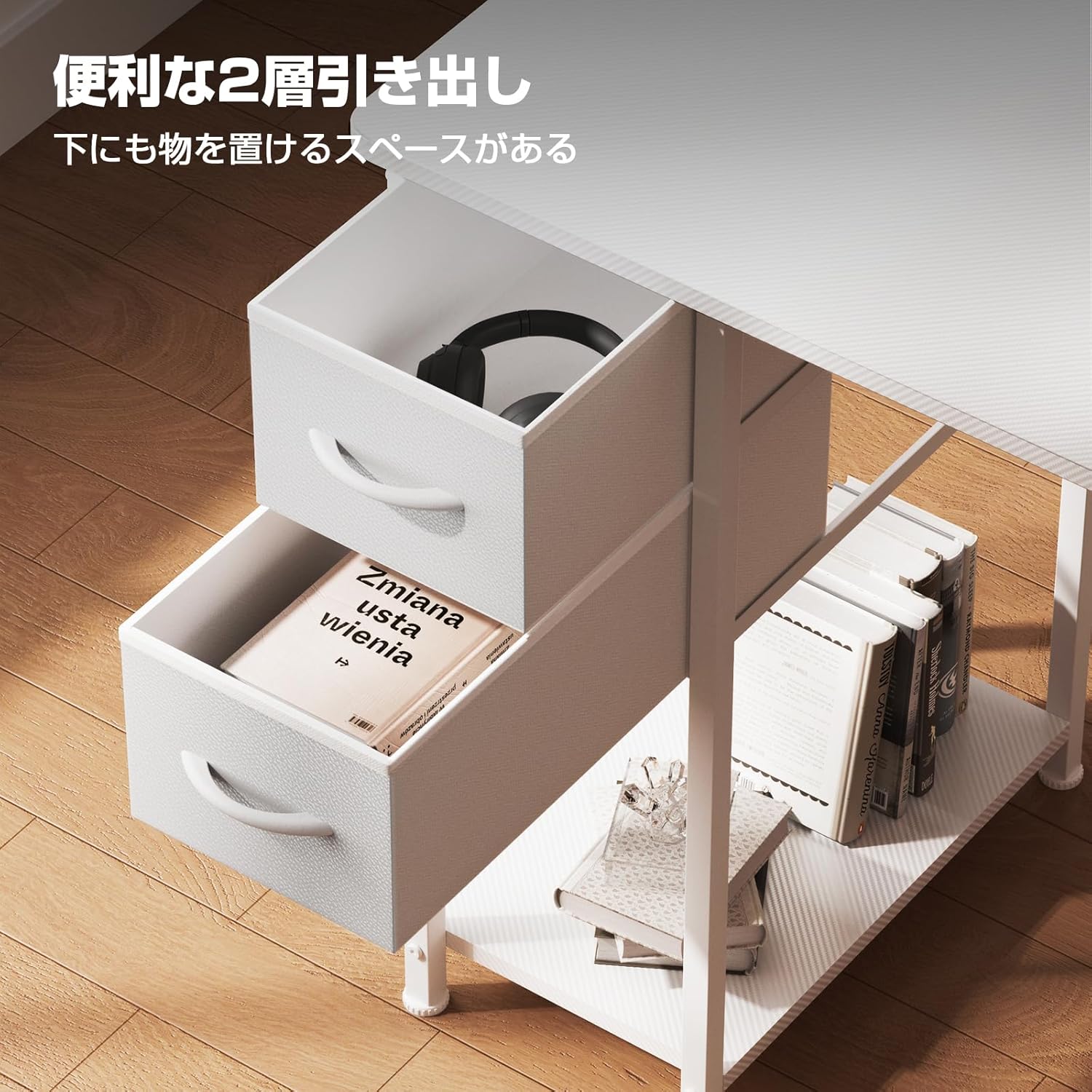

Image: Two convenient fabric drawers for storage, located on the left side of the desk.

5.3 Jesyon kab

The integrated cable management grommet helps organize your wires, keeping your desktop neat and free from clutter. Utilize the included power outlet strip for easy access to charging ports for your devices.

6. Antretyen

• Netwayaj: Siye sifas biwo a ak yon mou, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the carbon fiber finish.
• Enspeksyon: Tcheke tout vis ak koneksyon yo detanzantan pou asire yo rete sere. Sere yo ankò si ou detekte nenpòt bagay ki lach.
• Pwoteksyon: Avoid placing extremely hot or cold items directly on the desk surface. Use coasters or protective pads as needed.
• Distribisyon pwa: Distribute weight evenly across the desktop and shelves to prevent stress on any single point.

NAN. Depanaj

8. Espesifikasyon

9. Garanti ak sipò

The GTRACING DL004 L-Shaped Gaming Desk comes with a 12-month manufacturer's quality guarantee from the date of purchase. This warranty covers initial defects and any subsequent issues that may arise under normal use. Spare parts are stocked in warehouses in Tokyo and Osaka, Japan, and can be delivered as early as the next day for replacement.

For any questions, concerns, or warranty claims, please contact GTRACING customer support through the retailer where you purchased the product. Please have your purchase receipt and product model number ready when contacting support.
