Fockety Electric Cycling Panel User Manual

1. Entwodiksyon

Thank you for choosing the Fockety Electric Cycling Panel. This LCD display is designed to enhance your electric bike experience by providing essential riding data, user-friendly controls, and convenient features like a USB charging port. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and longevity of your device. Please read this manual thoroughly before use.

2. Enfòmasyon sou Sekirite

• Toujou asire w ke aparèy la byen monte anvan ou monte l.
• Do not attempt to disassemble or modify the panel, as this may void the warranty and cause damage.
• Keep the display clean and dry. Avoid exposure to extreme temperatures or direct sunlight for prolonged periods.
• Ensure all connections are secure and waterproof where applicable.
• Operate your electric bike safely and adhere to all local traffic laws and regulations.

3. Pwodwi souview

The Fockety Electric Cycling Panel is a robust and feature-rich display for electric bicycles. It features a color LCD screen with a thoughtful backlight for clear visibility in various lighting conditions. The panel is constructed from durable ABS plastic, ensuring resilience and protection for its internal components.

Karakteristik kle:

• Bouton itilizatè-zanmitay: External buttons provide comfortable control and efficient operation.
• Backlight Design: Ensures clear visibility day and night.
• Konstriksyon dirab: Made from lightweight and sturdy ABS plastic.
• USB chaje Port: 5V 500MA output allows for convenient charging of mobile devices.
• Konpatibilite: Designed to fit KT controllers for seamless integration.

Eleman:

• LCD Display ekran
• Control Buttons (Up, Power, Down)
• Monte Clamp
• Kab koneksyon
• Port chaje USB

4. Enstalasyon ak Enstalasyon

Follow these steps to properly install your Electric Cycling Panel on your electric bike.

1. Chwazi Kote Montaj: Select a suitable position on your handlebar, typically near the left grip, that allows for easy viewing and access to buttons without obstructing your riding.
2. Tache Mounting Clamp: Louvri aliye clamp and position it around the handlebar. Securely tighten the screws to fix the display in place. Ensure the display is oriented correctly for optimal viewing.

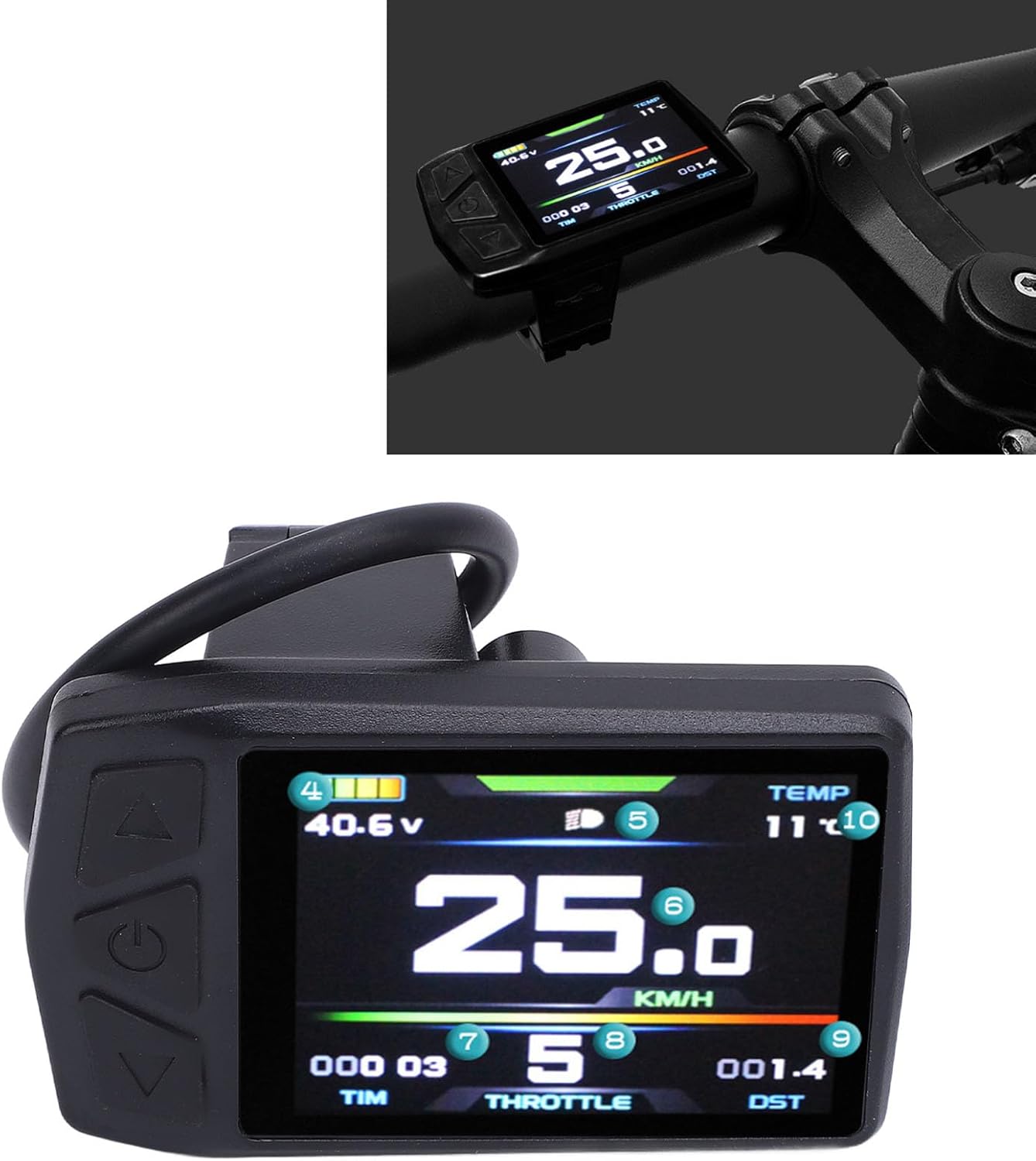

Image: The Electric Cycling Panel securely mounted on a bicycle handlebar, showing its position relative to the rider's view.

Imaj: Yon dèyè view of the cycling panel, highlighting the robust mounting clamp and the integrated connection cable.

3. Connect to KT Controller: Locate the appropriate connection port on your KT controller. Carefully align and plug the display's cable into the controller. Ensure a firm and secure connection.
4. Jesyon kab: Route the cable neatly along your bike frame, securing it with cable ties if necessary, to prevent interference with moving parts and protect it from damage.
5. Premye pouvwa sou: After installation, press the power button on the display to turn it on. The screen should illuminate and display initial information.

5. Operasyon Enstriksyon

This section details how to operate your Electric Cycling Panel and understand its display.

Fonksyon bouton:

• Bouton pouvwa (Mitan): Press and hold to turn the display ON/OFF. Short press to cycle through display modes or confirm selections.
• Bouton Anlè (Anlè): Increases values, navigates up in menus, or increases assist level.
• Bouton Desann (Anba): Decreases values, navigates down in menus, or decreases assist level.

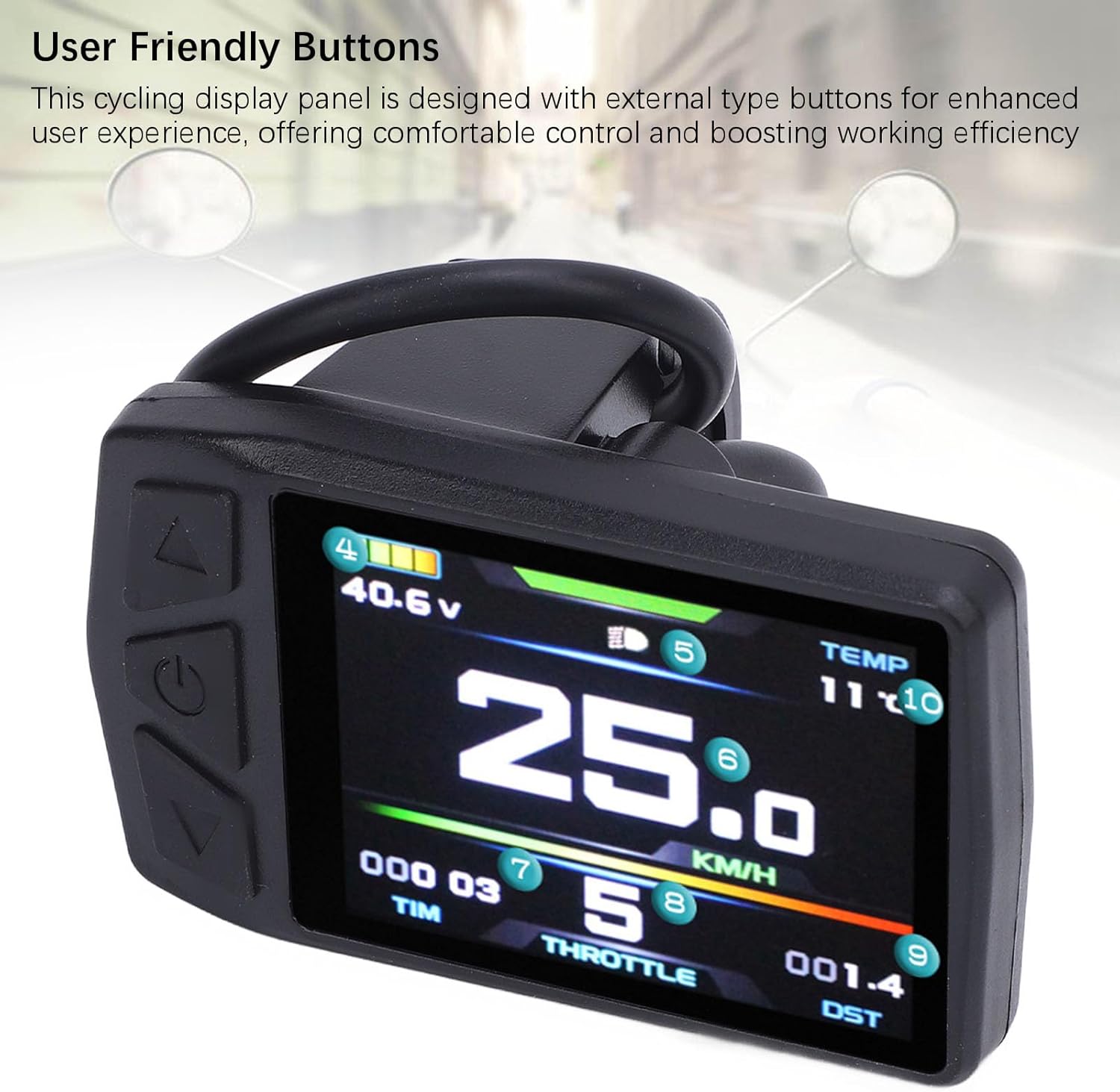

Imaj: Yon imaj detaye view of the panel's control buttons (Up, Power, Down) and the illuminated display.

Ekspozisyon enfòmasyon:

The color LCD screen provides various real-time riding metrics. Refer to the image below for numbered indicators:

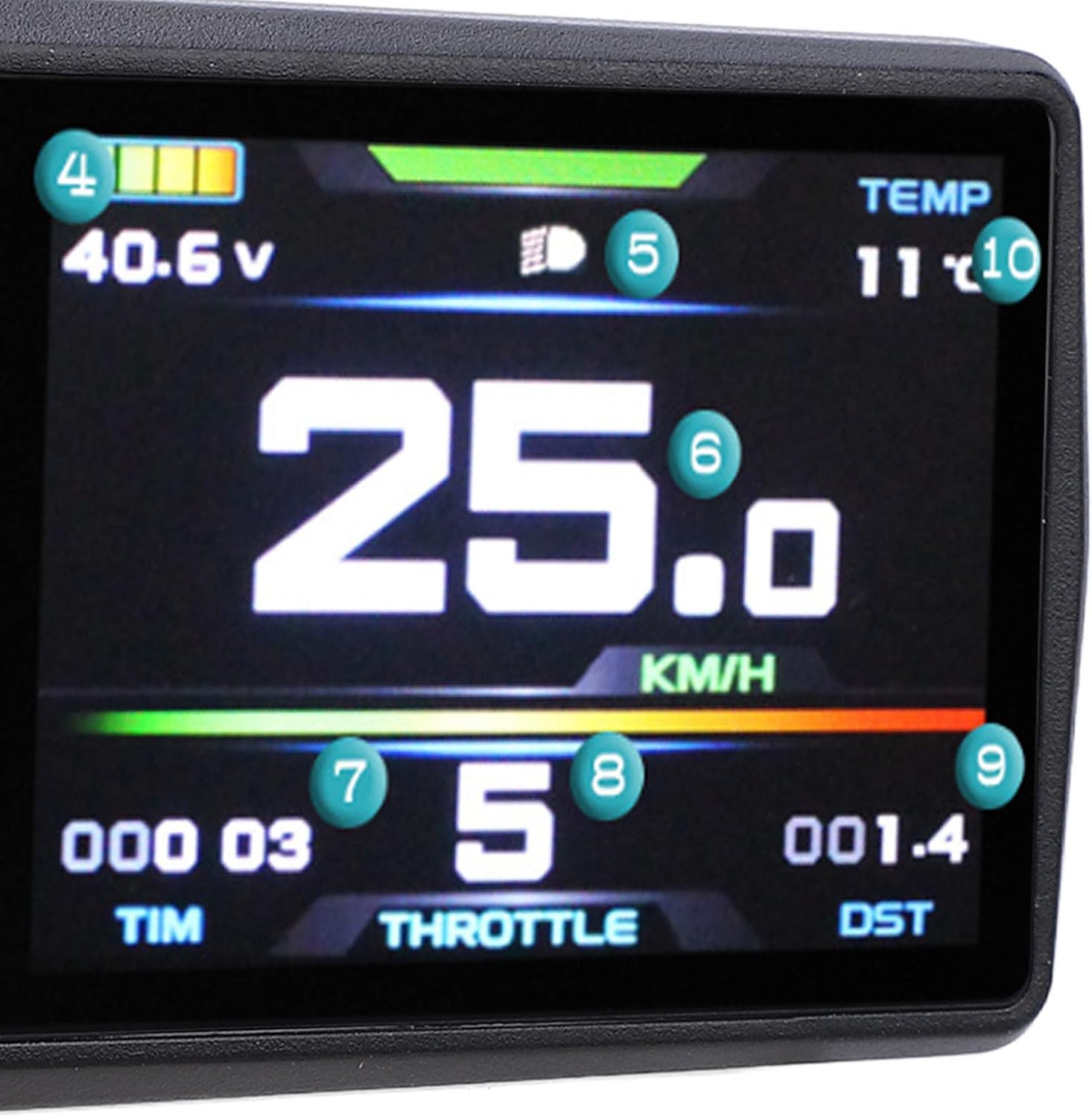

Image: The display screen with numbered labels pointing to different data readouts.

1. Endikatè nivo batri: Shows the current charge level of your e-bike battery.
2. Voltage Display: Aktyèl batri voltage (egzanp, 40.6V).
3. Endikatè limyè devan: Illuminates when headlights are active.
4. Vitès aktyèl la: Displays your real-time speed (e.g., 25.0 KM/H).
5. Nivo Asistans: Indicates the current pedal assist level (e.g., 5).
6. Trip Time (TIM): Shows the duration of your current ride.
7. Throttle Indicator (THROTTLE): May indicate throttle activity or power output.
8. Distance Traveled (DST): Displays the distance covered during the current trip.
9. Tanperati (TEMP): Montre tanperati anbyen.

Fonksyon chaj USB:

The panel includes a 5V 500MA USB output port, allowing you to charge your mobile phone or other small electronic devices while riding.

• Locate the USB port on the side or bottom of the display.
• Konekte aparèy ou an avèk yon kab USB konpatib.
• Ensure your e-bike's power is on for the USB port to function.

Image: The cycling panel actively charging a smartphone via its integrated USB port, demonstrating its versatility.

6. Antretyen

Proper maintenance ensures the longevity and reliability of your cycling panel.

• Netwayaj: Siye ekran an ak kò a ak yon twal mou,amp cloth. Avoid using abrasive cleaners or solvents that could damage the plastic or screen.
• Koneksyon: Tcheke tout koneksyon kab yo detanzantan pou asire yo byen fèm epi yo pa gen korozyon oswa domaj.
• Depo: When not in use for extended periods, store the e-bike and display in a cool, dry place away from direct sunlight.
• Enspeksyon: Regularly inspect the mounting clamp for tightness and signs of wear.

NAN. Depanaj

If you encounter issues with your Electric Cycling Panel, refer to the following common problems and solutions:

• Ekran an pa limen:
  • Ensure the e-bike battery is charged and turned on.
  • Check all cable connections between the display and the KT controller for looseness or damage.
  • Konfime ke bouton pouvwa a te peze epi kenbe l pou dire ki nesesè a.
• Lekti Vitès/Distans ki pa kòrèk:
  • Verify that the wheel circumference setting in your KT controller (if adjustable) is correct.
  • Check the speed sensor and its magnet for proper alignment and function.
• Chaje USB a pa fonksyone:
  • Ensure the e-bike system is powered on.
  • Check the USB cable for damage and try a different cable or device.
• Display Backlight Not Working:
  • Check display settings for backlight intensity or auto-on features.

Si pwoblèm yo pèsiste, tanpri kontakte sèvis kliyan pou plis asistans.

8. Espesifikasyon

Image: A visual representation of the panel's dimensions, including length, width, and clamp dyamèt.

9. Garanti ak sipò

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact your retailer or the manufacturer directly.

Manifakti: Fockety
