1. Entwodiksyon
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Hansgrohe Bidette Hand Shower Set 29233000. This product is designed for use with hot water and features EcoSmart technology for water efficiency and QuickClean for easy maintenance. Please read these instructions thoroughly before beginning installation or use.
2. Enfòmasyon sou Sekirite
- Ensure all water supply lines are turned off before installation.
- Installation must be performed by a qualified professional in accordance with local plumbing codes.
- This product is designed for hot water use. Verify your water supply is compatible.
- Avètisman: This product does not include backflow prevention. It is not suitable for use in countries where the EN 1717 standard is in force, which requires backflow prevention.
- Pwoteje pwodwi a kont jèl.
3. Pake kontni
Verifye ke tout konpozan yo prezan anvan ou kòmanse enstalasyon an:
- Bidette Hand Shower
- Stop Valve with Integrated Shower Holder
- Tiyo douch (1.25 m)
- Materyèl aliye
- Enstriksyon Asanble
4. Enstalasyon ak Enstalasyon
The Hansgrohe Bidette Hand Shower Set 29233000 is designed for wall mounting with a single hole installation. Ensure the installation surface is suitable and secure.

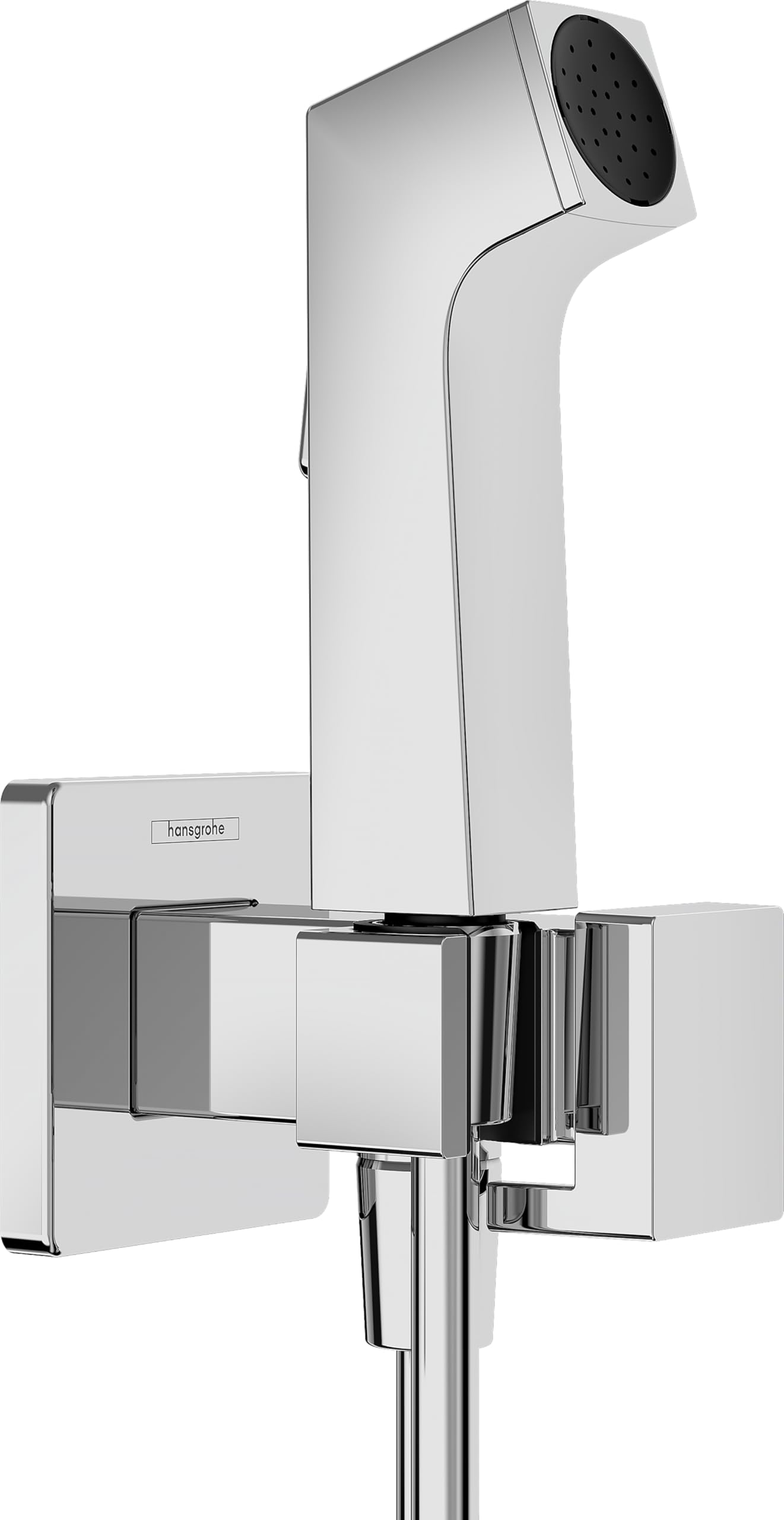

Figi 1: Hansgrohe Bidette Hand Shower Set 29233000. This image shows the complete product, including the hand shower, stop valve, and hose, as it would appear after installation.
For precise installation, refer to the technical drawing provided with your product. Key dimensions for installation are:
- Total height from wall connection to top of hand shower: 154 mm
- Projection from wall to front of hand shower: 117 mm
- Wall connection plate diameter: 76 mm
- Shower hose length: 1250 mm (1.25 m)
The minimum required water pressure for optimal function is 1 bar.
- Prepare Zòn Enstalasyon an: Ensure the wall surface is clean, dry, and structurally sound. Mark the desired position for the single mounting hole.
- Fè twou: Drill the necessary hole according to the provided mounting template and secure the wall plug.
- Konekte rezèv dlo: Connect the hot water supply line to the stop valve. Ensure all connections are watertight.
- Mount the Stop Valve: Secure the stop valve with the integrated shower holder to the wall using the provided mounting material.
- Attach Shower Hose: Connect the 1.25 m shower hose to the stop valve and to the bidette hand shower.
- Tès pou Fuites: Louvri tiyo prensipal dlo a dousman epi tcheke tout koneksyon yo pou wè si gen flit.
5. Operasyon Enstriksyon
The Hansgrohe Bidette Hand Shower Set 29233000 is designed for simple operation.
- Aktivasyon Koule Dlo: The set includes a stop valve. To activate water flow, press the button or lever on the hand shower. Release to stop the flow.
- EcoSmart Function: This hand shower features EcoSmart technology, providing a single, water-saving jet type. This optimizes water consumption without compromising performance.
- Hot Water Use: This product is specifically designed for use with hot water.
6. Antretyen
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Hansgrohe Bidette Hand Shower Set.
- Fonksyonalite QuickClean: The hand shower is equipped with QuickClean nozzles. Limescale deposits can be easily removed by gently rubbing the silicone nozzles with your finger.
- Netwayaj jeneral: Clean the chrome surfaces with a soft cloth and a mild, non-abrasive cleaning agent. Avoid using cleaners containing alcohol, hydrochloric acid, formic acid, acetic acid, or phosphoric acid, as these can damage the finish.
- Antretyen kawotchou: Periodically check the shower hose for any signs of wear or damage. Replace if necessary.
NAN. Depanaj
If you encounter issues with your hand shower set, refer to the following common solutions:
- Koule Dlo ki ba: Check if the main water supply is fully open. Inspect the hand shower nozzles for limescale buildup and clean using the QuickClean feature. Ensure the minimum pressure of 1 bar is met.
- Fuites: Tighten all connections carefully. If leaks persist, check the seals and O-rings for damage and replace if necessary.
- Pa gen koule dlo: Ensure the stop valve is open. Check the main water supply.
For persistent issues, contact Hansgrohe customer support or a qualified plumber.
8. Espesifikasyon
| Karakteristik | Spesifikasyon |
|---|---|
| Nimewo Modèl | 29233000 |
| Dimansyon pwodwi (L x W x H) | 11.7 x 8.4 x 19.2 cm |
| Pwa | 1.39 kg |
| Materyèl | Metal |
| Fini | Chrome poli |
| Koulè | Chrome |
| Metòd enstalasyon | Wall Mount, Single Hole |
| Gwosè tèt douch | 28 mm |
| Number of Jet Types | 1 (EcoSmart) |
| Maximum Flow Rate (at 3 bar) | 6.2 l/min |
| Minimòm Presyon Fonksyònman | 1 bar |
| Karakteristik espesyal | EcoSmart, QuickClean, Stop Valve |
| Douch Kawotchou Longè | 1.25 m |
| Disponibilite pyès rezèv | 15 Ane |
9. Enfòmasyon sou Garanti
Hansgrohe products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Hansgrohe website. Spare parts for this model are available for up to 15 years from the date of purchase.
10. Sipò
Should you require further assistance, technical support, or have questions regarding your Hansgrohe Bidette Hand Shower Set 29233000, please contact Hansgrohe customer service. Contact details can typically be found on the official Hansgrohe websit oswa nan anbalaj pwodwi a.
Resous sou entènèt: www.hansgrohe.com
