1. Pwodwi souview
The FORIOUS FF0023BN Traditional Brushed Nickel Kitchen Faucet is designed for modern kitchens, offering both functionality and aesthetic appeal. This high-arc single-handle faucet features a pull-down sprayer, durable stainless steel construction, and a brushed nickel finish. It is suitable for various settings including farmhouse, RV, camper, and laundry room sinks.
Figure 1: FORIOUS Traditional Brushed Nickel Kitchen Faucet with Pull Down Sprayer.
2. Karakteristik kle
- Konstriksyon dirab: Crafted entirely from lead-free stainless steel material, ensuring water safety and long-lasting durability.
- Versatile Spray Head: Features a 3-function spray head (sprayer, stream, and paused modes) and an 18-inch pull-out hose for extended reach and flexibility.
- Anti-leakage Design: Equipped with a tested valve that has withstood over 5,000,000+ cycles, providing reliable leak-free performance.
- Enstalasyon fasil: Pre-installed components allow for DIY installation, potentially saving time and money on professional plumbing services.
- Aesthetic Finish: Multi-layer brushed nickel plating resists fingerprints and water stains, making it easy to clean and maintain.
- Tiyo ki pivote 360°: Offers full swivel capability, providing maximum flexibility and easy access to all areas of the sink for added convenience.
3. Espesifikasyon
| Mak | FORIOUS |
| Non modèl | Kitchen Faucet with Pull Down Sprayer (FF0023BN) |
| Koulè | Bwose Nikèl |
| Materyèl | Nerjaveèi asye |
| Fini Kalite | Bwose |
| Kalite aliye | Mount Deck |
| Kantite manch | 1 |
| Konte twou | 1 (oswa 3 ak plak platfòm ki enkli a) |
| Wotè Spout | 6.7 pous |
| Wotè an jeneral | 14.8 pous |
| Bekè rive | 9.79 pous |
| Pousantaj maksimòm koule | 1.8 galon pou chak minit |
| Required Pre-drilled Hole Size | 1.30" - 1.38" |
| Max. Epesè kontwar | 1.5 pous |
| Fil Koneksyon | 3/8" |
| Sètifikasyon | DOE Certificate, NSF/ANSI/CAN 61, Lead-free Certificate |

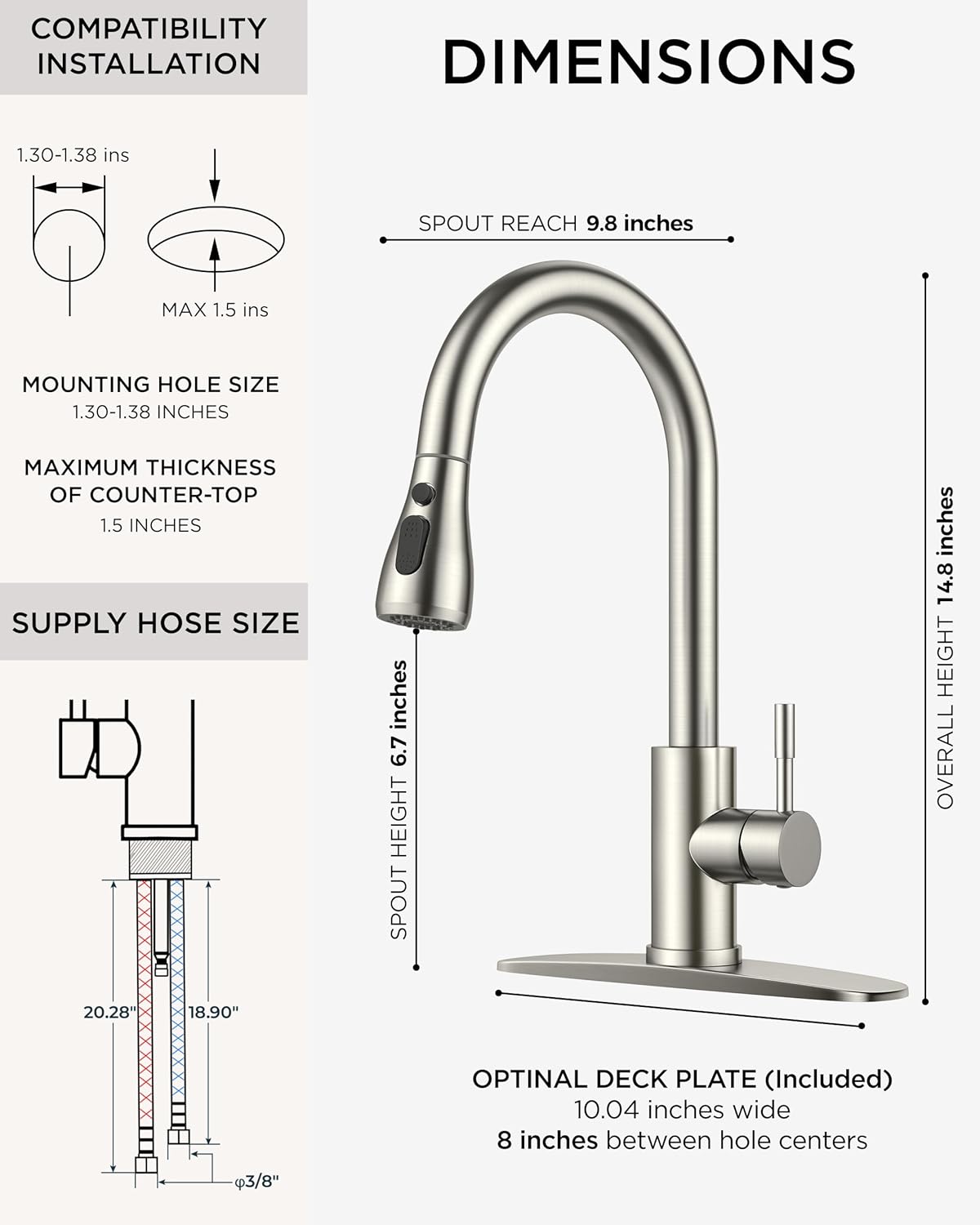

Figure 2: Detailed dimensions and compatibility information for installation.
Figure 3: Additional product dimensions and important installation notes regarding the gravity ball placement.
4. Enstalasyon ak Enstalasyon
The FORIOUS kitchen faucet is designed for effortless DIY installation. Follow these steps carefully for a secure and leak-free setup.
4.1 Anvan Enstalasyon
- Shut off the main water supply valves.
- Clear the area of the mounting holes on the countertop.
- Ensure your pre-drilled hole size is between 1.30" and 1.38" and maximum countertop thickness is 1.5".
4.2 Etap enstalasyon yo
- Take the faucet out of the packaging box. For a 1-hole sink, install the deck plate (if desired) or directly install the faucet. For a 3-hole sink, install the deck plate first, then the faucet.
- Place the faucet body into the mounting hole on the countertop.
- From underneath the sink, slide the rubber gasket, metal washer, and mounting nut onto the connected hoses. Hand-tighten the mounting nut.
- Tighten the screws on the mounting nut using a screwdriver. Caution: Avoid over-tightening.
- Attach the pull-down hose's quick-connect fitting to the faucet outlet.
- Position the weighted ball on the pull-down hose at the locator mark (typically 8 inches from the bottom of the faucet). Use a screwdriver to loosen and then tighten the screw on the weighted ball to secure it. Ensure 20x20cm clear space for smooth retraction.
- Connect the hot and cold water supply hoses to the corresponding water supply valves. Use a wrench to snugly tighten the connection nuts.
- Open the water supply valves to flush out any residue before using the faucet.
Video 1: Official FORIOUS Product Installation Guide. This video demonstrates the step-by-step process of installing the kitchen faucet, including attaching hoses, securing the mounting nut, and positioning the weighted ball for the pull-down sprayer.
Figure 4: Visual guide for the easy installation process, showing key steps from placing the faucet to connecting water lines.
5. Operasyon
5.1 Kontwòl koule dlo ak tanperati
The single handle lever controls both water flow and temperature. Move the handle up to increase flow and down to decrease. Move it left for hot water and right for cold water.
5.2 Pull-Down Sprayer Functions
The pull-down sprayer offers three distinct modes:
- Mòd kouran: Ideyal pou ranpli po ak lave an jeneral.
- Flite Mode: Provides a wider spray for rinsing dishes and cleaning the sink.
- Pòz mòd: Li sispann koule dlo a tanporèman, sa itil pou deplase vaporizatè a ant travay yo san ou pa bezwen etenn manch prensipal la.
Figure 5: Illustration of the three spray modes available on the pull-down sprayer: Stream, Spray, and Pause.
Figi 6: Detaye view of the 3-function spray head, highlighting the different water flow options.
Figure 7: The faucet's 360° swivel design and extended pull-down hose for wider cleaning range.
6. Antretyen
Proper maintenance ensures the longevity and optimal performance of your FORIOUS kitchen faucet.
- Netwayaj: Always blot dry any water from the faucet surface. Clean with a damp non-abrasive sponge and a soft cloth to maintain the finish.
- Depo mineral: To remove water spots, apply warm water and a damp soft cloth. For stubborn deposits, use a mild soap solution. Avoid harsh chemicals or abrasive cleaners.
- Bouch espre: The soft rubber spray holes allow mineral residue to be wiped away simply. Regularly clean these to ensure a steady flow of water.
- Valv seramik: The faucet features a durable ceramic valve designed for long-term, leak-proof use.
Figure 8: Highlights of the faucet's lead-free material, 360° rotation, and easy-to-clean rubber spray holes.
Figure 9: Illustration of the leak-proof faucet valve, tested for over 50,000 cycles.
Figure 10: Information on the ceramic valve's extended lifespan and leak-proof qualities.
Figure 11: Details about the faucet's premium PVD coating, offering lead-free, fingerprint-resistant, water-repellent, rust protection, and easy-to-clean properties.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Ba Dlo Koule | Clogged aerator or mineral buildup in spray nozzles. | Clean the aerator and wipe rubber spray holes to remove mineral deposits. Ensure water supply valves are fully open. |
| Koule nan baz wobinèt la | Loose mounting nut or improper installation of gaskets. | Check and tighten the mounting nut underneath the sink. Ensure all gaskets are correctly seated. |
| Vaporizatè a pa retire san pwoblèm | Improper placement of the weighted ball or obstruction under the sink. | Verify the weighted ball is positioned correctly on the hose at the locator mark. Ensure there is clear space (20x20cm) for the hose to move freely. |
| Pwoblèm Tanperati Dlo | Incorrect hot/cold water line connection or issues with water heater. | Confirm hot and cold water lines are connected to the correct valves. Check water heater settings. |
8. Garanti ak sipò
The FORIOUS FF0023BN Kitchen Faucet comes with a garanti limite. For specific warranty details and to register your product, please refer to the documentation included in your product packaging or visit the official FORIOUS websit.
For technical support, replacement parts, or any inquiries, please contact FORIOUS customer service. Contact information can typically be found on the product packaging or the manufacturer's websit.
