PowerBass PBM-500.1 Mono Mini AmpManyèl itilizatè lifier
Model: PBM-500.1
1. Entwodiksyon
Welcome to the PowerBass PBM-500.1 Mono Mini Amplifier user manual. This document provides essential information for the proper installation, operation, and maintenance of your ampTanpri li manyèl sa a avèk atansyon anvan ou eseye enstale oswa opere aparèy la pou asire pèfòmans ak sekirite optimal.
2. Karakteristik kle
The PowerBass PBM-500.1 amplifier is engineered with advanced technology to deliver powerful and clear audio in a compact form factor. Key features include:
500 Watt High Efficiency Class D Design
2-OHM Stable Mono Block Amplifier
Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
Ultra ba aktyèl trase
Conformal Coated PC Board
The PowerBass PBM-500.1 Mono Mini Amplifier, shown with its compact design and included remote bass control for convenient adjustment.
3. Enfòmasyon sou Sekirite
Toujou obsève prekosyon sekirite sa yo pandan enstalasyon ak operasyon:
Dekonekte batri machin nan anvan ou kòmanse nenpòt travay elektrik.
Asire bon baz pou anpeche danje elektrik.
Evite monte a amplifter nan zòn ki ekspoze a limyè solèy dirèk, chalè twòp, imidite oswa pousyè.
Use appropriate gauge wiring for power, ground, and speaker connections.
Pa louvri a amplaviyè casing; pa gen pyès ki ka sèvi ak men itilizatè a anndan an. Konfye tout antretyen bay pèsonèl kalifye.
4. Enstalasyon ak Enstalasyon
4.1 Debake
Retire ak anpil atansyon amplifier from its packaging. The box should contain:
PBM-500.1 Mono Mini Amplifier
Remote Bass Knob (if included with your model)
Mounting Materyèl
Manyèl itilizatè
4.2 Montaj
Choose a mounting location that is dry, well-ventilated, and away from direct heat sources. The compact size of the PBM-500.1 allows for versatile placement, such as under seats, behind dashboards, or in small compartments. Ensure adequate airflow around the amplifier pou bon dissipation chalè.
4.3 Koneksyon fil elektrik
Proper wiring is crucial for optimal performance and safety. Refer to the diagrams below for correct connections.
The power and speaker terminal side of the PBM-500.1 amplifier, showing connections for battery, remote turn-on, ground, and speaker outputs. It also indicates its 2 Ohm stable mono Class D amplifier capability.
Pouvwa (+12V): Connect to the positive terminal of the vehicle's battery using an appropriate gauge power cable with an inline fuse.
Tè (GND): Connect to a clean, unpainted metal surface on the vehicle chassis. Ensure a solid connection for proper grounding.
Kontwòl a distans (REM): Connect to the remote turn-on lead from your head unit or other signal source.
Sòti Oratè: Connect your subwoofer(s) to the speaker terminals. The PBM-500.1 is 2-ohm stable.
Antre RCA: Connect the RCA cables from your head unit's subwoofer output to the amplifier's RCA input.
This image displays the input and control panel of the PBM-500.1 amplifier, featuring RCA inputs, gain control, low-pass filter (LPF), bass frequency, and bass EQ adjustments, along with a remote port.
4.4 Pwodwi souview Videyo
Videyo sa a bay yon ti detay souview of the PowerBass PBM series amplifiers, highlighting their compact design, power capabilities, and suitability for various installations.Yon pwodwi detaye souview of the PowerBass PBM Series Amplifiers, explaining key features such as Class D circuit design, weather resistance, variable digital crossovers, and various models within the series.
5. Operasyon Enstriksyon
5.1 Kontwòl ak Ajisteman
The PBM-500.1 features several controls to fine-tune your audio experience:
GAY: Ajiste sansiblite antre nan amplifier to match the output of your head unit. Start with the gain at minimum and slowly increase until desired volume is achieved without distortion.
LPF (Filtè ki ba pase): Controls the upper frequency limit for the subwoofer. Adjustable from 30Hz to 250Hz. Set this to filter out higher frequencies that subwoofers are not designed to reproduce.
BASS FREQ: Adjusts the center frequency for the bass boost. Adjustable from 40Hz to 100Hz.
BASS EQ: Provides up to 12dB of bass boost at the selected bass frequency. Use sparingly to avoid distortion.
REMOT: Port for connecting the included remote bass knob.

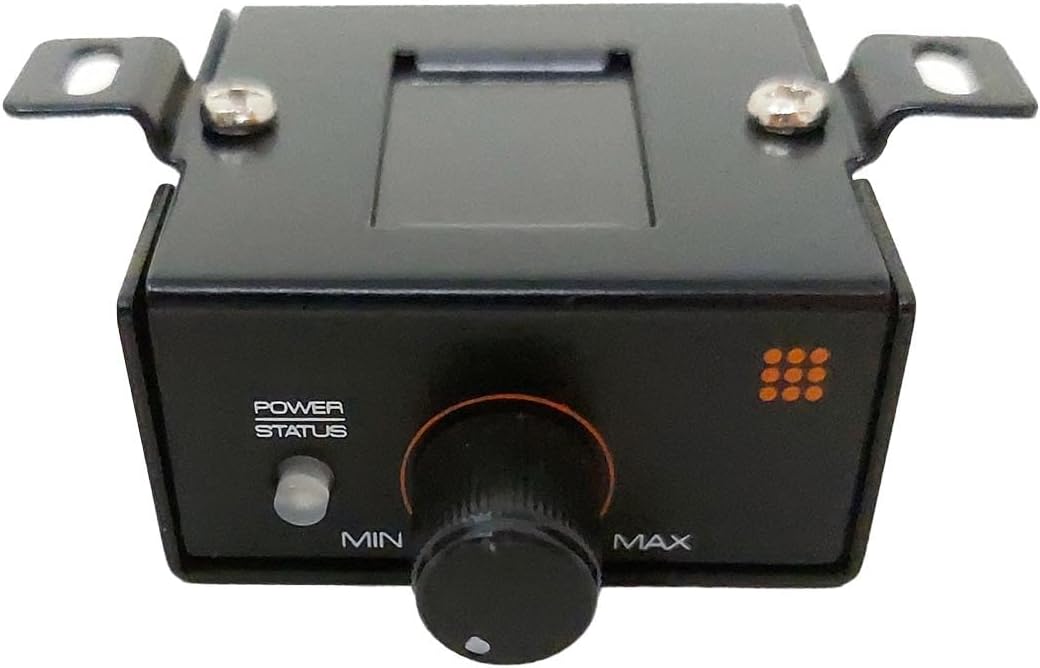

A close-up of the remote bass knob, allowing users to adjust the subwoofer level conveniently from the driver's seat. It includes a power status indicator.
6. Antretyen
To ensure the longevity and performance of your PowerBass PBM-500.1 amplifer, swiv gid antretyen sa yo:
Kenbe la ampLimyè a pwòp epi san pousyè ak debri. Sèvi ak yon twal mou epi sèk pou netwaye.
Tcheke tout koneksyon fil elektrik yo detanzantan pou asire yo byen fèm epi yo pa gen korozyon.
Asire w la amplifier's heatsink fins are not obstructed to allow for proper cooling.
NAN. Depanaj
Si ou fè eksperyans pwoblèm ak ou amplifier, konsilte tablo ki anba a anvan ou kontakte sipò a:
Pwoblèm
Kòz posib
Solisyon
Pa gen pouvwa
Fuzib boule, koneksyon kouran/tè a pa bon, pa gen siyal demaraj a distans.
Check fuses, verify all power and ground connections, ensure remote wire is connected and receiving +12V.
Pa gen Son
Incorrect input connections, speaker wiring issues, gain set too low.
Check RCA inputs, verify speaker connections and impedance, adjust gain setting.
Son defòme
Gain set too high, improper crossover settings, speaker impedance mismatch.
Reduce gain, adjust LPF/Bass EQ, ensure speaker impedance is compatible (2 Ohm minimum for mono).
The PowerBass PBM-500.1 Mono Mini Amplifier vini ak yon 1-ane garanti manifakti. For warranty claims or technical support, please refer to the contact information provided with your purchase or visit the official PowerBass websit.
