WORKPRO 530-Piece Rotary Tool Accessory Kit Instruction Manual

Entwodiksyon

This manual provides comprehensive instructions for the WORKPRO 530-Piece Rotary Tool Accessory Kit. This kit is designed to enhance the versatility of your rotary tool, offering a wide range of accessories for various tasks including cutting, grinding, sanding, polishing, cleaning, drilling, carving, and engraving. Please read this manual carefully before use to ensure safe and effective operation.

Enfòmasyon sou Sekirite

Always prioritize safety when using rotary tools and their accessories. Failure to follow these safety guidelines may result in injury or damage to property.

• Pwoteksyon je: Always wear ANSI-approved safety goggles or a face shield to protect against flying debris.
• Pwoteksyon men: Wear appropriate gloves to protect your hands from cuts, abrasions, and vibrations.
• Pwoteksyon respiratwa: When working with materials that produce dust (e.g., wood, metal, stone), wear a dust mask or respirator.
• An sekirite pou pyès travay la: Toujou byen sere pyès ou a avèk kle.amps oswa yon vis pou anpeche mouvman pandan operasyon an.
• Proper Accessory Attachment: Ensure all accessories are correctly and securely inserted into the rotary tool's collet and tightened with the included wrench. An improperly secured accessory can fly off and cause serious injury.
• Tcheke pou domaj: Before each use, inspect accessories for any signs of damage, cracks, or wear. Do not use damaged accessories.
• Konpatibilite materyèl: Use the correct accessory for the material you are working on. Refer to the operating instructions for guidance.
• Vantilasyon: Travay nan yon zòn ki byen ayere pou gaye pousyè ak lafimen.
• Kenbe klè: Keep hands, hair, and loose clothing away from rotating parts.
• Dekonekte Zouti a: Always unplug the rotary tool before changing accessories or performing maintenance.

Kontni pake

The WORKPRO 530-Piece Rotary Tool Accessory Kit includes a wide variety of attachments for diverse applications. All components are organized in a durable, transparent storage box for easy identification and portability.

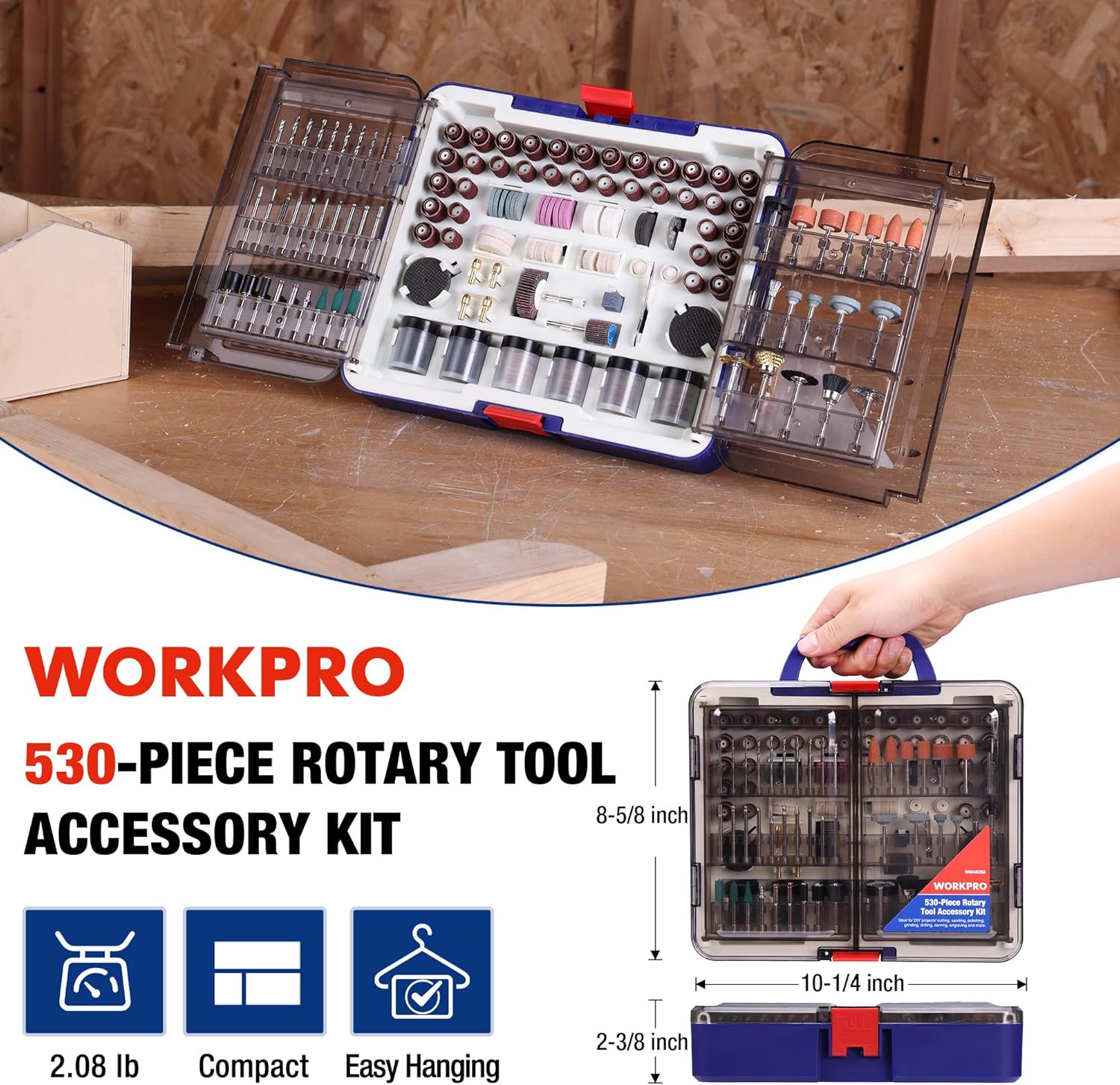

Figi 1: Plis paseview of the WORKPRO 530-Piece Rotary Tool Accessory Kit and its compact storage case.

Part 1: Sanding, Cutting, Polishing, and General Accessories

• Sanding Bands: 56 pieces
• Sandpaper Discs: 240 pieces
• Self-adhesive Sandpaper Discs: 44 pieces
• Flap Wheels: 2 pieces
• Diamond Cutting Wheel: 1 piece
• Fiberglass Cut-off Wheels: 10 pieces
• Heavy-duty Cut-off Wheels: 36 pieces
• Regular Cut-off Wheels: 58 pieces
• Felt Polishing Wheels: 10 pieces
• Spanner/Wrench: 1 piece
• Dressing Stone: 1 piece

Part 2: Grinding, Drilling, Carving, and Mandrels

• Grinding Stones: 18 pieces
• Rubber Grinding Stones: 2 pieces
• Rubber Grinding Stones (different type): 3 pieces
• Aluminum Oxide Grinding Stones: 6 pieces
• Silicon Carbide Grinding Stones: 4 pieces
• HSS Grinding Point: 1 piece
• Diamond Grinding Points: 10 pieces
• HSS Drill Bits: 9 pieces
• Collets (1/8 inch x2, 3/32 inch x1, 1/16 inch x1): 4 pieces total
• Sanding Band Mandrels: 3 pieces
• Mandrels: 2 pieces
• Felt Wheel Mandrel: 1 piece
• Sanding Pad: 1 piece
• Brushes (Steel, Brass, Nylon): 7 pieces total

Figure 2: Sanding, Cutting, and Drilling accessories.

Figure 3: Polishing, Grinding, Carving, and additional accessories.

Enstalasyon

Proper setup of accessories is crucial for safety and performance. This kit includes universal copper collets and a wrench for secure attachment.

1. Selecting the Correct Collet

The kit provides four universal collets (1/16 inch, 3/32 inch, 1/8 inch x2) to fit most rotary tools, including WORKPRO, DREMEL, and MILWAUKEE. Choose the collet that matches the shank size of the accessory you intend to use.

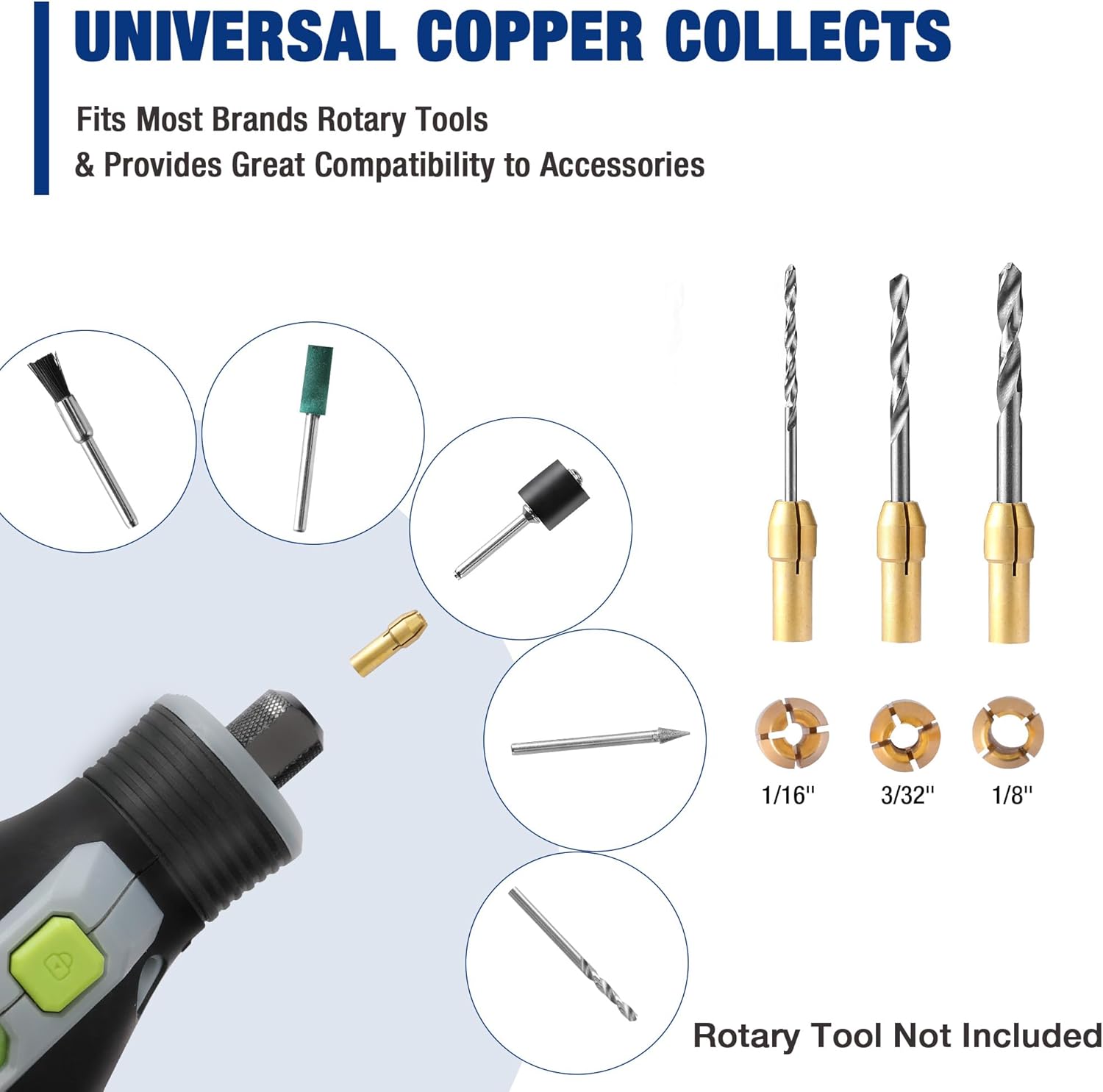

Figure 4: Universal Copper Collets for broad compatibility.

2. Mete Pwodwi pou Telefòn yo

1. Ensure your rotary tool is unplugged.
2. Insert the appropriate collet into the rotary tool's collet nut.
3. Insert the accessory shank into the collet, ensuring it is seated as deeply as possible without the accessory touching the collet nut.
4. Tighten the collet nut using the included spanner/wrench until the accessory is firmly secured. Do not overtighten.
5. For sanding bands, felt wheels, and other wheels that require a mandrel, first attach the wheel to the mandrel, then insert the mandrel into the collet.

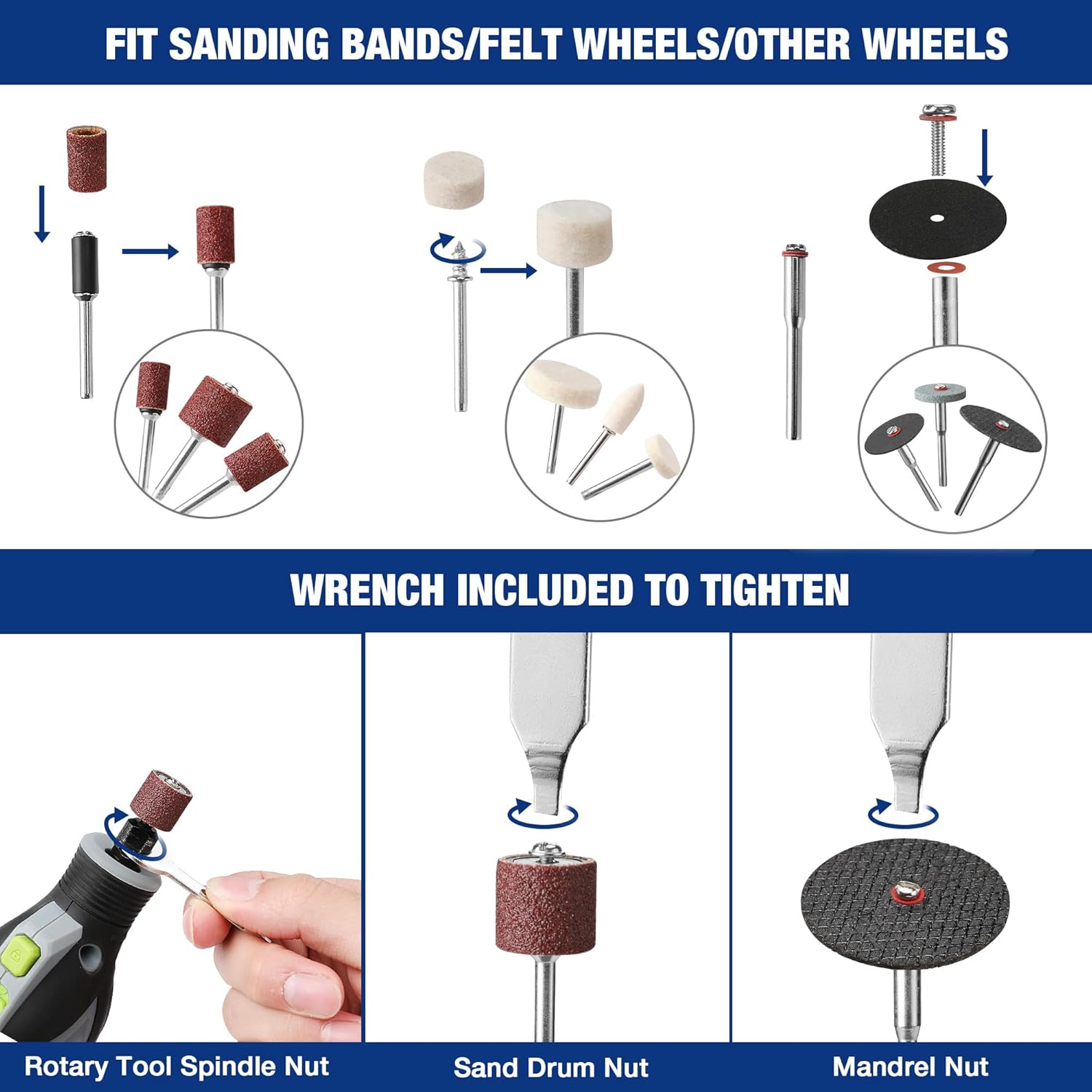

Figure 5: Instructions for fitting accessories and using the wrench.

Enstriksyon Operasyon

This kit supports a wide range of applications. Always refer to your rotary tool's manual for specific operating speeds and safety precautions.

Figure 6: Common applications: Cutting, Sanding, Carving, Drilling.

Figure 7: Common applications: Grinding, Cleaning, Polishing.

1. Koupe

Use cut-off wheels (fiberglass, heavy-duty, or regular) for cutting wood, metal, plastic, and other materials. Select the appropriate wheel based on material hardness and thickness. Always cut in a straight line and avoid applying excessive side pressure, which can cause the wheel to break.

2. Ponçage

Sanding bands and sandpaper discs are ideal for shaping, smoothing, and removing material from wood, metal, plastic, and stone. Start with a coarser grit for material removal and progress to finer grits for a smoother finish.

3. Polishing

Felt polishing wheels and various brushes are used for polishing and buffing a wide range of materials to a high shine. Apply a small amount of polishing compound to the accessory or workpiece as needed.

4. Grinding & Sharpening

Grinding stones (rubber, aluminum oxide, silicon carbide) are suitable for grinding, deburring, and sharpening various materials, including metal, stone, and ceramic. Select the stone type based on the material's properties.

5. Forage

HSS drill bits are included for drilling small holes in wood, metal, and plastic. Ensure the drill bit is securely fastened and apply steady, even pressure. Use appropriate speeds for the material to prevent overheating.

6. Carving & Engraving

HSS grinding points and diamond grinding points are used for detailed carving, engraving, and material removal on wood, metal, stone, and glass. These accessories allow for intricate work and fine detailing.

7. Netwayaj

Steel, brass, and nylon brushes are effective for cleaning and deburring various surfaces, including plastic and metal. Choose the brush type based on the material and desired aggressiveness of cleaning.

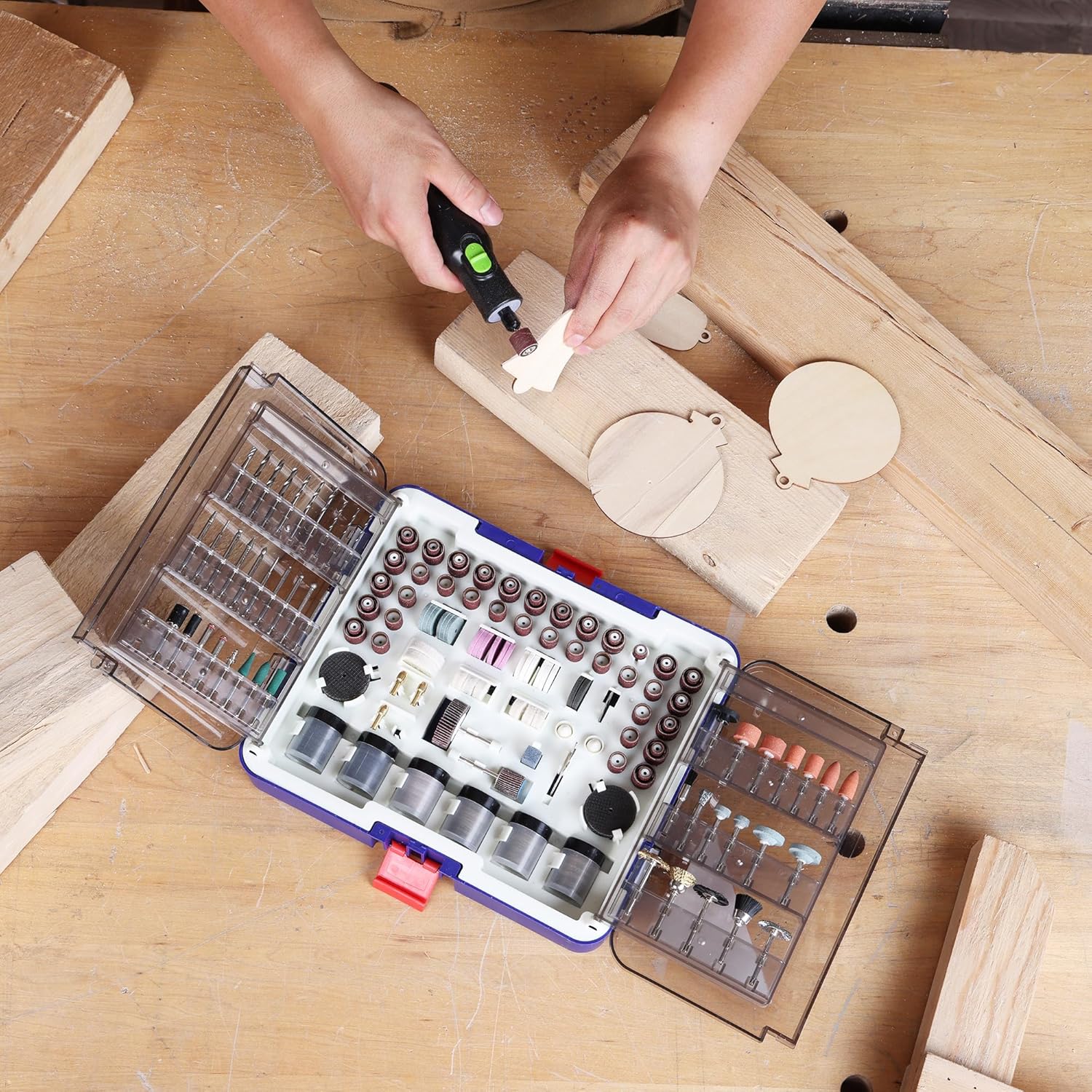

Figure 8: The WORKPRO 530-Piece Rotary Tool Accessory Kit in use.

Antretyen

Proper maintenance extends the life of your accessories and ensures consistent performance.

• Netwayaj: After each use, clean accessories to remove dust and debris. Brushes can be cleaned with a stiff brush or compressed air. Sanding and grinding accessories may require a dressing stone to refresh their surface.
• Enspeksyon: Regularly inspect accessories for wear, damage, or dullness. Replace worn or damaged accessories immediately.
• Depo: Store all accessories in the provided durable storage box. This keeps them organized, protected from damage, and easily accessible. Ensure the box is closed securely to prevent loss.
• Prevansyon rouye: For metal accessories, consider applying a light coat of rust preventative oil if storing in humid conditions.

Depanaj

If you encounter issues while using the accessories, consider the following:

• Accessory Wobbles or Vibrates: Ensure the accessory is fully inserted into the collet and the collet nut is securely tightened. Check if the accessory itself is bent or damaged; replace if necessary.
• Poor Performance (e.g., not cutting/sanding effectively): The accessory may be worn or dull. Replace it with a new one. Ensure you are using the correct accessory type and grit for the material.
• Accessory Overheating: Reduce the rotary tool's speed or apply less pressure. Ensure the accessory is not dull. Allow the accessory and workpiece to cool.
• Difficulty Changing Accessories: Ensure the rotary tool is unplugged. Use the included wrench to loosen the collet nut. If the collet is stuck, gently tap the collet nut while turning.

For persistent issues not covered here, refer to your rotary tool's instruction manual or contact WORKPRO customer support.

Espesifikasyon

Garanti ak sipò

For warranty information or technical support regarding your WORKPRO 530-Piece Rotary Tool Accessory Kit, please refer to the documentation provided with your purchase or contact WORKPRO customer service directly. You may also visit the official WORKPRO store on Amazon for additional product information and support resources.

WORKPRO Store Link: WORKPRO on Amazon.co.jp
