Manyèl Enstriksyon pou Ankadreman Kabann Senp Yicensen (Modèl YiH18-0920M)

1. Entwodiksyon

Thank you for choosing the Yicensen Single Bed Frame. This manual provides essential information for the safe and correct assembly, operation, and maintenance of your new bed frame. Please read these instructions carefully before beginning assembly and retain them for future reference.

The Yicensen Single Bed Frame is designed for a single mattress, measuring 90x200 cm, and features a modern minimalist design with a curved headboard and footboard. Its robust metal construction and reinforced steel slats provide stable support without the need for a box spring.

Figure 1: Assembled Yicensen Single Bed Frame with mattress and bedding.

2. Enfòmasyon sou Sekirite

• Toujou monte ankadreman kabann lan sou yon sifas mou epi pwòp pou evite domaje pwodwi a oswa planche a.
• Asire w tout boulon ak vis yo byen sere anvan w itilize yo. Tcheke epi sere boulon yo detanzantan.
• Do not exceed the maximum recommended weight capacity of 350 kg.
• Kenbe ti pyès yo lwen timoun yo pandan asanblaj la pou evite danje toufe.
• Pa kanpe oswa sote sou ankadreman kabann lan.
• Use only the mattress size specified (90x200 cm) to ensure proper fit and support.

3. Pake kontni

Anvan asanblaj la, verifye ke tout konpozan yo prezan epi yo pa domaje. Si gen nenpòt pyès ki manke oswa ki domaje, tanpri kontakte sèvis kliyan.

• Headboard section
• Footboard section
• Side rails (2)
• Janm sipò
• Planch asye
• Hardware pack (bolts, washers, Allen key)
• Manyèl enstriksyon

4. Enstriksyon Asanble

Asanblaj la fèt pou l senp. Li rekòmande pou gen de moun pou asanblaj la pi fasil.

1. Depake konpozan: Retire tout pyès yo nan anbalaj la avèk prekosyon epi mete yo sou yon sifas pwòp e mou. Tcheke lis sa ki nan anbalaj la.
2. Atache ray bò yo: Connect the side rails to the headboard and footboard sections using the provided bolts and Allen key. Ensure all connections are snug but do not fully tighten yet.

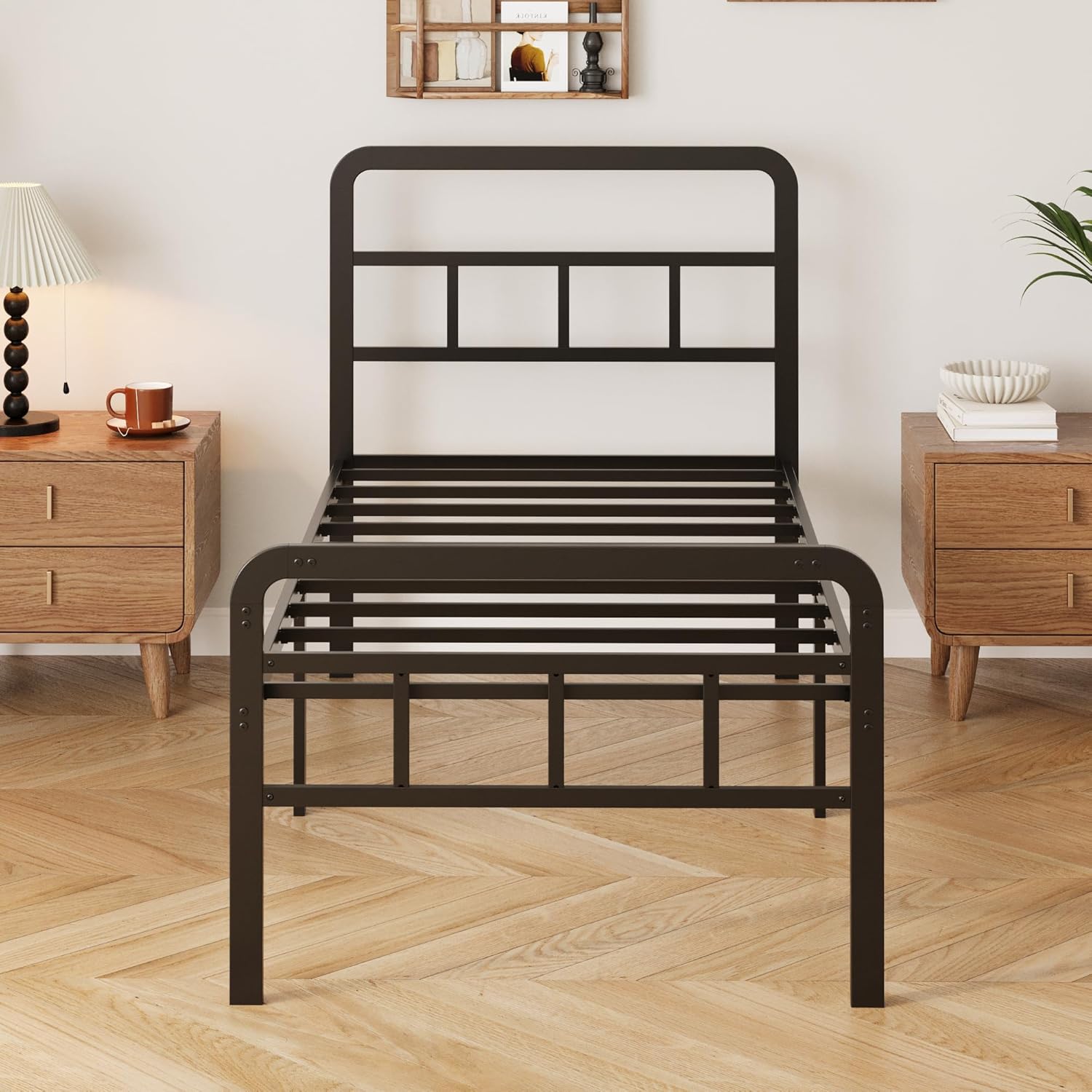

Figure 2: Bed frame components assembled, ready for slats.

3. Enstale pye sipò yo: Attach any central support legs to the frame as indicated in the diagrams.
4. Place Steel Slats: Lay the steel slats across the frame, ensuring they are evenly spaced and securely seated in their designated positions. The reinforced steel slats provide stable support for your mattress.
5. Sere final la: Once all components are in place, systematically tighten all bolts and screws. Do not overtighten.
6. Attach Floor Protectors: The bed frame feet are equipped with anti-slip plastic pads (Bodenschützer) to prevent noise and protect your floor. Ensure these are properly seated.


Figure 3: Close-up of design features including rounded corners and floor protectors.

5. Operasyon Enstriksyon

After successful assembly, your Yicensen Single Bed Frame is ready for use.

• Plasman Matla: Carefully place your 90x200 cm mattress directly onto the steel slats. No box spring is required.
• Depo anba kabann: The bed frame offers a clearance of approximately 41 cm (46 cm from floor to frame) providing ample space for under-bed storage containers or for easy cleaning.


Figure 4: Illustration of the generous under-bed storage space.

6. Antretyen

Antretyen regilye ap asire lonjevite ak estabilite kontinyèl ankadreman kabann ou an.

• Netwayaj: Siye ankadreman metal la ak yon twal mou,amp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the powder-coated finish.
• Tcheke Fastener: Periodically (e.g., every 3-6 months) check all bolts and screws to ensure they remain tight. Re-tighten if necessary to prevent wobbling or noise.
• Pwoteksyon pou planche: Inspect the plastic floor protectors on the feet for wear and tear. Replace if damaged to maintain floor protection and prevent noise.

NAN. Depanaj

• Squeaking/Noise:
  • Ensure all bolts and screws are securely tightened. Loose connections are a common cause of noise.
  • Check that the mattress is properly seated on the slats and not rubbing against the frame.
  • Verify that the plastic floor protectors are intact and correctly positioned.
• Enstabilite/Tranbleman:
  • Re-check all connections for tightness.
  • Asire w ke ankadreman kabann lan sou yon sifas ki plat.
  • Confirm that all support legs are making firm contact with the floor.
• Deplasman planch:
  • Ensure slats are correctly positioned within their designated slots or supports.
  • Verify that the mattress is not too heavy or unevenly distributed, causing excessive pressure on certain slats.

8. Espesifikasyon

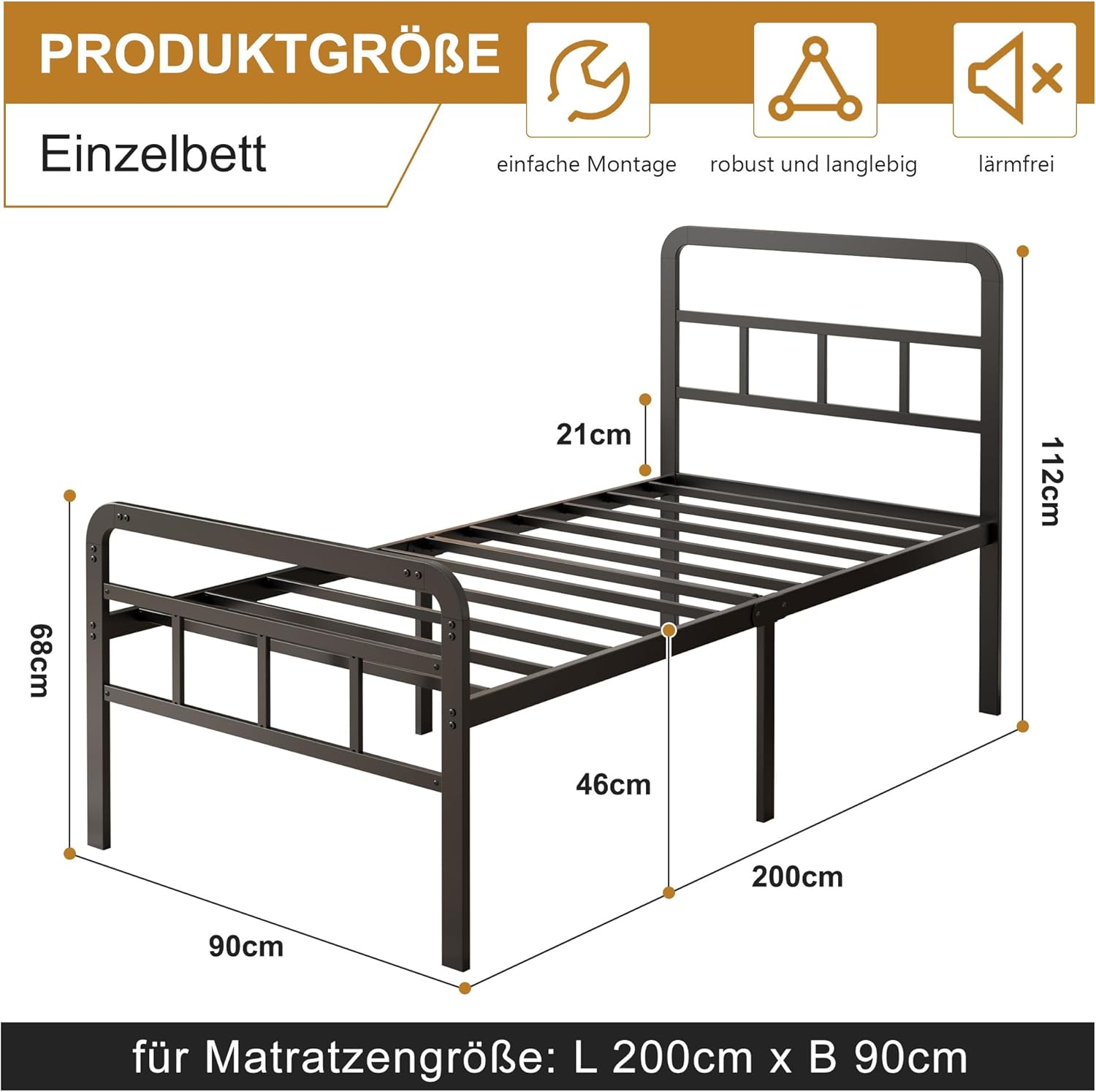

Figure 5: Detailed dimensions of the Yicensen Single Bed Frame.

9. Garanti ak sipò

Pou enfòmasyon sou garanti a oswa pou asistans kliyan, tanpri al gade dokiman acha a oswa kontakte machann kote ou te achte pwodwi a. Kenbe prèv acha ou pou nenpòt reklamasyon garanti.
