1. Entwodiksyon
The ATTACK SHARK L80PRO is a versatile wireless gaming headset designed for an immersive audio experience across multiple platforms. It features Tri-Mode connectivity (2.4GHz, Bluetooth, and wired), a unique built-in and detachable dual microphone system, and an ergonomic, lightweight design for extended comfort. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your L80PRO headset.
Image: The ATTACK SHARK L80PRO headset, highlighting its sleek white design, detachable microphone, and the included USB-A/Type-C dongle.
2. Enstalasyon
2.1. Chaje Headset la
Before first use, fully charge the headset. Connect the included USB-C charging cable to the headset's charging port and a USB power source. The indicator light will show charging status.
Image: Visual representation of the headset's long battery life (approximately 25 hours of gaming) and quick charging time (approximately 1.5 hours). A red light indicates battery below 10%.
2.2. Konekte Headset la
The L80PRO supports three connection modes: 2.4GHz wireless, Bluetooth, and wired 3.5mm.

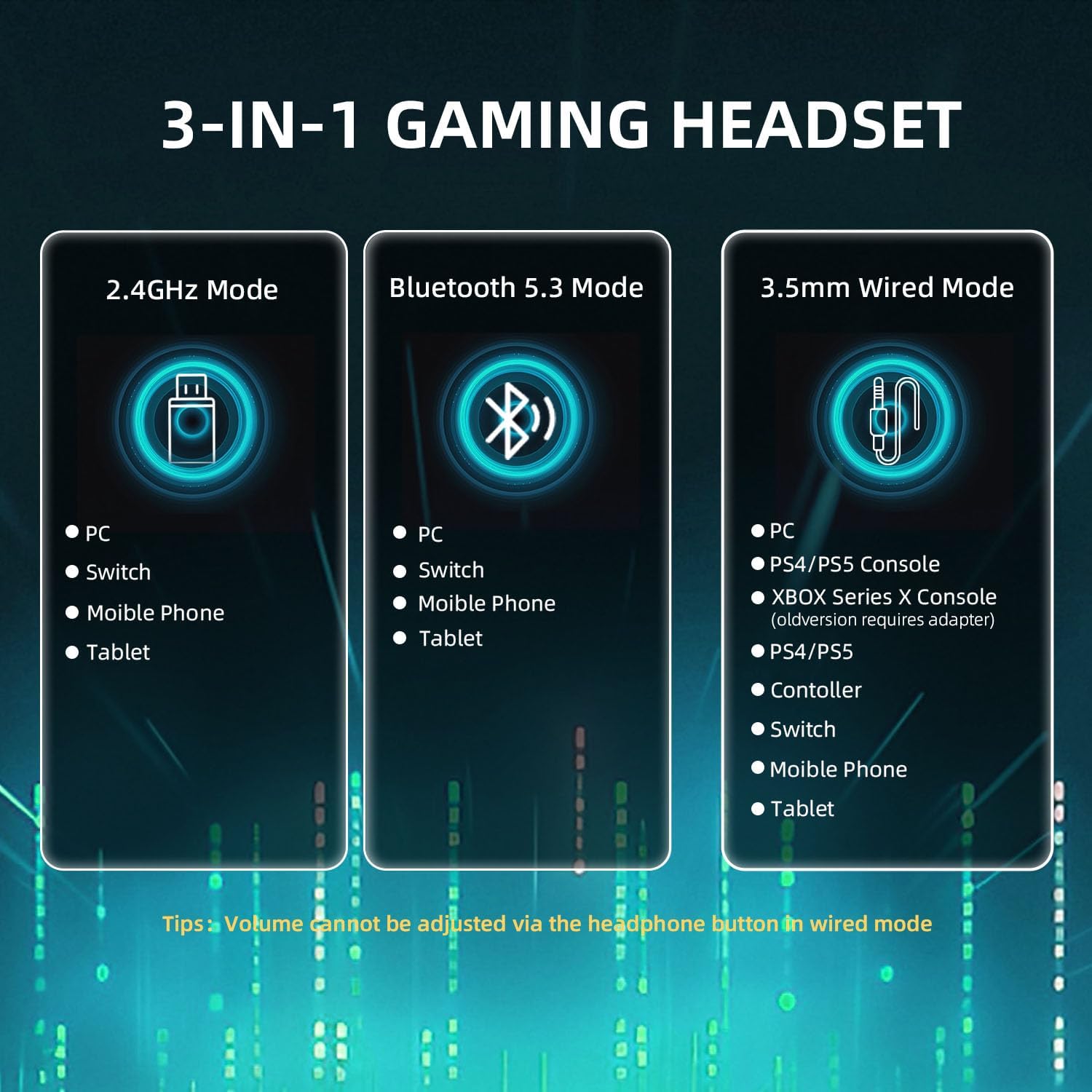

Image: A visual guide to the headset's tri-mode connectivity, showing compatibility with PC, Switch, mobile phones, tablets via 2.4GHz and Bluetooth, and PC, PS4/PS5, Xbox Series X, controllers, Switch, mobile phones, and tablets via 3.5mm wired connection.
2.2.1. Mòd san fil 2.4GHz
This mode offers ultra-low latency for gaming. The 2.4GHz receiver features both USB-A and Type-C connectors for broad compatibility.
- Plug the 2.4GHz USB dongle into an available USB-A or USB-C port on your PC, Mac, Switch, or compatible gaming console.
- Power on the headset by long-pressing the power button for 3 seconds.
- The headset will automatically connect to the dongle. The indicator light will confirm connection.

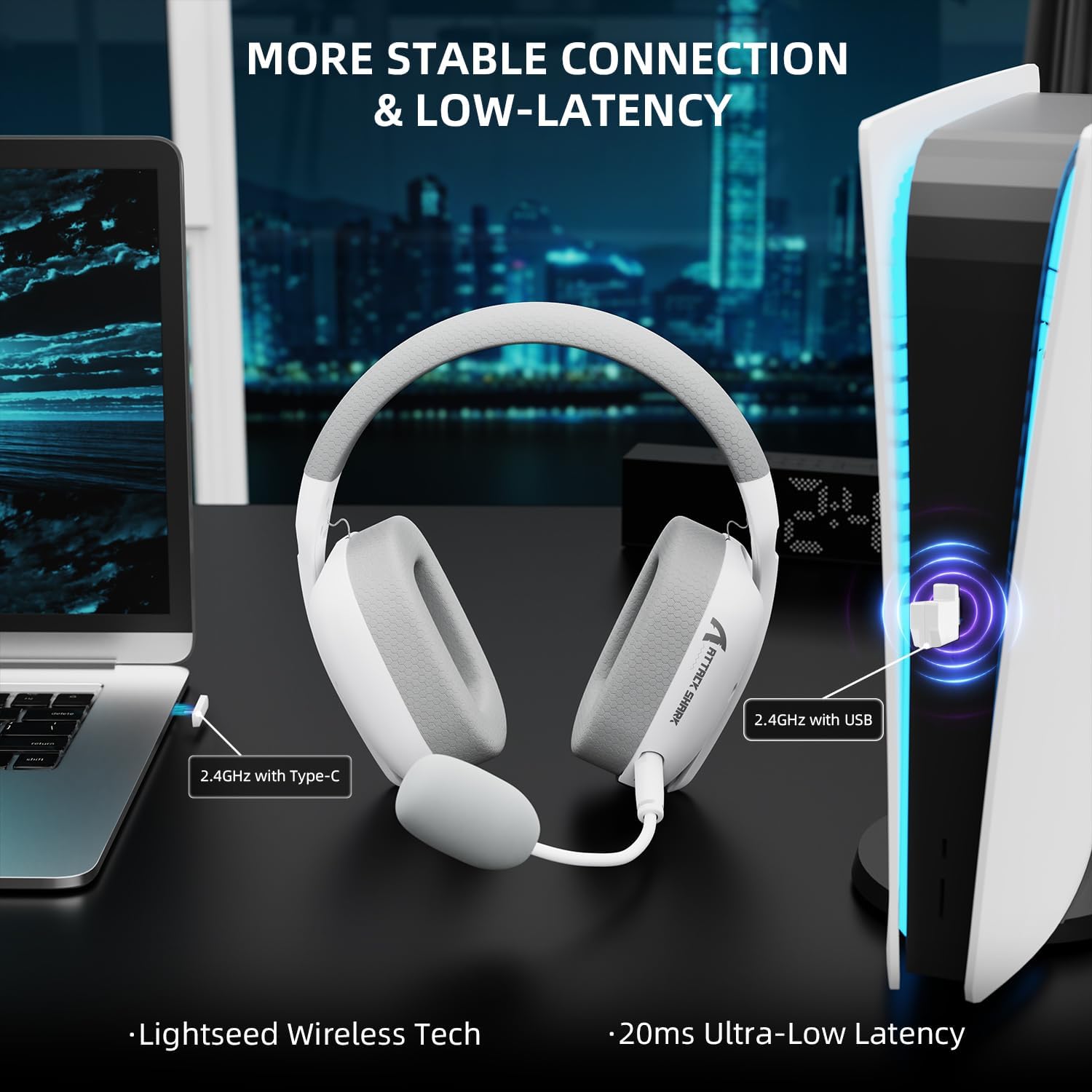

Image: The headset demonstrating its 2.4GHz wireless connection to a laptop via USB-C and a PlayStation 5 console via USB-A, emphasizing stable and low-latency performance.
2.2.2. Bluetooth mòd
Ideal for mobile devices and general use.
- Pouvwa sou headset la.
- Double-click the mode switching button (usually the power button or a dedicated button) to switch to Bluetooth mode. The indicator light will flash, indicating pairing mode.
- On your device (smartphone, tablet, PC), go to Bluetooth settings and select "ATTACK SHARK L80PRO" from the list of available devices.
- Yon fwa yo konekte l, limyè endikatè a ap vin fiks.
2.2.3. Wired Mode (3.5mm)
Pou konpatibilite inivèsèl ak lè batri a ba. Note: In wired mode, the headset's volume button is disabled. Adjust volume directly on your connected device. Xbox compatibility is only available through a wired connection.
- Connect the 3.5mm audio cable to the headset's 3.5mm port.
- Connect the other end of the 3.5mm audio cable to your device's 3.5mm audio jack.
- Kas ekoutè a ap chanje otomatikman nan mòd filaire.
3. Itilizasyon kas ekoutè a
3.1. On-Ear Controls
The L80PRO headset features intuitive controls located on the earcups for easy access.

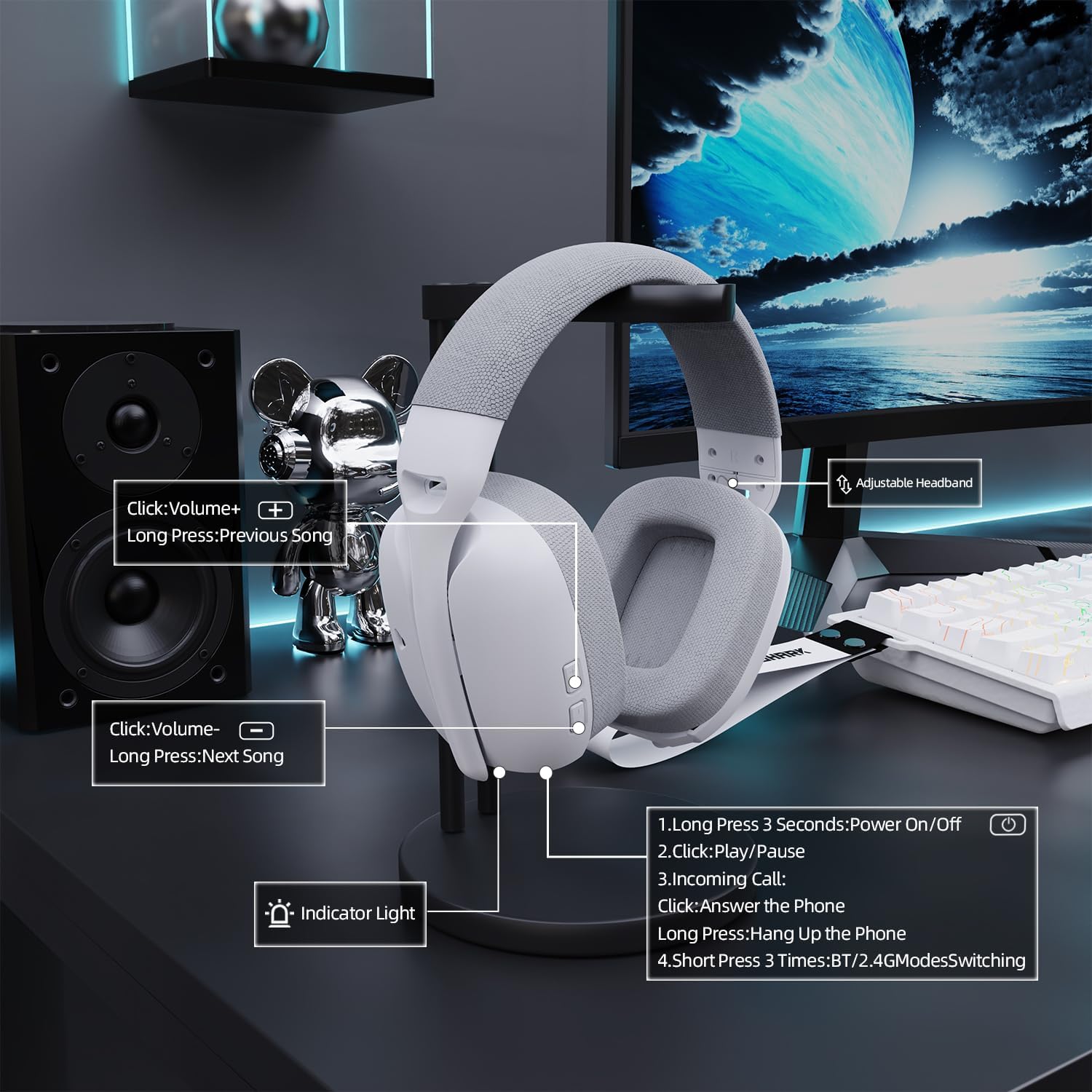

Imaj: Yon imaj detaye view of the headset's on-ear controls, illustrating functions such as volume adjustment, track skipping, power on/off, play/pause, call answering/hanging up, and Bluetooth/2.4G mode switching.
- Limen/Etenyen: Long peze bouton pouvwa a pou 3 segonn.
- Jwe/Poz: Klike sou bouton pouvwa a yon fwa.
- Rele fèk ap rantre: Click the power button to answer, long press to hang up.
- BT/2.4G Mode Switching: Short press the mode switching button (often the power button) 3 times.
- Volim moute: Click the Volume+ button.
- Chante Previous: Peze bouton Volim + la pandan lontan.
- Volim desann: Click the Volume- button.
- Pwochen chante: Peze bouton Volim nan pandan lontan.
- Mikwofòn On/Off: Use the dedicated microphone mute button (if present) or the on-ear control as indicated.
3.2. Itilizasyon Mikwofòn
The L80PRO features both a built-in microphone and a detachable boom microphone for versatile communication.
Image: The headset illustrating its dual microphone design, featuring a built-in microphone for casual use and a 360-degree adjustable, detachable microphone for high-definition recording and clear communication during gaming.
- Mikwofòn entegre: Suitable for casual calls and general use. It is always active when the detachable microphone is not connected.
- Mikwofòn detachable: For crystal-clear communication during intense gaming sessions or high-definition recording. Simply plug it into the designated port on the headset. Ensure it is securely connected. The detachable microphone is 360-degree adjustable for optimal positioning.
4. Antretyen
Proper maintenance ensures the longevity and optimal performance of your ATTACK SHARK L80PRO headset.
4.1. Netwayaj
- Gently wipe the earcups and headband with a soft, dry, lint-free cloth.
- Pou pousyè tè ki difisil pou retire, yon ti kras dampRense twal la avèk dlo oswa yon pwodui netwayaj dou ki pa abrazif. Evite imidite twòp.
- Do not use harsh chemicals, solvents, or abrasive materials, as these can damage the headset's finish.
- Keep the charging port and 3.5mm jack free of dust and debris.
4.2. Depo
- Sere kas ekoutè a nan yon kote ki fre epi sèk, lwen limyè solèy dirèk ak tanperati ekstrèm.
- When not in use, it is recommended to store the headset in a protective case or on a headset stand to prevent damage.
4.3. Swen batri
- To maximize battery life, avoid fully discharging the headset frequently.
- If the headset will not be used for an extended period, charge it to about 50% before storing.
- The smart power-saving mode automatically shuts down the headset after 3 minutes of inactivity in wireless mode to conserve battery.
NAN. Depanaj
If you encounter issues with your ATTACK SHARK L80PRO headset, refer to the following common problems and solutions.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Pa gen son ki soti nan kas ekoutè a | Headset not powered on; Incorrect connection mode; Device volume too low; Headset not selected as audio output. | Ensure headset is powered on. Verify correct connection mode (2.4GHz, BT, Wired). Increase device volume. Select L80PRO as default audio output in device settings. |
| Mikwofòn pa mache | Microphone muted; Detachable mic not fully inserted; Incorrect mic selected in device settings. | Ensure microphone is not muted via headset control or software. Re-insert detachable microphone firmly. Select L80PRO microphone as default input device in your system's sound settings. |
| 2.4GHz connection unstable/laggy | Interference from other wireless devices; Dongle too far from headset; Low headset battery. | Move closer to the dongle. Ensure no major obstructions. Try a different USB port. Charge the headset. |
| Pwoblèm appariement Bluetooth | Headset not in pairing mode; Device Bluetooth off; Previously paired device interfering. | Ensure headset is in Bluetooth pairing mode (flashing indicator). Turn device Bluetooth off and on again. Forget previous pairings on your device and try again. |
| Headset volume control not working in wired mode | This is normal behavior for wired mode. | Adjust volume directly on the connected device (PC, console, phone). |
6. Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Non modèl | L80PRO |
| Koneksyon Teknoloji | Wireless (2.4GHz RF, Bluetooth), Wired (3.5mm) |
| Aparèy konpatib | Desktops, Laptops, Gaming Consoles (PC, Mac, PS4, PS5, Switch, Xbox via wired), Tablets, Telephones |
| Kalite chofè odyo | Chofè dinamik (40mm) |
| Fòm ekoutè | Sou zòrèy |
| Pwa atik | 13.7 ons (apeprè 388g) |
| Kapasite batri | 300mAh |
| Tan pou chaje | Apeprè. 1.5 èdtan |
| Tan Jwèt | Apeprè. 25 èdtan |
| Mikwofòn | Built-in & Detachable Boom Mic |
| Koulè | Blan |
7. Garanti ak sipò
ATTACK SHARK products are designed and manufactured to the highest quality standards. For information regarding warranty coverage and support, please refer to the warranty card included with your product or visit the official ATTACK SHARK websit.
If you experience any issues that cannot be resolved using the troubleshooting guide, please contact ATTACK SHARK customer support for assistance. Have your product model (L80PRO) and purchase details ready when contacting support.
