1. Enfòmasyon enpòtan sou sekirite
Read all instructions carefully before using the appliance. Keep this manual for future reference. Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury.
- Asire w ke frijidè a byen konekte atè.
- Pa domaje kous febrifuj la.
- Kenbe ouvèti vantilasyon yo klè ak obstak.
- Pa sèvi ak aparèy mekanik oswa lòt mwayen pou akselere pwosesis dekonjle a, lòt pase sa yo rekòmande pa manifakti a.
- Pa sèvi ak aparèy elektrik andedan konpatiman depo manje yo, sof si yo se nan kalite manifakti a rekòmande.
- Deploge aparèy la anvan w netwaye oswa fè antretyen.
2. Enstalasyon ak Enstalasyon
2.1 Debake
Retire tout materyèl anbalaj yo avèk prekosyon. Enspekte frijidè a pou wè si li gen nenpòt domaj. Rapòte nenpòt domaj bay machann ou an imedyatman.
2.2 Plasman
- Mete frijidè a sou yon sifas ki fèm ak nivo.
- Ensure adequate air circulation around the appliance. Maintain a minimum distance of 10 cm (4 inches) from the back and sides to allow for proper ventilation.
- Evite limyè solèy dirèk ak sous chalè (pa egzanp, recho, aparèy chofaj).
- Do not install in areas where the temperature is likely to fall below 10°C (50°F) or rise above 43°C (110°F).
2.3 Nivelman
Adjust the leveling feet at the bottom front of the refrigerator to ensure it is stable and level. This helps reduce vibration and noise.
2.4 Premye pouvwa-sou
After placement, wait at least 2-4 hours before plugging in the refrigerator. This allows the refrigerant to settle. Once plugged in, allow the appliance to cool for several hours before loading food.
Imaj 2.1: Devan view of the Midea MDRT645MTE06E refrigerator, showcasing its silver finish and external control panel on the upper door.
3. Operasyon Enstriksyon
3.1 Exterior Control Panel
The refrigerator features an external control panel for easy adjustment of settings. This panel allows you to monitor and change temperature settings without opening the doors.
Imaj 3.1: Yon fèmen view of the refrigerator's exterior control panel, showing digital display and touch buttons for temperature adjustment and quick cooling functions.
- Ajisteman Tanperati: Use the up/down arrows to set the desired temperature for the refrigerator and freezer compartments.
- Refwadisman rapid: Activate the quick cooling function with a single touch to rapidly chill newly added items or beverages.
3.2 Inverter Quattro Technology
The Inverter Quattro system optimizes compressor operation, preventing frequent stopping and starting. This results in a more stable internal temperature, rapid cooling capabilities, and enhanced energy efficiency. It contributes to prolonged food freshness and reduced electricity consumption.
Imaj 3.2: A diagram illustrating the internal components of the Inverter Quattro compressor, highlighting its advanced mechanism for efficient cooling.
3.3 Pa gen sistèm Frost
This refrigerator features a No Frost cooling system, which prevents ice buildup in both the freezer and refrigerator compartments. This technology ensures consistent cooling performance and eliminates the need for manual defrosting.
3.4 Cooling Box
The dedicated Cooling Box drawer maintains a lower temperature than the main refrigerator compartment. This feature is ideal for storing fresh meat and seafood, preserving their quality and texture without fully freezing them.
Imaj 3.3: A visual representation of the "Cooling Box" label, indicating the specialized drawer for optimal storage of specific food items.
3.5 Active-C Fresh Technology
The Active-C Fresh system incorporates an advanced carbon filter designed to absorb odors and maintain a fresh environment within the refrigerator. This helps preserve the original flavor, shape, and vibrant color of your food items for longer periods.
Imaj 3.4: A diagram illustrating the Active-C Fresh filter system, showing air flowing through the filter to purify and maintain freshness around produce like bell peppers.
3.6 Multi-Air Flow System
The Multi-Air Flow system ensures even distribution of cold air throughout the refrigerator compartments. This consistent airflow helps maintain stable temperatures, reducing temperature fluctuations and keeping food fresher for longer.
Imaj 3.5: A diagram illustrating the Multi-Air Flow system, showing cold air circulating around various food items on different shelves within the refrigerator.
3.7 Kontwòl imidite
The refrigerator includes features for humidity control, typically within crisper drawers. This allows you to adjust the humidity level to suit different types of produce, helping to extend their freshness.
Imaj 3.6: A close-up of a crisper drawer with a visible slider for humidity control, designed to optimize storage conditions for fruits and vegetables.
4. Antretyen ak netwayaj
4.1 Netwayaj jeneral
- Toujou debranche frijidè a anvan w netwaye.
- Clean the interior with a soft cloth and a solution of mild detergent and warm water. Rinse thoroughly and dry.
- Siye sifas eksteryè ak yon mou, damp twal. Pou fini asye pur, sèvi ak yon pwodui netwayaj espesyalize pou asye pur.
- Netwaye jwenti pòt yo regilyèman pou asire yon sele byen sere.
4.2 Bobin kondansateur
Periodically clean the condenser coils located at the back or bottom of the refrigerator. Dust and debris can accumulate, reducing efficiency. Use a vacuum cleaner or a soft brush to remove buildup.
4.3 Active-C Fresh Filter Replacement
The Active-C Fresh filter should be checked periodically and replaced as needed to maintain optimal odor absorption and freshness. Refer to the filter's specific instructions for replacement frequency.
NAN. Depanaj
Anvan ou kontakte sèvis la, re-view pwoblèm komen ak solisyon sa yo:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Frijidè pa refwadi | Power cord unplugged; temperature setting too high; door left open; excessive food load. | Check power connection; adjust temperature; ensure door is closed; reduce food load if overfilled. |
| Bwi etranj | Aparèy la pa nivo; bagay yo ap vibre anndan; son nòmal pou fonksyone (pa egzanp, koule frijidè). | Mete frijidè a nan yon nivo; ranje bagay yo yon lòt jan; konsilte manyèl la pou wè si gen son nòmal. |
| Dlo sou planche | Tiyo drenaj bouche; twòp imidite. | Clear drain tube; ensure proper ventilation. |
| Pòt pa fèmen byen | Door gasket dirty or damaged; refrigerator not level; food items obstructing closure. | Clean or replace gasket; level appliance; rearrange food. |
6. Espesifikasyon
Detailed technical specifications for the Midea MDRT645MTE06E Refrigerator:
| Karakteristik | Detay |
|---|---|
| Mak | Midea |
| Enfòmasyon sou modèl | MDRT645MTE06E |
| Pwodwi Dimansyon (W x D x H) | 691 x 700 x 1880 cm |
| Dimansyon atik (D x W x H) | 75D x 74W x 182H santimèt |
| Pwa atik | 240 Kilogram |
| Kapasite total | 449 lit |
| Kapasite Manje Fre nan Frijidè | 344 lit |
| Kapasite frizè | 105 lit |
| Evalyasyon efikasite | A+ (BEE Star Rating: 5 Star) |
| Konsomasyon enèji chak ane | 1000 Kilowat èdtan |
| Kalite enstalasyon | Otonòm |
| Faktè fòm | Multi-Door (2 Doors) |
| Sistèm dekonjle | Gratis Frost |
| Karakteristik espesyal | Frost Free, Inverter Quattro, Cooling Box, Multi-Air Flow, Active-C Fresh, Humidity Control |
| Koulè | Ajan |
| Voltage | 50 Volts |
| Tiwa/Bwat pou Bwason | 2 |
| Etajè | 3 |
| Gon pòt | Agòch |

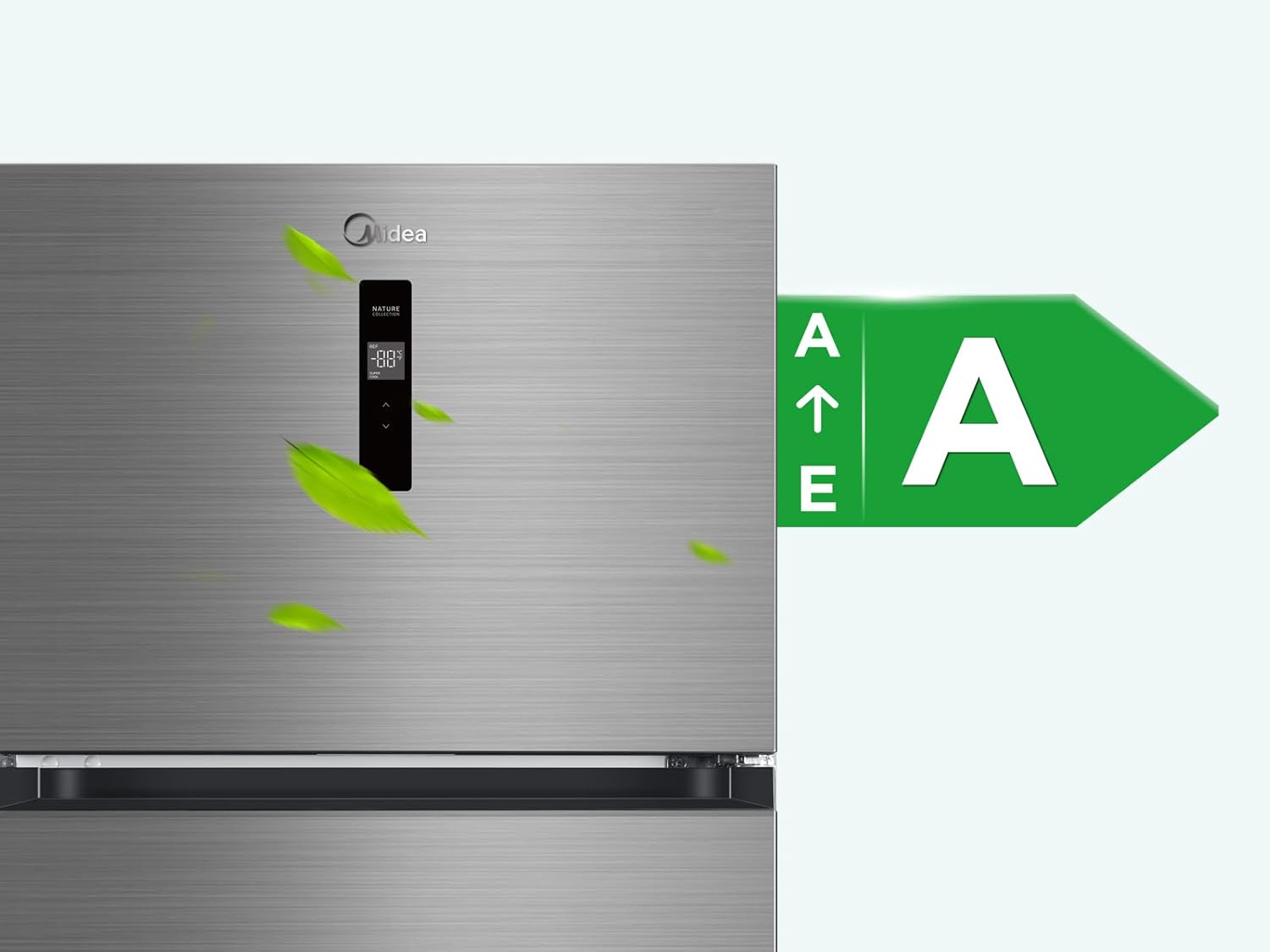

Imaj 6.1: Energy efficiency label, indicating the refrigerator's A+ rating, signifying high energy savings.
Imaj 6.2: A diagram illustrating the refrigerator's Volt Control system, showing its ability to operate within a wide voltage range (115V to 300V) for stable performance.
7. Garanti ak sipò
The Midea MDRT645MTE06E Refrigerator comes with a comprehensive 10-ane garanti. This warranty covers manufacturing defects and ensures peace of mind regarding the appliance's reliability.
For technical support, service requests, or warranty claims, please contact Midea customer service or your authorized dealer. Keep your purchase receipt and model information readily available.
Additional extended warranty options may be available through third-party providers:
- Garanti pwolonje 1 zan pa Salama Care
- Garanti pwolonje 2 zan pa Salama Care
Pou plis enfòmasyon, vizite sit ofisyèl Midea a. websit oswa kontakte sipò kliyan yo.
