Entwodiksyon
This manual provides detailed instructions for the proper use and care of your VILTROX 28mm F4.5 XF Pancake APS-C Auto Focus Wide Angle Prime Lens. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
The VILTROX 28mm F4.5 XF lens is a compact, wide-angle prime lens designed for Fujifilm X-mount cameras. It offers a versatile perspective suitable for landscapes, architecture, and environmental portraits. Its lightweight and slim design make it highly portable.
Karakteristik kle
- Pèspektiv gran ang: 28mm focal length (42mm equivalent on APS-C) for broad views.
- Ultra-Light and Slim Design: Weighs approximately 60g and measures 15.3mm, enhancing portability.
- Efficient Autofocus: Features a VCM autofocus motor for precise and quick focusing.
- Exceptional Optical Quality: Composed of 6 elements in 6 groups, including 2 ED and 2 aspherical lenses, for sharp images and vibrant colors.
- Innovative Slide Cap Design: Integrated lens cap that slides to transform into a lens, protecting it from dust and dirt.
- Multi-layer Coating: Minimizes ghosting and flare for clear images.
- USB-C Firmware Upgrade Interface: Allows for future firmware updates.
Pwodwi souview
Enstalasyon

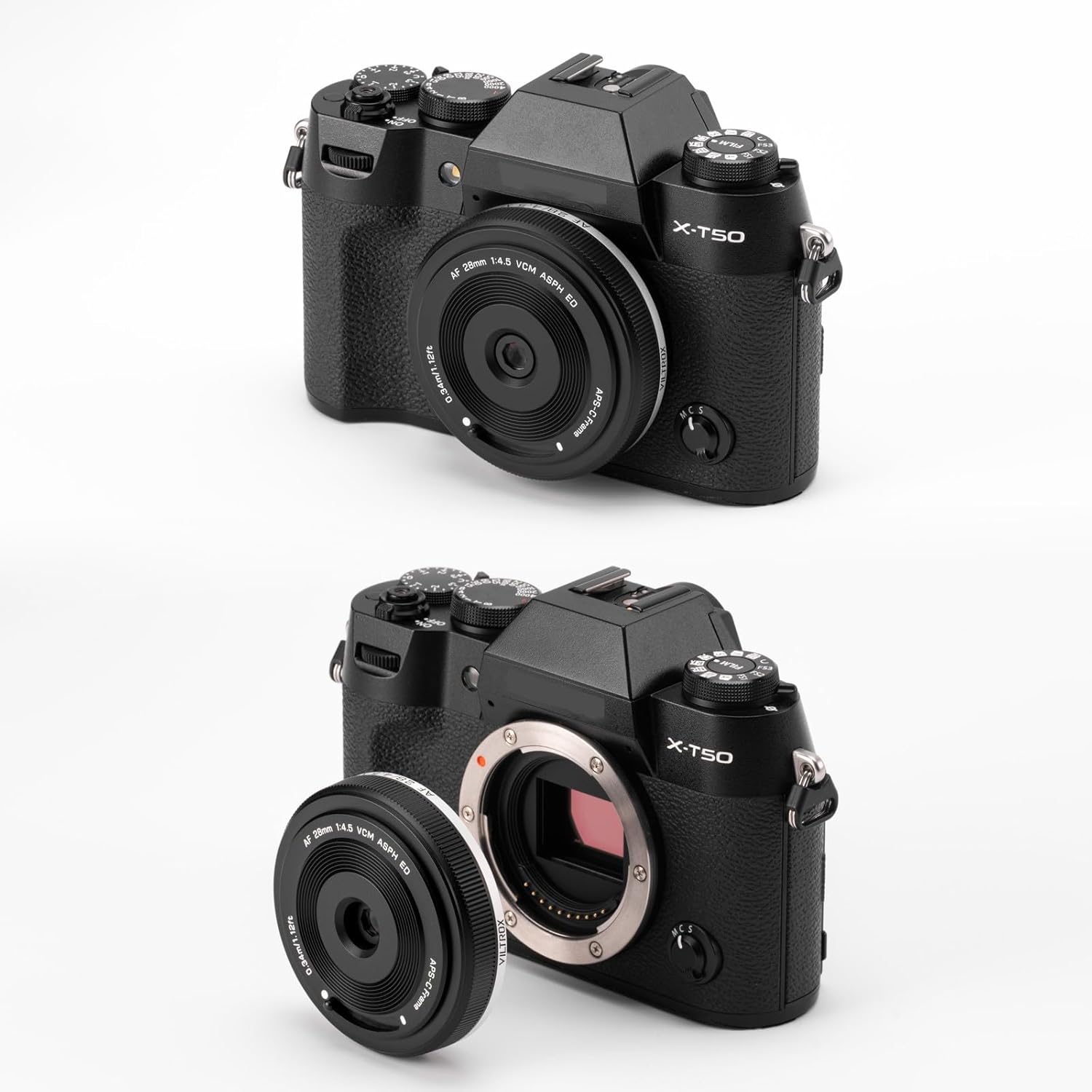

1. Tache Lantiy la
- Align the white dot on the lens barrel with the white dot on your Fujifilm X-mount camera body.
- Mete lantiy la dousman nan sipò kamera a.
- Rotate the lens clockwise until it clicks into place, indicating it is securely locked.
2. Operating the Slide Cap
The lens features an integrated slide cap for protection and convenience.
- To open the lens for shooting, slide the lever from the 'OFF' position to the 'ON' position. This transforms the cap into the lens element.
- To close and protect the lens, slide the lever back to the 'OFF' position. This minimizes dust and dirt accumulation.
Fonksyone Lantiy la
1. Autofocus Functionality
The VILTROX 28mm F4.5 XF lens utilizes a VCM autofocus motor for quick and precise focusing. It supports advanced autofocus features available on compatible Fujifilm X-mount cameras.
- Eye Autofocus: Detects and focuses on the subject's eyes for sharp portraits.
- Face Autofocus: Detects and focuses on the subject's face.
Ensure your camera's autofocus mode is set appropriately for optimal performance.
2. Ouverture
The lens features a fixed aperture of F4.5. This means the aperture cannot be adjusted manually on the lens itself. Exposure control will be managed through your camera's shutter speed and ISO settings.
3. Focusing Distance
The minimum focusing distance for this lens is 0.34 meters (1.12 feet).
Antretyen
1. Netwaye lantiy la
- Sèvi ak yon twal mou ki pa gen pousyè oswa yon bwòs pou lantiy pou retire pousyè sou sifas lantiy yo.
- Pou tach difisil oswa anprent dwèt, aplike yon ti kantite solisyon netwayaj lantiy sou yon twal mikwofib pwòp epi siye lantiy la dousman nan yon mouvman sikilè.
- Avoid using abrasive materials or harsh chemicals, as these can damage the lens coatings.
2. Depo
- When not in use, ensure the slide cap is in the 'OFF' position to protect the lens elements.
- Store the lens in a dry, cool place, away from direct sunlight and extreme temperatures.
- Consider using a lens pouch or case for added protection during transport.
Depanaj
1. Autofocus Issues
- Lantiy la pa konsantre: Ensure the lens is securely mounted to the camera body. Check your camera's autofocus settings.
- Otofokus ralanti: In low light conditions or with low-contrast subjects, autofocus may be slower. Ensure adequate lighting or switch to manual focus if necessary.
2. Pwoblèm Kalite Imaj
- Soft images: Ensure the lens elements are clean and free from dust or smudges. Verify that the camera's focus is accurate.
- Flare or ghosting: While the lens has multi-layer coatings, strong direct light sources can still cause flare. Use a lens hood (if compatible) or adjust your shooting angle to minimize this.
3. Mizajou Firmware
The lens features a USB-C port for firmware updates. Visit the official VILTROX website for the latest firmware and instructions. Keeping your lens firmware updated can improve performance and compatibility.
Espesifikasyon
| Karakteristik | Spesifikasyon |
|---|---|
| Longè Fokal | 28mm (42mm equivalent on APS-C) |
| Ouverture maksimòm | F4.5 |
| Ouverture minimòm | F4.5 (fiks) |
| Konstriksyon Lantiy | 6 eleman nan 6 gwoup |
| Eleman espesyal | 2 ED lenses, 2 Aspherical lenses |
| Distans Minimòm Konsantre | 0.34m (1.12ft) |
| Maksimòm Agrandisman | 0.1x |
| Motè otofokus | VAW |
| Gwosè filtre | Not specified (integrated cap design) |
| Dimansyon (D x L) | Apeprè. 60.5mm x 15.3mm |
| Pwa | Apeprè. 60g (2.1 oz) |
| Mòn konpatib | Fujifilm X-Mount |
| Firmware Interface | USB-C |
Ki sa ki nan bwat la
- VILTROX 28mm F4.5 XF Pancake APS-C Lens
- Lens Cap (integrated)
- Manyèl itilizatè
- Kat Garanti
- Bwat pakè
- Netwaye twal
Garanti ak sipò
VILTROX products are covered by a limited warranty. Please refer to the included warranty card for specific terms and conditions. For technical support, firmware updates, or any product-related inquiries, please visit the official VILTROX websit oswa kontakte sèvis kliyan.
Ofisyèl Websit: www.viltrox.com
