Ankadreman Kabann Metalik Yicensen pou De Kabann Senp XL ak Tèt Kabann an Bwa - Manyèl Enstriksyon

1. Entwodiksyon

Thank you for choosing the Yicensen Metal Twin XL Bed Frame with Wooden Headboard. This manual provides detailed instructions for assembly, usage, maintenance, and troubleshooting to ensure a safe and optimal experience with your new bed frame. This bed frame is designed for stability, efficient space utilization, and ease of assembly, featuring a noise-free design and heavy-duty steel slat support.

Image 1.1: Fully assembled Yicensen Twin XL bed frame.

2. Enfòmasyon sou Sekirite

Tanpri li epi konprann tout enstriksyon yo anvan ou asanble epi itilize li. Si ou pa swiv enstriksyon sa yo, ou ka blese oswa domaje pwodwi a.

• Kapasite pwa: Do not exceed the maximum weight recommendation of 1500 lbs (680 kg). This includes the mattress and occupants.
• Asanble: Always follow assembly instructions carefully to ensure stability and prevent injury. It is recommended that two adults assemble this product.
• Timoun: Kenbe timoun yo lwen zòn asanblaj la. Ti pyès yo ka reprezante yon danje toufe.
• Zouti: Use only the tools provided or recommended in this manual.
• Plasman: Place the bed frame on a level surface.
• Antretyen: Tcheke tout boulon ak koneksyon yo detanzantan pou asire yo rete sere.

3. Pake kontni

Anvan ou kòmanse asanblaj la, verifye ke tout pyès yo la epi yo pa domaje. Si gen nenpòt pyès ki manke oswa ki domaje, tanpri kontakte sèvis kliyan.

• Headboard Sections (Engineered Wood & Metal)
• Footboard Section (Metal)
• Side Rails (Metal)
• Support Slats (Steel)
• Hardware Kit (Bolts, Washers, Allen Wrench)
• Pwoteksyon etaj
• Manyèl Enstriksyon

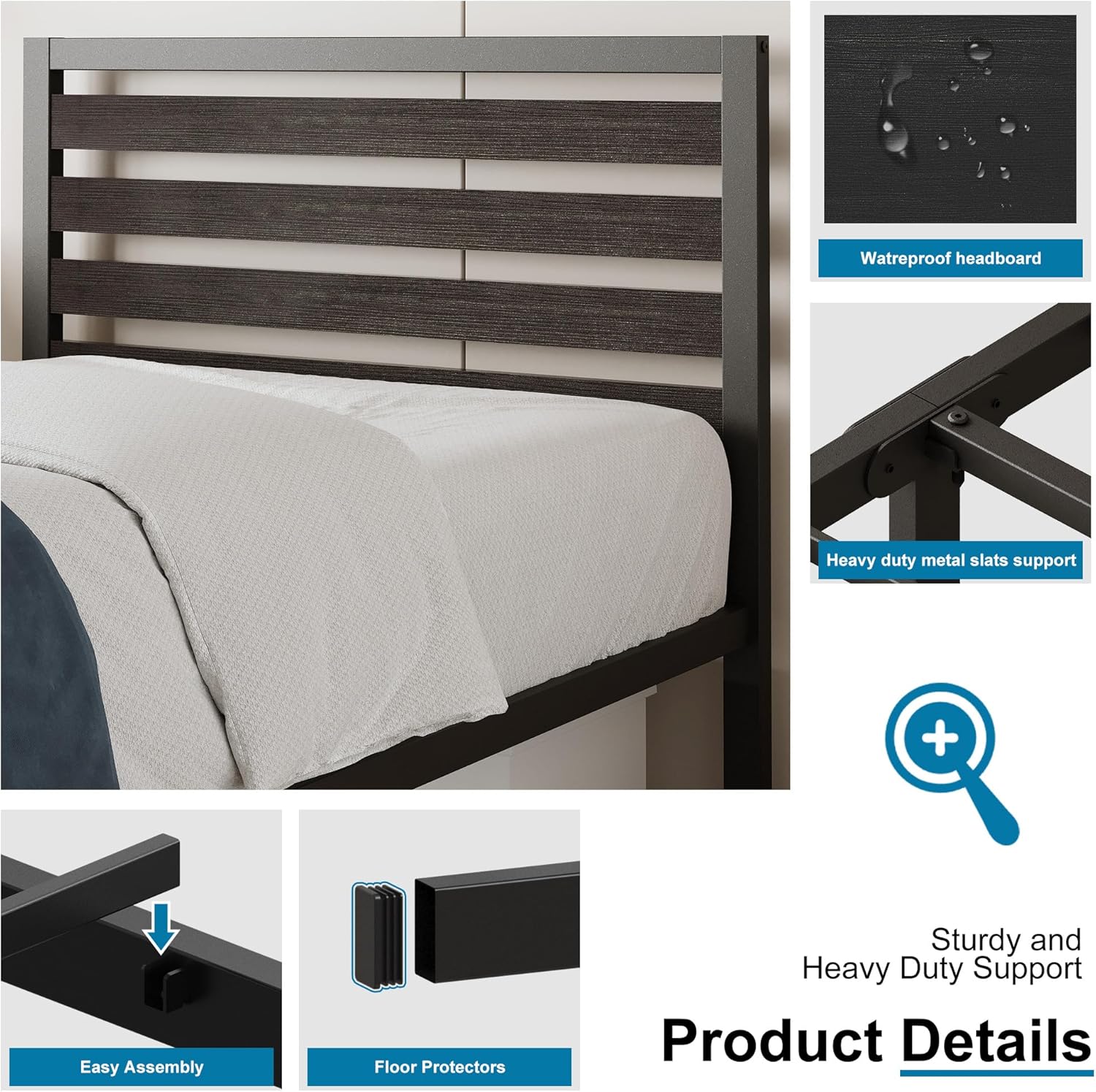

Imaj 3.1: Detaye view of key components and features.

4. Enstriksyon pou enstalasyon ak asanblaj

Assembly is designed to be straightforward. Follow these steps carefully. It is recommended to have two people for assembly.

1. Depake epi idantifye pyès yo: Lay out all components on a clean, soft surface (like a carpet) to prevent scratches. Refer to the parts list and diagrams in your included manual to identify each piece.
2. Assemble Headboard: Connect the wooden headboard panels to the metal frame sections using the provided bolts and Allen wrench. Ensure all connections are secure but do not overtighten initially.
3. Atache ray bò yo: Connect the side rails to the assembled headboard using the appropriate hardware. Make sure the rail connectors are properly aligned and secured.
4. Install Footboard: Attach the footboard to the other end of the side rails. Ensure all four corners are securely fastened.
5. Place Support Slats: Carefully place the steel support slats across the bed frame. The slats are designed to fit into designated slots or rest on support beams. Ensure they are evenly spaced and fully seated. Some slats may require a rubber mallet to fully secure, as noted in user feedback, but avoid excessive force.
6. Install Floor Protectors: Insert the plastic floor protectors into the bottom of each bed leg. This prevents noise and protects your flooring.
7. Sere final la: Once all parts are assembled, go back and securely tighten all bolts. Do not overtighten.

Image 4.1: Bed frame structure prior to mattress placement.

5. Enstriksyon Operasyon (Itilizasyon)

Once assembled, your Yicensen bed frame is ready for use.

• Plasman Matla: Carefully place your Twin XL mattress directly onto the steel support slats. A box spring is not required.
• Depo anba kabann: The 18-inch height of the bed frame provides approximately 16 inches of clearance underneath, offering ample space for storage bins, luggage, or other items. This helps maintain an organized living environment.
• Konsepsyon san bri: The integrated foot pads and sturdy construction are designed to minimize noise during use.

Image 5.1: Under-bed storage capacity.

6. Antretyen

Bon swen ap pwolonje lavi ak aparans ankadreman kabann ou an.

• Netwayaj: Wipe the metal frame and wooden headboard with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish. The headboard features a waterproof design for easy cleaning.
• Verifikasyon boulon: Periodically (e.g., every 3-6 months) check all assembly bolts and connections. Tighten any that have become loose to maintain stability and prevent squeaking.
• Rezistans dekolorasyon: The bed frame features a fade-resistant finish, but prolonged direct sunlight exposure may still affect its appearance over time.

NAN. Depanaj

Si ou rankontre nenpòt pwoblèm, gade solisyon komen sa yo:

• Bri oswa bri ki fè bri:
  • Asire w ke tout boulon yo byen sere.
  • Verify that the floor protectors are properly installed on all legs.
  • Check that the steel slats are fully seated and not rubbing against the frame.
• Enstabilite/Tranbleman:
  • Re-check all connections and tighten any loose bolts.
  • Asire w ke ankadreman kabann lan sou yon sifas ki plat.
• Matla glisman:
  • This bed frame does not include a built-in mattress retainer. Consider purchasing anti-slip mattress pads or mattress gaskets to prevent movement.

8. Espesifikasyon

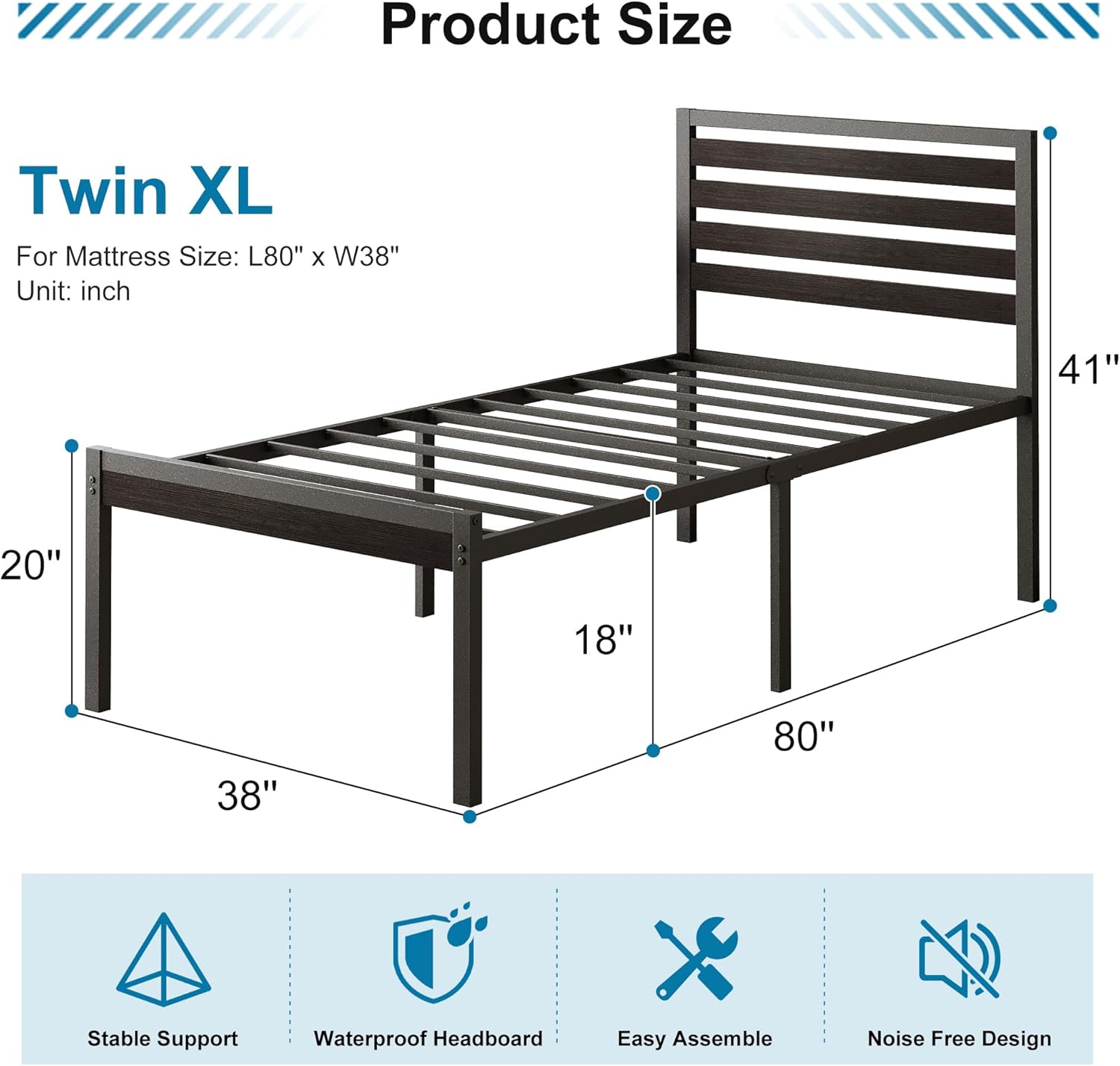

Image 8.1: Product dimensions for the Twin XL bed frame.

9. Garanti ak sipò

For warranty information, product support, or to order replacement parts, please contact Yicensen customer service directly. Refer to the contact information provided with your purchase or visit the official Yicensen store.
