1. Pwodwi souview
The CAIYUN 16-Drawer Dresser is a versatile storage solution designed for bedrooms and living spaces. It features a robust metal frame and engineered wood top, complemented by 16 fabric drawers of varying sizes. This unit also functions as a TV stand, capable of supporting up to a 55-inch television, and includes an integrated power outlet with USB and Type-C ports for convenient device charging.
Karakteristik kle:
- Depo Spacious: 16 fabric drawers in three different sizes for organized storage of clothing, toys, and other items.
- Estasyon chaje entegre: Equipped with 3 AC outlets, 1 USB port, and 1 Type-C port on the top surface.
- TV Stand Functionality: Wide top surface supports TVs up to 55 inches.
- Konstriksyon ki estab: Made from high-quality chipboard with a metal frame and X-shaped reinforcement for stability.
- Konsepsyon kontra enfòmèl ant: Suitable for small bedrooms and living rooms.
Image 1.1: The CAIYUN 16-Drawer Dresser in a black wood vein finish, shown with a television placed on its top surface and a charging cable connected to the integrated power outlet.
2. Enfòmasyon sou Sekirite
Tanpri li epi konprann tout enstriksyon sekirite yo anvan ou monte epi itilize li. Si ou pa swiv enstriksyon sa yo, ou ka blese oswa domaje pwodwi a.
- Aparèy anti-tip: It is highly recommended to secure the dresser to the wall using the provided anti-tip kit to prevent accidental tipping, especially in households with children or pets.
- Kapasite pwa: Do not exceed the maximum weight capacity for the top surface (approximately 150 lbs / 68 kg) or individual drawers (approximately 10 lbs / 4.5 kg). Overloading can cause instability or damage.
- Plasman: Place the dresser on a flat, level surface. Uneven surfaces can compromise stability.
- Sekirite elektrik:
- Ensure the power outlet is connected to a grounded electrical source.
- Do not overload the power outlets. Refer to the specifications for maximum electrical load.
- Keep liquids away from the power outlets and charging ports.
- Do not use the charging station if the cord or plug is damaged.
- Asanble: Assemble the unit in a clear, open area. Keep small parts away from children during assembly.
3. Pake kontni
Anvan ou kòmanse asanblaj la, verifye ke tout konpozan ki nan lis anba a yo prezan epi yo pa domaje. Si gen nenpòt pyès ki manke oswa ki domaje, tanpri kontakte sèvis kliyan.
- Konpozan ankadreman metalik
- Engineered Wood Top Panel
- Tiwa twal (16 an total, divès gwosè)
- Power Outlet Unit (with 3 AC outlets, 1 USB, 1 Type-C port)
- Hardware Kit (screws, bolts, Allen wrench, etc.)
- Twous Anti-Tip
- Manyèl Enstriksyon Asanblaj
4. Enstriksyon Asanble
Assembly typically requires two people and can take approximately 2-5 hours. Follow the numbered steps in the included assembly instructions carefully. Each piece is clearly numbered to assist with identification.
- Depake epi idantifye pyès yo: Lay out all components on a clean, soft surface (e.g., carpet or blanket) to prevent scratches. Identify each part using the provided labels and the parts list in the manual.
- Rasanble ankadreman an metal: Connect the metal frame components according to the diagrams. Ensure all screws are finger-tightened initially.
- Attach X-shaped Reinforcement: Secure the X-shaped reinforcement structure to the back of the metal frame for enhanced stability.
- Install the Top Panel: Place the engineered wood top panel onto the assembled metal frame and secure it with the designated hardware.
- Install the Power Outlet Unit: Integrate the power outlet unit into the designated slot on the top panel, ensuring it is securely fastened.
- Mete tiwa twal yo: Unfold each fabric drawer and insert the bottom panel. Place the assembled drawers into their respective slots within the frame.
- Sere final la: Once all components are in place, carefully tighten all screws and bolts using the provided tools. Do not overtighten.
- Mete twous anti-baskilman an: Secure the dresser to the wall using the anti-tip kit as per the instructions to prevent tipping.
Image 4.1: A diagram illustrating the overall dimensions of the dresser and the various sizes of the fabric drawers, including their weight capacities.
Imaj 4.2: Yon imaj detaye view of the charging station, highlighting the 3 AC outlets, 1 USB port, and 1 Type-C port for electronic devices.
5. Operasyon Enstriksyon
This dresser is designed for multi-functional use, serving as both a storage unit and a media console.
- Sèvi ak tiwa yo:
- Organize items by size and type into the different fabric drawers. The varied drawer sizes are suitable for clothes, accessories, and small household items.
- Avoid placing excessively heavy items in the drawers to prevent damage to the fabric or frame. Each drawer has a weight limit of approximately 10 lbs (4.5 kg).
- Using as a TV Stand:
- The top surface can accommodate televisions up to 55 inches. Ensure the TV's base fits securely on the dresser top.
- Do not exceed the maximum weight capacity of the top surface (approximately 150 lbs / 68 kg).
- Sèvi ak estasyon chaj la:
- Plug the dresser's power cord into a wall outlet.
- Use the 3 AC outlets for standard electronic devices.
- Use the 1 USB port and 1 Type-C port for charging compatible smartphones, tablets, and other USB-powered devices.
- Always ensure devices are compatible with the charging station's voltage ak aktyèl espesifikasyon.
Image 5.1: The dresser shown with a 55-inch television, demonstrating its capacity to function as a TV stand.

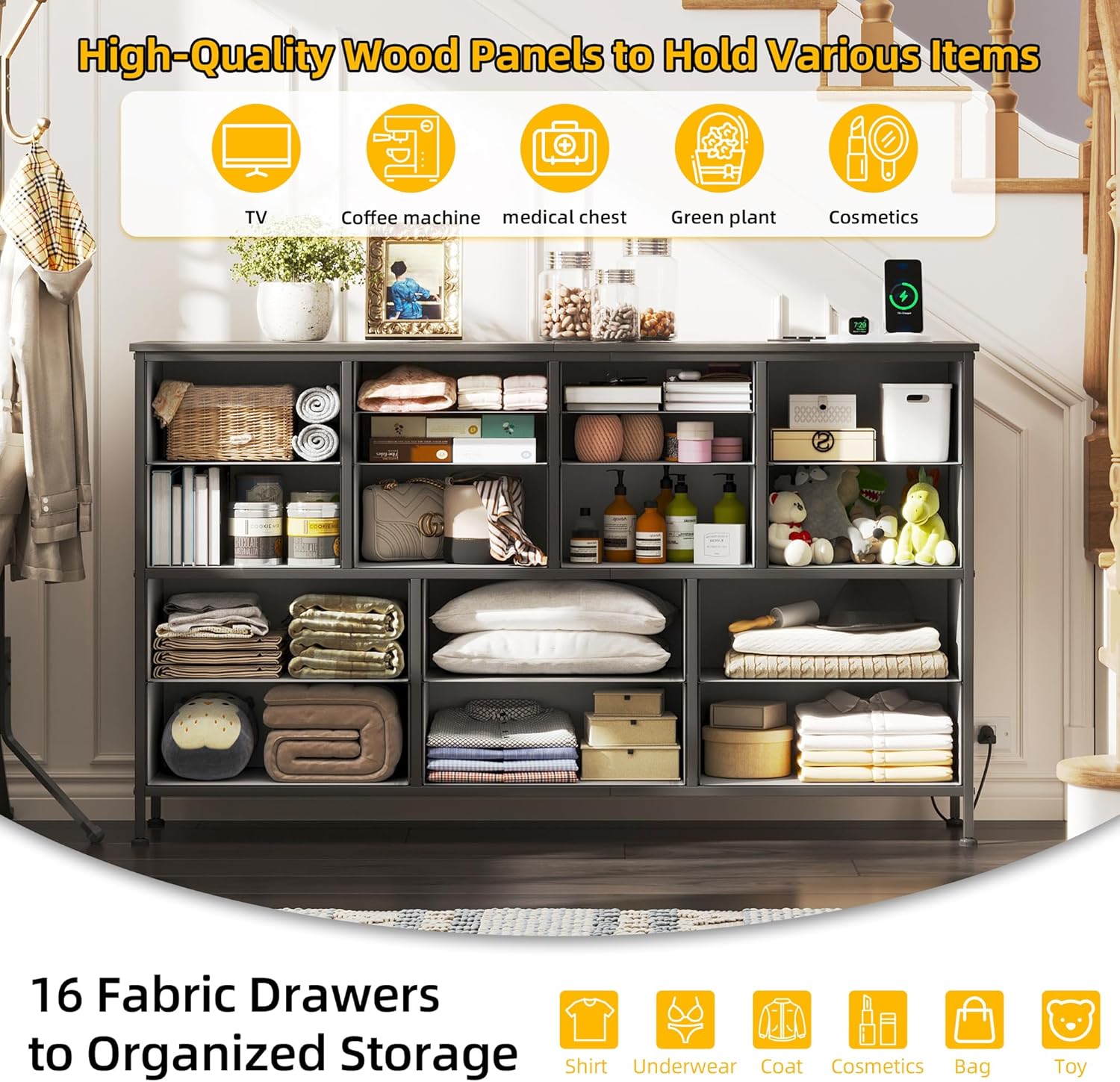

Image 5.2: An illustration of the dresser's interior, showcasing how the 16 fabric drawers can be used to organize various items such as clothing, books, and personal accessories.
6. Antretyen
- Netwayaj ankadreman an ak tèt la: Wipe the metal frame and engineered wood top with a soft, damp twal. Evite pwodui chimik ki agresif oswa pwodui netwayaj abrazif.
- Netwayaj Tiwa Twal: Netwaye tiwa twal yo ak yon savon dou epi ajoute yon ti anplitid.amp cloth. Allow to air dry completely before returning to the dresser. Do not machine wash.
- Tèks regilye: Tcheke tout vis ak boulon yo detanzantan pou asire yo rete byen sere. Sere boulon yo ankò si sa nesesè.
- Swen Priz Kouran: Keep the power outlet area clean and free of dust. Do not attempt to disassemble the power outlet unit.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Komòd la ap tranble oswa li pa estab. | Loose screws; uneven floor; X-shaped reinforcement not properly installed. | Ensure all screws are tightened. Adjust the leveling feet on the bottom of the dresser. Verify the X-shaped reinforcement is correctly attached. |
| Tiwa yo pa glise fasil. | Drawer overloaded; fabric drawer not fully unfolded or bottom panel not inserted correctly. | Reduce the weight in the drawer. Ensure the fabric drawer is fully expanded and the bottom panel is flat. |
| Power outlets or USB/Type-C ports are not working. | Dresser not plugged in; wall outlet not functioning; circuit breaker tripped; device incompatibility. | Check if the dresser's power cord is securely plugged into a working wall outlet. Test the wall outlet with another device. Check your home's circuit breaker. Ensure your device is compatible with the charging station's output. |
| Difikilte pandan asanblaj la. | Instructions unclear; missing parts; incorrect part orientation. | Review the assembly instructions carefully, paying close attention to diagrams. Ensure parts are oriented correctly. If parts are missing or instructions are genuinely unclear, contact customer support. |
8. Espesifikasyon
- Nimewo Modèl: CY-HS1601-DK-CA
- Dimansyon (an jeneral): 49.2" L x 11.8" lajè x 35.4" wotè (125 cm L x 30 cm lajè x 90 cm wotè)
- Materyèl: Engineered Wood (top panel), Metal (frame), Fabric (drawers)
- Koulè: Black Wood Veins
- Kantite tiwa: 16
- Weight Capacity (Top Surface): Apeprè 150 lbs (68 kg)
- Kapasite Pwa (Chak Tiwa): Apeprè 10 lbs (4.5 kg)
- Pwa atik: 17.5 kg (38.5 liv)
- Estasyon chaje:
- 3 priz kouran AC (125V/12A)
- 1 pò USB (5V/3A)
- 1 pò tip C (5V/3A)

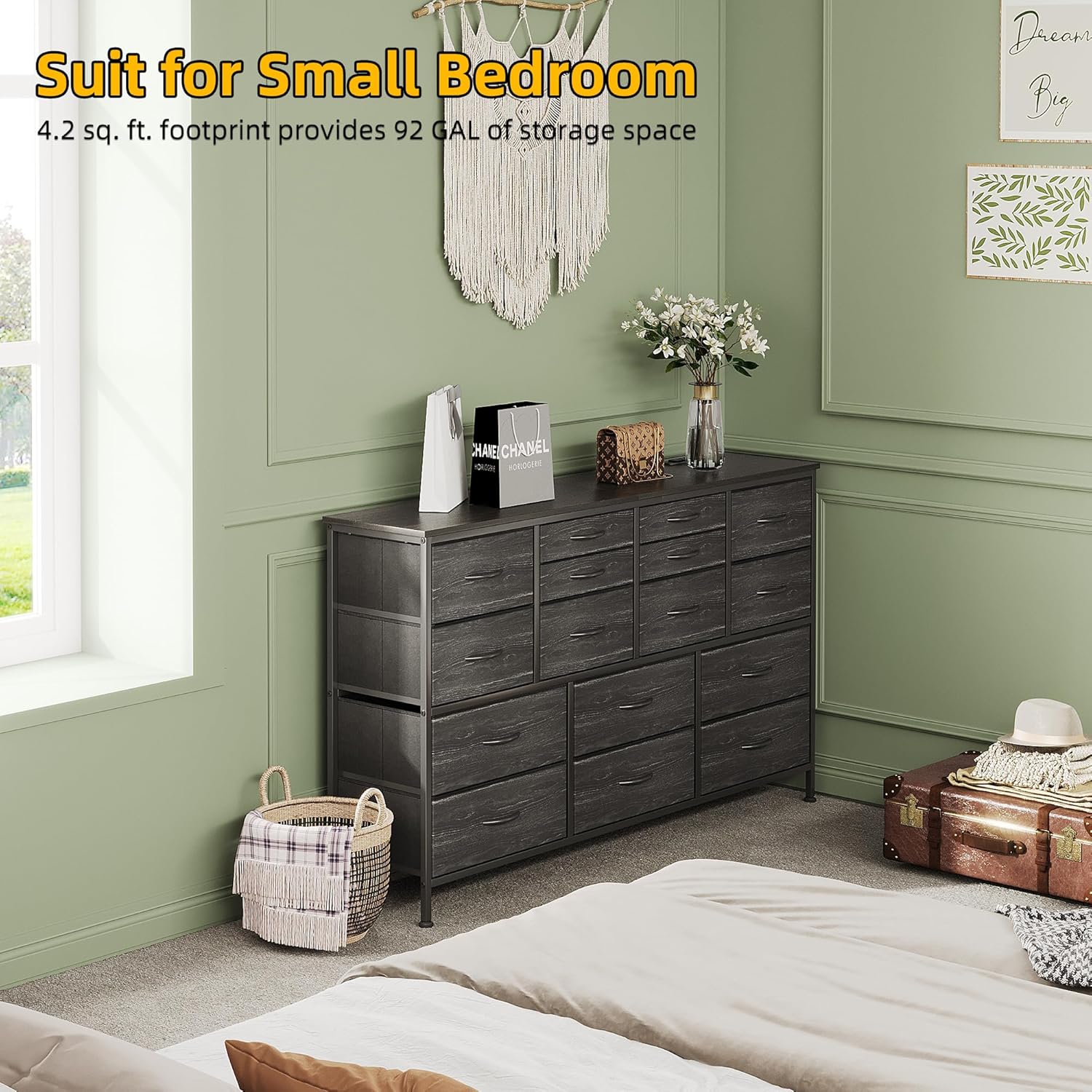

Image 8.1: The CAIYUN dresser positioned in a bedroom, illustrating its suitability for smaller spaces and its overall aesthetic.
9. Garanti ak sipò
For any questions, missing parts, or issues encountered during assembly or use, please contact CAIYUN customer support. Refer to your purchase documentation for specific warranty details. The manufacturer is committed to assisting with product-related concerns.
Enfòmasyon pou kontakte: Please refer to the contact details provided with your purchase or on the official CAIYUN websit.
