1. Entwodiksyon
The BLUETTI Elite 200 V2 is a state-of-the-art portable power station designed to provide reliable and versatile power for a wide range of applications, from outdoor adventures like camping and travel to essential home backup during outages. Equipped with a high-capacity LFP battery, it offers exceptional durability and performance.
Karakteristik kle yo enkli:
- Kapasite segondè: 2073.6Wh battery to power multiple devices.
- Sòti pwisan: 2600W AC output, with a 3900W Power Lifting mode for demanding appliances.
- Long Lifespan: Over 6000 cycles, providing up to 17 years of use.
- Chaje rapid: TurboBoost technology allows 80% charge in just 45 minutes with dual AC and DC input.
- Operasyon trankil: Opere nan yon nivo bri ki ba nan 16 dB.
- Sekirite Avanse: Multi-layer protection and automotive-grade LFP cells ensure safe operation.
2. Pwodwi souview
Familiarize yourself with the components and interfaces of your BLUETTI Elite 200 V2.
2.1. Pò ak Kontwòl
- DC/PV Input: For solar panel or car charging.
- AC Sòti: Two standard AC outlets for household appliances.
- Pò USB-C: De pò USB-C 100W pou chaje aparèy konpatib rapidman.
- Pò USB-A: De pò USB-A 15W pou chaje USB estanda.
- 12V Cigarette Lighter Port: For car appliances.
- Ekspozisyon LCD: Shows battery level, input/output power, and operational status.
3. Enstalasyon
3.1. Unboxing ak Inisyal Enspeksyon
Upon receiving your BLUETTI Elite 200 V2, carefully open the packaging and inspect the unit for any signs of damage. Ensure all components listed below are present:
- Estasyon kouran pòtab BLUETTI Elite 200 V2
- AC chaje kab
- Solè chaje kab
- Grounding vis
- Manyèl itilizatè (dokiman sa a)
3.2. First Use and Charging
Before first use, it is recommended to fully charge the BLUETTI Elite 200 V2. Connect the provided AC charging cable to a wall outlet and the power station's AC input port. The LCD display will indicate the charging status. For optimal battery health, fully discharge and recharge the unit at least once every 3-6 months if not in regular use.
4. Operasyon Enstriksyon
4.1. Powering On / Off
- To turn on the unit, press and hold the main power button for a few seconds until the LCD screen illuminates.
- To turn off the unit, press and hold the main power button again until the screen turns off.
- Individual AC and DC outputs can be enabled/disabled via their respective buttons on the control panel.
4.2. Konekte Aparèy
Connect your electronic devices to the appropriate output ports (AC, USB-A, USB-C, 12V DC). Ensure the total power consumption of connected devices does not exceed the power station's rated output (2600W continuous, 3900W Power Lifting mode).
4.3. Power Lifting Mode (3900W)
The Power Lifting mode allows the Elite 200 V2 to power high-wattage resistive loads up to 3900W, such as electric kettles, hair dryers, and heaters. This mode is specifically designed for pure resistive loads and should be used with caution. Refer to the LCD display for active power output.
4.4. BLUETTI App Control
Download the official BLUETTI app to monitor and control your power station remotely. The app provides real-time energy consumption data, allows you to switch working modes, and offers intuitive control over the unit's functions.
5. Chaje Estasyon Elektrik la
The BLUETTI Elite 200 V2 supports multiple charging methods to ensure you always have power when you need it.
5.1. Chaje AC
Utilize the included AC charging cable to charge the power station from a standard wall outlet. With TurboBoost technology, the unit can reach 80% charge in approximately 1 hour at 2300W input.
5.2. Solè chaje
Connect compatible solar panels (sold separately) to the DC/PV input port. The integrated MPPT controller ensures efficient solar charging, allowing a full charge in approximately 2.4 hours with 1000W solar input under optimal sunlight conditions.
5.3. Machin chaje
Charge your power station on the go using your vehicle's 12V cigarette lighter port. With the BLUETTI Charger 1 (560W, sold separately), you can achieve a full charge in approximately 4.2 hours, significantly faster than traditional car charging methods.
5.4. AC + Solar Dual Charging
For the fastest charging experience, combine AC and solar input. This dual charging method can charge the unit from 0% to 80% in just 45 minutes with a combined input of 2400W.
6. Sekirite ak Pwoteksyon
The BLUETTI Elite 200 V2 is built with multiple safety features to ensure reliable and secure operation.
6.1. LiFePO4 Battery Technology
The power station utilizes automotive-grade LiFePO4 (Lithium Iron Phosphate) batteries, known for their exceptional safety, stability, and long cycle life. These batteries offer over 6000 charge cycles, providing a lifespan up to 17 years, which is 12 times longer than the industry average.

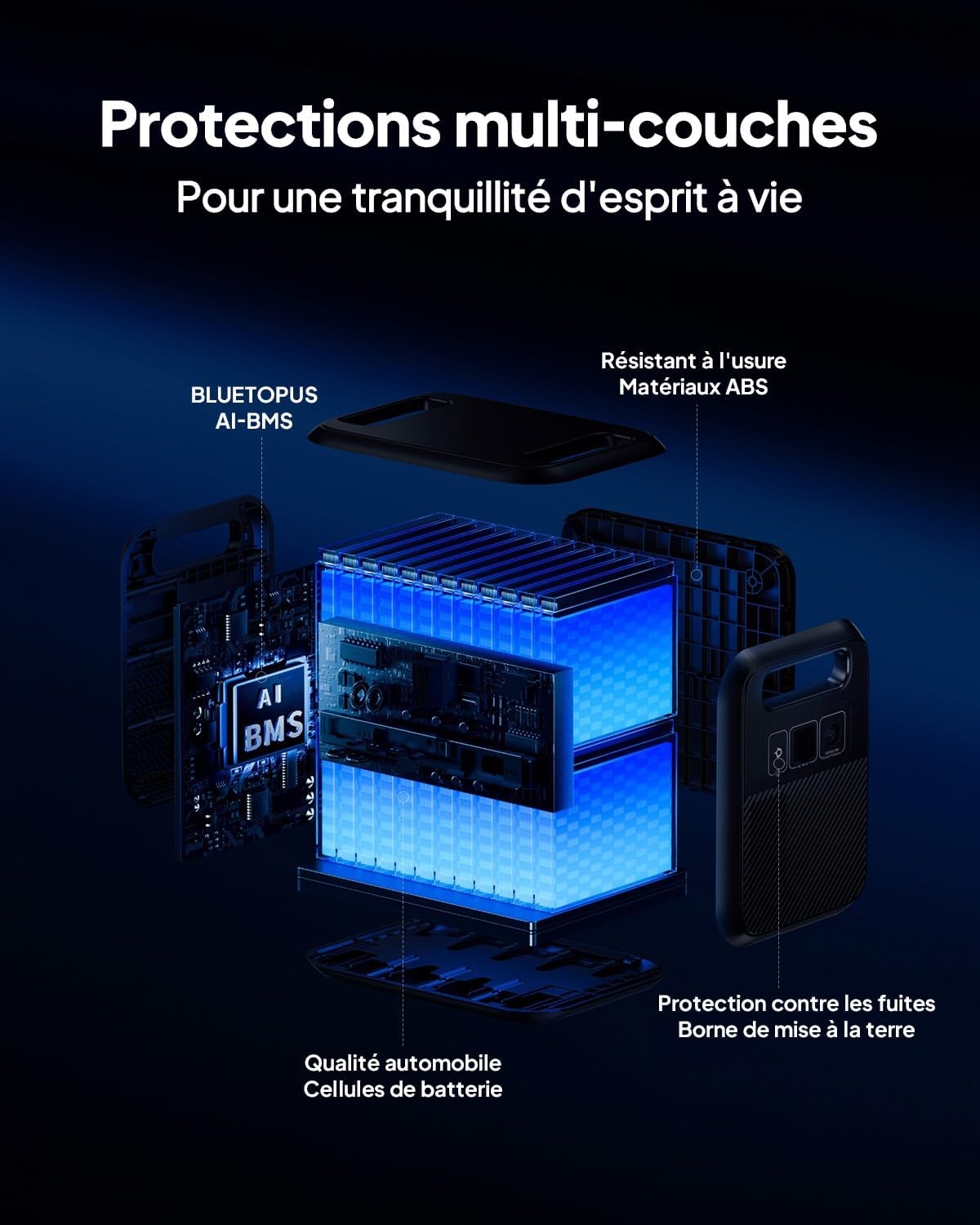

6.2. Multi-Layer Protection System
The Elite 200 V2 incorporates a sophisticated multi-layer protection system, including:
- BLUETOPUS AI-BMS: An intelligent Battery Management System that monitors and protects against overcharge, over-discharge, over-current, and short circuits.
- Durable ABS Materials: Wear-resistant housing for enhanced physical protection.
- Tèminal baz: Provides protection against electrical leakage.
- Kontwòl Tanperati: Ensures safe operation even in extreme temperatures.
6.3. Operasyon trankil
Designed for minimal noise, the Elite 200 V2 operates at a whisper-quiet 16 dB under low loads, making it suitable for indoor use and quiet environments like bedrooms or tents.
6.4. Fonksyon Sistèm Alimantasyon san Enteripsyon (UPS)
The Elite 200 V2 features an Uninterruptible Power Supply (UPS) function with a switching time of less than 15ms. This ensures seamless power transition for sensitive electronics during power outages, protecting your devices from data loss or damage.
7. Antretyen
Proper maintenance will extend the lifespan and ensure optimal performance of your BLUETTI Elite 200 V2.
- Netwayaj: Use a dry, soft cloth to wipe the exterior of the unit. Do not use harsh chemicals or abrasive materials.
- Depo: If storing for an extended period, charge the unit to 50-80% and recharge every 3-6 months to prevent battery degradation. Store in a cool, dry place away from direct sunlight and extreme temperatures.
- Vantilasyon: Asire w ke ouvèti vantilasyon yo pa gen obstak pandan w ap opere pou anpeche yo chofe twòp.
NAN. Depanaj
This section addresses common issues you might encounter with your BLUETTI Elite 200 V2. If the problem persists, please contact customer support.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Inite pa limen. | Battery is fully discharged; Power button not pressed long enough. | Charge the unit; Press and hold the power button for 3-5 seconds. |
| Sòti AC a pa fonksyone. | Sòti AC a pa aktive; Pwoteksyon kont surchaj la aktive. | Press the AC button to enable; Reduce connected load, then restart AC output. |
| Chaje dousman. | Low input power (e.g., weak solar input); High ambient temperature. | Ensure sufficient input power; Charge in a cooler environment. |
| Ekspozisyon montre kòd erè. | Internal fault or specific protection triggered. | Note the error code and refer to the BLUETTI app or contact customer support. |
9. Espesifikasyon teknik
Detailed specifications for the BLUETTI Elite 200 V2 Portable Power Station.
| Karakteristik | Spesifikasyon |
|---|---|
| Modèl | BLUETTI Elite 200 V2 |
| Kalite batri | LiFePO4 (Lityòm Iron Phosphate) |
| Kapasite | 2073.6Wh |
| AC Sòti | 2600W (Pure Sine Wave), 3900W Power Lifting Mode |
| USB-C Sòti | 2 x 100W Max |
| USB-A Sòti | 2 x 15W Max |
| DC Sòti | 12V/10A (Cigarette Lighter Port) |
| AC Antre | 2300W Max |
| Solè Antre | 1000W Max, 12-60VDC, 20A |
| Dimansyon (L x W x H) | 34 x 25 x 32 cm |
| Pwa | 24.2 kg |
| Tanperati Fonksyònman | -20 ° C a 40 ° C (-4 ° F a 104 ° F) |
| Ekspozisyon | Ekran LCD |
10. Garanti ak sipò
10.1. Garanti manifakti a
The BLUETTI Elite 200 V2 comes with a Garanti manifakti 5 zan, ki kouvri domaj nan materyèl ak nan fabrikasyon anba itilizasyon nòmal. Tanpri konsève prèv acha ou pou reklamasyon garanti.
10.2. Sipò pou Kliyan
For technical assistance, troubleshooting, or warranty inquiries, please contact BLUETTI customer support. You can typically find contact information on the official BLUETTI websit la oubyen atravè platfòm acha ou a.
11. Nòt enpòtan
No Official Product Videos Found: Based on the provided data, no official product videos from the seller (BLUETTI) were available for embedding in this manual. All media URLs provided were for images.
