Yard Force 60V Cordless Electric Lawn Mower User Manual

Entwodiksyon

Thank you for choosing the Yard Force 60V Dual Battery Cordless Self-Propelled Electric Lawn Mower. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new lawn mower. Please read it thoroughly before initial use and keep it for future reference.

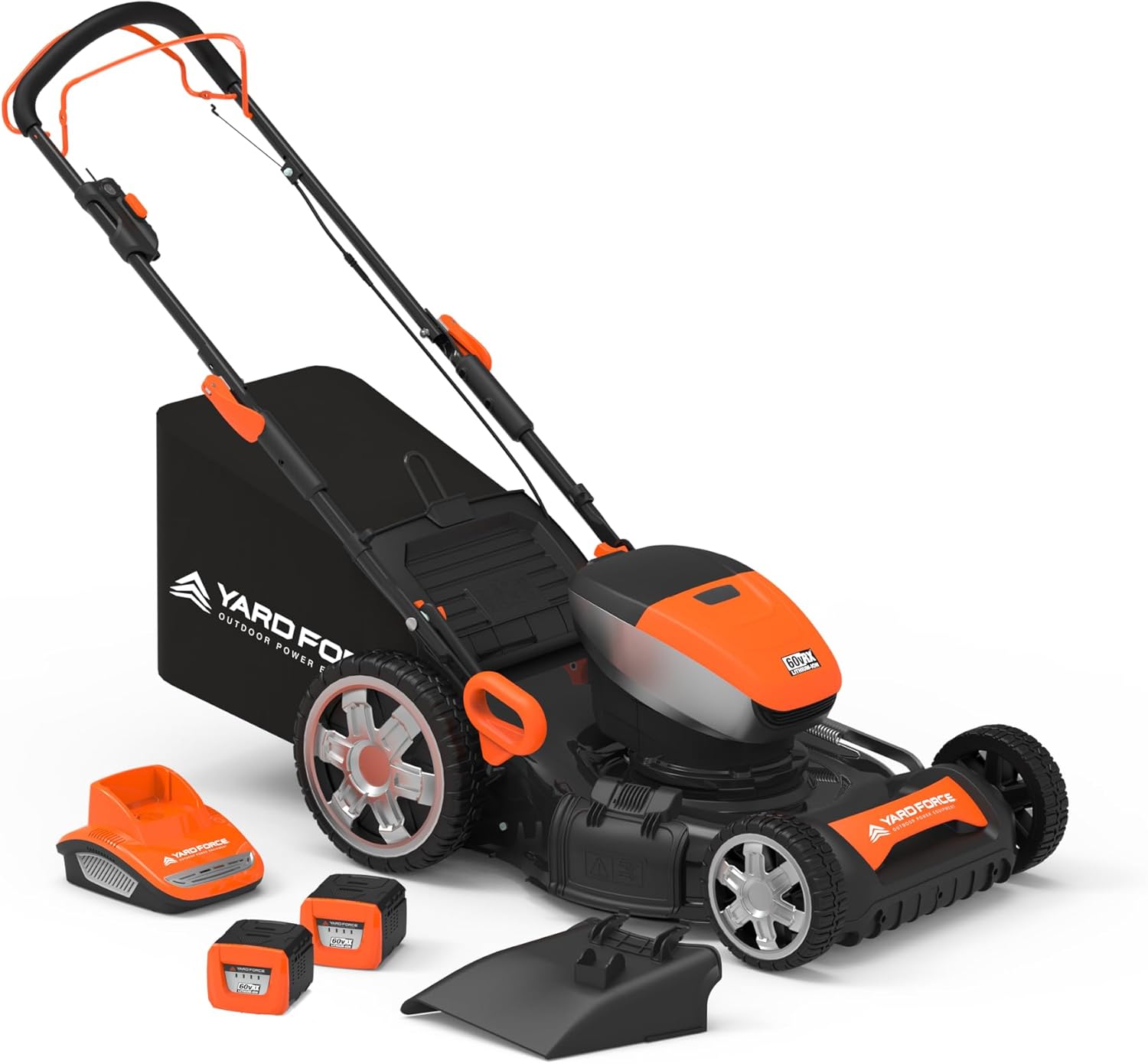

The Yard Force 60V Dual Battery Cordless Self-Propelled Electric Lawn Mower, shown with its two 4Ah battery packs and rapid charger, ready for use.

Enfòmasyon sou Sekirite

Toujou bay sekirite priyorite lè w ap itilize ekipman elektrik. Si ou pa swiv enstriksyon sekirite yo, ou ka blese gravman.

• Li Manyèl la: Familyarize w avèk tout kontwòl yo ak bon jan pou itilize yo anvan w itilize yo.
• Mete ekipman pwoteksyon: Always wear appropriate eye protection, hearing protection, and sturdy footwear.
• Netwaye zòn nan: Anvan ou koupe gazon an, retire tout objè tankou wòch, baton, fil elektrik ak jwèt sou gazon an.
• Kenbe moun ki t ap gade yo lwen: Asire w ke timoun yo, bèt kay yo ak lòt moun yo rete nan yon distans ki an sekirite ak zòn kote w ap koupe gazon an.
• Enspekte anvan w itilize: Check the mower for any damage, loose parts, or worn components before each use.
• Sekirite batri: Sèvi sèlman ak pil ak chajè ki espesifye yo. Pa ekspoze pil yo nan dlo oswa tanperati ekstrèm.
• Operasyon pant: Fè anpil atansyon lè w ap koupe gazon sou pant. Koupe gazon an travèse tout fas pant yo, pa janm monte desann.
• Sekirite antretyen: Dekonekte pake batri a anvan ou fè nenpòt antretyen, netwayaj, oswa lè w ap degaje yon goutyè bouche.

Enstalasyon

Asanble

Your Yard Force lawn mower requires minimal assembly. Follow the instructions provided in the separate assembly guide for attaching the handle, grass bag, and any other components.

Enstalasyon batri ak chaje

The mower operates on two 60V 4Ah lithium-ion battery packs. Ensure batteries are fully charged before first use.

1. Louvri kouvèti konpatiman batri a ki sitiye anlè machin koupe gazon an.
2. Align the battery pack with the battery slot and slide it in until it clicks securely into place. Repeat for the second battery.
3. Fèmen kouvèti lòj batri a.
4. To charge, remove the battery packs from the mower and insert them into the provided 4A rapid charger. The charger's indicator lights will show charging status.

Yon fèmen view of the battery compartment on the Yard Force 60V lawn mower, showing where the lithium-ion battery packs are inserted.

Operasyon

Kòmanse Mower la

To start the mower, ensure both battery packs are installed. Press and hold the safety button, then pull the bail lever towards the handle. The mower will start quietly.

Ajiste Koupe Wotè

The mower features a convenient 7-position one-touch height selector, allowing cutting height adjustments from 1 1/4" to 3 3/4".

1. Locate the single height adjustment lever near one of the rear wheels.
2. Pull the lever outwards and move it up or down to select the desired cutting height.
3. Lage levye a pou bloke l nan pozisyon an. Asire w ke tout kat wou yo nan menm wotè a.

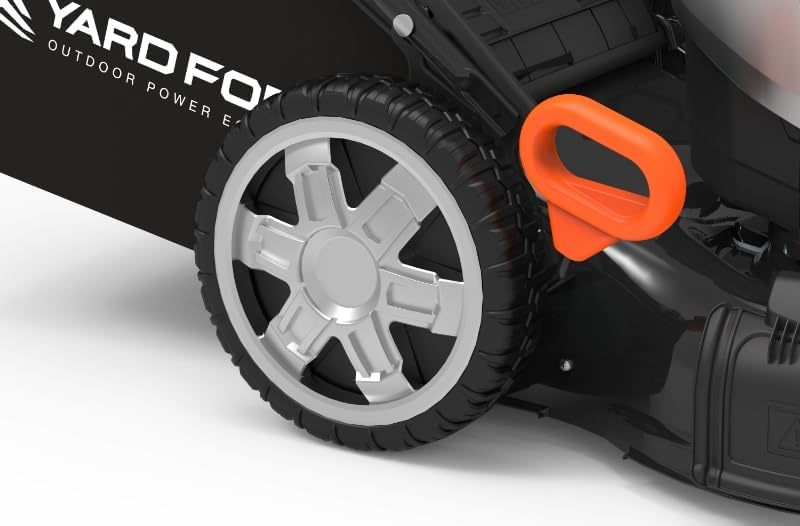

The single lever height adjustment mechanism on the Yard Force 60V mower, allowing for quick and easy changes to cutting height.

3-an-1 Fonksyonalite

This mower offers versatile 3-in-1 functionality: mulching, bagging, and side discharge.

• Mulching: For finely cut grass clippings that return nutrients to your lawn. Ensure the side discharge chute is closed and the grass bag is removed.
• Anbalaj: For collecting grass clippings in the integrated 2 bushel/65L hybrid grass bag. Attach the grass bag securely and ensure the side discharge chute is closed. The bag features a full indicator for convenient monitoring.
• Egzeyat bò: For expelling clippings out the side of the mower. Attach the side discharge chute and remove the grass bag.

The rear of the Yard Force 60V lawn mower, illustrating the attachment point for the 2 bushel/65L hybrid grass bag, which includes a full indicator.

Self-Propelled Feature

Engage the self-propelled drive for effortless mowing, especially on inclines or larger areas. The variable speed control allows you to match the mower's pace to your walking speed and lawn conditions.

Antretyen

Antretyen regilye asire pèfòmans optimal epi pwolonje lavi tondeuz gazon ou an.

• Netwaye platfòm nan: After each use, disconnect the battery and clean grass clippings from the underside of the mower deck to prevent buildup and ensure efficient cutting.
• Enspeksyon lam: Regularly inspect the cutting blade for sharpness and damage. A dull blade can tear grass, leading to an unhealthy lawn. Replace or sharpen as needed.
• Swen batri: Store battery packs in a cool, dry place. Do not store them in direct sunlight or where temperatures exceed 104°F (40°C).
• Depo: The foldable handle allows for easy vertical storage, saving space. Clean the mower thoroughly before storing for extended periods.

Depanaj

Espesifikasyon

Garanti ak sipò

For detailed warranty information, please refer to the warranty card included with your product packaging or visit the official Yard Force website. For technical support, replacement parts, or service inquiries, please contact Yard Force customer service.
