Manyèl Itilizatè Ekran CarPlay San Fil Pòtab la

Entwodiksyon

Thank you for choosing the ENUOSUMA Portable Wireless CarPlay Screen. This device is designed to enhance your driving experience by integrating Apple CarPlay and Android Auto wirelessly, providing navigation, multimedia, and communication features directly on its 9.3-inch HD touchscreen. It also includes a dual dash camera system for comprehensive recording and a backup camera for improved safety. Please read this manual thoroughly before use to ensure proper installation and operation.

Ki sa ki nan bwat la

• Car Play Screen with Dash Cam
• Kamera sovgad
• 64GB kat TF
• Self-adhesive bracket & Suction mount bracket
• 3.5mm kab odyo

Pwodwi souview

The ENUOSUMA Portable Wireless CarPlay Screen features a 9.3-inch HD touchscreen display, an integrated front dash camera, and connectivity options for seamless smartphone integration.

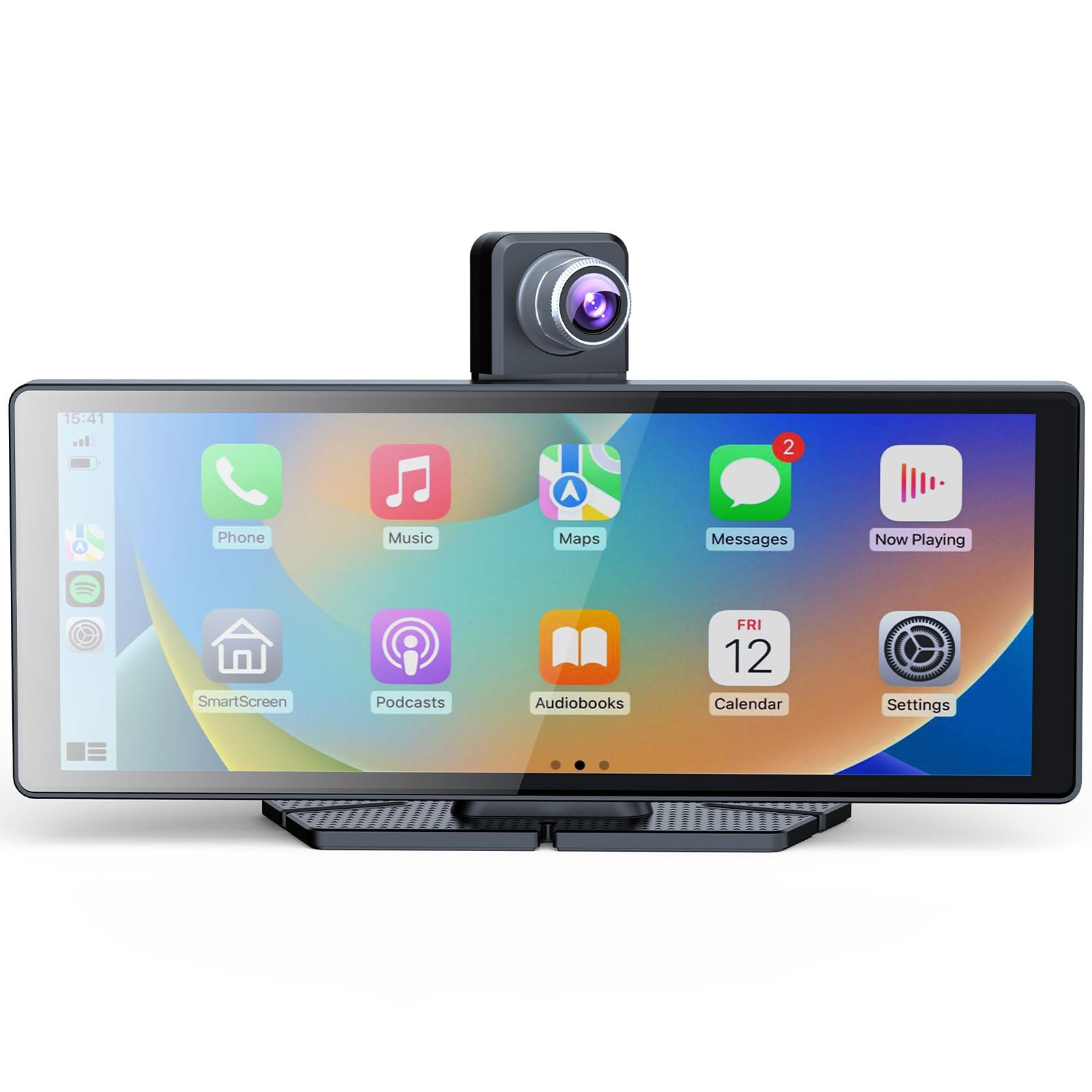

Figi 1: ENUOSUMA Portable Wireless CarPlay Screen. This image shows the 9.3-inch display of the ENUOSUMA Portable Wireless CarPlay Screen. The screen features a user-friendly interface with large icons for various functions including phone calls, music playback, navigation (Maps), messaging, and media playback. A dash camera is integrated at the top of the unit, indicating its dual recording capabilities. The interface also shows a 'SmartScreen' icon, suggesting additional features. The date 'FRI 12' is visible on the calendar icon, and the time '15:41' is displayed in the top left corner.

Enstalasyon

1. Monte Aparèy la

Choose between the self-adhesive bracket or the suction mount bracket for secure placement on your dashboard or windshield. Ensure the mounting location does not obstruct your view oubyen entèfere ak deplwaman sak lè a.

1. Netwaye sifas aliye a byen.
2. Attach the chosen bracket to the device.
3. Securely attach the bracket to the desired location in your vehicle.

2. Koneksyon pouvwa

Connect the power cable from the device to your vehicle's 12V power outlet (cigarette lighter socket).

3. Enstalasyon Kamera Retou

Install the 1080P waterproof backup camera at the rear of your vehicle. Connect its cable to the designated input port on the main unit. Professional installation is recommended for optimal performance and safety.

4. Audio Output Connection

Ou gen plizyè opsyon pou pwodiksyon odyo a:

• Bluetooth: Pair the CarPlay screen with your car's Bluetooth system for audio playback and calls.
• FM emetris: Tune the CarPlay screen's FM transmitter to an unused FM frequency, then tune your car's radio to the same frequency.
• AUX: Connect the provided 3.5mm audio cable from the CarPlay screen's AUX output to your car's AUX input.

Enstriksyon Operasyon

1. Powering On / Off

The device will automatically power on when your vehicle's ignition is turned on and power off when the ignition is turned off.

2. CarPlay san fil ak Android Auto

The device supports effortless wireless connectivity with Apple CarPlay and Android Auto. Once connected, your phone's interface will be mirrored on the screen, allowing access to navigation, music, messages, and more.

1. Asire w ke Bluetooth ak Wi-Fi aktive sou smartphone ou.
2. On the CarPlay screen, navigate to the CarPlay/Android Auto icon.
3. Follow the on-screen prompts to pair your phone. The device should auto-sync upon subsequent entries into your car.

3. Entelijan kontwòl vwa

Utilize Siri (for Apple CarPlay) or Google Assistant (for Android Auto) for hands-free control.

• Activate voice control by saying "Hey Siri" or "Hey Google" (if enabled on your phone) or by pressing the voice command button on the screen (if available).
• Use voice commands to control navigation, send texts, make calls, or play music without taking your hands off the wheel.

4. Real-Time Navigation

Access real-time GPS navigation through your smartphone's apps like Google Maps or Waze directly on the 9.3-inch screen.

• Once CarPlay or Android Auto is active, select your preferred navigation app from the screen.
• Enter your destination using the touchscreen or voice commands.

5. Dual Dash Cam Recording

The device features a 2K front camera and a 1080P waterproof backup camera for comprehensive recording.

• The system automatically begins loop recording when powered on, saving footage to the included 64GB TF card.
• The front camera offers a 140° viewing angle and night vision capabilities.
• Review anrejistre footage through the device's interface.

6. Mirror Link Functionality

The Mirror Link feature allows you to mirror your smartphone's screen directly onto the CarPlay unit, providing full access to your phone's content.

• Navigate to the "Mirror Link" option on the device's main menu.
• Follow the on-screen instructions to connect your smartphone via USB or Wi-Fi, depending on your phone's compatibility.

7. Important Tips about Airplay

While Airplay is supported, please note that the latest iOS versions may occasionally affect compatibility. If you encounter issues with Airplay functionality, firmware upgrades may be available to address these concerns. Please contact customer support for assistance with firmware updates.

Antretyen

• Clean the screen with a soft, lint-free cloth. Do not use abrasive cleaners or solvents.
• Kenbe aparèy la lwen tanperati ekstrèm ak limyè solèy dirèk pou peryòd tan pwolonje.
• Ensure all cables are securely connected and free from damage.
• Regularly check the TF card for proper function and ensure sufficient storage space for recordings.

Depanaj

Espesifikasyon

Garanti ak sipò

The ENUOSUMA Portable Wireless CarPlay Screen comes with a one-month warranty apati dat acha a. Garanti sa a kouvri domaj fabrikasyon ak fonksyònman ki pa kòrèk nan itilizasyon nòmal.

For technical support, troubleshooting assistance, or warranty claims, please contact ENUOSUMA customer service through the retailer's platform or the official brand website. Please have your purchase details and product model number (CL860L) ready when contacting support.
