1. Entwodiksyon
This manual provides comprehensive instructions for the safe and efficient installation, operation, and maintenance of your Hansgrohe Bidette Hand Shower E 29231000. This product features a single spray type with EcoSmart water-saving technology, an integrated shut-off valve, and is designed for cold water applications. Please read these instructions carefully before beginning installation or use.
2. Konpozan enkli
The Hansgrohe Bidette Hand Shower E 29231000 package typically includes the following components:
- Bidette hand shower
- Shut-off valve with integrated shower holder
- Shower hose (1.25 meters)
- Mounting materyèl
- Enstriksyon asanblaj (dokiman sa a)
3. Enstalasyon ak Enstalasyon
The Hansgrohe Bidette Hand Shower E 29231000 is designed for single-hole, wall-mounted installation. Ensure you have the necessary tools before starting.
- Preparasyon: Turn off the main water supply to prevent leaks during installation. Clear the installation area.
- Monte Holder la: Position the shower holder with the integrated shut-off valve at the desired height on the wall. Mark the drilling points. Drill holes and insert appropriate wall plugs. Secure the holder to the wall using the provided mounting material.
- Connecting the Water Supply: Connect the cold water supply line to the G1/2 connection thread on the shut-off valve. Ensure all connections are tight to prevent leaks.
- Attaching the Shower Hose: Connect one end of the 1.25-meter shower hose to the outlet of the shut-off valve and the other end to the bidette hand shower. Hand-tighten connections, then use a wrench if necessary, being careful not to overtighten.
- Tcheke final la: Turn the main water supply back on and check all connections for leaks.

4. Operasyon Enstriksyon
Your Hansgrohe Bidette Hand Shower E 29231000 is designed for simple and efficient use.
- Activating Water Flow: To start the water flow, press the button or lever on the bidette hand shower. The integrated shut-off valve allows for immediate control of water flow directly at the hand shower.
- Water-Saving Feature: This hand shower incorporates EcoSmart technology, providing a single, efficient spray type while conserving water. The maximum flow rate is 6.2 liters per minute at 3 bar pressure.
- Cold Water Use: This product is specifically designed for cold water applications.
- Deactivating Water Flow: Lage bouton an oswa levye pou sispann koule dlo a.
5. Antretyen ak Swen
Regular cleaning and maintenance will ensure the longevity and optimal performance of your hand shower.
- Netwayaj: Use only mild cleaning agents specifically designed for bathroom fixtures. Avoid abrasive cleaners, scouring pads, or solvents, as these can damage the chrome finish.
- Rense: After cleaning, rinse the hand shower and hose thoroughly with clean water to remove any cleaning agent residue.
- Retire kalkè: If limescale builds up on the spray nozzles, gently rub them with your finger or a soft cloth to dislodge deposits. For stubborn limescale, use a mild descaling solution as per the manufacturer's instructions, ensuring it is safe for chrome finishes.
- Enspeksyon kawotchou: Periodically check the shower hose for any signs of wear, kinks, or damage. Replace the hose if necessary to prevent leaks.
NAN. Depanaj
If you encounter issues with your Hansgrohe Bidette Hand Shower, refer to the following common solutions:
- Koule Dlo ki ba: Check if the main water supply is fully open. Inspect the shower hose for kinks or blockages. Clean the spray nozzles for limescale buildup.
- Fwit nan Koneksyon yo: Ensure all connections (water supply to valve, hose to valve, hose to hand shower) are securely tightened. Check the condition of rubber seals or washers and replace if damaged.
- Water Not Shutting Off Completely: Ensure the shut-off valve is fully closed. If the issue persists, the valve mechanism may require inspection by a qualified plumber.
For problems not resolved by these steps, please contact a qualified plumber or Hansgrohe customer support.

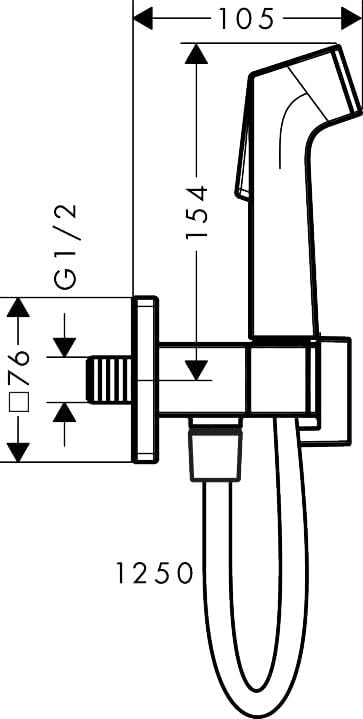

7. Espesifikasyon
| Nimewo Modèl | 29231000 |
| Dimansyon pwodwi (L x W x H) | 10.5 x 8.4 x 19.2 cm |
| Pwa | 1.52 kg |
| Hand Shower Size | 28 mm |
| Materyèl | Metal, Plastik |
| Fini | Chrome |
| Style | For cold water / with shut-off valve |
| Metòd enstalasyon | Single-hole, Wall mounting |
| Kantite manch | 1 |
| Kantite twou | 1 |
| Presyon Minimòm | 1 bar |
| Fonksyone presyon | Min. 1 bar / Max. 10 bars |
| Maximum Flow Rate (at 3 bar) | 6.2 l/min |
| Karakteristik espesyal | Water-saving system (EcoSmart) |
| Douch Kawotchou Longè | 1.25 mèt |
| Peyi orijin | Lachin |
Note: This product is not suitable for use in countries with EN 1717 standard in force and is not protected against backflow.
8. Garanti ak sipò
Hansgrohe products are manufactured to high-quality standards. In the unlikely event of a defect, please refer to your purchase documentation for specific warranty terms.
- Disponibilite pyès rezèv: Hansgrohe guarantees the availability of spare parts for this model for 15 years from the date of purchase.
- Sipò Kliyan: For technical assistance, warranty claims, or further information, please contact Hansgrohe customer service through their official websit oswa distribitè lokal ou a.
