RecPro High Pointe 1.0 Cu. Ft. Stainless Steel Microwave with Trim (Model CL-MIC20-SS) Instruction Manual

1. Entwodiksyon

Thank you for choosing the RecPro High Pointe 1.0 Cu. Ft. Stainless Steel Microwave with Trim. This appliance is designed for efficient and convenient cooking, offering a compact yet powerful solution for your kitchen needs. With 6 cook settings, 10 power levels, and user-friendly touch pad controls, preparing meals is effortless. This manual provides essential information for safe operation, installation, maintenance, and troubleshooting to ensure optimal performance and longevity of your microwave.

2. Enfòmasyon sou Sekirite

Please read all instructions carefully before using this appliance to prevent potential hazards and ensure safe operation. Keep this manual for future reference.

Prekosyon Sekirite Jeneral:

• Pa eseye sèvi ak fou sa a si pòt la louvri oubyen si pòt la domaje.
• Pa mete okenn objè ant fas devan fou a ak pòt la oswa pa kite tè oswa rezidi netwayaj akimile sou sifas poze sele.
• Pa opere fou a si li domaje. Li patikilyèman enpòtan pou pòt fou a fèmen byen epi pou pa gen okenn domaj nan: (1) pòt la (kole), (2) gon ak lokè (kase oswa dekole), (3) sele pòt ak sifas poze sele.
• Fou a pa ta dwe ajiste oswa repare pa nenpòt moun eksepte pèsonèl sèvis ki byen kalifye.
• Toujou sèvi ak istansil ki ka ale nan mikwo ond.
• Never heat sealed containers, as they may explode.
• Liquids heated in the microwave can boil over unexpectedly. Use caution when removing containers.

Karakteristik pou fèmen timoun yo:

This microwave includes a child lock setting to prevent unintended operation by children. Refer to the 'Operating Instructions' section for details on how to activate and deactivate this feature.

3. Pwodwi souview

The RecPro High Pointe Microwave is a compact yet powerful appliance designed for convenience and efficiency. It features a sleek stainless steel design with a trim kit for built-in installation.

Karakteristik kle:

• Konpak men pwisan: 1.0 Cu. Ft. capacity with 1350W input power and 900W output power.
• Effortless Cooking: Six auto cook options for popular foods like popcorn, pizza, and more.
• Customized Heating: Instant start and multi-stage cooking for tailored results.
• Karakteristik sekirite: Child lock settings, touch pad controls, and weight/time defrost options.
• Fonksyon memwa: Saves your favorite settings for convenience.
• Flatbed Design: Asire yon kwit manje inifòm.

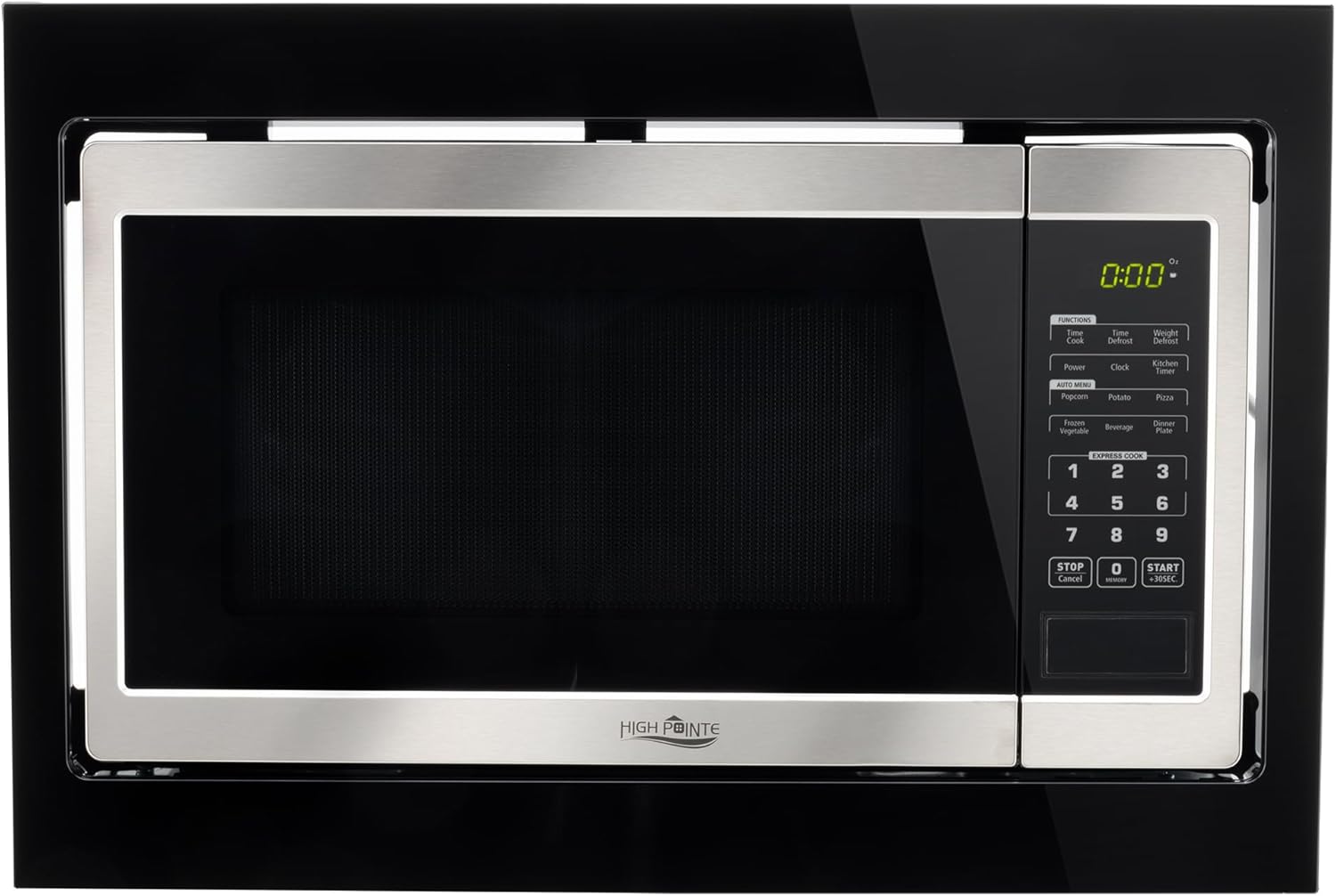

Figi 1: Devan view of the RecPro High Pointe Stainless Steel Microwave with Trim, showcasing konsepsyon elegant li yo ak panèl kontwòl li yo.

Figure 2: Diagram illustrating the microwave's key features, including six auto cook options, 1.0 cu. ft. oven capacity, and 900W output power.

4. Enstalasyon ak Enstalasyon

This microwave is designed for built-in use, fitting seamlessly into your cabinetry. Ensure proper ventilation and follow all local electrical codes during installation.

Dimansyon:

• Dimansyon ekstèn: 22.3" lajè x 14.9" wotè x 15.1" pwofondè
• Dimansyon dekoupe kabinè: 20.8" lajè x 14.8" wotè x 15.2" pwofondè

Figure 3: Detailed diagram displaying the external and cabinet cutout dimensions for proper built-in installation.

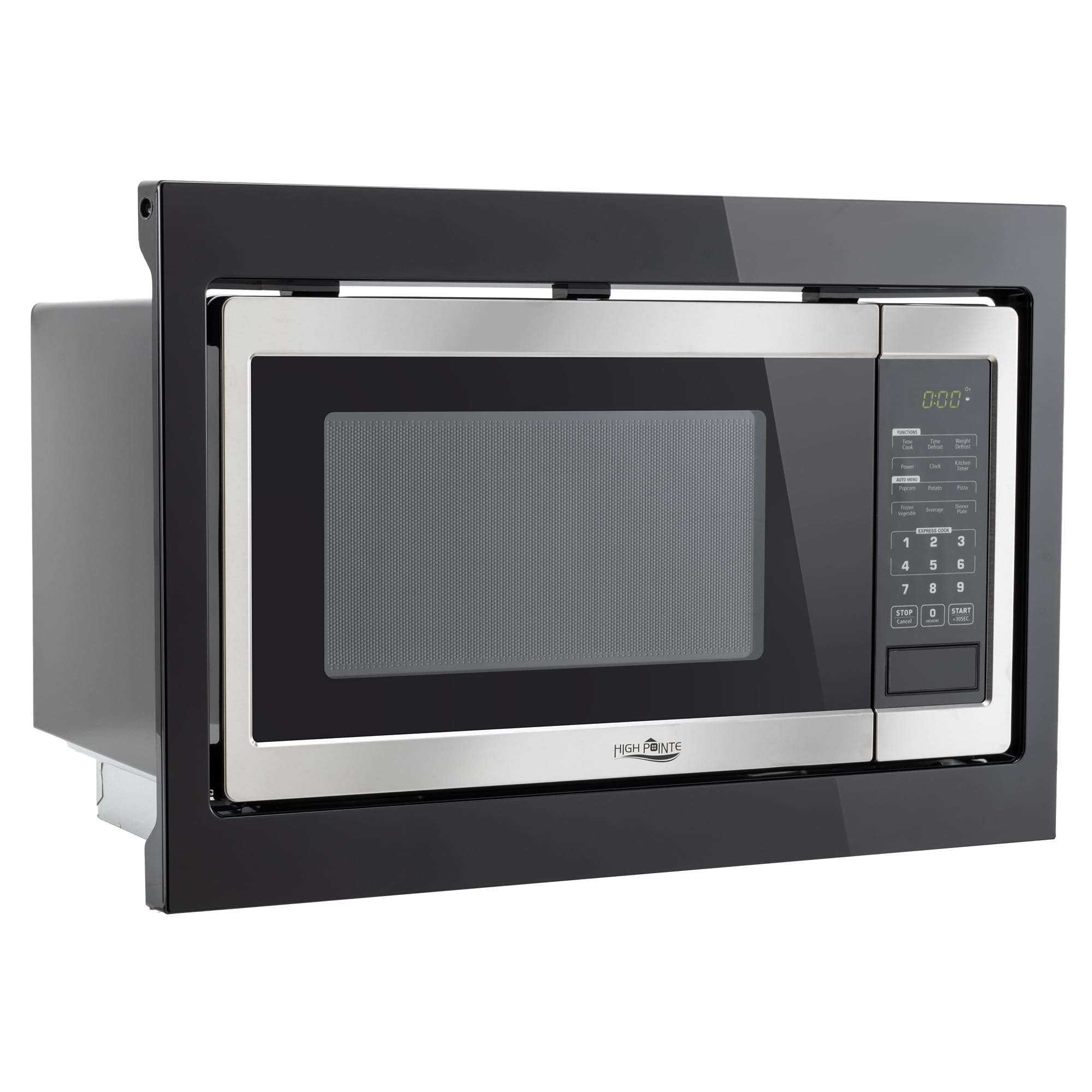

Figi 4: Side view of the microwave, illustrating its depth and built-in design.

Figi 5: Dèyè view of the microwave, showing the power cord and ventilation areas, important for installation planning.

5. Operasyon Enstriksyon

The RecPro High Pointe Microwave features intuitive touch pad controls for easy operation. Familiarize yourself with the control panel for optimal use.

Kontwòl Panel:

The touch pad control panel allows you to select various cooking functions, set time, and adjust power levels. The digital display shows the time and selected settings.

Figure 6: Close-up of the microwave's control panel, showing buttons for various functions like Popcorn, Potato, Beverage, Reheat, Defrost, and numeric keypad.

Operasyon debaz:

• Ajisteman tan pou kwit manje a: Antre tan pou kwit manje ou vle a avèk klavye nimerik la.
• Ajisteman Nivo Pouvwa: Press the 'Power Level' button and then select a power level from 1 to 10 using the numeric keypad.
• Kòmanse instant: Press the 'Start/+30 Sec' button to begin cooking immediately for 30 seconds, or press a number from 1-6 for express cook (1-6 minutes).
• Auto Cook Options: Select from pre-programmed settings for common foods like Popcorn, Potato, Pizza, Frozen Vegetable, Beverage, and Dinner Plate.
• Deglase: Use the 'Defrost Auto/Time' button to select either weight-based or time-based defrosting.
• Multi-Stage kwit manje: Pwograme plizyè kwit manjetages ak diferan nivo pouvwa ak tan.

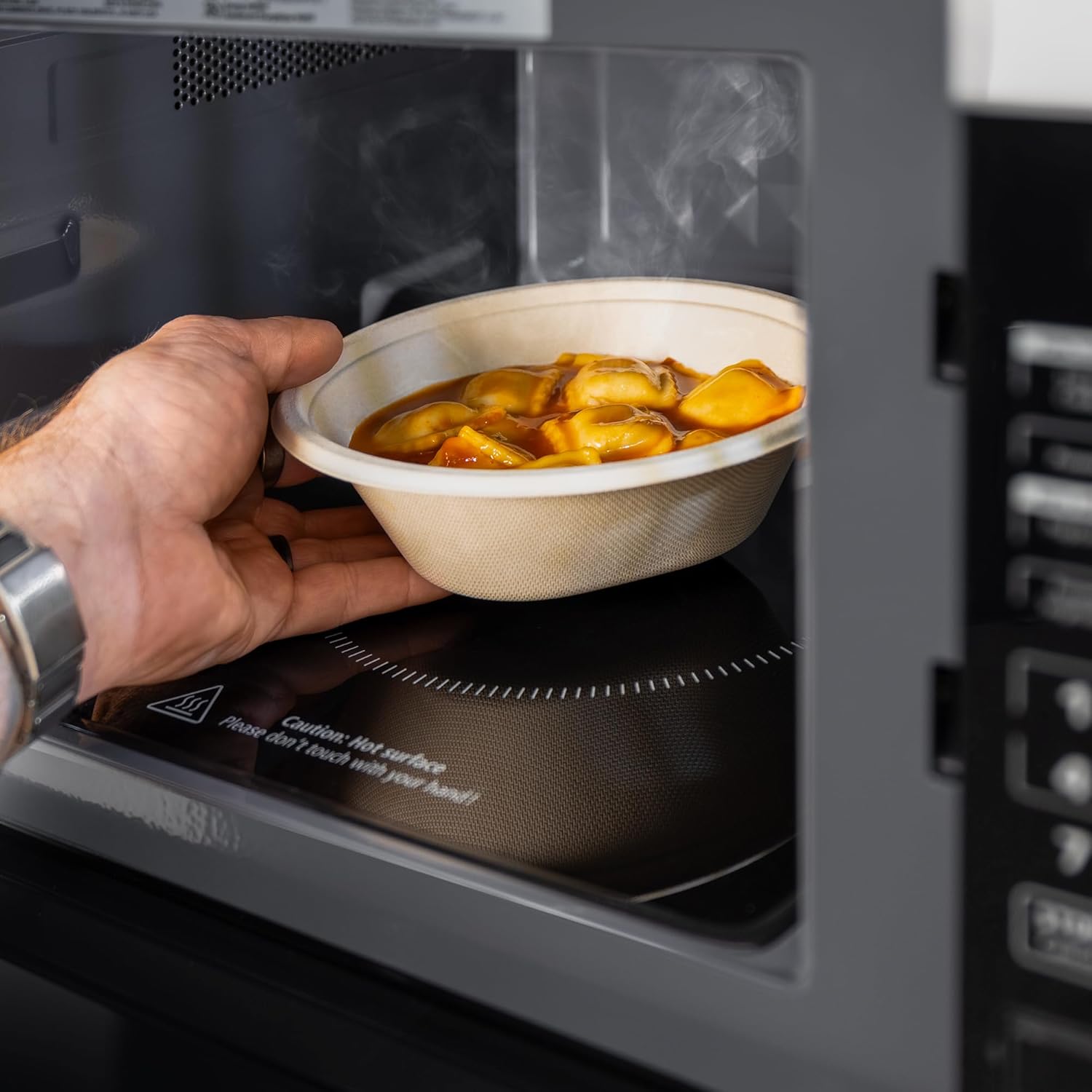

Figure 7: A hand carefully placing a bowl of food onto the microwave's flatbed surface for heating.

Karakteristik pou fèmen timoun yo:

The child lock feature prevents accidental operation of the microwave. To activate or deactivate the child lock, follow the instructions below:

• Aktive: Press and hold the 'STOP/Clear' button for 3 seconds until a lock icon appears on the display.
• Pou dezaktive: Press and hold the 'STOP/Clear' button again for 3 seconds until the lock icon disappears.

6. Antretyen ak netwayaj

Regular cleaning and maintenance will help ensure your microwave operates efficiently and safely for years to come.

Netwayaj enteryè a:

• Wipe the interior cavity with a soft cloth and mild detergent after each use.
• Pou tach ki difisil pou retire, mete yon bòl dlo ak tranch sitwon ladan l epi chofe l nan mikwo ond lan pandan 5-10 minit. Vapè a ap dekole patikil manje yo, sa ap fè yo pi fasil pou siye.
• Asire w ke mikwo ond lan debranche anvan w netwaye.

Netwaye eksteryè a:

• Siye sifas eksteryè yo ak yon mou, damp Evite pwodui netwayaj abrazif oswa kousen abrazif.
• For stainless steel surfaces, use a specialized stainless steel cleaner to maintain its luster.

Figi 8: Enteryè view of the microwave, showing the clean cavity and the glass turntable, which should be regularly cleaned.

Figure 9: The microwave door open, revealing the interior cavity and the light, emphasizing accessibility for cleaning.

NAN. Depanaj

If you encounter any issues with your microwave, refer to the following common troubleshooting tips before contacting customer support.

Pwoblèm komen ak solisyon:

• Microwave not starting: Ensure the door is securely closed, the appliance is plugged in, and the circuit breaker has not tripped. Check if the child lock is activated.
• Manje a pa chofe menm jan: Stir food halfway through cooking, arrange food in a circular pattern, and ensure microwave-safe dishes are used. The flatbed design helps with even heating.
• Bri dwòl pandan operasyon: This can sometimes be normal during microwave operation. If the noise is excessive or unusual, ensure the turntable (if applicable) is correctly seated.
• Ekspozisyon an pa fonksyone: Check power supply. If the issue persists, contact customer support.

8. Espesifikasyon

Below are the technical specifications for the RecPro High Pointe 1.0 Cu. Ft. Stainless Steel Microwave with Trim (Model CL-MIC20-SS).

9. Garanti ak sipò

RecPro is committed to providing quality products and customer satisfaction.

Plan Pwoteksyon:

Extended protection plans are available for purchase to cover your appliance beyond the standard warranty period. Options include:

• Plan Pwoteksyon 3 Zan
• Plan Pwoteksyon 4 Zan
• Pwoteksyon Konplè (plan mansyèl ki kouvri acha ki kalifye yo)

Pou plis detay sou tèm ak kondisyon plan sa yo, tanpri al gade dokiman plan respektif la.

Sipò Kliyan:

If you have any questions, require assistance with installation, operation, or troubleshooting, please contact RecPro customer support. You can find contact information on the official RecPro websit la oubyen atravè platfòm acha ou a.
