Entwodiksyon
This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your Yard Force 22-inch 163cc Briggs and Stratton 675Exi Gas Walk Behind String Trimmer Mower. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.
Figi 1: Plis paseview of the Yard Force 22-inch String Trimmer Mower.
Enfòmasyon sou Sekirite
Toujou bay sekirite priyorite lè w ap itilize ekipman elektrik. Si ou pa swiv enstriksyon sekirite yo, ou ka blese gravman oswa domaje materyèlman.
- Li epi konprann tout enstriksyon ki nan manyèl sa a anvan ou itilize li.
- Mete ekipman pwoteksyon pèsonèl (PPE) ki apwopriye, tankou pwoteksyon pou je, pwoteksyon pou zòrèy, pantalon long, ak soulye solid.
- Keep bystanders, children, and pets at a safe distance (at least 50 feet) from the operating area.
- Enspekte zòn travay la pou wè si fil kouto a ta ka voye debri.
- Do not operate the machine in wet conditions or on excessively steep slopes.
- Ensure the engine is off and cool before performing any maintenance or adjustments.
- Sere gaz la nan yon veso ki apwouve nan yon zòn ki byen ayere, lwen sous ignisyon.
Enstalasyon ak Asanble
Your Yard Force String Trimmer Mower requires minimal assembly. Follow these steps to prepare your machine for first use.
1. Manch Asanble
The handle is designed to fold for compact storage. To set up for operation, unfold the handle and secure it in the upright position using the provided knobs. Ensure all cables are routed correctly and not pinched.

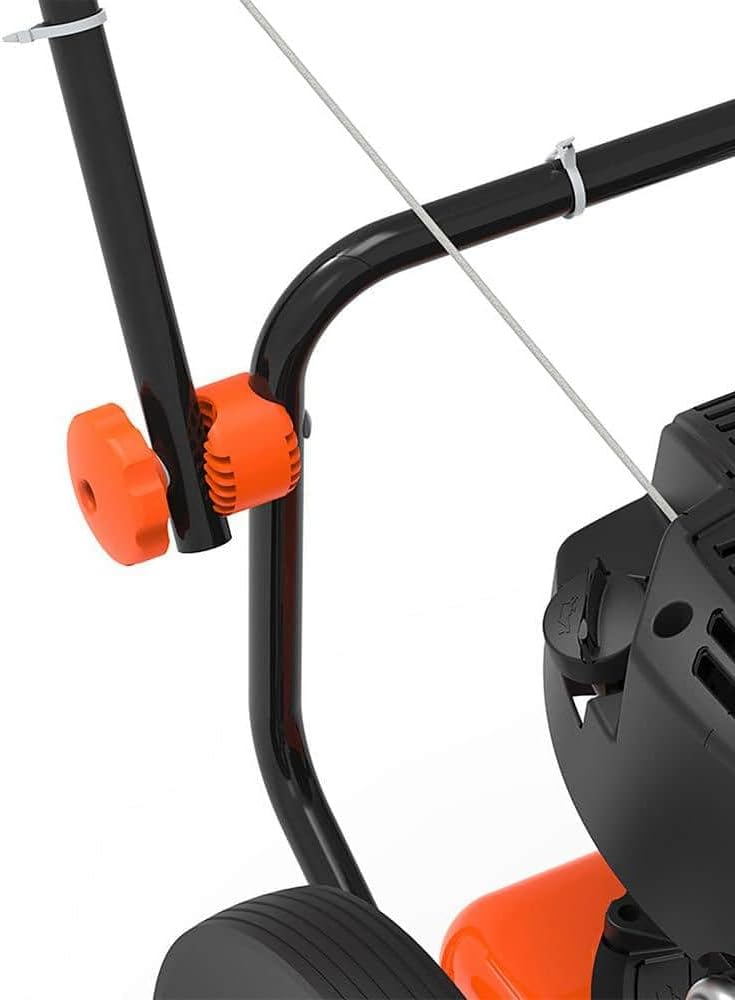

Figure 2: Detail of the foldable handle adjustment knobs.
2. lwil motè
This Briggs & Stratton 675EXi engine features "Just Check & Add" technology, meaning it never needs an oil change. Simply check the oil level before each use and add oil if it is low. Refer to the engine manual for specific oil type and capacity.
Figure 3: The Briggs & Stratton 675EXi engine.
3. ravitaye
Fill the fuel tank with fresh, unleaded gasoline. Do not overfill. Always refuel in a well-ventilated area with the engine off and cool.
Enstriksyon Operasyon
Follow these steps for effective and safe operation of your string trimmer mower.
1. Kòmanse motè a
- Ensure the spark plug wire is securely attached.
- Move the throttle lever to the "Fast" or "Start" position.
- Rale kòd demaraj la byen fèm jiskaske motè a kòmanse.
- Allow the engine to warm up for a few moments before beginning work.
2. Trimming Operation
The 22-inch cutting swath allows for efficient clearing of tall grass and weeds. The 0.155-inch line is durable for demanding tasks. Guide the machine steadily, allowing the trimmer line to do the work. The 14-inch rubber-wrapped rear wheels provide excellent maneuverability over various terrains.
Figure 4: Operating the trimmer mower on uneven terrain.
Figure 5: The durable 0.155-inch cutting line.
3. kanpe motè a
To stop the engine, move the throttle lever to the "Stop" position. Allow the engine to cool before storage.
Antretyen
Regular maintenance ensures the longevity and optimal performance of your Yard Force trimmer mower.
- Lwil motè: As mentioned, the Briggs & Stratton "Just Check & Add" technology means no oil changes are needed. Simply check the oil level before each use and add if low.
- Filtè lè: Enspekte epi netwaye filtè lè a regilyèman, sitou nan anviwònman ki gen pousyè. Ranplase li si li domaje.
- Bouji: Check the spark plug annually. Clean or replace as needed to ensure proper ignition.
- Liy pou koupe: Replace worn or broken trimmer lines as necessary. Always use the recommended 0.155-inch line.
- Netwayaj jeneral: After each use, clean grass clippings and debris from the cutting deck, engine, and wheels.
Depanaj
This section addresses common issues you might encounter with your trimmer mower.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Motè pa kòmanse | No fuel; Stale fuel; Loose spark plug wire; Clogged air filter | Add fresh fuel; Drain and refill with fresh fuel; Secure spark plug wire; Clean/replace air filter |
| Motè a kouri mal | Dirty air filter; Old fuel; Fouled spark plug | Clean/replace air filter; Replace fuel; Clean/replace spark plug |
| Trimmer line wears quickly | Operating in abrasive conditions; Incorrect line type | Avoid hitting hard surfaces; Ensure use of 0.155-inch line |
| Twòp Vibration | Damaged trimmer head or line; Loose components | Inspect and replace damaged parts; Tighten all fasteners |
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Mak | Fòs Lakou |
| Nimewo Modèl | YF22-HWT |
| Motè | Briggs & Stratton 675EXi, 163cc |
| Gross Torque | 6.75 pye-lbs |
| Koupe Lajè | 22 pous |
| Dyamèt liy régler | 0.155 pous |
| Wou dèyè | 14 Inches, Rubber Wrapped |
| Manch | Pliable |
| Sous pouvwa | Gaz Powered |
| Materyèl | Nerjaveèi asye |
| Koulè | Orange |
| Pwa atik | 68.3 liv |
| Dimansyon pwodwi | 36 x 22 x 5 pous |
| Peyi orijin | Lachin |
| UPC | 846325030243 |
Garanti ak sipò
For warranty information or technical support, please contact Yard Force customer service. Keep your purchase receipt and model number (YF22-HWT) readily available when contacting support.
Yard Force offers protection plans for extended coverage. For details, refer to the information provided at the time of purchase or visit the official Yard Force websit.
Sipò Kliyan: Link to Amazon Customer Service (Note: For direct manufacturer support, please refer to the contact information provided with your product packaging or on the official Yard Force websit.)
