Yaheetech YTauet0001001

Yaheetech Portable 2-Fold Massage Table Instruction Manual

Model: YTauet0001001

1. Enfòmasyon sou Sekirite

Before using your Yaheetech Portable 2-Fold Massage Table, please read and understand all safety instructions. Failure to follow these guidelines may result in injury or damage to the product.

  • Evite ekspoze likid: Pa ekspoze pwodwi a nan likid.
  • Stability During Adjustment: Be cautious of tip-over risks when adjusting the height or folding/unfolding the product. Always ensure the table is stable before use.
  • Limit pwa: Always ensure the product is used within its specified weight limits to prevent damage or injury. The table has a maximum load bearing capacity of up to 250 kg (551 lbs).
  • Asanble apwopriye: Ensure all components are correctly assembled and secured before placing any weight on the table.

2. Enstriksyon Enstalasyon

The Yaheetech Portable 2-Fold Massage Table is designed for toolless installation, allowing for quick and easy setup.

  1. Depliye tab la: Place the folded table on its side on a flat, stable surface. Unclip the side latches and gently unfold the table. The legs will automatically extend.
  2. Fikse janm yo: Ensure all four legs are fully extended and locked into place. The steel wires provide additional stability.
  3. Mete apui tèt la: Insert the adjustable headrest into the designated slots at one end of the table. Adjust the angle and height as desired using the quick-fix locking device. If the headrest keeps falling, tighten the screws and try again.
  4. Attach Armrests and Hand Pallet: Insert the removable armrests into the side slots. Attach the swinging hand pallet to the headrest frame if desired.
Four step diagram showing how to unfold and set up the massage table.
Figure 2.1: Step-by-step guide to unfolding and setting up the massage table. This image illustrates the process from a folded suitcase-like form to a fully assembled table with accessories.

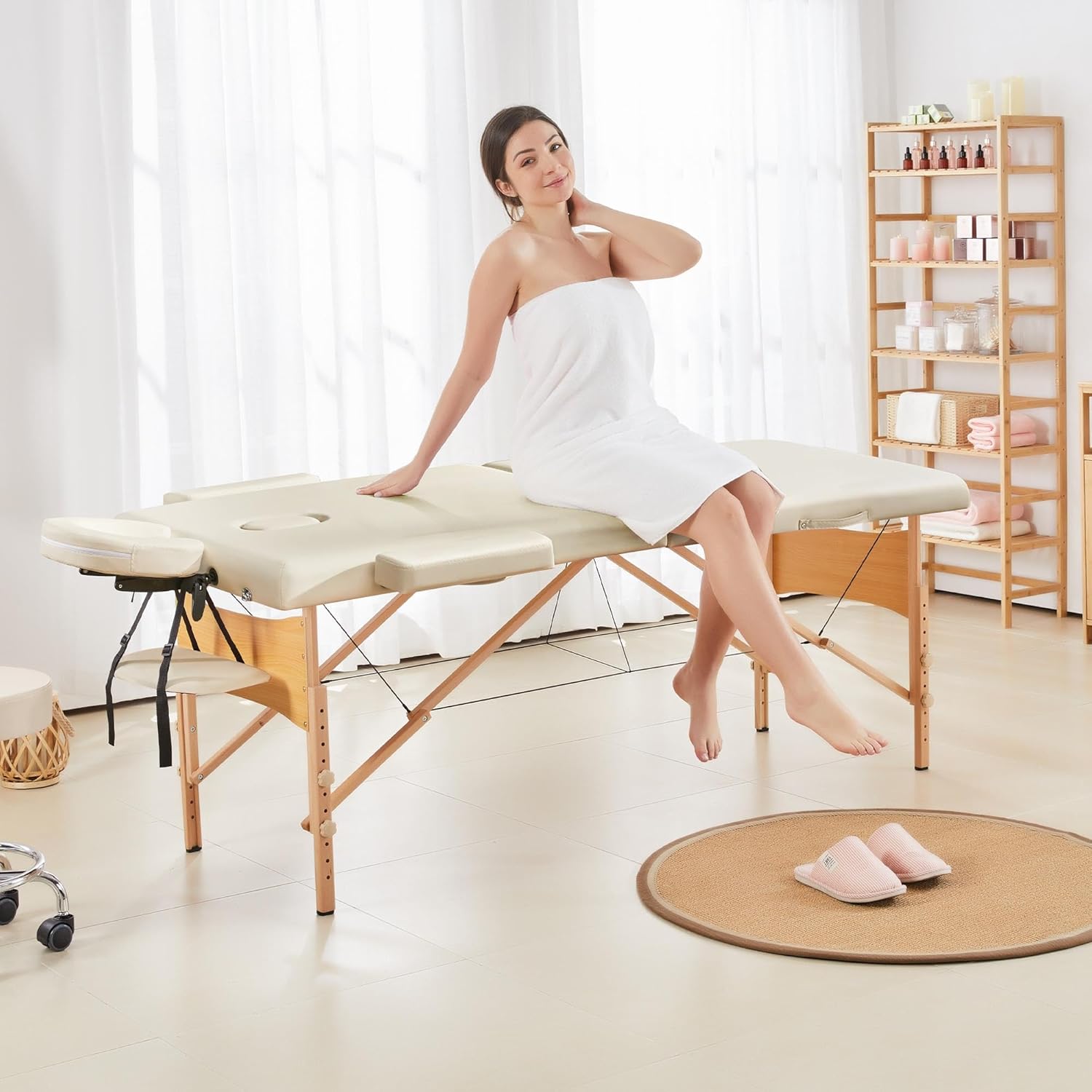

A woman sitting on the cream-colored massage table in a spa setting.
Figure 2.2: The Yaheetech Portable Massage Table in a spa environment, showcasing its cream color and readiness for use.
Video 2.1: This video from Yaheetech demonstrates the installation process of the spa bed, highlighting how to unfold and prepare it for use.

3. Operasyon Enstriksyon

The massage table offers several adjustable features to ensure comfort for both the user and the client.

  1. Ajiste Tablo Tablo: The table features two twisting adjustment knobs on each leg. Unscrew the knobs, slide the inner leg to one of the 8 different height settings (from 25.2 inches to 33.7 inches), and then tighten the knobs securely.
  2. Adjusting Headrest Angle: The headrest can be adjusted for different heights or angles using its quick-fix locking device. Lift up to unlock, adjust, and push down to lock.
  3. Using the Breathing Hole: The table includes a removable face pillow for the breathing hole in the main bed section. This allows clients to lie face down comfortably without the external headrest.
  4. Akseswa detachable: The headrest, swinging hand pallet, and armrests are all removable, allowing for customization based on the treatment and client preference.
Diagram showing the dimensions of the massage table in both unfolded and folded states, including headrest and armrests.
Figure 3.1: Detailed dimensions of the massage table, illustrating its length, width, and adjustable height in both operational and folded configurations.
Close-up diagram showing how to lift up to unlock and push down to lock the adjustable headrest.
Figure 3.2: Instructions for adjusting the headrest: lift up to unlock and push down to lock, ensuring a secure position for client comfort.
Diagram highlighting various components of the massage table, including adjustable headrest, breathing hole, removable armrests, suitcase, beech wood legs, swinging hand pallet, metal lock, adjusting knobs, steel wires, and non-slip pads.
Figure 3.3: An annotated diagram pointing out key features and components of the massage table, such as the adjustable headrest, breathing hole, and beech wood legs.
Close-up of the massage table legs, showing the adjustment knob and high-strength steel cable truss for stability.
Figure 3.4: Detail of the table's adjustable legs, featuring the adjustment knob and high-strength steel cable truss for enhanced stability and load bearing.
Video 3.1: This video provides a real review of the portable massage bed, demonstrating its features and ease of use for mobile massage services.

4. Antretyen

Proper maintenance ensures the longevity and hygiene of your massage table.

  • Netwaye sifas la: The table's spongy cushion is covered by durable faux leather, which is easy to clean. Use a soft cloth dampened with mild soap and water to wipe down the surface after each use. Avoid harsh chemicals or abrasive cleaners that could damage the material.
  • Siye: Ensure the table surface is completely dry before folding or storing to prevent mildew or damage.
  • Enspeksyon: Regularly inspect all moving parts, knobs, and cables for any signs of wear or damage. Tighten any loose screws or connections.
  • Depo: When not in use, fold the table and store it in the provided non-woven carrying bag in a cool, dry place away from direct sunlight.
Close-up of the premium PVC leather surface of the massage table, showing its skin-friendly and breathable texture with high-density sponge for resilience.
Figi 4.1: Yon imaj detaye view of the table's premium PVC leather, emphasizing its skin-friendly, breathable, and resilient high-density sponge construction, which contributes to easy cleaning.

NAN. Depanaj

If you encounter any issues with your massage table, refer to the following common solutions:

  • Enstabilite Tablo: Ensure all leg adjustment knobs are securely tightened. Check that the steel cable trusses are properly connected and taut. Verify the table is on a flat, even surface.
  • Headrest Falling: If the headrest does not stay in position, tighten the screws on the quick-fix locking device. Ensure it is inserted correctly into the table's slots.
  • Difikilte pou pliye/depliye: Check for any obstructions in the folding mechanism. Ensure all accessories (headrest, armrests) are removed and stored in their designated spots underneath the table before attempting to fold.
  • Bri k'ap kriye: Inspect all joints and connections. A small amount of silicone-based lubricant can be applied to hinges if necessary, avoiding contact with the faux leather.

6. Espesifikasyon

KarakteristikDetay
Dimansyon pwodwi (depliye)83.86 x 36.5 x 33.66 pous (Longè x Lajè x Wotè)
Table Dimensions (Bed Surface)185 cm (73 inches) Length x 70 cm (28 inches) Width
Ranje Wotè reglabl25.2 inches to 33.7 inches (8 settings)
Pwa atik31.08 liv
Maksimòm Chaj ki Pote250 kg (551 liv)
MateryèlBeech wood legs, aluminum alloy and composite board frames, faux leather upholstery, high-density sponge cushion
KoulèKrèm
Nimewo ModèlYTauet0001001
Comparison image showing an original massage table at 32.3 inches wide and a new upgraded version at 36.5 inches wide, indicating the new bed is 4.2 inches wider.
Figure 6.1: Visual comparison highlighting the increased width of the upgraded massage table, providing more space for comfort.

7. Garanti ak sipò

For specific warranty details and customer support, please refer to the official Yaheetech store or contact their customer service directly.

  • Magazen sou entènèt: Vizite la Magazen Yaheetech pou enfòmasyon sou pwodwi ak sipò.
  • FAQ: For common questions, refer to the brand's FAQ section, which may cover topics such as delivery, manufacturing standards, and product functionality.
