MCombo Power Lift Recliner Chair User Manual

Entwodiksyon

This manual provides essential information for the safe and effective use of your MCombo Small-Wide Power Lift Recliner Chair with Massage and Heat. Please read these instructions carefully before assembly, setup, and operation to ensure proper function and longevity of your chair. Keep this manual for future reference.

Image: The MCombo Power Lift Recliner Chair in beige faux leather, shown in a slightly lifted position, highlighting its power lift mechanism and integrated remote control.

Enfòmasyon sou Sekirite

AVÈTISMAN: This is an electrical device. Adherence to the following safety guidelines is crucial to prevent injury or damage.

• Always unplug the chair when not in use or before cleaning.
• Do not use the chair if the power cord is damaged. Contact customer support for replacement.
• This chair is designed for adults only. Keep children and pets away from the chair when it is in use or reclined. Do not leave children unattended near the chair.
• The maximum weight capacity for this chair is 350 pounds. Do not exceed this limit.
• Always assemble the chair strictly according to the provided instructions.
• Do not attempt to repair or modify the chair yourself. Unauthorized modifications can void the warranty and pose safety risks.
• If you experience any issues or unusual operation, immediately unplug the chair and contact the manufacturer for assistance.

Kontni pake

Before beginning assembly, ensure all components are present and undamaged. The package should contain:

• Dosye
• Baz
• Akoudwar gòch
• Akoudwar dwat
• Accessories box (containing power adapter, remote control, and other small parts)
• Manyèl Itilizatè (dokiman sa a)

Note: The chair is shipped in 3 separate boxes. Ensure all boxes are received before proceeding.

Enstriksyon Asanble

Detailed, step-by-step assembly instructions are provided in a separate assembly manual included with your chair. Please refer to that document for specific guidance on connecting the backrest, armrests, and base. Ensure all connections are secure before plugging in the chair.

Enstalasyon

1. Plasman: Position the chair on a flat, stable surface, ensuring there is sufficient clearance behind and in front of the chair for full recline and lift functions.
2. Koneksyon pouvwa: Locate the power cord from the accessories box. Connect the power cord to the chair's power input port, typically located at the rear or underside of the base. Plug the other end into a standard wall outlet (110-120V AC).
3. Kontwòl Remote: The remote control is pre-connected. Ensure its cable is not pinched or tangled.

Enstriksyon Operasyon

Power Lift and Recline Functions

The chair features a counter-balanced power lift mechanism and offers three primary positions controlled by the wired remote.

• UP Position: Peze epi kenbe la bouton flèch MOUTE on the remote. The chair will slowly tilt forward and lift, assisting you in standing up.
• Pozisyon televizyon: Peze epi kenbe la Desann bouton flèch until the chair reaches a comfortable upright sitting position with the footrest retracted. This is ideal for watching television or reading.
• Pozisyon kouche: Kontinye peze la Desann bouton flèch from the TV position. The backrest will recline further, and the footrest will extend, allowing for a relaxed, nearly flat position (maximum recline angle: 140°).

Image: Illustration of the three chair positions (Reclined, TV, UP) and the simple two-button remote control for power lift and recline functions.

Fonksyon masaj ak chalè

The chair is equipped with a full-body vibration massage system and a lumbar heating function, controlled by a separate wired remote.

• Vibration masaj: The remote allows you to select massage intensity (L/M/H), mode and vibrating points (Back, Lumbar, Thigh, Leg). There are 8 vibrating nodes distributed throughout the chair.
• Chofaj lonbèr: Press the "HEAT" button on the massage remote to activate the lumbar heating function. This can be used independently or in conjunction with the vibration massage.
• Revèy: Set a timer for 10, 20, or 30 minutes for the massage and heat functions.

Image: Diagram showing the lumbar heat area and the location of 8 vibrating nodes, along with a detailed view of the massage and heat remote control with various settings.

USB Charging Ports and Side Pockets

The chair includes convenient features for user comfort and utility.

• Pò USB: Two USB charging ports are integrated into the side of the chair, allowing you to charge your electronic devices while relaxing.
• Pòch bò: Two side pockets provide storage for the remote controls, magazines, or other small items.

Imaj: Gwo plan view of the chair's armrest area, highlighting the two USB charging ports and the two side pockets for convenient storage.

Antretyen

To ensure the longevity and appearance of your MCombo recliner, follow these simple care instructions:

• Netwayaj: Siye pwòp ak anonsamp cloth. For faux leather, use a mild soap solution if necessary, then wipe dry immediately. Avoid harsh chemicals or abrasive cleaners.
• Devèsman: Siye likid ki tonbe a imedyatman avèk yon twal pwòp epi sèk. Pa fwote.
• Kòd pouvwa: Enspekte kòd kouran an regilyèman pou wè si li domaje. Si li domaje, sispann itilize li epi kontakte sèvis kliyan.
• Deplase chèz la: When moving the chair, lift it rather than dragging to prevent damage to the base or flooring.

Depanaj

If you encounter issues with your MCombo Power Lift Recliner Chair, please refer to the following common troubleshooting tips:

• Prezidan an pa reponn:
  • Asire w ke kòd kouran an byen branche nan chèz la ak nan yon priz miray ki fonksyone.
  • Check if the wall outlet is receiving power (test with another appliance).
  • Enspekte fil elektrik la pou nenpòt domaj vizib.
• Bri motè:
  • A slight humming sound from the motor during operation is normal.
  • If the noise is excessive or unusual, discontinue use and contact customer support.
• Masaj/Chofaj la pa mache:
  • Asire w chèz la limen.
  • Check the connections of the massage/heat remote to the chair.

For issues not covered here, or if problems persist, please contact MCombo customer support.

Espesifikasyon

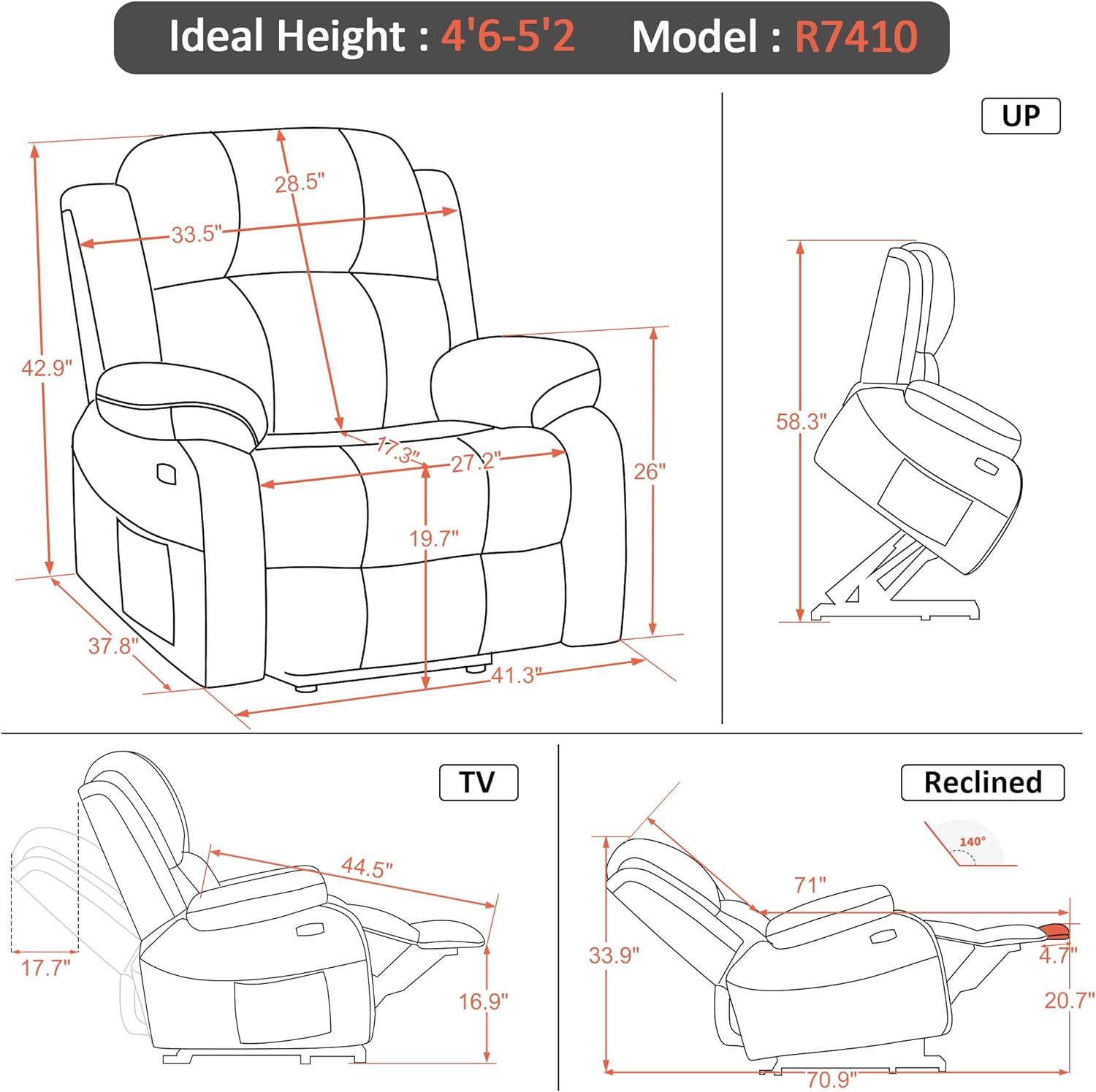

Image: Technical drawing illustrating the detailed dimensions of the MCombo recliner in various positions (Up, TV, Reclined), including seat width, backrest height, and overall length.

Garanti ak sipò

For information regarding product warranty, please refer to the warranty card included with your purchase or visit the official MCombo website. If you require technical assistance, have questions about operation, or need to report a damaged part, please contact MCombo customer support directly. Contact information can typically be found on the manufacturer's websit la oubyen sou anbalaj la.

You can visit the MCombo Store for more information: MCombo Official Store

Pwodwi adisyonèl Views

Image: The MCombo recliner chair positioned comfortably in a living room setting, demonstrating its aesthetic integration into home decor.

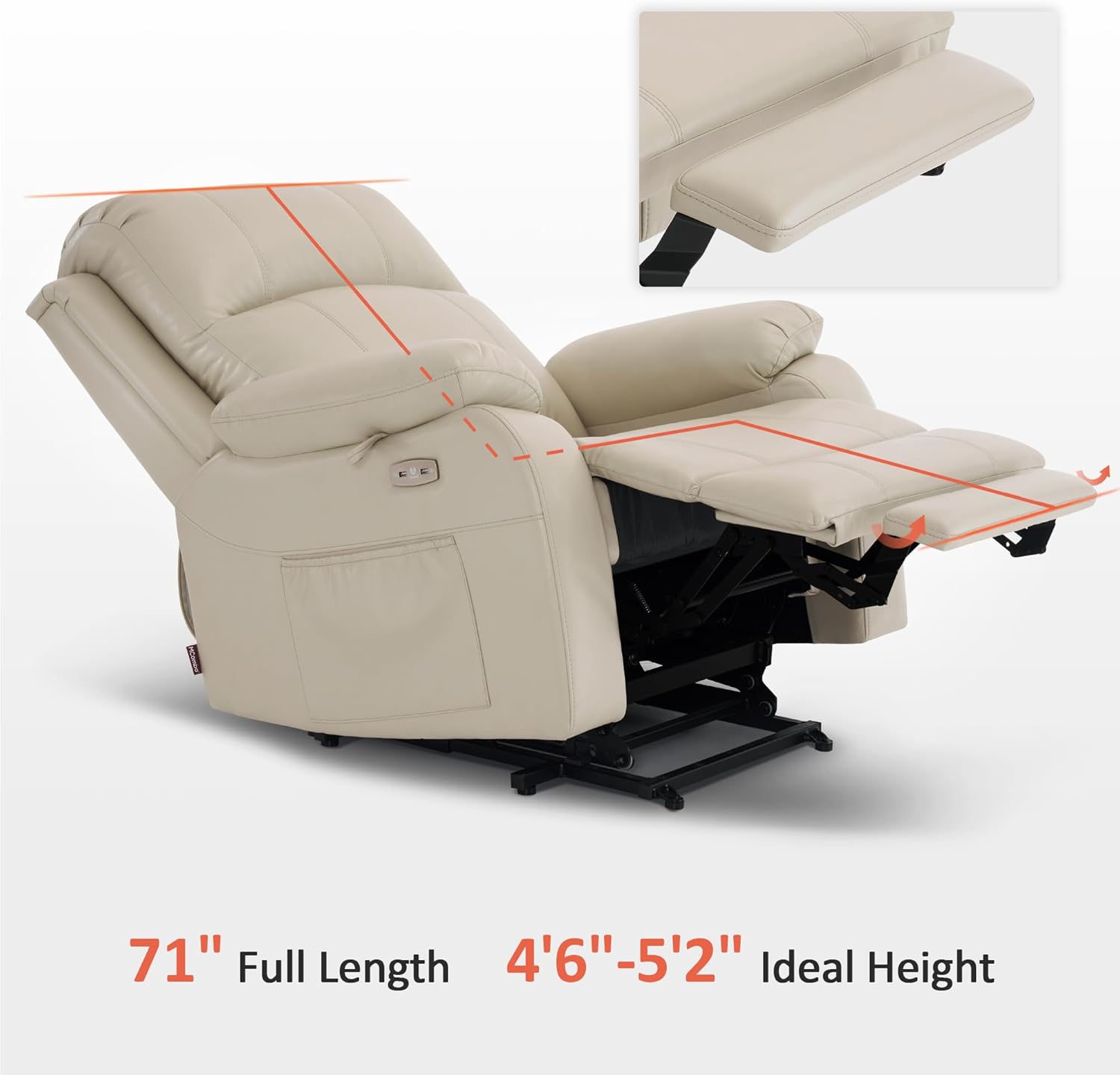

Image: The recliner shown with an overlay indicating its full length when reclined (71 inches) and the recommended ideal user height range (4'6" - 5'2").

Imaj: Yon gwo plan view nan materyèl kwi fo a, montreasing its texture and finish.

Videyo pwodwi ofisyèl yo

No official seller videos were found with relevant content for embedding in this manual. Please refer to the product page on Amazon or the manufacturer's websit la pou nenpòt demonstrasyon videyo ki disponib.
