Cangaroo London Buggy User Manual

1. Enfòmasyon sou Sekirite

Read all instructions carefully before assembly and use of the Cangaroo London Buggy. Failure to follow these instructions could result in serious injury to your child.

• This buggy is suitable for children from 6 months up to a maximum weight of 15 kg.
• Always use the 5-point safety harness with pads to secure your child.
• Asire ke tout aparèy bloke yo angaje anvan ou itilize yo.
• Do not leave the child unattended in the buggy.
• Do not overload the storage basket; maximum capacity is 3 kg.
• The parking brake on the rear wheels must always be engaged when placing or removing the child from the buggy, or when the buggy is stationary.
• Pa sèvi ak Pwodwi pou Telefòn oswa pyès rezèv lòt pase sa yo apwouve pa manifakti a.
• Be aware of the risk of open fires and other sources of strong heat, such as electric bar fires, gas fires, etc., in the near vicinity of the buggy.
• Do not use the buggy on stairs or escalators.
• Always ensure your child's fingers are clear of moving parts when adjusting the buggy.

2. Pake kontni

Verifye ke tout konpozan yo prezan lè w ap debale l:

• Cangaroo London Buggy (main unit with aluminum frame, seat, canopy, wheels, storage basket, and front bar)
• Manyèl Itilizatè (dokiman sa a)

Imaj 1: Devan view of the Cangaroo London Buggy, showing the seat, canopy, and wheels.

3. Enstalasyon

3.1 Unfolding the Buggy

1. Place the folded buggy on a flat surface.
2. Release the folding latch, usually located on the side of the frame.
3. Lift the handlebar firmly until the frame locks into its open position. You should hear a click.
4. Ensure all parts are securely locked before placing a child in the buggy.

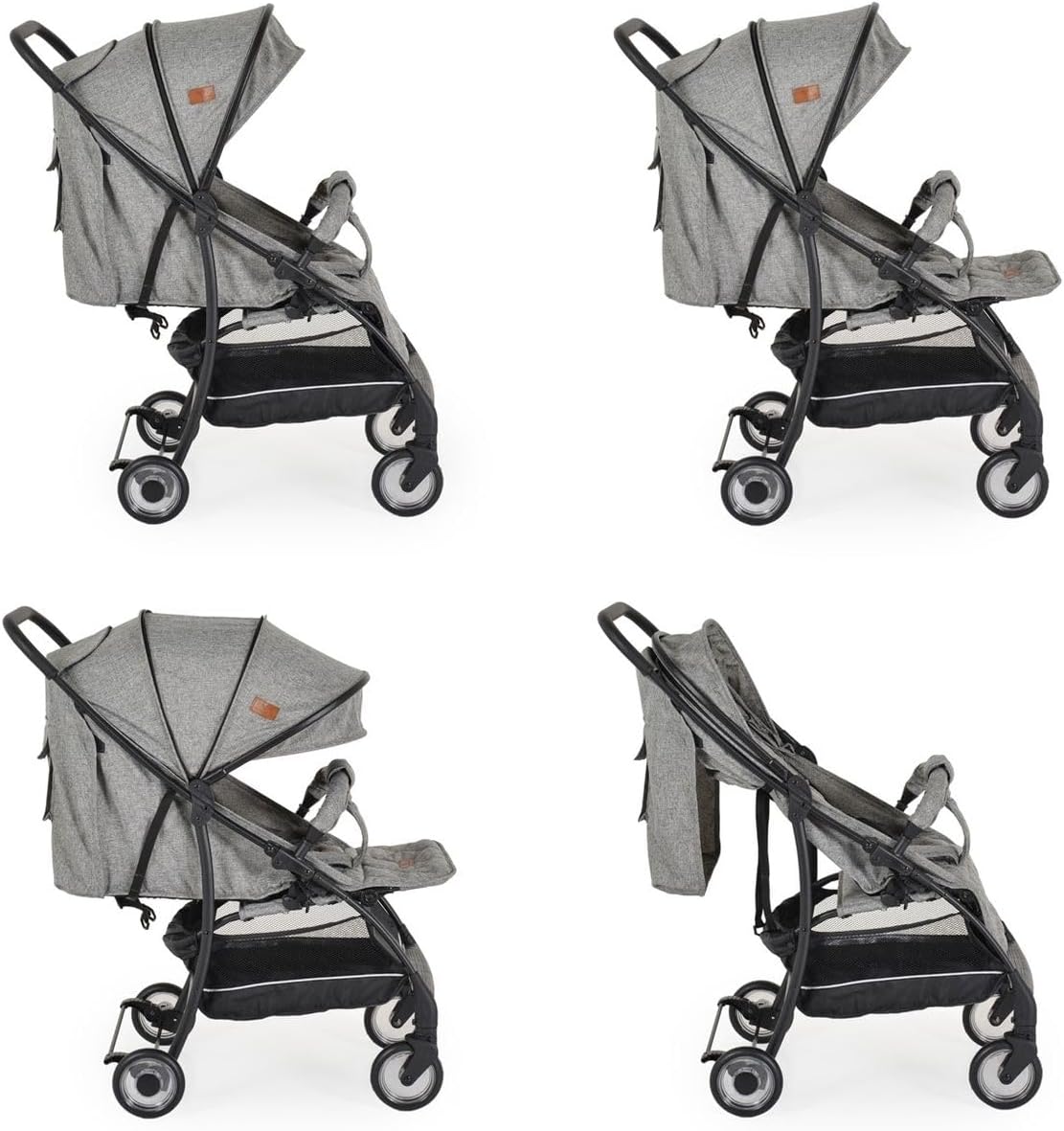

Imaj 2: Divès views of the buggy, demonstrating its folded and unfolded states.

3.2 Attaching the Front Bar

• Align the ends of the front bar with the attachment points on the buggy frame.
• Push firmly until the bar clicks into place.
• To remove, press the release buttons on each side and pull the bar away.

3.3 Ajisteman Kanopi a

• The canopy can be adjusted by pushing or pulling it forward or backward along its frame.
• Li prezante yon viewing window to check on your child and an accessory pocket for small items.

Image 3: Detail of the canopy, highlighting the viewing window and accessory pocket.

4. Operasyon Enstriksyon

4.1 Ajiste Dosye a

• The backrest is adjustable using a belt system located at the rear of the seat.
• To recline, squeeze the buckle and slide the strap to the desired position.
• To raise, pull the strap upwards through the buckle.

4.2 Adjusting the Footrest

• The footrest can be adjusted to provide comfort for your child.
• Locate the adjustment levers or buttons on either side of the footrest and adjust to the desired angle.

Imaj 4: Kote view of the buggy, illustrating the adjustable backrest and footrest positions.

4.3 Using the 5-Point Safety Harness

1. Mete pitit ou a nan chèz la.
2. Mete senti zepòl yo sou zepòl pitit ou a epi senti ren yo nan ren li.
3. Insert the two buckle prongs into the central buckle until they click securely.
4. Adjust the straps to ensure a snug, secure fit without being too tight.
5. Pou lage l, peze bouton ki sou bouk santral la.

4.4 Angaje fren yo

• The buggy is equipped with a brake on the rear wheels.
• To engage the brake, press down firmly on the brake lever located near the rear wheels.
• Ensure the buggy is stationary before releasing your grip on the handlebar.
• To release the brake, lift the lever upwards.

4.5 Folding the Buggy

• Ensure the child is removed from the buggy and the storage basket is empty.
• Follow the specific folding mechanism instructions (often involves pressing buttons or levers on the handlebar and pushing forward/down).
• Secure the folding latch once the buggy is fully folded.

5. Antretyen

5.1 Netwayaj

• Pati twal: The fabric is composed of 60% cotton and 40% linen. Clean with a damp twal ak savon dou. Pa lave nan machin oswa seche nan machin. Kite l seche nèt nan lè a.
• Ankadreman: Siye ankadreman aliminyòm lan ak piblisiteamp twal. Pa sèvi ak pwodui netwayaj abrazif.
• Wou: Regularly clean the wheels to remove dirt and debris. Lubricate moving parts with a silicone-based spray if necessary.

5.2 Depo

• Store the buggy in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
• Ensure the buggy is clean and dry before storing to prevent mold or mildew.

5.3 Enspeksyon regilye

• Periodically check all screws, rivets, and fasteners to ensure they are tight and secure.
• Inspect the safety harness for any signs of wear or damage.
• Ensure the brakes are functioning correctly.
• Check for any sharp edges or loose parts that could pose a hazard.

NAN. Depanaj

7. Espesifikasyon

• Nimewo Modèl: 110912
• Mak: Kangarou
• Laj rekòmande: Depi 6 mwa
• Kapasite maksimòm pwa: 15 kg (33 liv)
• Dimansyon pwodwi (L x W x H): 80 x 48 x 95 cm (31.5 x 18.9 x 37.4 pous)
• Pwa pwodwi: 5.9 kg (13 liv)
• Materyèl ankadreman: Aliminyòm lejè
• Konpozisyon twal: 60% Cotton, 40% Linen
• Karakteristik:
  • Adjustable backrest with belt system
  • Repoze pye yo reglabl
  • Pliable konsepsyon
  • Adjustable canopy with viewing window and accessory pocket
  • 5-point safety harness with pads
  • Ba devan detachable
  • Brake on rear wheels
  • 360° swivel front wheels
  • Large storage basket (max. 3 kg capacity)

8. Garanti ak sipò

Cangaroo products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official Cangaroo websit.

For technical support, spare parts, or any questions regarding your Cangaroo London Buggy, please contact Cangaroo customer service:

• Websit: www.cangaroo-bg.com (Nòt: Sa a se yon espas rezève URL, please refer to your product documentation for the correct support contact.)
• Imèl: support@cangaroo-bg.com (Placeholder)
• Telefòn: +1-XXX-XXX-XXXX (Placeholder)

Tanpri kenbe nimewo modèl ou a (110912) ak dat acha a pare lè w ap kontakte sipò a.
