Entwodiksyon
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Faber 60 cm 1500 m³/hr Autoclean Kitchen Chimney, model HOOD DAZZLE BLDC FL HC BK 60. Please read these instructions carefully before using the appliance and retain them for future reference.

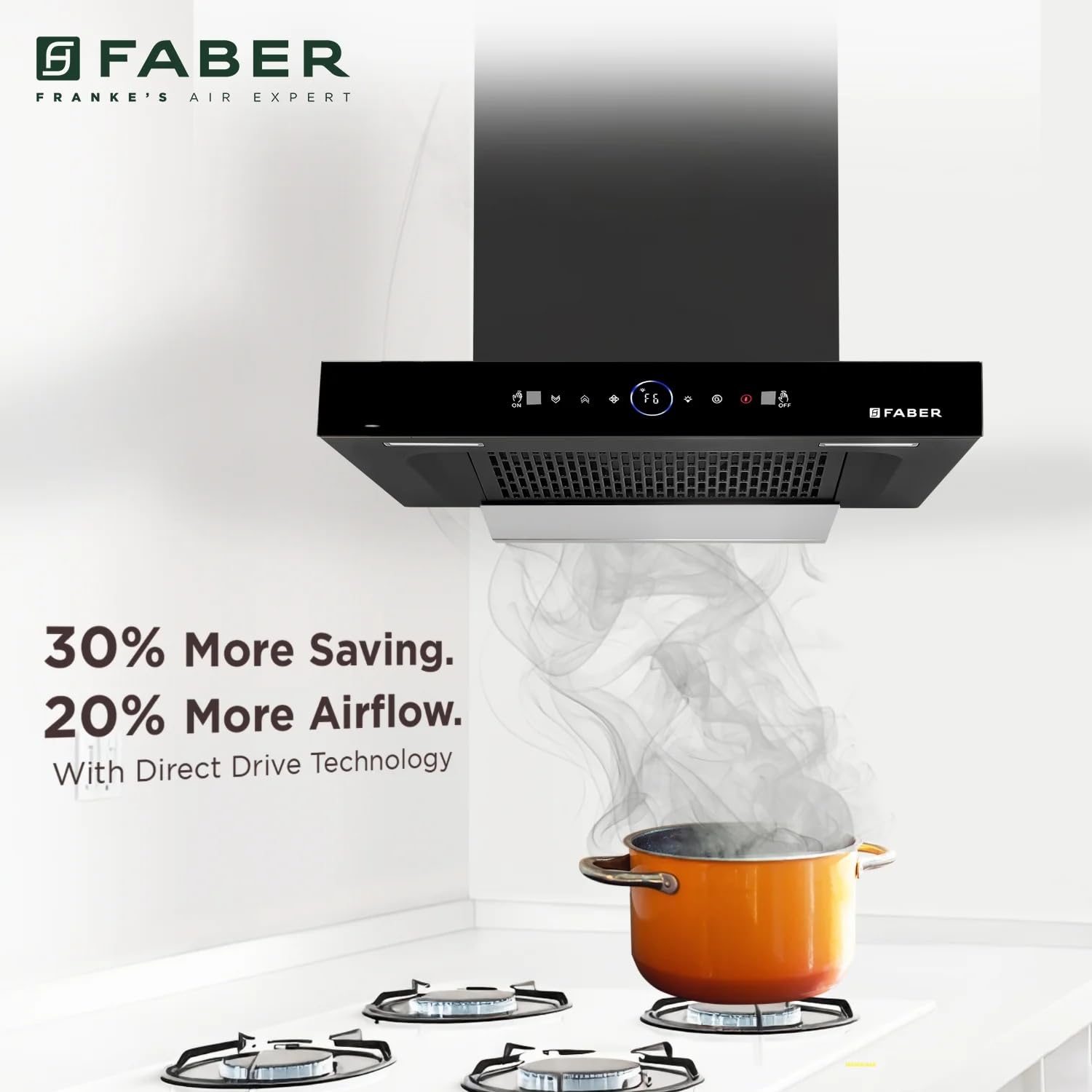

Imaj: Anglè devan view of the Faber HOOD DAZZLE BLDC FL HC BK 60 Kitchen Chimney, showcasing konsepsyon jeneral li.
Enstriksyon Sekirite Enpòtan
- Ensure the chimney is installed by a qualified technician according to local regulations.
- Do not operate the chimney if the power cord is damaged. Contact authorized service personnel for repairs.
- Kenbe yon bon vantilasyon nan chanm nan lè chemine a ap fonksyone, sitou si gen lòt aparèy ki boule gaz.
- Clean the chimney regularly to prevent grease buildup, which can be a fire hazard.
- Pa flanbe anba chemine a.
- Kenbe timoun yo lwen aparèy la pandan l ap fonksyone epi pandan l ap netwaye.
- Disconnect the power supply before any cleaning or maintenance.
Enstalasyon ak Enstalasyon
The Faber HOOD DAZZLE BLDC FL HC BK 60 is a wall-mounted kitchen chimney. Proper installation is crucial for optimal performance and safety.
Debalaj ak Konpozan
Carefully unpack the chimney and check for any damage. The package should contain:
- 1 x Faber Kitchen Chimney unit
- 1 x manyèl itilizatè
- Installation hardware (screws, wall plugs, etc. - typically included)
Montaj
This chimney is designed for wall-mounted installation. Ensure the wall is strong enough to support the appliance's weight (approximately 18 kg). The recommended mounting height above the cooking surface should be followed as per local safety standards and the chimney's specifications to ensure effective suction and safety.

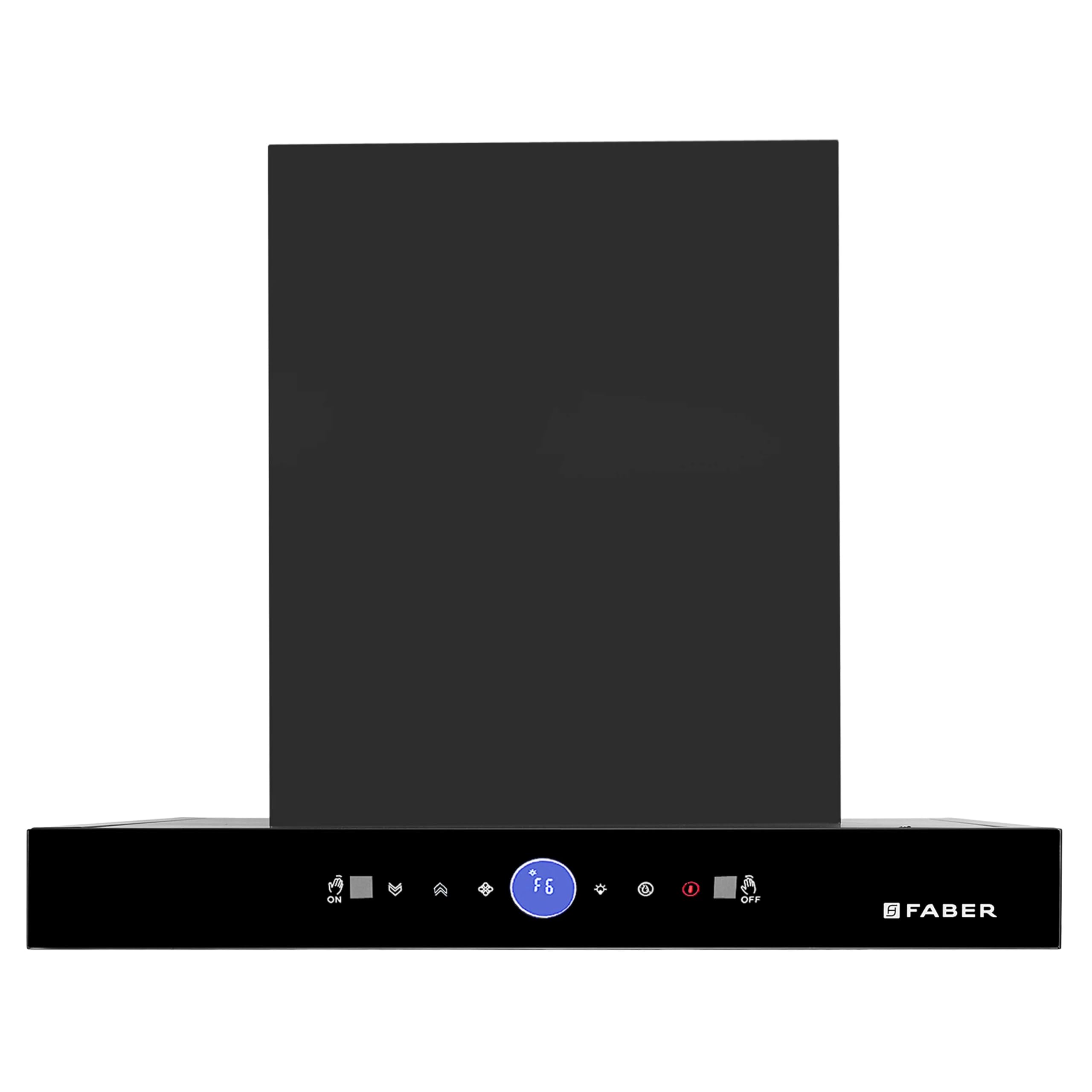

Imaj: Devan view of the Faber HOOD DAZZLE BLDC FL HC BK 60 Kitchen Chimney, showcasing konsepsyon nwa elegant li yo ak panèl kontwòl la.
Imaj: Anglè bò view of the Faber HOOD DAZZLE BLDC FL HC BK 60 Kitchen Chimney, showing its profile and exhaust duct cover.
Imaj: Anba view of the Faber HOOD DAZZLE BLDC FL HC BK 60 Kitchen Chimney, showing the filterless intake area.
Koneksyon elektrik
The chimney operates on 230 Volts. Ensure the electrical outlet is properly grounded and meets the required specifications. It is recommended to have a dedicated circuit for the appliance.
Enstriksyon Operasyon
Your Faber chimney features advanced controls for ease of use, including touch, gesture, and remote control options.
Kontwòl Panel Plis paseview
The control panel is located on the front of the chimney. It includes touch-sensitive buttons for various functions and an LED display.
Imaj: Angle view of the Faber HOOD DAZZLE BLDC FL HC BK 60 Kitchen Chimney, highlighting the touch and gesture control panel.
Image: Close-up of the control panel on the Faber HOOD DAZZLE BLDC FL HC BK 60 Kitchen Chimney, showing power, light, and speed settings.
Fonksyon
- Limen/Etenyen: Use the dedicated power button on the control panel or remote.
- Suction Speed Adjustment: Adjust the suction power up to 1500 m³/hr using touch controls, gestures, or the remote. Higher speeds are recommended for heavy cooking.
- Dirije ekleraj: The chimney is equipped with LED lights to illuminate your cooking area. Activate them via the control panel or remote.
- Heat Auto Clean: This feature automatically cleans the internal components by heating and melting grease, which then collects in an oil collector. Refer to the Maintenance section for details.
Kontwòl Remote
The included remote control allows for convenient operation from a distance. It typically includes buttons for power, light, and suction speed adjustment.
Image: A hand holding the remote control for the Faber chimney, demonstrating its use for simplified cooking.
Image: Illustration of gesture control functionality for the Faber chimney, showing hands interacting with the sensor area.
Antretyen ak netwayaj
Regular maintenance ensures the longevity and optimal performance of your Faber chimney. Always disconnect the power supply before cleaning.
Heat Auto Clean Function
The Heat Auto Clean feature is designed to simplify internal cleaning. When activated, a heating element melts accumulated grease, which then flows into a removable oil collector. It is recommended to run the auto-clean cycle periodically, depending on your cooking frequency.
- To activate, press the dedicated Auto Clean button on the control panel or remote.
- The cycle duration may vary. Do not interrupt the process.
- After the cycle, carefully remove and empty the oil collector. Clean it with warm soapy water.
Image: Illustration depicting the auto-clean technology of the Faber chimney, showing grease being collected in the oil collector.
Netwayaj eksteryè
Siye sifas ekstèn chemine a ak yon twal mouampened with mild detergent. Avoid abrasive cleaners or scouring pads, as they can damage the matte black finish.
Teknoloji san filtè
This chimney utilizes filterless technology, reducing the need for frequent filter cleaning or replacement. The internal design and auto-clean function manage grease collection efficiently.
Gid depanaj
Anvan ou kontakte sèvis kliyan, tanpri gade pwoblèm ak solisyon komen sa yo:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Chemine a pa limen. | No power supply; loose connection; power outage. | Check power cord connection. Verify power outlet functionality. Check household circuit breaker. |
| Ba pouvwa pou aspirasyon. | Oil collector full; obstruction in ducting; incorrect speed setting. | Empty and clean the oil collector. Ensure ducting is clear. Increase suction speed. |
| Bri dwòl pandan operasyon an. | Loose components; foreign object in fan; motor issue. | Ensure all parts are securely fastened. If noise persists, contact service. |
| Auto Clean function not working. | Power issue; sensor malfunction. | Ensure power supply is stable. If issue persists, contact service. |
If the problem persists after attempting these solutions, please contact Faber customer support.
Espesifikasyon pwodwi
| Non modèl | HOOD DAZZLE BLDC FL HC BK 60 |
| Mak | Faber |
| Kalite aliye | Mi monte |
| Lajè | 60 cm |
| Pouvwa pou aspirasyon | 1500 m³/hr (Cubic Meters Per Hour) |
| Kalite filtre | San filtè |
| Kalite Fonksyon | Heat Auto Clean |
| Fini | Mat Nwa |
| Kontwòl | Touch & Gesture with Remote control |
| Dimansyon pwodwi (WxDxH) | 59.7 x 45.5 x 51.2 cm (597x455x512 MM) |
| Voltage | 230 Volts |
| Pwa atik | 18 Kilogram |
| Nivo bri | 56 Desibèl |
| Kalite sous limyè | dirije |
| Konsomasyon enèji chak ane | 180 kilowat |
| Manifakti | Franke Faber India Pvt Ltd |
Enfòmasyon sou Garanti
Your Faber HOOD DAZZLE BLDC FL HC BK 60 Kitchen Chimney comes with a comprehensive warranty:
- Garanti pwodwi: 5 ane
- Garanti motè: 12 ane
Please retain your purchase receipt for warranty claims. The warranty covers manufacturing defects under normal use conditions. For detailed terms and conditions, refer to the warranty card included with your product or contact Faber customer service.
Sipò pou Kliyan
For any queries, technical assistance, or service requests regarding your Faber kitchen chimney, please contact Faber customer support. You can find contact details on the Faber official website or your warranty card.
Manufacturer: Franke Faber India Pvt Ltd
