Entwodiksyon
This user manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Decaura Small Gold Bathroom Faucet (Model DE50411). Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Pwodwi souview
The Decaura Small Gold Bathroom Faucet is a stylish and functional addition to any modern bathroom. Crafted from durable stainless steel with a brushed gold finish, it features a single handle for easy control of water temperature and flow. Its lead-free construction ensures safe and clean water delivery.
Image: The Decaura Small Gold Bathroom Faucet, showcasing its elegant design and brushed gold finish.
Konpozan ki enkli
Anvan ou kòmanse enstalasyon an, asire w ke tout konpozan yo prezan:
- 1 x Decaura Bathroom Faucet
- 2 x Flexible Hoses (50 cm length)
- 1 x manch
- 1 x Manyèl Enstriksyon (dokiman sa a)
- Mounting hardware (washers, nuts, etc.)
Image: All components included in the package, laid out for inspection, including the faucet, hoses, handle, and instruction manual.
Enstalasyon ak Enstalasyon
Lis Verifikasyon Pre-Enstalasyon:
- Asire w ke ekipman pou dlo a koupe.
- Verify that the mounting surface (countertop) has a single hole with a diameter between 32mm (Min) and 46mm (Max).
- Confirm maximum countertop thickness is 32mm.
- Gather necessary tools (adjustable wrench, screwdriver, plumber's putty/silicone sealant).
Image: Diagram illustrating the faucet's dimensions (height 177mm, spout height 67mm, spout reach 127mm) and the required hole diameter (32-46mm) and maximum countertop thickness (32mm) for proper installation.
Etap enstalasyon:
- Prepare wobinèt la: Attach the flexible hoses to the faucet body. Ensure a tight seal.
- Monte tiyo a: Insert the faucet's threaded shank through the hole in the countertop.
- Fikse Robine a: From underneath the countertop, slide the rubber washer, metal washer, and mounting nut onto the threaded shank. Tighten the nut securely with a wrench, ensuring the faucet is straight and stable.
- Konekte Tiyo Dlo yo: Connect the hot and cold flexible hoses to the corresponding hot and cold water supply lines. Use an adjustable wrench to tighten connections, but do not overtighten.
- Tès pou Fuites: Louvri tiyo prensipal dlo a dousman. Tcheke tout koneksyon yo pou wè si gen flit. Si gen flit, sere koneksyon yo yon ti kras jiskaske yo sispann.
- Netwaye sistèm nan: Remove the aerator from the spout and turn on both hot and cold water for a few minutes to flush out any debris from the lines. Turn off the water, reattach the aerator.
Enstriksyon Operasyon
The Decaura faucet features a single lever handle for easy control:
- Koule dlo: Leve manch lan anlè pou ogmante koule dlo a. Pouse l anba pou diminye koule a epi fèmen dlo a.
- Kontwòl Tanperati: Move the handle to the left for hot water and to the right for cold water. The handle allows for precise mixing to achieve your desired temperature.

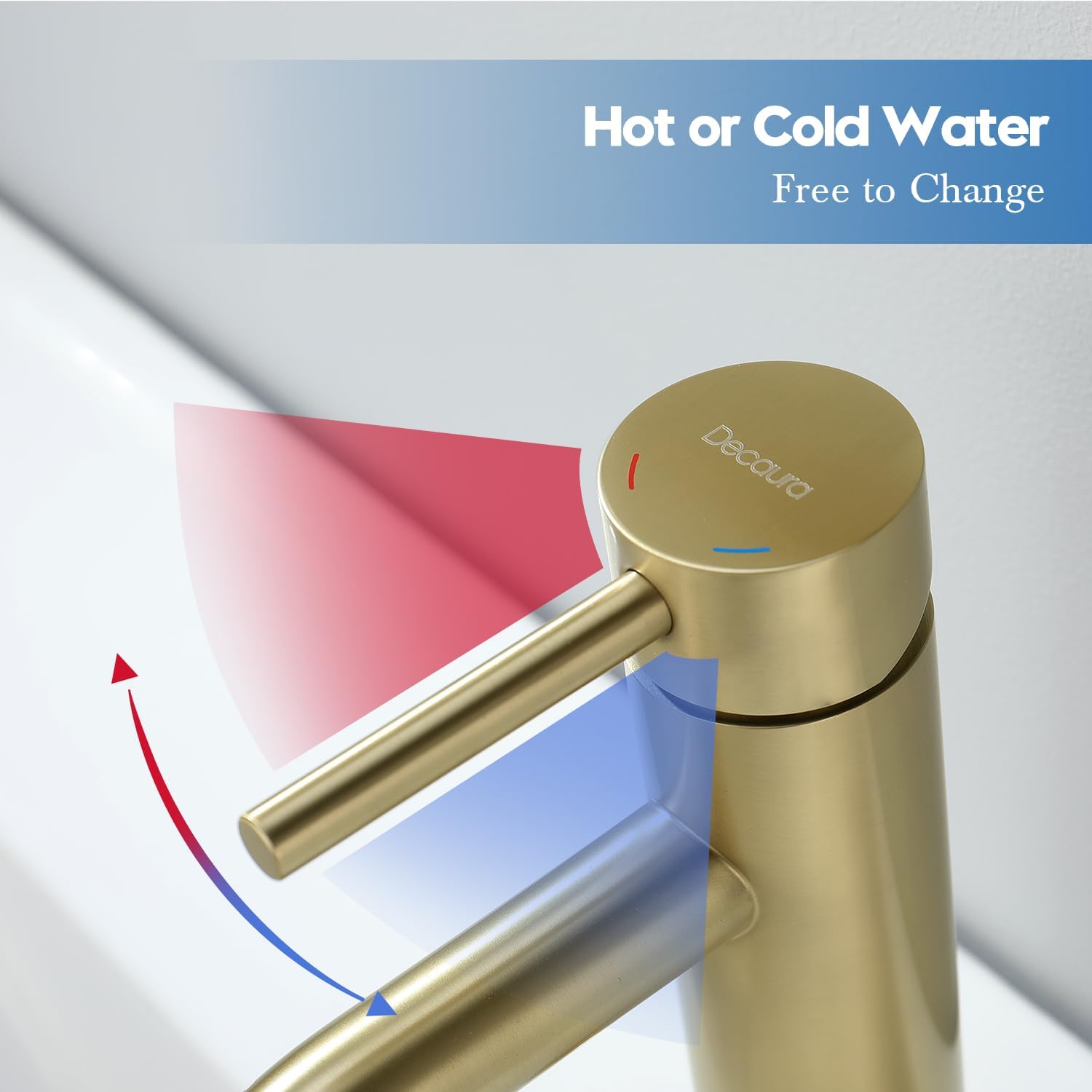

Image: The faucet handle indicating the range of motion for hot (red) and cold (blue) water temperature adjustment.
Aerator Functionality:
The integrated premium aerator provides a non-splashing, smooth stream of water, enhancing water efficiency and comfort.
Imaj: Yon gwo plan view of the faucet's spout, highlighting the premium aerator designed for a soft, non-splashing water flow.
Image: The faucet in operation, demonstrating the soft, stable water stream created by the aerator, with hands cupped to show the gentle flow.
Antretyen ak Swen
Proper care will ensure the longevity and appearance of your Decaura faucet:
- Netwayaj: All surfaces should be cleaned with water or a mild liquid detergent.
- Evite netwayaj piman bouk: Do not use cream cleaners, citrus-based cleaners, or chemical cleaning products, as these can damage the brushed gold finish.
- Netwayaj Aeratè: Periodically unscrew the aerator from the spout and rinse any mineral deposits or debris under running water. Reattach securely.
- Lead-Free Assurance: This faucet is designed to be lead-free, ensuring safe drinking water.

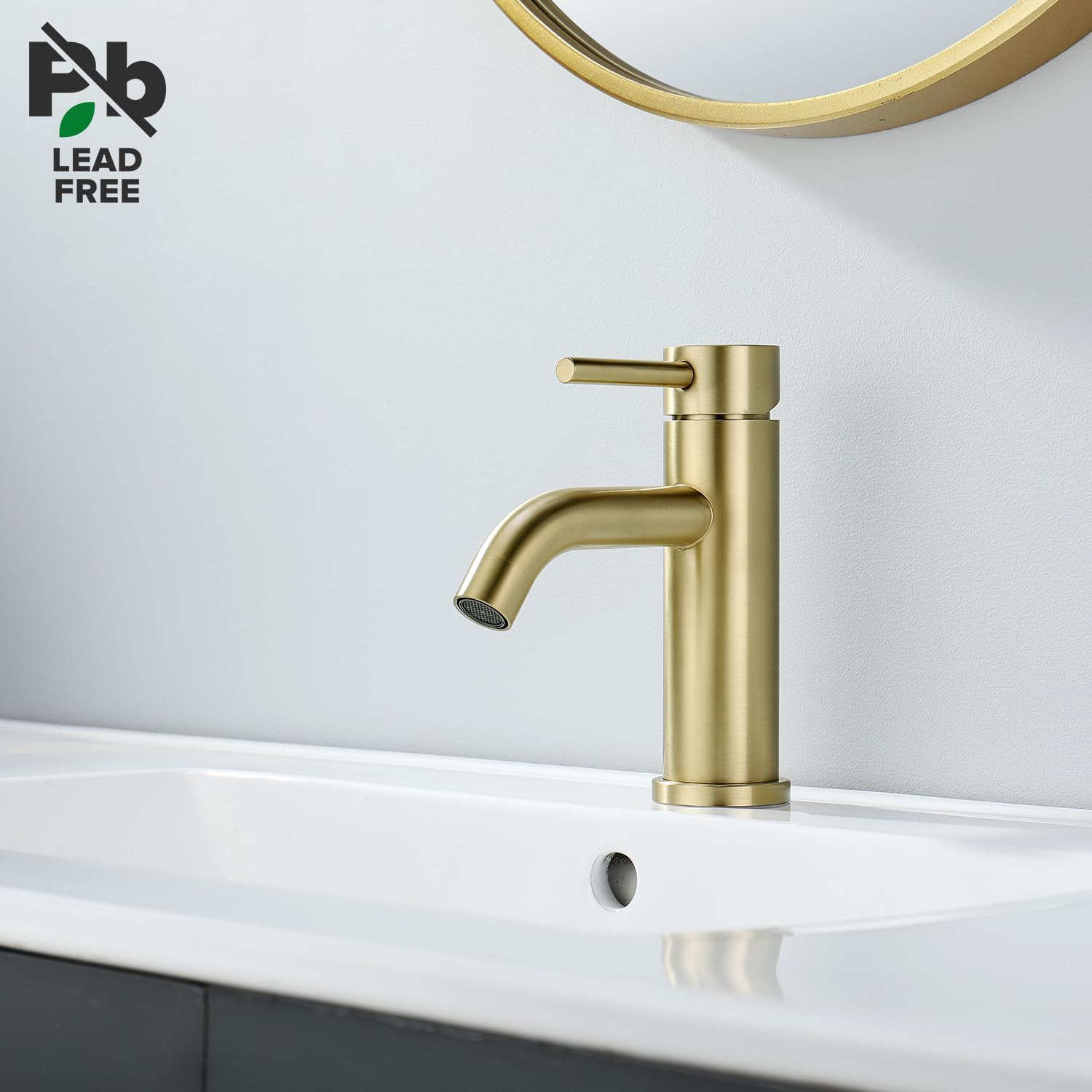

Image: The faucet installed in a bathroom setting, with a "LEAD FREE" symbol prominently displayed, emphasizing its safe material composition.

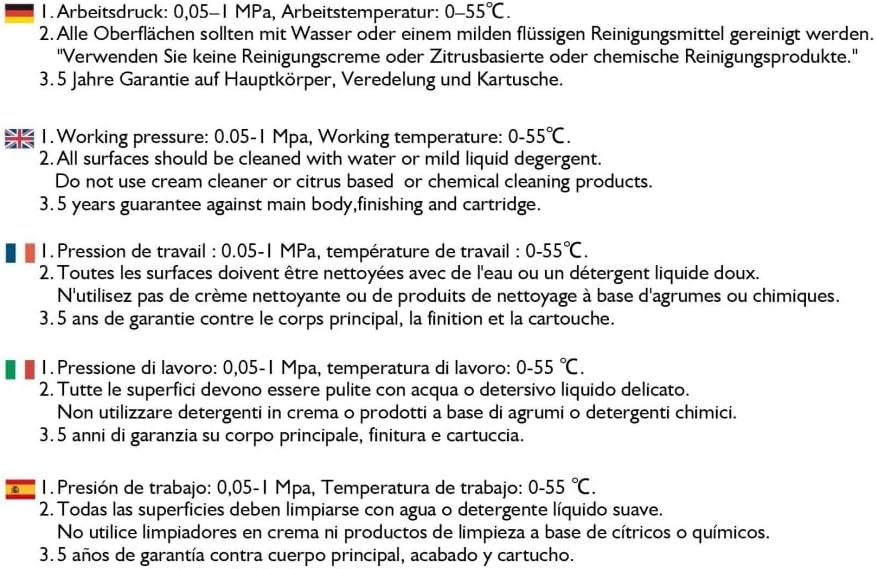

Image: A section of the instruction manual showing care guidelines in multiple languages, including English, which states to clean surfaces with water or mild detergent and avoid cream or citrus-based cleaners.
Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Ba Dlo Koule | Aeratè bouche; valv fèmen pasyèlman; tiyo ekipman pou dlo a pliye. | Clean aerator; fully open shut-off valves; straighten supply hoses. |
| Koule nan baz wobinèt la | Loose mounting nut; worn O-rings/gaskets. | Tighten mounting nut; replace O-rings/gaskets if necessary (contact support). |
| Koule nan tiyo a | Katouch ki chire. | Replace cartridge (contact support). |
| Pwoblèm Tanperati Dlo | Incorrect handle position; issues with water heater. | Adjust handle; check water heater settings. |
Espesifikasyon
- Nimewo Modèl: DE50411
- Nimewo Pati: DE50411SG
- Manifakti: MDX
- Dimansyon pwodwi: 31.5 x 22 x 7.5 cm
- Pwa: 950 g
- Koulè: Type 1 Small Gold
- Fini: Bwose
- Materyèl: Nerjaveèi asye
- Metòd enstalasyon: Kontwa
- Kantite manch: 1
- Number of Holes Required: 1
- Longè kawotchou: 50 cm
- Wotè bec: 67 mm
- Rive bekè: 127 mm
- Presyon travay: 0.05-1 MPa
- Tanperati travay: 0-55 °C
- Karakteristik espesyal: Plon-gratis
Garanti ak sipò
The Decaura Small Gold Bathroom Faucet comes with a 3.5-ane garanti covering the main body, finishing, and cartridge. This warranty protects against manufacturing defects under normal use.
For warranty claims, technical support, or replacement parts, please contact Decaura customer service through the retailer where the product was purchased or visit the official Decaura websit.
Tanpri konsève prèv acha ou a pou validasyon garanti a.
