Entwodiksyon
This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your Ledvion 1M Single-Phase Track Light Rail. Please read this manual thoroughly before installation and keep it for future reference.
The Ledvion 100 cm single-phase track light rail is designed to provide a modern and flexible lighting solution. Constructed from high-quality aluminum, this white track rail is ideal for various indoor environments, allowing for customizable lighting arrangements.
Enstriksyon Sekirite Enpòtan
- Always disconnect power at the circuit breaker before installation, maintenance, or bulb replacement.
- Enstalasyon an ta dwe fèt pa yon elektrisyen kalifye oswa dapre kòd elektrik lokal yo.
- Pa depase wat maksimòm lantage or current rating specified for the track system.
- Asire w ke tout koneksyon an sekirite epi byen izole.
- Pwodwi sa a fèt pou itilize andedan kay la sèlman.
- Kenbe materyèl anbalaj lwen timoun yo.
Kontni pake
Verifye ke tout konpozan yo prezan anvan ou kòmanse enstalasyon an:
- 1x Ledvion 1M Single-Phase Track Light Rail (White)
- Montaj pyès ki nan konpitè (vis, lank)
- Manyèl Enstriksyon
Image: The product packaging for the Ledvion 1M Single-Phase Track Light Rail.
Enstalasyon ak Enstalasyon
The Ledvion track light rail is designed for easy installation. Follow these steps carefully:
- Preparasyon:
- Koupe ekipman pou kouran prensipal la nan disjonktè a anvan ou kòmanse nenpòt travay elektrik.
- Identify the desired mounting location on the ceiling or wall. Ensure the surface is suitable to support the weight of the track and attached fixtures.
- Monte tras la:
- Hold the track rail against the mounting surface and mark the positions for the mounting screws.
- Drill pilot holes at the marked locations. Insert wall anchors if necessary.
- Secure the track rail to the surface using the provided screws. Ensure it is firmly attached and level.

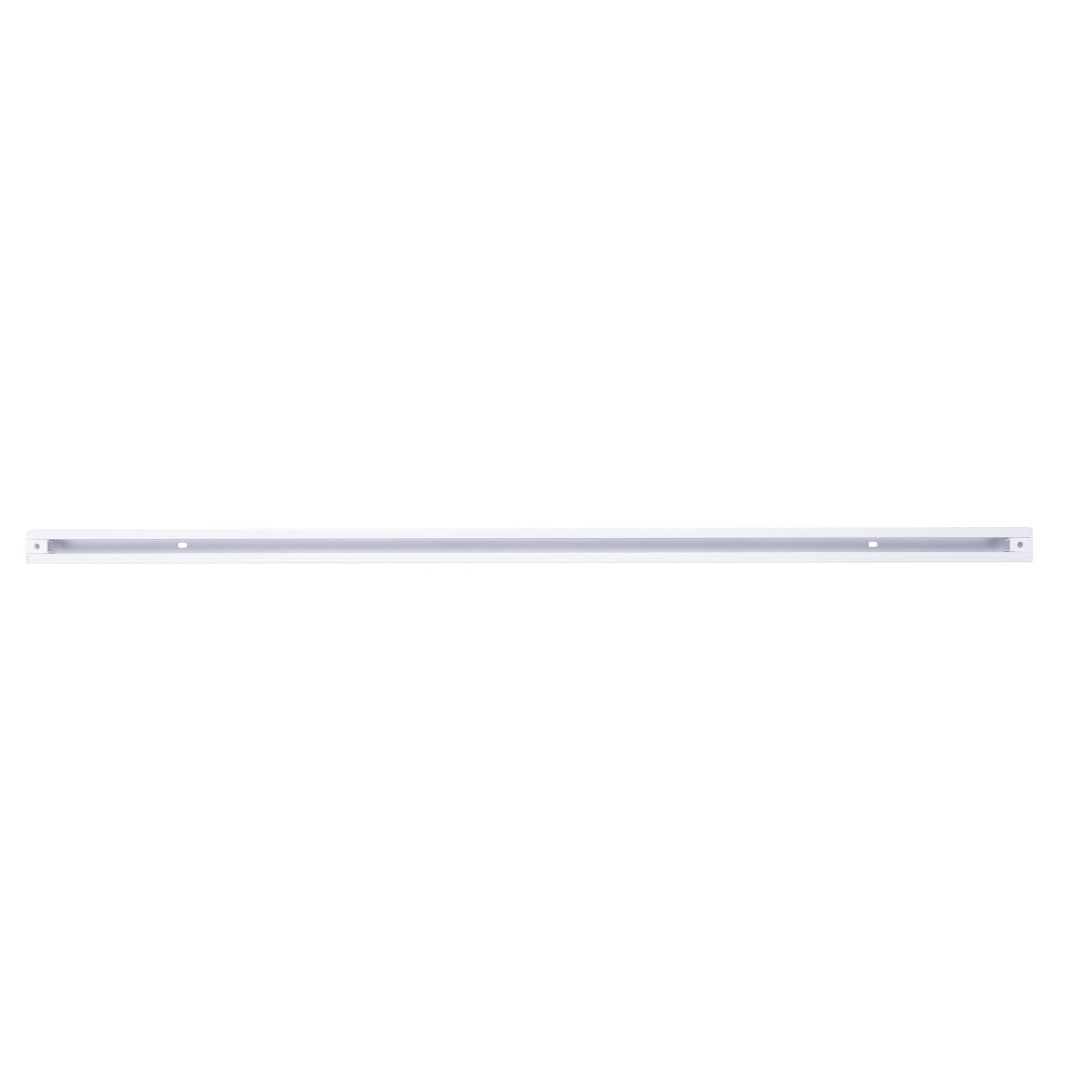

Imaj: Anlè view of the Ledvion 1M Single-Phase Track Light Rail, showing mounting points.
- Koneksyon elektrik:
- Connect the electrical wires from your power source to the track rail's terminal block. Follow the wiring diagram provided with your specific track connector (not included with rail). Typically, this involves connecting live, neutral, and ground wires.
- Asire w ke tout koneksyon yo sere epi an sekirite.
- Attaching Track Spots (Sold Separately):
- Insert your desired GU10 track spots into the track rail. Most track spots have a locking mechanism; ensure they are securely twisted or clicked into place.
- Position the track spots as needed along the rail to achieve your desired lighting effect.
Imaj: Bò kote view of the Ledvion 1M Single-Phase Track Light Rail, illustrating the track channel for spot insertion.
- Tcheke final la:
- Tcheke tout koneksyon yo ak sekirite montaj la de fwa.
- Retabli pouvwa nan disjoncteurs a.
- Test the lighting system.
Enstriksyon Operasyon
The Ledvion 1M Single-Phase Track Light Rail provides flexible lighting control once installed.
- Limen/Etenyen: Control the track lighting system using the wall switch connected to the circuit.
- Adjusting Spot Position: Track spots can be easily moved along the rail to direct light where needed. Simply slide them to the desired position.
- Direksyon ekleraj: Most GU10 track spots allow for individual adjustment of their direction, enabling precise illumination of specific areas or objects.
- Fonksyonalite gradyasyon: If you are using dimmable GU10 LED bulbs and an external dimmer switch compatible with LED lighting, you can adjust the light intensity to create the desired ambiance. Ensure your bulbs and dimmer are compatible.
- Ranplasman anpoul: This track rail is compatible with GU10 LED bulbs. To replace a bulb, ensure the power is off, then carefully twist and remove the old bulb from the track spot. Insert the new GU10 bulb by aligning the pins and twisting it into place.
Antretyen
Regular maintenance ensures the longevity and optimal performance of your Ledvion track light rail.
- Netwayaj:
- Before cleaning, always turn off the power supply to the track system.
- Wipe the track rail and track spots with a soft, dry, or slightly damp twal.
- Do not use abrasive cleaners, solvents, or polishes, as these can damage the finish.
- Enspeksyon:
- Periodically check for any loose connections or signs of wear and tear on the wiring or track.
- Ensure track spots are securely seated in the track.
- Ranplasman anpoul: Replace GU10 bulbs as needed. Always ensure the power is off before replacing bulbs.
Depanaj
If you encounter issues with your Ledvion track light rail, refer to the following common problems and solutions:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Limyè pa limen. |
|
|
| Limyè yo ap tranble oswa yo diminye yon fason ki pa konsistan. |
|
|
| Track spot does not move smoothly. |
|
|
If the problem persists after trying these solutions, consult a qualified electrician.
Espesifikasyon pwodwi
| Mak | Ledvion |
| Nimewo Modèl | LVT10008 |
| Dimansyon pwodwi (L x W x H) | 103 x 5 x 3 cm |
| Pwa | 510 gram |
| Materyèl | Aliminyòm |
| Koulè | Blan |
| Voltage | 230 Volts |
| Kalite ploge | Electrical (Wired) |
| Kalite enstalasyon | Wall Mount (or Ceiling Mount) |
| Konpatibilite Kalite Anpoul | LED (GU10 base) |
| Batri obligatwa | Non |
| Peyi orijin | Lachin |
Enfòmasyon sou Garanti
Specific warranty details for the Ledvion 1M Single-Phase Track Light Rail are typically provided at the point of purchase or on the manufacturer's official websit la. Tanpri konsève prèv acha ou a pou nenpòt reklamasyon garanti.
Generally, Ledvion products are covered against manufacturing defects for a specified period. Damage resulting from improper installation, misuse, or unauthorized modifications is not covered under warranty.
Sipò pou Kliyan
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Ledvion customer support through their official websit entènèt la oubyen magazen kote ou te achte pwodwi a.
When contacting support, please have your product model number (LVT10008) and proof of purchase readily available.
