Eufy T8910

Anker Eufy Security Motion Sensor T8910 Instruction Manual

Modèl: T8910

1. Pwodwi souview

The Eufy Security Motion Sensor is designed to detect movement within its coverage area, providing enhanced security for your home. This device integrates with your Eufy Security HomeBase system to alert you to detected activity.

Eufy Security Motion Sensor detecting movement in a room

Image: The Eufy Security Motion Sensor detecting a person entering a room, highlighting its wide detection range.

2. Pake kontni

  • Motion Sensor Body
  • Mounting Vis (x3)
  • CR123A batri ityòm
  • Anti-theft Sticker
  • 3M doub-side tep
  • Mounting Bracket
  • Gid Quick Start
  • Kat Sipò Kliyan

3. Enstalasyon ak Enstalasyon

Important Note: HomeBase Connection Required

To use this product, it must be connected to a separately sold Eufy Security HomeBase 2 or HomeBase S380. The motion sensor cannot function independently.

Eufy Security Motion Sensor and HomeBase 2 side-by-side

Image: The Eufy Security Motion Sensor shown next to a Eufy HomeBase, illustrating the required connection.

Enstalasyon fasil

The motion sensor is designed for simple, tool-free installation. Attach the included double-sided tape to the back of the mounting bracket and place it in your desired location. Alternatively, use the provided screws for a more permanent fixture.

Warning: This product is not waterproof. Please use it indoors only.

Hands applying double-sided tape to the motion sensor mounting bracket and then attaching it to a wall

Image: A user applying double-sided tape to the mounting bracket and then installing the sensor on a wall, demonstrating easy setup.

4. Operasyon Enstriksyon

Wide Motion Detection Range

The sensor offers a 100° field of view and can detect movement up to 9 meters away. This wide coverage is effective for detecting intruders and preventing unauthorized access.

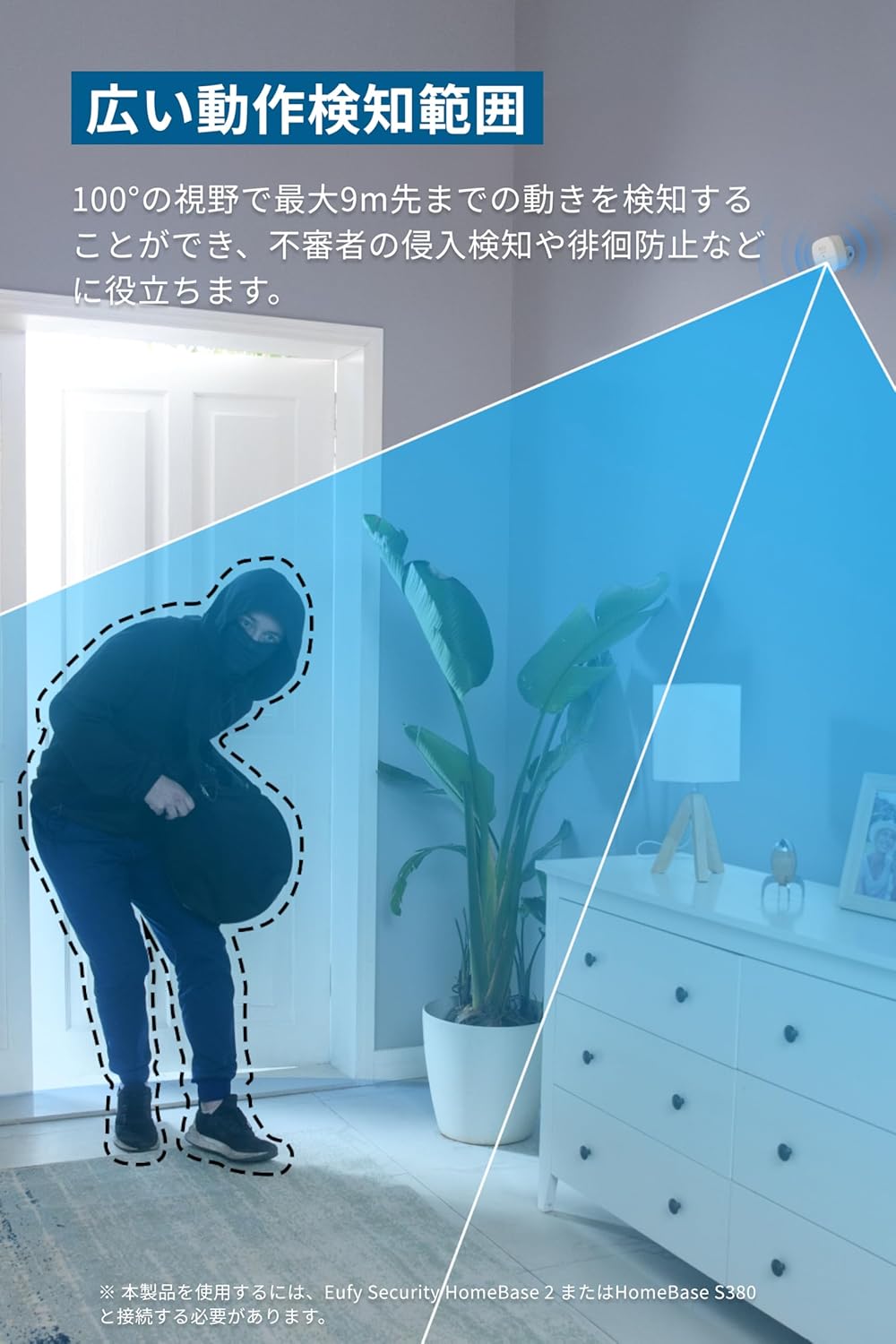

Diagram showing the 100-degree, 9-meter detection range of the Eufy Security Motion Sensor

Image: A visual representation of the motion sensor's wide detection range, covering a 100-degree angle up to 9 meters.

Adjustable Detection Sensitivity

You can adjust the detection sensitivity of the sensor through the Eufy Security app to suit your specific environment and needs.

Close-up of the Eufy Security Motion Sensor mounted on a wall

Image: A close-up of the Eufy Security Motion Sensor, highlighting its compact design and indicating adjustable sensitivity.

Fonksyon alam

When motion is detected, the connected HomeBase will sound an alarm of up to 100dB, and you will receive notifications via the Eufy Security app. You can configure notification and alarm settings for 'Home' and 'Away' modes within the app's security mode settings.

Eufy HomeBase sounding an alarm with a smartphone displaying a motion detection notification

Image: The Eufy HomeBase emitting an alarm sound, with a smartphone showing a notification for motion detection, demonstrating the alarm feature.

5. Dire Batri ak Ranplasman

The included CR123A lithium battery provides up to 2 years of battery life. Battery life may vary depending on usage environment and methods.

Pou ranplase pil la, ouvri detèktè c la avèk prekosyon.asing, remove the old CR123A battery, and insert a new one, ensuring correct polarity. Close the casing byen fèm.

NAN. Depanaj

  • Capteur a pa detekte mouvman: Check battery level in the Eufy Security app. Ensure the sensor is placed within its effective detection range and not obstructed. Adjust sensitivity settings if necessary.
  • Pa gen notifikasyon: Verify the sensor is connected to the HomeBase and the HomeBase is online. Check app notification settings and your smartphone's notification permissions for the Eufy Security app.
  • Fo alam: Adjust the detection sensitivity in the Eufy Security app. Ensure the sensor is not placed in an area with frequent environmental changes (e.g., direct sunlight, drafts, moving curtains).
  • Pwoblèm koneksyon: Ensure the HomeBase is powered on and connected to your network. Try restarting both the sensor and the HomeBase. If issues persist, re-pair the sensor with the HomeBase via the Eufy Security app.

7. Espesifikasyon

MakEufy
Nimewo ModèlT8910
Dimansyon pwodwi5.5 x 2 x 5.5 cm
Pwa atik32 g
KoulèBlan
Kalite batriCR123A Lithium
Max Deteksyon Range9 mèt (30 pye)
Jaden nan View100°
Kalite aliyeMi mòn

8. Garanti ak sipò

This product comes with a 12-month warranty from the date of purchase. For technical support, warranty claims, or further assistance, please contact Eufy customer support through the Eufy Security app or visit the official Eufy websit.

Tanpri konsève prèv acha ou a pou rezon garanti.
