1. Enstalasyon ak Enstalasyon
This section provides detailed instructions for the proper setup and installation of your CASAINC Frameless Glass Shower Door. Please follow all steps carefully to ensure safe and correct assembly.
1.1 Zouti obligatwa
Before beginning installation, ensure you have the following tools:
- Nivo
- Screwdriver (various types may be needed)
- Fè egzèsis
- Mato
- Sizo
- Mezi tep
- Sou entènèt jwèt kalfat zam
- Saw (for cutting the track if necessary)
- Kreyon pou make
1.2 Chèk Pre-Enstalasyon
Ensure the shower base and surrounding walls are 100% nivo before proceeding with installation. Use a level to verify the flatness of the installation surface.
Figure 1: Fully installed CASAINC Frameless Glass Shower Door.
1.3 Etap enstalasyon yo
Refer to the official installation video below for a visual guide to the process. Detailed steps are provided after the video.
Video 1: Official CASAINC Shower Door Installation Guide. This video demonstrates the complete installation process, from initial measurements to final sealing.
- Preparasyon Pist:
The shower door is designed for versatile installation and can slide to the right or left. If necessary, the track can be cut to adjust the width between 44 and 48 inches. Ensure the internal buckle mechanism is in the correct position for proper soft-closing functionality. (Refer to video segments 0:10 - 0:34 for track orientation and buckle check).
Figure 2: Illustration of the concealed soft-closing mechanism within the track.
Figure 3: Guide for adjusting the upper guide rail based on installation width.
- Wall Channel Installation:
Position the wall channels and mark drilling points. Drill holes, insert anchors, and apply sealant before securing the channels to the wall. Ensure the channels are plumb and level. (Refer to video segments 0:40 - 1:00 for wall channel placement and drilling).
- Fixed Glass Panel Installation:
Carefully place the fixed glass panel into the installed wall channel and bottom track. Secure it using the provided hardware. Do not remove the glass corner protection until the entire installation is complete. (Refer to video segments 1:02 - 1:23 for fixed glass panel placement and securing).
Figure 4: The 10mm ANSI-certified laminated tempered glass is designed for safety, preventing shattering into sharp pieces.
- Sliding Glass Panel Installation:
Attach the rollers to the sliding glass panel. Carefully lift and hang the sliding panel onto the top track, ensuring the track hanger holes align with the glass holes. Adjust the soft-closing mechanism as needed. (Refer to video segments 2:10 - 2:43 for sliding panel installation and adjustment).
Figure 5: The shower door can be installed for either right or left opening, offering flexibility.
- Enstalasyon manch:
Install the 304 stainless steel handle onto the sliding glass panel. Ensure it is securely fastened. (Refer to video segments 3:09 - 3:13 for handle installation).
- Final Sealing:
Apply a continuous bead of silicone sealant along all exterior seams where the shower door meets the wall and shower base. Ensure a watertight seal. Allow 24 èdtan for the sealant to cure before using the shower. (Refer to video segments 3:34 - 3:40 for final sealing).

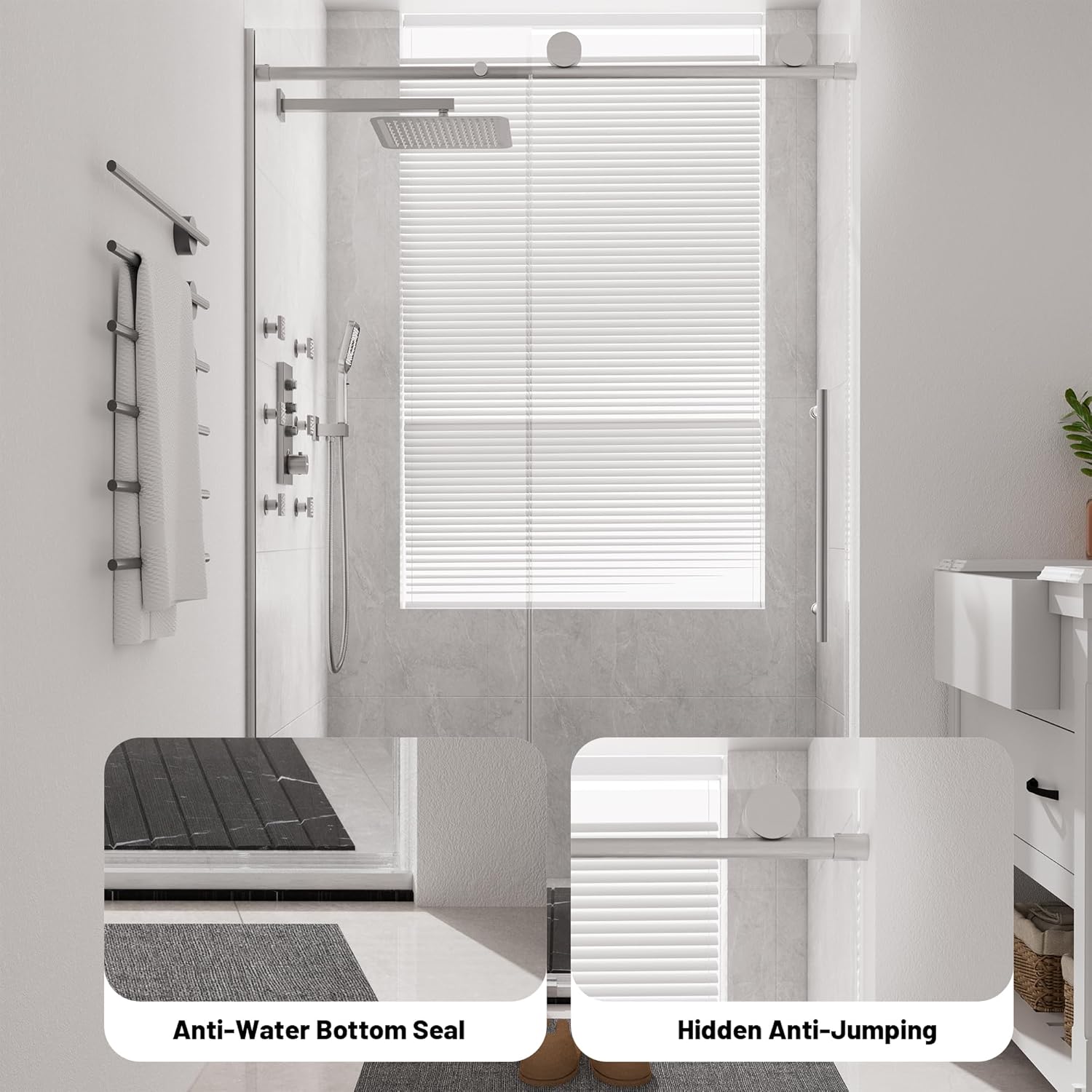

Figure 6: The anti-water bottom seal helps prevent leaks, keeping your bathroom dry.
2. Operasyon Enstriksyon
Your CASAINC Frameless Glass Shower Door is designed for smooth and quiet operation.
- Ouvèti ak Fèmen: Gently slide the door along the top track. The advanced shock-absorbing design and concealed soft-closing functions ensure quiet and smooth movement, preventing abrupt stops or slamming.
- Anti-Jump Mechanism: The built-in anti-jump mechanism minimizes glass vibration, ensuring stability and reducing the risk of breakage during operation.
3. Antretyen ak Swen
Proper maintenance will ensure the longevity and pristine appearance of your shower door.
- Netwayaj vè: The 10mm ANSI-certified laminated tempered glass features a nano-coated surface that resists water spots, soap scum, and fingerprints. To clean, simply wipe with water and a mild detergent. Avoid abrasive cleaners or harsh scrubbing, as these can damage the coating. Regular cleaning will keep the glass sparkling like new.
- Swen Materyèl: All hardware components are made from high-quality 304 stainless steel, ensuring excellent resistance to corrosion and rust. Wipe down metal components with a soft, damp cloth regularly to maintain their sleek and modern appearance.
- Enspeksyon sele: Periodically inspect the sealing strips for any signs of wear or damage. Replace them if necessary to maintain the waterproof seal and prevent water leakage.
NAN. Depanaj
If you encounter any issues with your shower door, refer to the following common problems and their solutions:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Door not sliding smoothly or quietly. | Debris in the track, misaligned rollers, or issues with the soft-closing mechanism. | Clean the track thoroughly. Check roller alignment and adjust if necessary. Ensure the soft-closing mechanism is properly engaged and free of obstructions. |
| Water leakage from the shower area. | Damaged or improperly installed sealing strips, or insufficient sealant application. | Inspect all sealing strips and replace any that are worn or damaged. Reapply silicone sealant to any gaps or compromised areas, ensuring a continuous, watertight bead. |
| Glass panel appears unstable or wobbly. | Loose hardware or improper installation of fixed panels. | Check all screws and fasteners on both fixed and sliding panels, as well as wall channels, and tighten them securely. Ensure the anti-jump mechanism is correctly installed. |
5. Espesifikasyon
Key specifications for the CASAINC Frameless Glass Shower Door:
- Mak: CASAINC
- Nimewo Modèl: CA-GLS1-4876BN1
- Koulè: Bwose Nikèl
- Materyèl: Stainless Steel, Laminated Tempered Glass
- Style: Laminated Tempered Glass
- Pwa atik: 174 liv
- Dimansyon pwodwi: 0.38 x 48 x 76 inches (Thickness x Width x Height)
- Asanble obligatwa: Wi
Figure 7: Detailed dimensions of the CASAINC Frameless Glass Shower Door.
6. Garanti ak sipò
CASAINC is committed to customer satisfaction. Your product is covered by a 30-day easy returns policy.
For any questions, technical assistance, or warranty claims, please contact CASAINC Customer Support through the retailer's platform or visit the official CASAINC websit pou enfòmasyon kontak.
We recommend keeping your purchase receipt as proof of purchase for warranty purposes.
