Redragon K669

Redragon Ziggs K669 Wired Gaming Keyboard

Manyèl itilizatè

1. Pwodwi souview

The Redragon Ziggs K669 is a compact 94-key wired mechanical gaming keyboard designed for performance and durability. It features Redragon Red hot-swappable switches, customizable RGB backlighting, and a robust construction.

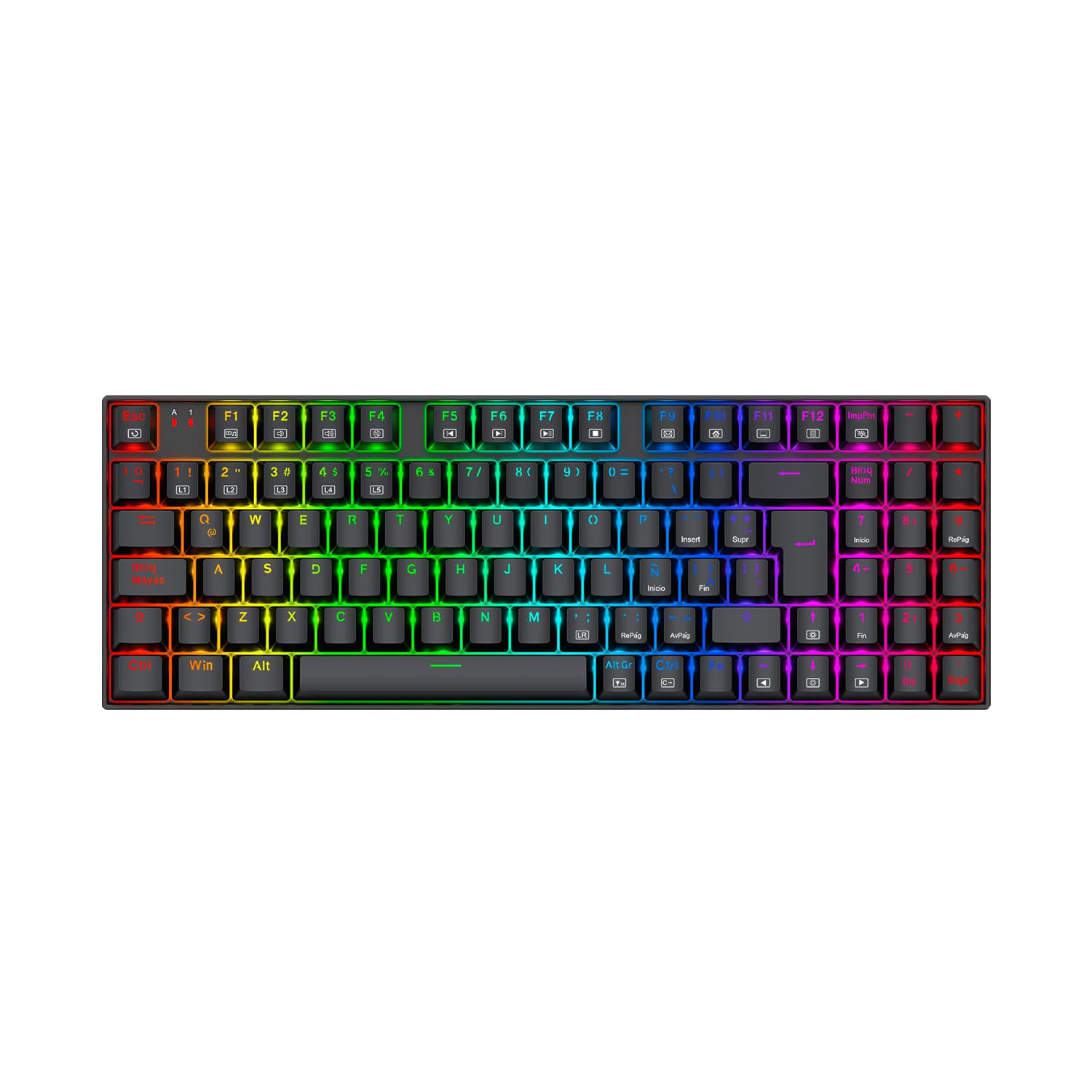

Redragon Ziggs K669 Wired Gaming Keyboard

Image: Redragon Ziggs K669 Wired Gaming Keyboard with RGB lighting.

2. Pake kontni

  • Redragon Ziggs K669 Wired Gaming Keyboard
  • Manyèl itilizatè
  • Tireur kle (ka enkli)
  • Tireur switch (ka enkli)
  • Spare Switches (may be included)

3. Enstalasyon

3.1 Konekte klavye a

  1. Jwenn yon pò USB ki disponib sou òdinatè w lan.
  2. Plug the USB connector of the Redragon Ziggs K669 keyboard into the USB port.
  3. Sistèm operasyon w lan ap rekonèt klavye a otomatikman. Anjeneral, ou pa bezwen okenn lòt chofè pou fonksyonalite debaz yo.

3.2 Enstalasyon lojisyèl (opsyonèl)

For advanced customization of RGB lighting and other features, download the official Redragon software from the Redragon websit la. Swiv enstriksyon ki sou ekran an pou enstalasyon an.

4. Operasyon Enstriksyon

4.1 Compact 94-Key Layout

The Ziggs K669 features a compact 94-key layout, including a numeric keypad, balancing space-saving design with full functionality.

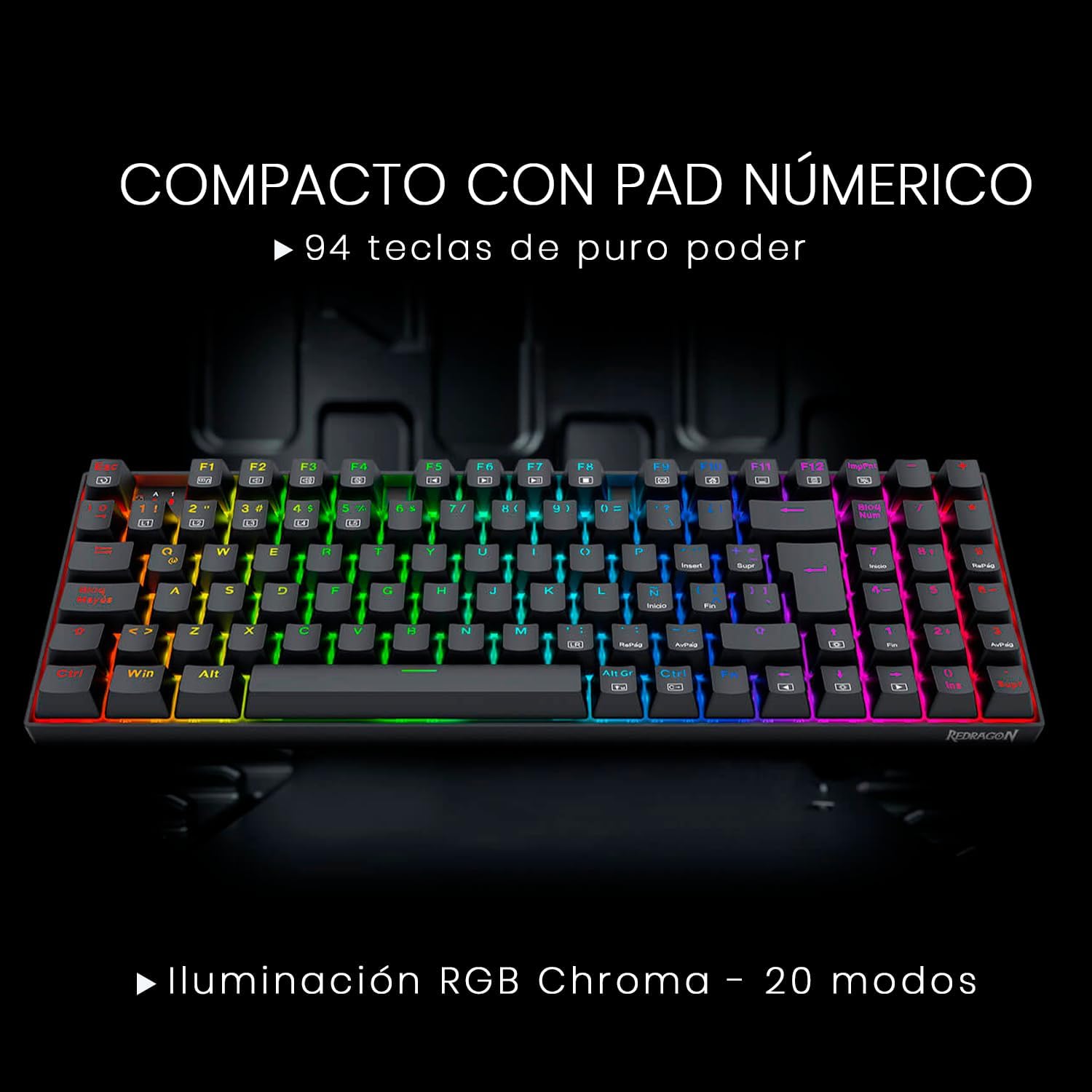

Redragon Ziggs K669 94-key layout

Image: Redragon Ziggs K669 keyboard showcasing its compact 94-key layout with integrated numeric pad.

4.2 kle miltimedya

Access multimedia functions by pressing the FN key in combination with the designated function keys (F1-F12). Refer to the keycaps for specific multimedia icons.

4.3 Kontwòl ekleraj RGB

The keyboard offers up to 20 preset RGB backlight modes. These can be cycled directly from the keyboard. Brightness and flow speed are also adjustable without software.

Redragon Ziggs K669 RGB lighting customization

Image: Redragon Ziggs K669 keyboard displaying various RGB lighting effects.

4.4 Fèmen kle Windows

The keyboard includes a function to lock the Windows key, preventing accidental presses during gaming sessions.

5. Antretyen

5.1 Netwayaj

To clean the keyboard, disconnect it from your computer. Use a soft, dry cloth to wipe the surface. For deeper cleaning, use a keycap puller to remove keycaps and clean underneath with compressed air or a small brush. Avoid using harsh chemicals or excessive moisture.

5.2 Switch ki ka ranplase a cho

The Redragon Ziggs K669 features hot-swappable Redragon Red switches, allowing for easy replacement without soldering. Use the provided switch puller to carefully remove and insert switches.

Redragon Ziggs K669 Red switches

Imaj: Gwo plan view of the Redragon Red hot-swappable mechanical switches on the Ziggs K669 keyboard.

NAN. Depanaj

  • Klavye a pa reponn: Asire w kab USB a byen konekte ak klavye a ak òdinatè a. Eseye yon lòt pò USB. Rekòmanse òdinatè w la.
  • Ekleraj RGB a pa fonksyone: Check if the lighting is turned off or set to a very low brightness level using the keyboard's control functions or software.
  • Kle espesifik ki pa fonksyone: If the keyboard is hot-swappable, try reseating the switch for the non-functional key. If the issue persists, consider replacing the switch.

7. Espesifikasyon

KarakteristikDeskripsyon
Kalite klavyeMekanik
ChanjmanRedragon Red (Linear, 45g actuation force, hot-swappable)
Layout kleCompact 94-key with numeric pad
EklerajRGB Chroma (20 preset modes)
KoneksyonWired USB (Reinforced cable, gold-plated USB, anti-interference filter)
KonstriksyonReinforced ABS plastic, steel plate
Anti-SplashWi
KeycapsDouble-injection
Pwa792 g
Dimansyon34.8 x 12.3 x 3.5 cm
Sipò lojisyèlWi

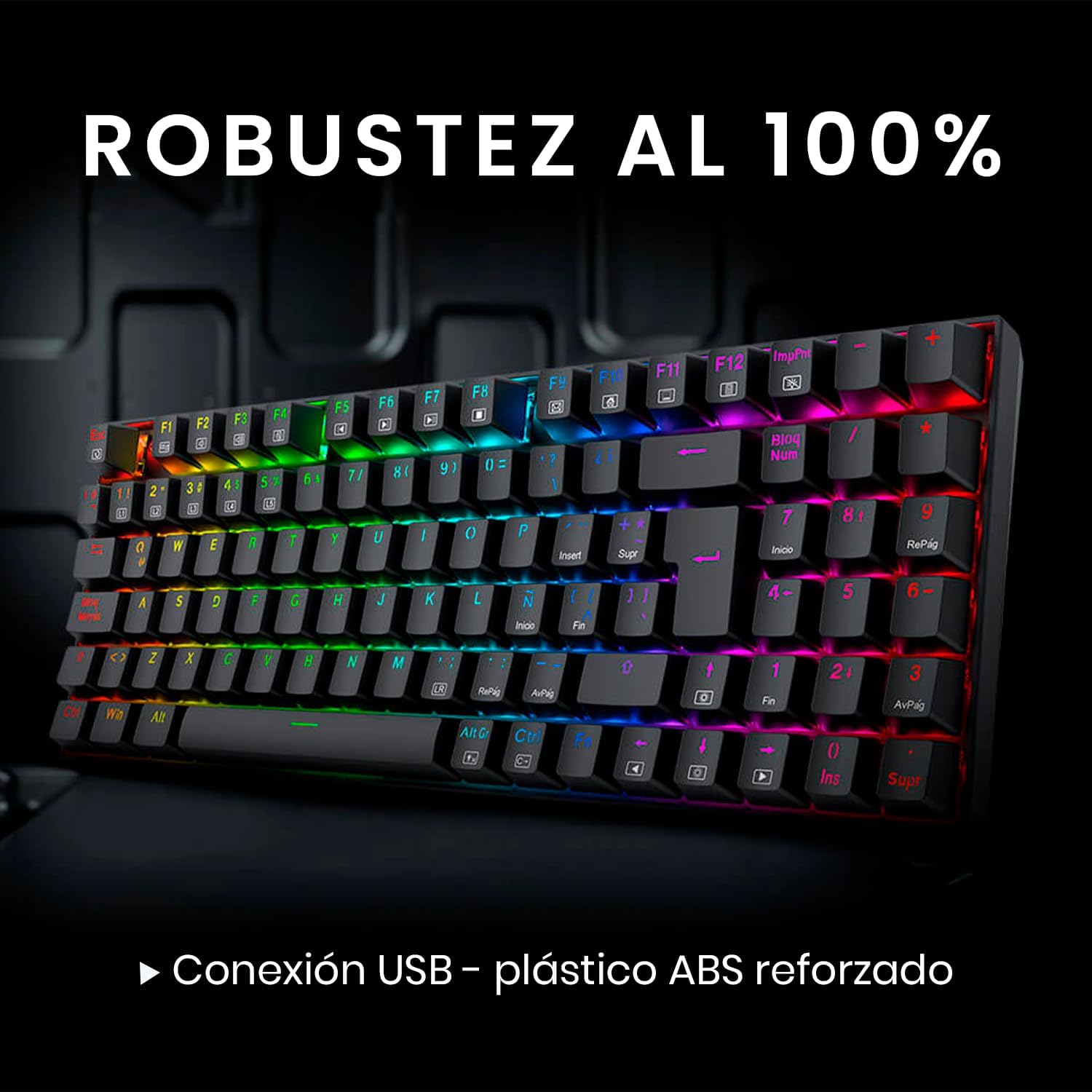

Redragon Ziggs K669 durable construction

Image: Redragon Ziggs K669 keyboard highlighting its robust construction and wired connection.

8. Garanti ak sipò

8.1 Enfòmasyon sou Garanti

Redragon products are covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your product or visit the official Redragon websit la pou wè tèm ak kondisyon garanti detaye yo.

8.2 Sipò pou Kliyan

For technical assistance, troubleshooting, or product inquiries, please visit the official Redragon support website or contact their customer service team. Contact information can typically be found on the Redragon websit.
