Ingco 20V 1/2" Brushless 400NM Cordless Impact Wrench CIWLI20401 User Manual

Entwodiksyon

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Ingco 20V 1/2" Brushless 400NM Cordless Impact Wrench, model CIWLI20401. Please read these instructions carefully before using the tool and retain them for future reference.

Image: The Ingco 20V 1/2" Brushless Cordless Impact Wrench CIWLI20401, a powerful tool designed for various fastening and loosening tasks.

Nòt enpòtan: The Ingco CIWLI20401 impact wrench is a bare unit. It requires a compatible Ingco 20V lithium-ion battery and charger, which are sold separately. This tool is part of the Ingco 20V li-ion power tool system.

Enstriksyon Sekirite

Toujou swiv prekosyon sekirite debaz yo lè w ap itilize zouti elektrik pou diminye risk dife, chòk elektrik, ak aksidan pèsonèl.

• Sekirite Zòn Travay: Kenbe zòn travay ou pwòp epi byen limen. Zòn ki dezòdone oswa ki fè nwa yo ka lakòz aksidan. Pa sèvi ak zouti elektrik nan atmosfè eksplozif, tankou lè gen likid, gaz oswa pousyè ki ka pran dife.
• Sekirite elektrik: Evite kontak kò ak sifas ki konekte ak tè. Pa ekspoze zouti elektrik yo anba lapli oswa nan kondisyon mouye.
• Sekirite Pèsonèl: Toujou mete pwoteksyon pou je yo. Sèvi ak pwoteksyon pou zòrèy lè w ap itilize zouti a pou yon bon bout tan. Abiye byen; evite rad ki lach oswa bijou ki ka kole nan pati k ap deplase yo.
• Itilizasyon zouti ak swen: Do not force the power tool. Use the correct power tool for your application. Disconnect the battery pack from the tool before making any adjustments, changing accessories, or storing power tools.
• Itilizasyon ak swen zouti batri: Rechaje sèlman avèk plato ki espesifye pa manifakti a. Sèvi ak zouti elektrik sèlman avèk pil ki fèt espesyalman pou sa.

Pwodwi konpozan

Familiarize yourself with the various parts of your Ingco Impact Wrench.

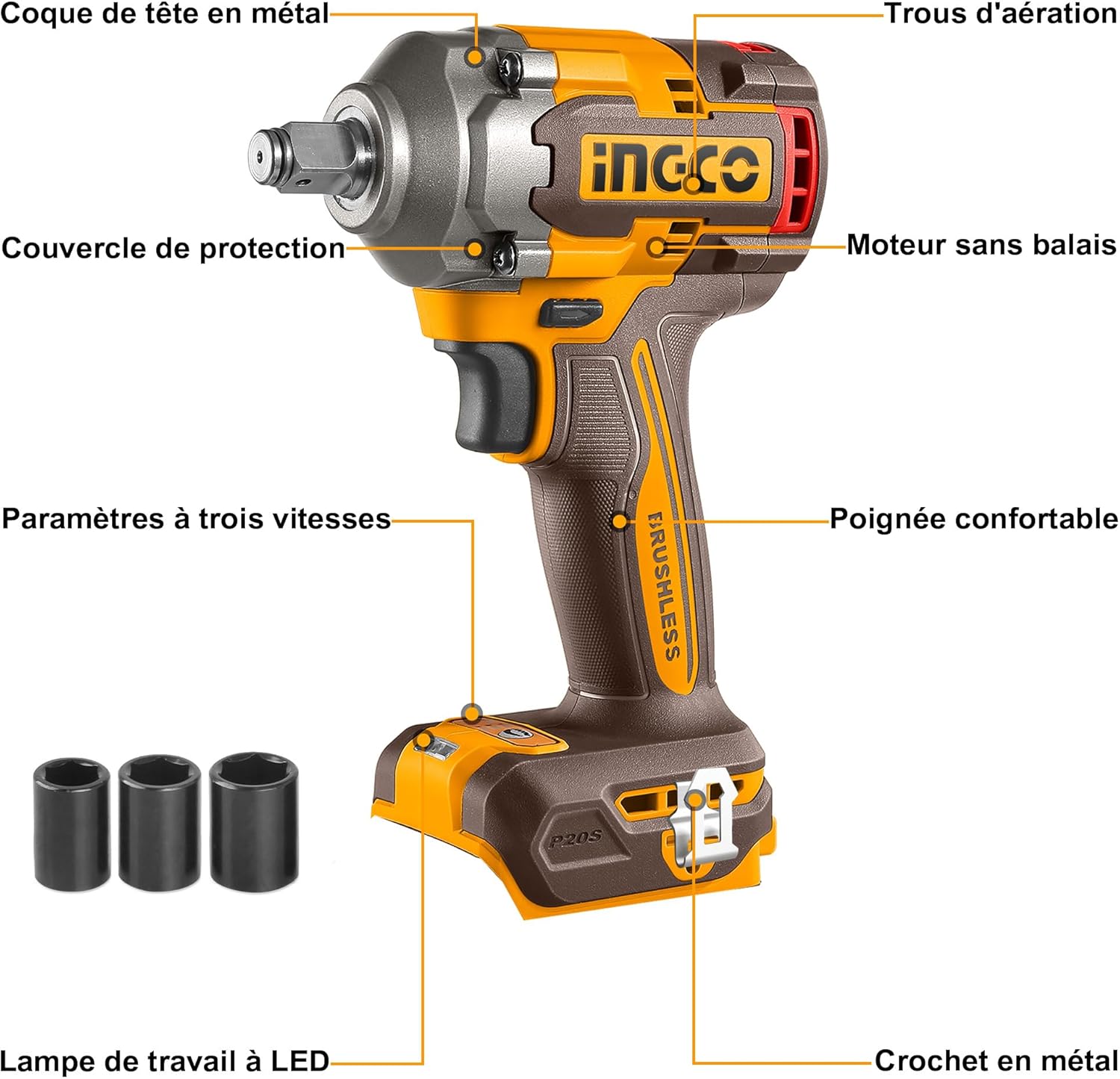

Image: Diagram illustrating the key components of the Ingco Impact Wrench, including the metal head housing, ventilation holes, brushless motor, three-speed settings, comfortable handle, LED work light, and metal hook.

1. Metal Head Housing
2. Twou vantilasyon
3. Kouvèti Pwoteksyon
4. Motè Brushless
5. Three-Speed Settings Selector
6. Manch konfòtab
7. Ki ap dirije limyè travay
8. Hook metal

Espesifikasyon teknik

Detailed specifications for the Ingco CIWLI20401 Impact Wrench.

Image: A visual representation of the key technical parameters for the Ingco Impact Wrench, including motor type, drive size, speed, impact rate, and torque.

Enstalasyon

1. Enstalasyon pil (Pil pa enkli)

Ensure the tool is switched off before installing or removing the battery.

1. Aliyen pake batri a ak pò batri a sou baz kle enpak la.
2. Glise pake batri a nan pò a jiskaske li fè yon klik byen fèm nan plas li.
3. Pou retire li, peze bouton lage batri a epi glise pake batri a soti.

2. Socket Attachment

The impact wrench uses a 1/2" square drive for sockets.

1. Select the appropriate socket size (e.g., 17mm, 19mm, 21mm) for your application.
2. Push the socket firmly onto the square drive spindle until it locks into place.
3. To remove, pull the socket off the spindle.

Enstriksyon Operasyon

1. Powering On / Off

The tool is activated by pressing the trigger switch. Release the trigger to turn off the tool.

2. Kontwòl Vitès Varyab

The impact wrench features 3 variable speed settings for precise control over various applications.

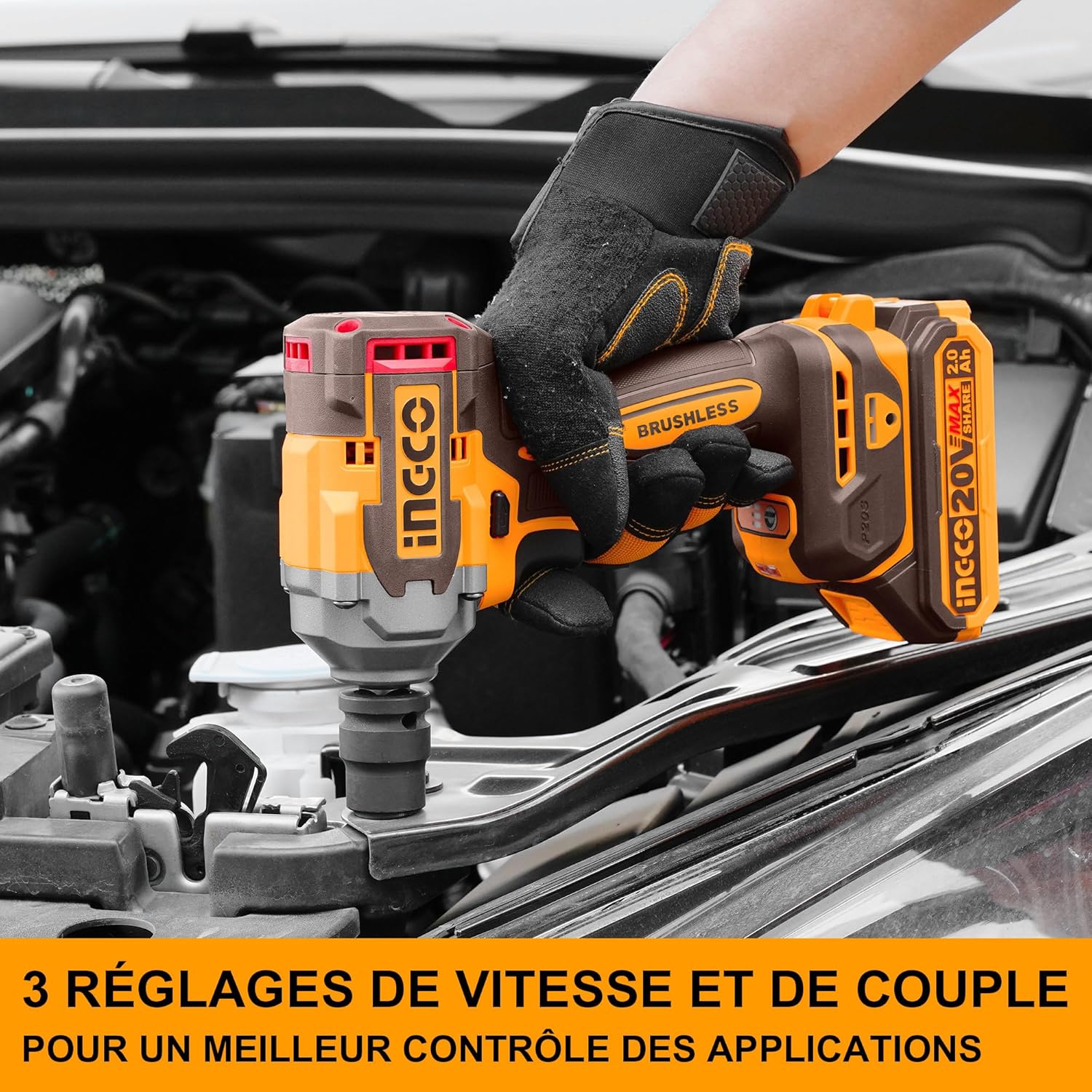

Image: The Ingco Impact Wrench highlighting its three-speed and torque settings, allowing for better control across different tasks.

• Use the speed selector button (refer to Product Components diagram) to cycle through the three available speed settings: 0-1600 rpm, 0-1900 rpm, and 0-2300 rpm.
• Lower speeds are suitable for delicate tasks or when starting to prevent overtightening.
• Higher speeds provide maximum power for stubborn fasteners.

3. Sèvi ak limyè travay LED la

The integrated LED work light illuminates the work area for improved visibility.

Image: The Ingco Impact Wrench demonstrating its LED work light, which is useful for working in dimly lit environments.

• The LED work light activates automatically when the trigger is pressed.
• It remains on for a short period after the trigger is released to help you see your work.

4. Jeneral Itilizasyon Konsèy

• Ensure the fastener and socket are clean and free of debris.
• Apply steady pressure to the tool while operating.
• For loosening stubborn nuts, use the highest speed setting and allow the impact mechanism to work.

Image: A user operating the Ingco Impact Wrench to fasten components on a metal structure, demonstrating its application in construction or assembly tasks.

Antretyen

Antretyen regilye asire pèfòmans optimal epi pwolonje lavi zouti ou a.

• Netwayaj: Keep the ventilation openings clear and free of dust. Use a soft, damp cloth to clean the tool's exterior. Do not use harsh chemicals or abrasive cleaners.
• Depo: Sere zouti a nan yon kote ki sèk, an sekirite, kote timoun pa ka rive. Retire pil la anvan ou sere l pou yon bon bout tan.
• Enspeksyon: Periodically check for damaged parts. If any part is damaged, have it repaired by a qualified service technician.

Depanaj

Anvan ou kontakte sèvis kliyan, eseye etap depanaj komen sa yo.

Garanti ak sipò

For warranty information or technical support, please refer to the warranty card included with your purchase or visit the official Ingco websit la. Kenbe prèv acha ou a pou nenpòt reklamasyon garanti.
