Decaura Anti Slip Handicap Shower Grab Bars - Instruction Manual

Entwodiksyon

The Decaura Anti Slip Handicap Shower Grab Bar is designed to provide enhanced safety and support in various areas of your home, particularly in bathrooms, showers, and stairways. Constructed from durable SS304 stainless steel, this grab bar offers a firm and reliable grip, helping to prevent slips and falls. Its robust design ensures long-lasting performance and easy maintenance.

This image shows the Decaura grab bar installed, demonstrating its secure grip and sleek brushed nickel finish.

This product is ideal for seniors, pregnant women, children, and individuals with disabilities, offering a crucial aid for balancing and mobility. Its versatile design allows for installation in multiple orientations to suit specific needs.

Designed for universal use, this grab bar provides essential support for pregnant women, seniors, children, and individuals with disabilities, enhancing safety and independence.

Enfòmasyon enpòtan sou sekirite

For your safety and the longevity of the product, please adhere to the following guidelines:

• Enstalasyon apwopriye: Ensure the grab bar is installed correctly into a structural stud or with appropriate heavy-duty anchors for your wall type. Improper installation can lead to failure and injury.
• Kapasite pwa: The grab bar is designed to withstand up to 250kg (500lbs) of pulling force. Do not exceed this weight limit.
• Enspeksyon regilye: Periodically check the grab bar and its mounting hardware for any signs of looseness, corrosion, or damage. Tighten screws if necessary.
• Netwayaj: Use mild soap and water for cleaning. Avoid abrasive cleaners or harsh chemicals that could damage the finish.

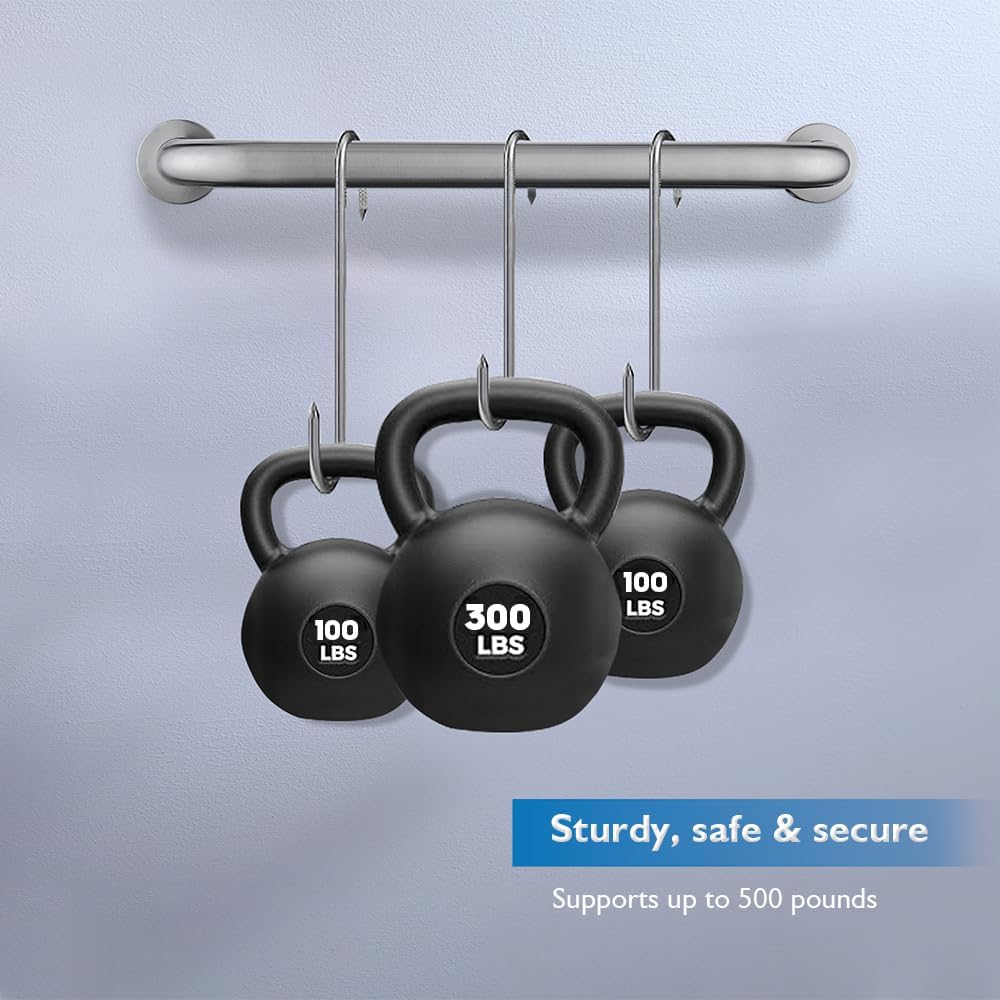

The grab bar is engineered for exceptional strength, capable of supporting up to 500 pounds of pulling force, providing reliable and secure assistance.

Kontni pake

Tanpri verifye ke tout konpozan yo prezan anvan ou kòmanse enstalasyon an:

• 1 x Decaura Stainless Steel Grab Bar (18-inch x 1.25" Diameter)
• 2 x Mounting Flanges
• Montaj Vis
• Wall Anchors (for specific wall types)

The package includes the stainless steel grab bar, two circular mounting flanges, mounting screws, and wall anchors for a complete installation.

Espesifikasyon

Detailed product dimensions are provided, indicating a length of 450mm (approximately 18 inches) and a diameter of 32mm (1.25 inches), ensuring precise fit and installation.

Gid enstalasyon

The Decaura grab bar is designed for easy wall-mounted installation. Follow these steps carefully to ensure a secure and safe attachment.

1. Step 1: Disassemble the Base. Carefully separate the mounting flanges from the grab bar by unscrewing the small set screws.
2. Step 2: Position and Mark. Hold the mounting flange against the wall at your desired installation height and orientation (horizontal, vertical, or diagonal). Use a pencil to mark the locations for drilling through the holes on the flange.
3. Etap 3: Fè twou. Using an appropriate drill bit for your wall material, drill pilot holes at the marked locations.
4. Step 4: Insert Wall Anchors. If installing into drywall or hollow walls, insert the provided wall anchors into the drilled holes. Tap them gently with a hammer until flush with the wall surface. Note: For drywall, it is highly recommended to install into a wall stud for maximum security. The included anchors are for light-duty applications or specific wall types; for robust support, always aim for a stud.
5. Step 5: Attach Flanges. Align the mounting flanges with the drilled holes (and anchors, if used) and secure them to the wall using the provided screws. Ensure they are tightly fastened.
6. Step 6: Reassemble Grab Bar. Slide the grab bar over the attached mounting flanges.
7. Step 7: Secure Grab Bar. Tighten the small set screws on the underside of the grab bar to firmly secure it to the mounting flanges.
8. Step 8: Test Stability. Gently pull on the installed grab bar to ensure it is securely fastened and does not wobble.

This visual guide outlines the simple 8-step installation process, including preparing the base, marking drill points, drilling, inserting anchors, and securing the bar to the wall.

Important Note on Wall Types: While the product description states suitability for
