FMOUSE Transparent Wireless Mouse (Model M333)

1. Entwodiksyon

Thank you for choosing the FMOUSE Transparent Wireless Mouse. This innovative mouse combines a unique transparent design with advanced functionality to enhance your daily computing experience. Featuring dual Bluetooth and 2.4GHz connectivity, a rechargeable battery with cool LED lighting, and a portable design, it is suitable for various devices and environments.

This manual provides detailed instructions for setting up, operating, and maintaining your FMOUSE Transparent Wireless Mouse. Please read it thoroughly to ensure optimal performance and longevity of your device.

2. Ki sa ki nan bwat la

• 1 x Wireless Bluetooth Tri-mode Mouse
• 1 x USB Reseptè
• 1 x tip-C reseptè
• 1 x USB Chaje Kab
• 1 x manyèl itilizatè

3. Pwodwi souview

Familiarize yourself with the components and features of your FMOUSE Transparent Wireless Mouse.

Imaj 3.1: The FMOUSE Transparent Wireless Mouse with its magnetic cover detached, revealing the internal circuitry, switches, and the Type-C charging port. This image highlights the unique transparent design and the convenient magnetic attachment for the cover.

Imaj 3.2: A detailed diagram illustrating the various parts of the FMOUSE Transparent Wireless Mouse, including buttons, scroll wheel, magnetic cover, USB and Type-C receivers, power display, non-slip mat, tri-mode switching button, Type-C charging port, DPI/LED mode adjustment button, On/Off switch, and transparent housing.

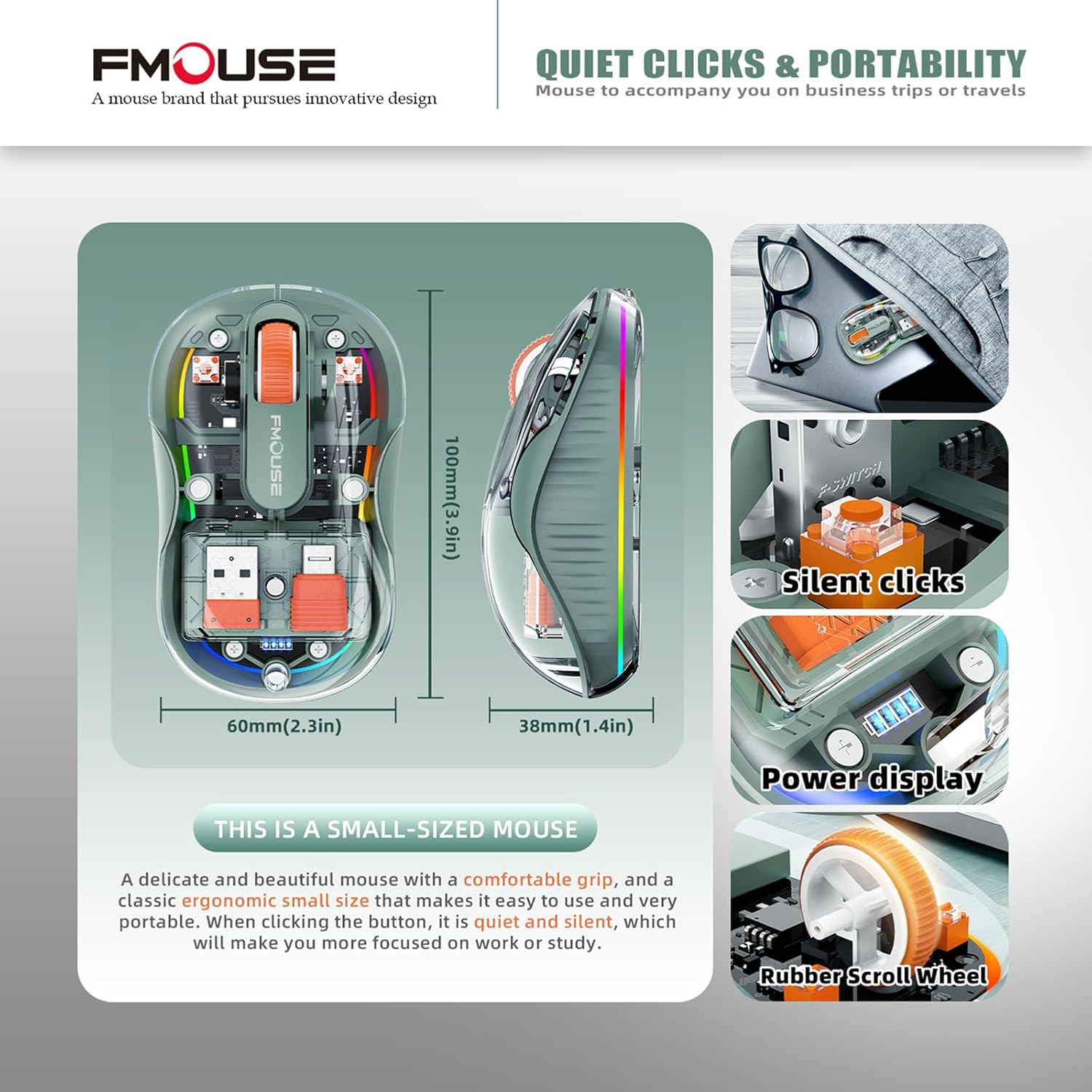

Imaj 3.3: This image displays the compact dimensions of the FMOUSE Transparent Wireless Mouse, measuring 3.9 inches in length, 2.3 inches in width, and 1.4 inches in height. It also highlights key features such as silent clicks, a power display, and a durable rubber scroll wheel, emphasizing its portability and ergonomic design.

4. Enstalasyon

4.1 Chaje Sourit la

The mouse is equipped with a Type-C port for quick charging. An indicator light will show the remaining battery level. Connect the provided USB charging cable to the Type-C port on the mouse and a power source (e.g., computer USB port, USB wall adapter).

4.2 Konekte atravè yon reseptè USB 2.4GHz

1. Locate the USB receiver and Type-C receiver stored magnetically inside the mouse under the transparent cover.
2. Remove the appropriate receiver (USB or Type-C) for your device.
3. Ploge reseptè USB 2.4GHz la nan yon pò USB ki disponib sou òdinatè w lan.
4. Limen sourit la avèk bouton ON/OFF ki sitiye anba a.
5. Press the tri-mode switching button on the bottom of the mouse until the indicator light shows '2.4G'. The mouse should connect automatically.

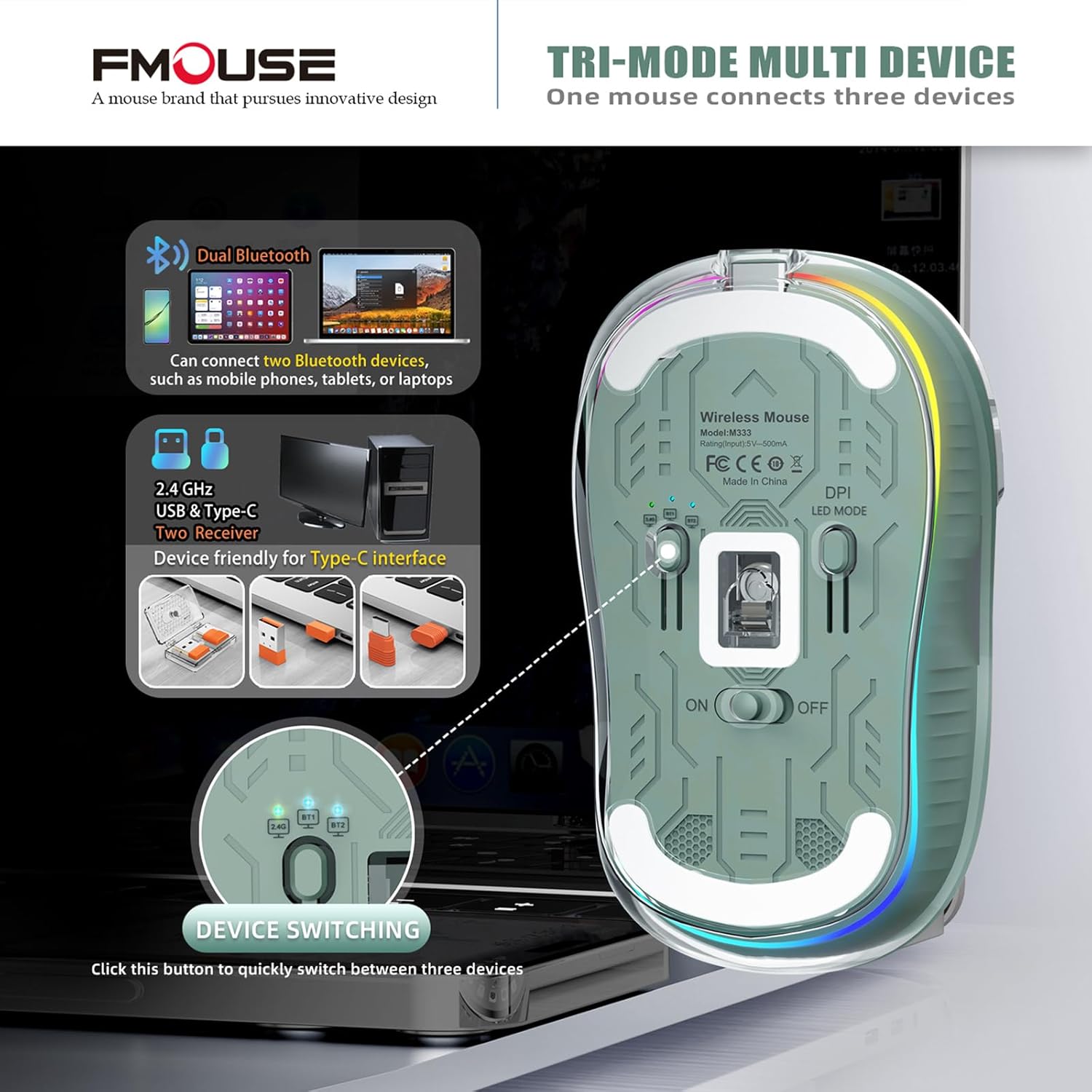

Imaj 4.1: The underside of the FMOUSE Transparent Wireless Mouse, illustrating the tri-mode switching button (2.4G, BT1, BT2) and the compartment where the USB and Type-C receivers are stored. This view also shows the DPI/LED mode button and the On/Off switch.

4.3 Konekte atravè Bluetooth (BT1 / BT2)

1. Limen sourit la avèk bouton ON/OFF ki sitiye anba a.
2. Press the tri-mode switching button on the bottom of the mouse to select either 'BT1' or 'BT2'. The corresponding indicator light will flash.
3. On your device (e.g., MacBook, laptop, tablet, smartphone), go to Bluetooth settings.
4. Chèche pou new devices and select 'BT5.1 Mouse' (or similar name) from the list.
5. Once paired, the indicator light on the mouse will stop flashing and remain solid.
6. To connect to a second Bluetooth device, repeat steps 2-5, selecting the other Bluetooth channel (BT2).

5. Operasyon Enstriksyon

5.1 DPI Ajisteman

The mouse features 4 adjustable DPI levels (800/1200/1600/2400) for precise cursor control. To switch DPI levels, press the 'DPI/LED MODE' button located on the bottom of the mouse once. Each press will cycle through the available DPI settings.

5.2 Kontwòl Limyè LED

The transparent shell features a cool LED light ring. The RGB lights are designed to turn on when the mouse is stationary and turn off when it is in motion. To switch lighting effects or turn off the lights to conserve battery life, press and hold the 'DPI/LED MODE' button for approximately 2 seconds.

Imaj 5.1: This image highlights the bottom of the FMOUSE Transparent Wireless Mouse, specifically pointing out the 'DPI and LED Mode Adjustment Button'. It also illustrates the vibrant LED color lights that illuminate the mouse, emphasizing the ability to adjust DPI settings and control the lighting effects.

Imaj 5.2: A visual comparison of the FMOUSE Transparent Wireless Mouse's LED lighting effects during both daytime and nighttime. The image demonstrates how the cool LED lights enhance the mouse's aesthetic appeal, creating a stunning visual experience in different lighting conditions.

5.3 Device Switching

To switch between connected devices (2.4G, BT1, BT2), simply press the tri-mode switching button on the bottom of the mouse. The indicator light will show the currently active connection mode.

5.4 Konpatibilite Sifas

The optical motion detection technology allows the FMOUSE Transparent Wireless Mouse to be used on a variety of smooth surfaces without the need for a mouse pad. This includes wood, metal, leather, and fabric surfaces.

Imaj 5.3: This image showcases the versatility of the FMOUSE Transparent Wireless Mouse, demonstrating its ability to function smoothly on various surfaces such as wood, metal, leather, and fabric. This highlights the advanced optical motion detection technology that eliminates the need for a mouse pad.

5.5 Klik an silans

The mouse is designed with silent and quiet clicks, minimizing noise during use for a more focused and undisturbed work or study environment.

6. Antretyen

6.1 Netwayaj

To clean your mouse, gently wipe the exterior with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials that could damage the transparent shell or internal components.

6.2 Swen Batri

To prolong battery life, turn off the LED lights when not needed by pressing and holding the 'DPI/LED MODE' button for 2 seconds. When the battery indicator shows low power, recharge the mouse promptly using the provided Type-C charging cable.

6.3 Storing Receivers

The USB and Type-C receivers can be conveniently stored magnetically inside the mouse under the transparent cover when not in use. This prevents loss and keeps them secure during travel.

NAN. Depanaj

• Sourit la pa reponn: Ensure the mouse is turned on and fully charged. Check that the correct connection mode (2.4G, BT1, or BT2) is selected. For 2.4G, ensure the receiver is properly plugged in. For Bluetooth, verify it's paired correctly in your device's settings.
• Lag or disconnection: Ensure the mouse is within the 10m (33ft) Bluetooth working distance. Avoid obstructions between the mouse and your device. Try re-pairing the Bluetooth connection or re-inserting the 2.4GHz receiver.
• Limyè LED yo pa fonksyone: Check if the LED lights have been turned off to save battery. Press and hold the 'DPI/LED MODE' button for 2 seconds to cycle through lighting effects or turn them back on.
• Mouvman kurseur a pa regilye: Adjust the DPI settings using the 'DPI/LED MODE' button to find a suitable sensitivity. Ensure the mouse is used on a clean, smooth surface.

8. Espesifikasyon

9. Garanti & Sipò

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official FMOUSE website. If you encounter any issues not covered in this manual, please contact FMOUSE customer service for assistance.
