Dystler Display Cabinet with Doors and Adjustable Shelves (Model 97009)

1. Entwodiksyon

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Dystler Display Cabinet with Doors and Adjustable Shelves, Model 97009. Please read this manual thoroughly before assembly and use to ensure safe and correct operation.

2. Enfòmasyon sou Sekirite

Prekosyon Sekirite Enpòtan:

• Avoid placing the cabinet near heat sources or open flames.
• Asire w ke tout vis ak eleman fikse yo byen sere pandan asanblaj la pou anpeche enstabilite.
• Do not exceed the maximum weight limit of 40 pounds per shelf.
• Always use appropriate tools for assembly as instructed.
• Kenbe ti pyès yo lwen timoun yo pandan asanblaj la pou evite danje toufe.

3. Pwodwi souview

The Dystler Display Cabinet (Model 97009) is a versatile storage solution designed for various rooms, including bedrooms, home offices, kitchens, and living rooms. It features adjustable shelves, LED lighting with a human sensor, and durable construction.

Karakteristik kle:

• Smart Sensor LED Light: Equipped with three LED light modes (blue, white, yellow). The light automatically activates when motion is detected within 2-3 meters and turns off after 30 seconds of no detection, conserving energy.
• Sufficient Storage Space: Includes 2 adjustable shelves and 2 fixed shelves, offering flexible organization for books, collectibles, and other items.
• Concise Design: Features smoked black acrylic doors that allow visibility of displayed items while complementing various interior styles.
• High-Quality Wooden Material: Constructed from FSC-certified wood, ensuring durability, longevity, and ease of cleaning.
• Pneumatic Gate Design: Ensures smooth and silent door operation.
• Top Storage Area: A 1.97-inch top fence prevents items from falling, maximizing storage potential.

Dimansyon:

• Overall: 13.78" D x 27.56" W x 64.96" H
• Inner Width: 26.61"
• Inner Depth: 13.3"
• Weight Limit per Shelf: 40 Pounds

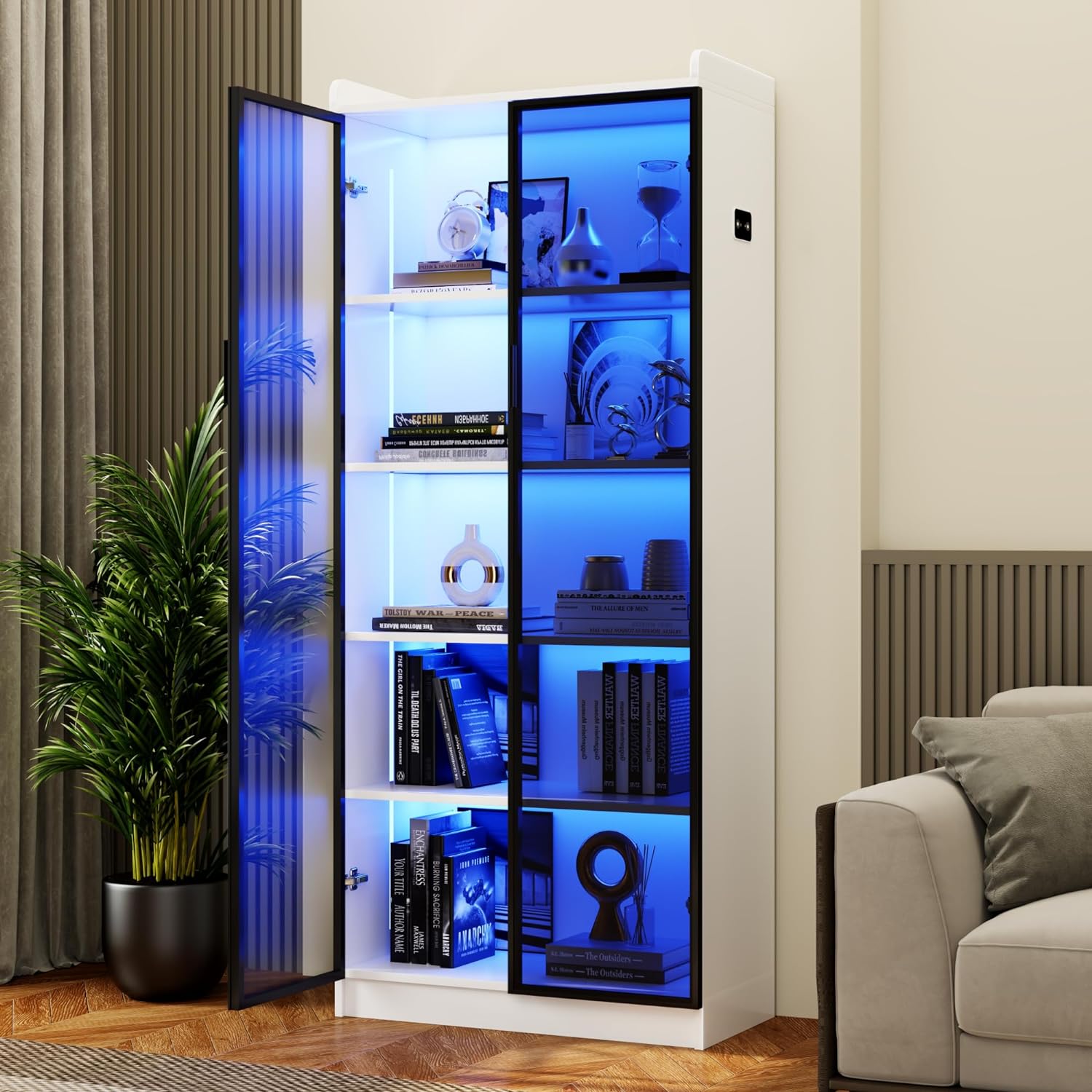

Image: The Dystler Display Cabinet (Model 97009) in a living room setting, showcasing its blue LED lighting and modern design.

Image: Detailed product specifications including dimensions and shelf weight limits.

4. Enstalasyon ak Asanble

The Dystler Display Cabinet is designed for easy assembly. All necessary tools and an assembly guide are included. Follow the steps below and refer to the provided video for visual guidance.

Etap asanble:

1. Prepare Konpozan yo: Unpack all components and verify against the parts list in the included assembly guide. Organize parts by their labels (A, B, C, etc.).
2. Rasanble panno baz ak bò yo: Attach the side panels to the base using the provided fasteners. Ensure all connections are secure.
3. Enstale etajè: Insert the fixed and adjustable shelves into their designated slots. The adjustable shelves can be moved to different heights to accommodate various items.
4. Attach Backboard: Connect the backboard panels using the card strip and secure them to the main frame.
5. Enstale panèl anwo a: Fikse panèl anwo a sou ankadreman ki fin rasanble a.
6. Monte Pòt yo: Attach the smoked black acrylic doors using the hinges. Ensure the hinges are tightened correctly. Refer to the video for hinge adjustment to ensure proper door alignment and spacing.
7. Connect LED Lighting: Konekte lamp strip ports in pairs.

Image: Visual guide for assembling the base and side panels of the cabinet.

Image: Illustration of how the movable shelves can be adjusted to different heights.

5. Operasyon Enstriksyon

LED Lighting and Human Sensor:

• The LED lighting system offers three color modes: blue, white, and yellow.
• To change the light color, short press the control button located on the cabinet.
• The integrated human sensor automatically turns the lights on when motion is detected within 2-3 meters.
• The lights will automatically turn off approximately 30 seconds after no motion is detected, helping to conserve energy.

Image: The display cabinet showcasing its three distinct LED lighting colors: yellow, blue, and white.

Image: Visual representation of the human sensor detecting motion and activating the lights.

Etajè reglabl:

The cabinet includes two adjustable shelves. To reposition a shelf, carefully remove any items, lift the shelf, and place it into the desired set of shelf pin holes. Ensure the shelf is level and securely seated before placing items on it.

Operasyon pòt:

The smoked black acrylic doors operate smoothly due to their pneumatic gate design. To open, gently pull the handle. To close, push the door until it latches securely.

6. Antretyen

To maintain the appearance and longevity of your Dystler Display Cabinet, follow these simple maintenance guidelines:

• Netwayaj: The cabinet's wooden material is waterproof and easy to clean. Use a soft, damp cloth to wipe down surfaces. For stubborn stains, a mild soap solution can be used, followed by wiping with a clean, dry cloth. Avoid abrasive cleaners or harsh chemicals.
• Époussetage: Regularly dust the cabinet and shelves with a soft, dry cloth to prevent dust buildup.
• Ajisteman charnyèr: If doors do not close properly or appear misaligned, refer to the assembly video or the hinge adjustment section in the assembly guide. Tightening screws to the right increases the gap between doors/cabinet, while tightening to the left decreases it.
• Evite Surcharge: Do not exceed the 40-pound weight limit per shelf to prevent damage or instability.

NAN. Depanaj

Pwoblèm komen ak solisyon:

8. Espesifikasyon

9. Garanti ak sipò

For customer support, please refer to the contact information provided at the point of purchase or visit the official Dystler website. Protection plans may be available for purchase separately.

For additional assistance, you may contact Dystler-US customer service.
