Manyèl Itilizatè Vantilatè Plafon Craftmade FUL52WPLN3 Fuller 52 pous

Entwodiksyon

This manual provides detailed instructions for the installation, operation, and maintenance of your Craftmade FUL52WPLN3 Fuller 52-inch Ceiling Fan. Please read all instructions carefully before beginning installation and retain this manual for future reference. The Fuller 52-inch fan is designed to provide efficient air circulation and illumination with its integrated LED light kit and wall control.

Image: The Craftmade FUL52WPLN3 Fuller 52-inch Ceiling Fan in white with polished nickel accents, viewsoti anba.

Enfòmasyon sou Sekirite

To reduce the risk of electrical shock, fire, or personal injury, always follow these basic safety precautions:

• Li tout enstriksyon ak enfòmasyon sekirite anvan ou enstale vantilatè ou a epi konsève enstriksyon sa yo.
• Anvan antretyen oswa netwayaj inite a, koupe kouran nan panèl sèvis la epi bloke sèvis la dekonekte vle di pou anpeche pouvwa pou yo te chanje aksidantèlman. Lè sèvis la dekonekte vle di pa ka fèmen, byen tache yon aparèy avètisman enpòtan, tankou yon tag, nan panèl sèvis la.
• All wiring must be in accordance with national and local electrical codes. Consult a qualified electrician if you are unfamiliar with wiring.
• Vantilatè a dwe monte ak yon minimòm 7 pye (2.1 mèt) espas ant kwen dèyè lam yo ak planche a.
• Asire w ke kote enstalasyon an pèmèt lam vantilatè yo vire san obstak.
• Pa fè vantilatè a fonksyone si lam yo oswa bwat la domaje.
• Pa mete objè nan chemen lam vantilatè yo.

Enstalasyon ak Enstalasyon

The Craftmade FUL52WPLN3 ceiling fan is designed for straightforward installation. It includes all necessary components for assembly and operation. For detailed step-by-step instructions, please refer to the dedicated Installation Guide provided in the product packaging.

Eleman ki enkli:

• Fan Motè Asanble
• Custom Fuller Blades (3 blades)
• LED Light Kit (optional, dimmable)
• Hard Wired 4-Speed Wall Control
• Gid enstalasyon
• Materyèl pake
• Optional Lens Cover

Opsyon Montaj:

This fan supports dual mounting, allowing installation on either a flat ceiling or an angled ceiling with a slope up to 23 degrees. Ensure the mounting box is securely attached to the building structure and can support the fan's weight.

Imaj: Yon gwo plan view of the white motor housing and downrod connection of the Craftmade FUL52WPLN3 ceiling fan.

Imaj: Yon imaj detaye view of how the white fan blade attaches to the polished nickel bracket on the Craftmade FUL52WPLN3 ceiling fan.

Enstriksyon Operasyon

Kontwòl mi:

The Craftmade FUL52WPLN3 fan is operated using the included hard-wired 4-speed wall control. This control allows you to adjust the fan speed and manage the integrated LED light.

• Kontwòl vitès fanatik: The wall control features buttons or a slider to select between four fan speeds (e.g., Low, Medium-Low, Medium-High, High). Adjust the speed to achieve desired airflow.
• Kontwòl limyè: The wall control also manages the integrated LED light. It typically includes an ON/OFF button and may have dimming capabilities. Refer to the wall control's specific instructions for dimming operation.

Fonksyon motè revèsib:

Your fan is equipped with a 3-speed reversible motor, allowing for seasonal optimization of air circulation.

• Summer Operation (Downward Airflow): Set the fan to rotate counter-clockwise. This creates a downward breeze, producing a cooling effect.
• Winter Operation (Upward Airflow): Set the fan to rotate clockwise. This draws cool air up towards the ceiling, circulating warm air downwards without creating a direct draft. The reverse switch is typically located on the fan motor housing. Ensure the fan is completely stopped before changing the direction of rotation.

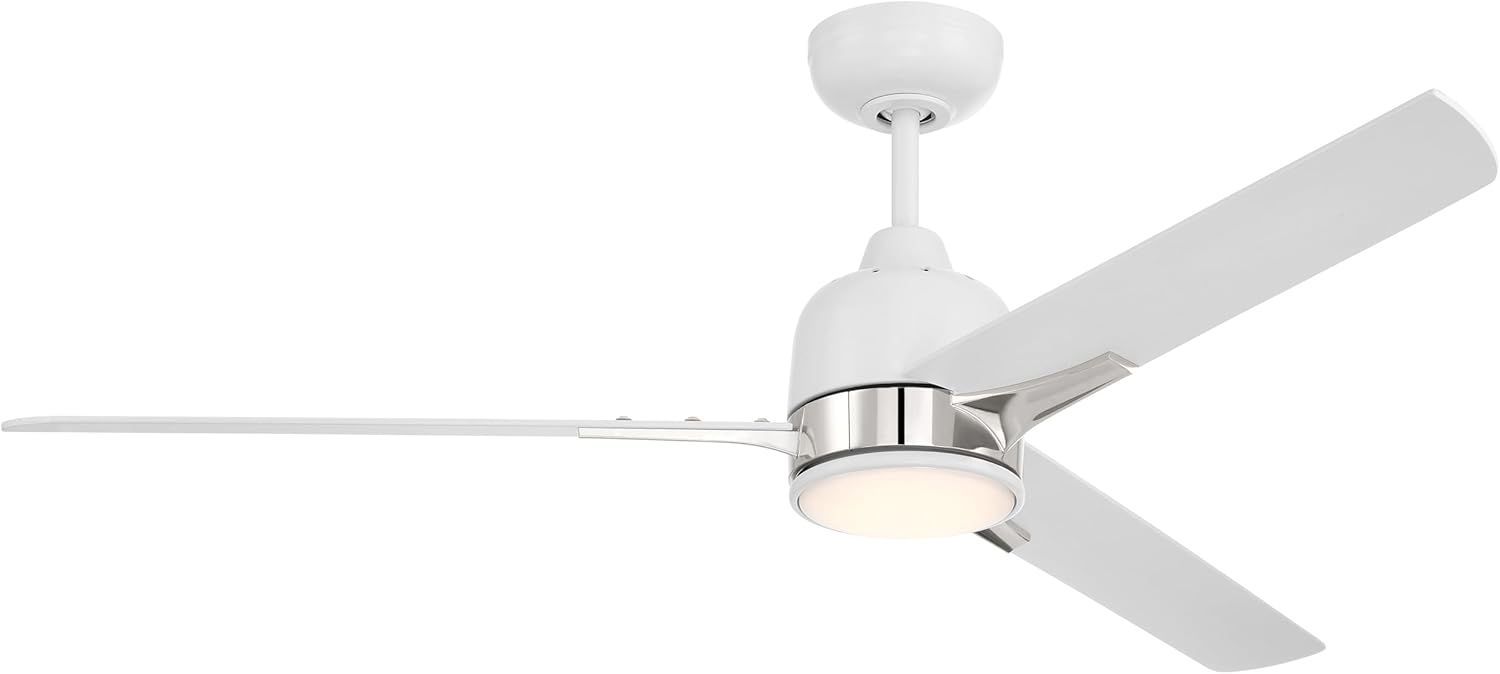

Image: The Craftmade FUL52WPLN3 Fuller 52-inch Ceiling Fan with its integrated LED light illuminated.

Antretyen

Regular maintenance ensures optimal performance and extends the lifespan of your ceiling fan.

• Netwayaj: Netwaye vantilatè a detanzantan avèk yon twal mou,amp twal. Pa sèvi ak pwodui netwayaj abrazif oswa solvan, paske sa yo ka domaje fini an oswa konpozan elektrik yo. Asire w ke kouran an koupe anvan ou netwaye.
• Swen lam: Check fan blades for dust accumulation. Clean them gently to maintain balance and efficient airflow.
• Ranfòse Fastener: Over time, some fasteners may become loose. Annually, check all screws and connections for tightness.
• Kit limyè ki ap dirije: Twous limyè LED entegre a fèt pou dire lontan epi anjeneral li pa bezwen ranplase anpoul. Si limyè a pa fonksyone byen, konsilte seksyon depanaj la oswa kontakte sèvis kliyan.

Depanaj

Anvan ou kontakte sèvis kliyan, tanpri re-view pwoblèm komen sa yo ak solisyon yo:

Espesifikasyon pwodwi

Enfòmasyon sou Garanti

Specific warranty details for the Craftmade FUL52WPLN3 Fuller 52-inch Ceiling Fan are typically provided with the product documentation. Please refer to the warranty card or the official Craftmade website for the most current and complete warranty information regarding your purchase.

Sipò pou Kliyan

For technical assistance, replacement parts, or any questions not covered in this manual, please contact Craftmade customer support. You can find contact information and additional resources on the official Craftmade websit:

Visit the Craftmade Store on Amazon

Always have your model number (FUL52WPLN3) and purchase date available when contacting support.
