Ledvion LED Emergency Light with Battery

1. Entwodiksyon

This instruction manual provides essential information for the safe and efficient use of your Ledvion LED Emergency Light, Model LVE10005. This 6-watt emergency light is designed to provide reliable illumination during power outages, featuring a bright 6500 Kelvin light output, a 3-hour battery backup, and robust construction with IK07 impact resistance and IP65 water protection. Please read this manual thoroughly before installation and operation.

2. Enfòmasyon sou Sekirite

• Asire w ke ekipman pou kouran an dekonekte anvan nenpòt enstalasyon, antretyen oswa reparasyon.
• Se yon elektrisyen kalifye ki dwe fè enstalasyon an dapre kòd ak règleman elektrik lokal yo.
• Do not open or modify the device. Unauthorized modifications will void the warranty and may pose a safety risk.
• The product is rated IK07 for impact resistance, meaning it is protected against impacts of up to 2 joules.
• The product is rated IP65 for ingress protection, indicating it is dust-tight and protected against water jets from any direction. This makes it suitable for outdoor environments. However, please note that some packaging may state 'indoor use only'; always ensure the installation environment is appropriate for the product's full capabilities.
• Kenbe aparèy la lwen materyèl ki ka pran dife.

3. Pake kontni

Verifye ke tout konpozan yo prezan nan pake a:

Image: 'What's in the Box' showing all included components.

• 1x Emergency Spot Light
• 1x Montaj ankadreman
• 1x Accessories (Spring clips, plastic clips)
• 2x Bouchon Miray Vis
• 2x Vis
• 1x Mounting Clip
• 1x Screw (additional)
• 1x manyèl enstriksyon

4. Espesifikasyon

Image: Product dimensions showing diameter and depth for mounting.

5. Enstalasyon ak Enstalasyon

The Ledvion LED Emergency Light can be installed as either a recessed or surface-mounted fixture. The necessary mounting hardware is included.

Image: Illustration of built-in (recessed) and surface-mounted installation methods.

5.1 Enstalasyon ankastre

1. Ensure power is off at the main circuit breaker.
2. Cut a circular hole in the ceiling or wall with the appropriate diameter (refer to specifications for exact dimensions, approximately 142.5 mm).
3. Connect the electrical wiring (230V) to the light fixture. Ensure correct polarity.
4. Fold back the spring clips on the side of the light fixture and insert the fixture into the prepared hole. The clips will secure the light in place.
5. Retabli pouvwa a epi teste limyè a.

5.2 Surface-Mounted Installation

1. Ensure power is off at the main circuit breaker.
2. Attach the mounting frame to the desired surface (ceiling or wall) using the provided screws and wall plugs.
3. Connect the electrical wiring (230V) to the light fixture. Ensure correct polarity.
4. Secure the light fixture into the mounting frame.
5. Retabli pouvwa a epi teste limyè a.

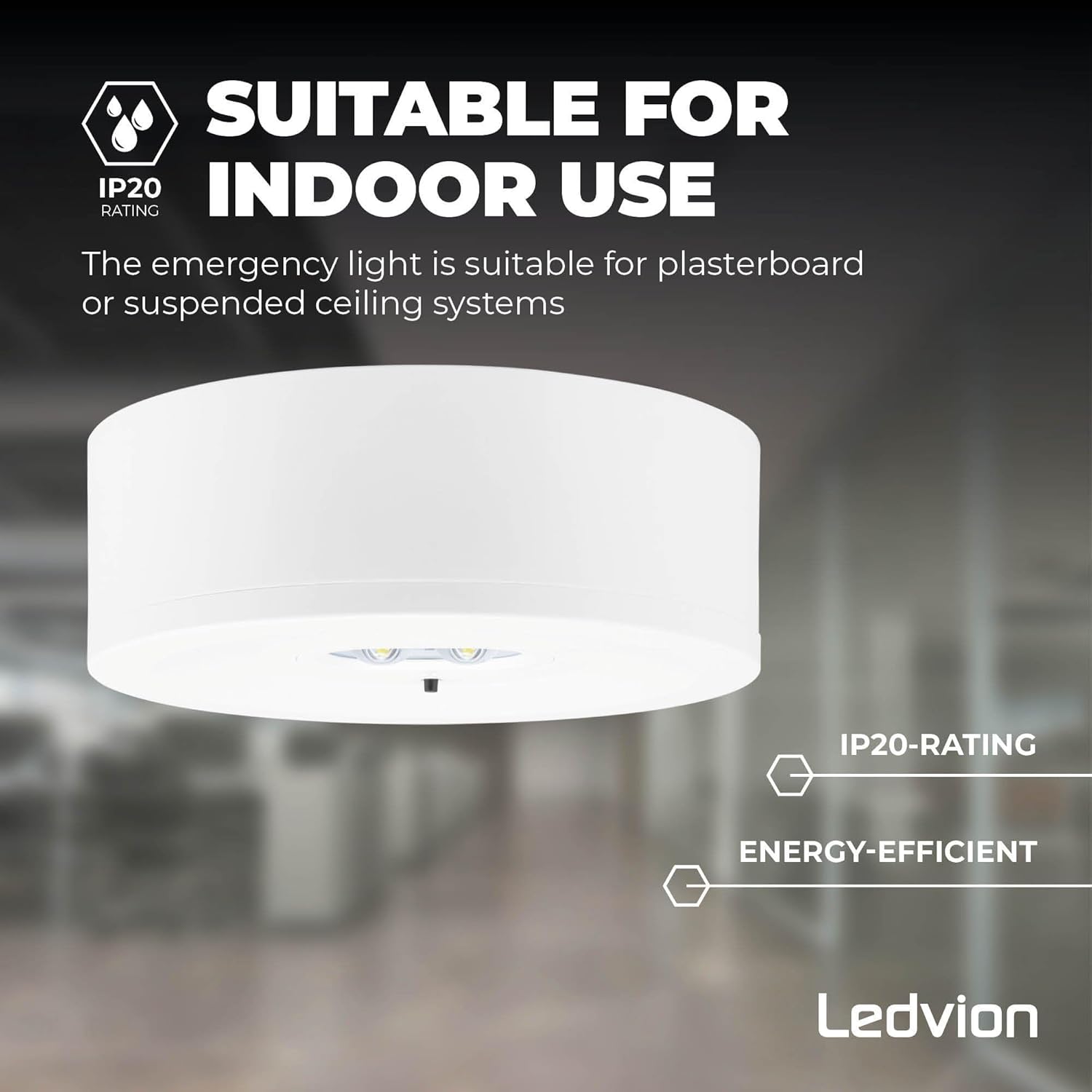

The emergency light is suitable for plasterboard or suspended ceiling systems.

Image: The emergency light shown installed, emphasizing its energy efficiency.

6. Operasyon Enstriksyon

The Ledvion LED Emergency Light operates automatically once properly installed and connected to a continuous power supply.

6.1 Operasyon Nòmal

When connected to mains power, the light will charge its internal 2200mAh battery. A green LED indicator on the unit confirms that the light is receiving power and the battery is charging. The light itself will remain off unless activated by a power outage or the self-test function.

Image: Self-test function button and green LED indicator.

6.2 Mòd Ijans

In the event of a power failure, the emergency light will automatically switch on, powered by its internal battery. It will provide bright white illumination (6500K) for approximately 3 hours. Once mains power is restored, the light will turn off and begin recharging its battery. A full recharge takes approximately 24 hours.

Image: Internal components highlighting the 2200mAh battery, 24-hour charging time, and 2.5-hour emergency operating time.

6.3 Fonksyon Oto-Tès

The emergency light is equipped with a self-test function. Press the 'TEST' button on the unit to manually activate the emergency light and verify its functionality. This feature replaces the need for manual monthly and annual tests, ensuring the unit is always ready.

7. Antretyen

• Netwayaj: Clean the exterior of the light with a soft, damp twal. Pa sèvi ak pwodui netwayaj abrazif oswa solvang.
• Swen batri: The internal battery is designed for long-term use. To maintain optimal battery health, ensure the unit is regularly connected to mains power to allow for charging.
• Tès pwòp tèt ou: Utilize the self-test function periodically to confirm the battery and light are operating correctly.
• Enspeksyon: Periodically inspect the light for any signs of damage or wear. If damage is found, disconnect power and contact customer support.

NAN. Depanaj

If you encounter issues with your Ledvion LED Emergency Light, refer to the following common problems and solutions:

For issues not listed above, or if troubleshooting steps do not resolve the problem, please contact Ledvion customer support.

9. Garanti ak sipò

Ledvion products are manufactured to high-quality standards. This product comes with a warranty against defects in materials and workmanship under normal use. Any changes or modifications to the product will void the warranty.

For warranty claims or technical support, please contact:

Tanpri konsève prèv acha ou a pou rezon garanti.

Image: Product packaging displaying compliance marks and manufacturer information.
