1. Entwodiksyon
The HOTONE Soul Press II is a versatile 4-in-1 guitar effects pedal, integrating Wah, Volume, Volume/Wah, and Expression functions into a single compact unit. Designed for guitarists seeking flexibility and high-quality analog tone, this pedal offers enhanced control and an improved user experience. This manual provides detailed instructions for setting up, operating, and maintaining your Soul Press II pedal.
The HOTONE Soul Press II, a versatile 4-in-1 guitar effects pedal.
2. Enfòmasyon sou Sekirite
- Pa ekspoze aparèy la a lapli oswa imidite.
- Pa ouvri c laasing. Pa gen okenn pyès itilizatè a ka repare anndan an.
- Use only the specified power supply (9V DC or 9V Battery).
- Kenbe soti nan atenn timoun yo.
- Evite tanperati ekstrèm oswa imidite.
3. Pwodwi souview
The Soul Press II offers four primary functions: Wah, Volume, Volume/Wah, and Expression. It features a 100% analog circuit for authentic tone and includes Q and TONE controls for precise sound shaping. The pedal also provides independent EXP Out and Tuner Out jacks for versatile connectivity.
Karakteristik kle:
- Fonksyonalite 4-an-1: Seamlessly switch between Wah, Volume, Volume/Wah, and Expression modes.
- 100% Analog Circuit: Ensures a pure and lossless signal path.
- Q & TONE Controls: Fine-tune your Wah and Volume tones.
- STATUS Indicator: LEDs show the pedal's real-time position.
- Multiple I/O Options: Includes independent EXP Out and Tuner Out.
- Vrè Bypass: Maintains signal integrity when the effect is off.
- Konstriksyon dirab: Lightweight aluminum alloy casing with a steel shaft connection.
The Soul Press II integrates up to 4 function modes: Volume, Wah, Volume/Wah, and Expression.

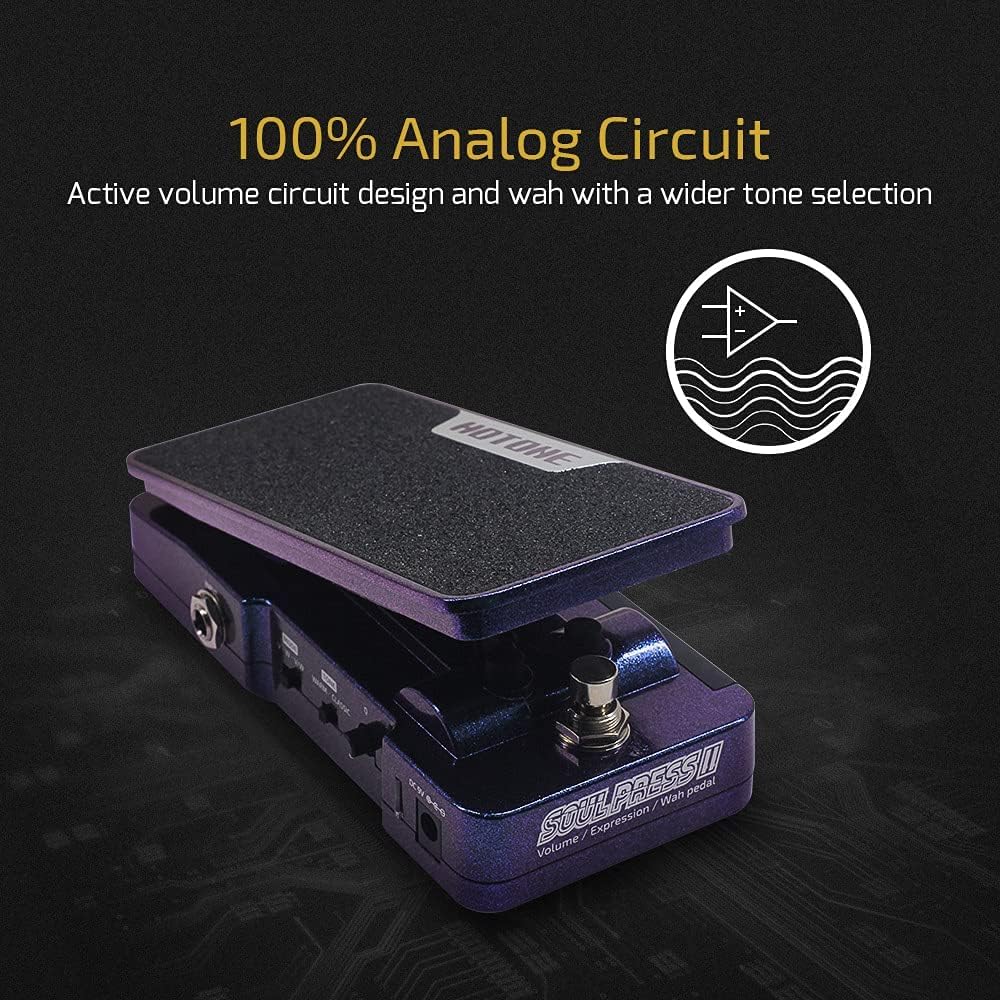

The pedal features a 100% analog circuit design for active volume and wah with a wider tone selection.
The LED STATUS indicator shows the pedal position in real-time, providing visual feedback during use.
The Soul Press II is portable and provides a large, textured contact surface for comfortable and easy use.
Videyo pwodwi ofisyèl la:
This video demonstrates the 'wah pedal SP-20SC' functionality, showcasing the sound and responsiveness of the Soul Press II pedal in action.
4. Enstalasyon
Follow these steps to set up your HOTONE Soul Press II pedal:
- Pwovizyon pou pouvwa: Connect a 9V DC power adapter (not included) to the DC IN jack, or install a 9V battery inside the pedal.
- Koneksyon Antre: Connect your guitar or other instrument to the INPUT jack using a standard 1/4-inch TS cable.
- Koneksyon Sòti: Connect the OUTPUT jack to your amplifier or the next pedal in your signal chain using a standard 1/4-inch TS cable.
- Expression Out (Optional): If using the pedal as an expression controller for another device, connect the EXP OUT jack to the expression input of that device using a TRS cable.
- Tuner Out (Optional): Connect the TUNER OUT jack to your tuner for silent tuning.
The Soul Press II offers multiple I/O options, including independent expression pedal output and a tuner jack, enhancing its versatility.
5. Opere
The Soul Press II features a footswitch to toggle between Volume/Wah modes and a side switch to select the overall mode. The Q and TONE knobs allow for further sound customization.
Seleksyon mòd:
- Use the small switch on the side of the pedal to select between Volim, Wah, Volume/Wah, ak Ekspresyon mòd.
Kontwòl:
- Footswitch: Press down firmly on the pedal to engage or disengage the Wah or Volume effect, depending on the selected mode.
- Q Knob: Adjusts the Q factor (resonance) of the Wah effect. A higher Q setting results in a more pronounced and sharper wah sound.
- Bouton TONE: Controls the overall tone of the Wah or Volume effect. Use this to fine-tune the brightness or warmth of your sound.
- WARM/CLASSIC Switch: Selects between two distinct wah voicings. 'WARM' provides a smoother, more vintage wah tone, while 'CLASSIC' offers a more traditional and aggressive wah sound.

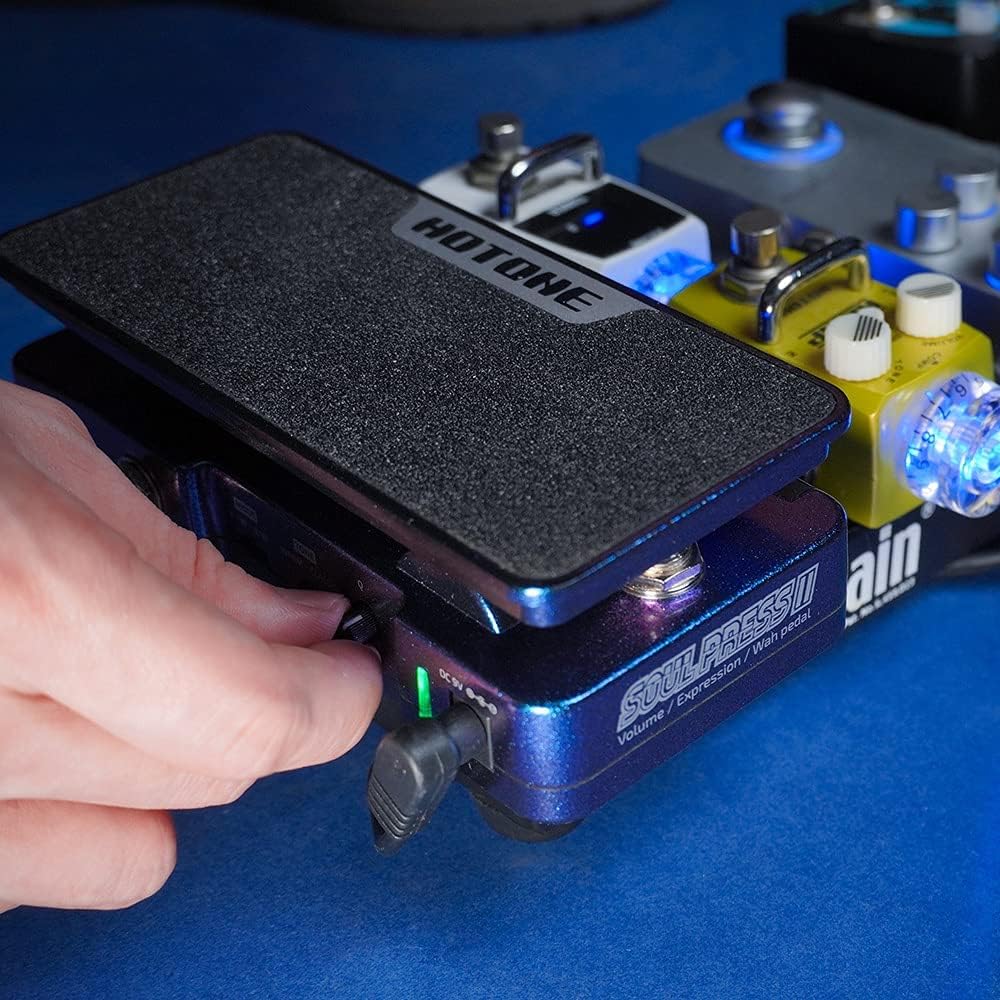

Adjusting the side controls for fine-tuning the pedal's parameters.
6. Antretyen
To ensure the longevity and optimal performance of your Soul Press II pedal:
- Netwayaj: Sèvi ak yon twal mou epi sèk pou netwaye sifas pedal la. Evite pwodui netwayaj abrazif oswa solvan.
- Depo: Sere pedal la nan yon kote ki fre epi sèk, lwen limyè solèy dirèk ak tanperati ekstrèm.
- Ranplasman batri: If using a 9V battery, replace it when the LED indicator dims or the pedal's performance degrades. Disconnect the input cable when not in use to conserve battery life.
- Koneksyon: Periodically check all cable connections for tightness and ensure they are free from corrosion.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Pa gen son oswa siyal fèb | Incorrect connections, dead battery, faulty cables. | Check all cable connections. Replace 9V battery or ensure power adapter is working. Test with different cables. |
| Wah/Volume effect not engaging | Pedal not fully pressed, mode switch incorrect. | Ensure the pedal is pressed down completely to engage the footswitch. Verify the mode switch is set to the desired function (Wah or Volume). |
| Bri/ronfleman endezirab | Bouk tè, ekipman pou pouvwa ki defektye, entèferans. | Use a regulated power supply. Try isolating the pedal from other electronics. Check for faulty cables. |
| Expression function not working | Incorrect cable type (TS instead of TRS), incompatible device. | Ensure a TRS cable is used for the EXP OUT. Verify the receiving device is compatible with passive expression pedals. |
8. Espesifikasyon
- Pwa atik: 1.1 liv (500 gram)
- Dimansyon pwodwi: 6.38 x 3.19 x 2.01 pous (16.2 x 8.1 x 5.1 cm)
- Peyi orijin: Lachin
- Nimewo Modèl Atik: Soul Press II 4 in 1
- Entèfas pyès ki nan konpitè: 1/4-pous Audio
- Fòma siyal: Analòg
- Sous pouvwa: Battery Powered (9V Battery) or 9V DC Power Supply (not included)
- Voltage: 9 Volts
- Koulè: Soul Press II 4 in 1 (Purple/Blue iridescent casing)
9. Garanti ak sipò
For detailed warranty information and customer support, please refer to the official user guide PDF or contact HOTONE customer service.
Gid Itilizatè Ofisyèl: Telechaje PDF
