Moulinex Easy Force Food Processor FP247810 Instruction Manual

1. Entwodiksyon

Welcome to the Moulinex Easy Force Food Processor instruction manual. This appliance is designed to simplify your kitchen tasks with its versatile functions and user-friendly design. It features an 800W motor, 2 speeds plus a pulse function, and comes with 6 essential accessories and a 1.8-liter blender, offering 25 different functions for various food preparations.

2. Enstriksyon Sekirite Enpòtan

Tanpri li tout enstriksyon yo ak anpil atansyon anvan ou itilize aparèy la epi konsève yo pou referans pita. Si ou pa swiv enstriksyon sa yo, sa ka lakòz chòk elektrik, dife oswa blesi grav.

• Toujou debranche aparèy la nan priz kouran an lè w pa ap itilize li, anvan ou monte oswa demonte pyès, epi anvan ou netwaye li.
• Pa plonje baz motè a, kòd, oswa ploge nan dlo oswa nenpòt lòt likid.
• Keep hands and utensils away from moving blades or discs while operating the appliance to prevent injury.
• Ensure the lid is securely locked in place before operating the food processor.
• Pa melanje likid cho nan blenndè a oswa nan bòl processeur manje a, paske sa ka boule.
• Pa janm kite aparèy la poukont li pandan l ap fonksyone.
• Aparèy sa a pa fèt pou moun ki gen kapasite fizik, sansoryèl, oswa mantal redwi, oswa ki manke eksperyans ak konesans, sof si yo te resevwa sipèvizyon oswa enstriksyon konsènan itilizasyon aparèy la nan men yon moun ki responsab sekirite yo.
• Timoun yo ta dwe sipèvize pou asire ke yo pa jwe ak aparèy la.
• Pa sèvi ak atachman manifakti a pa rekòmande oswa vann.
• Tcheke ke vol latagVolim ki endike sou aparèy la koresponn ak vòltaj kouran prensipal ou a.tage anvan konekte.

3. Pwodwi konpozan

Your Moulinex Easy Force Food Processor comes with several components designed for various culinary tasks.

Inite prensipal ak Pwodwi pou Telefòn:

• Baz Motè ak Kadran Kontwòl
• Main Processing Bowl (1.8 Liters)
• Lid with Feeder Tube and Pusher
• Koupe lam
• Kneading Tool
• Disk emulsifyan
• Disk griyaj
• Disk tranche
• Parmesan Disc
• 1.8 Liter Blender Attachment

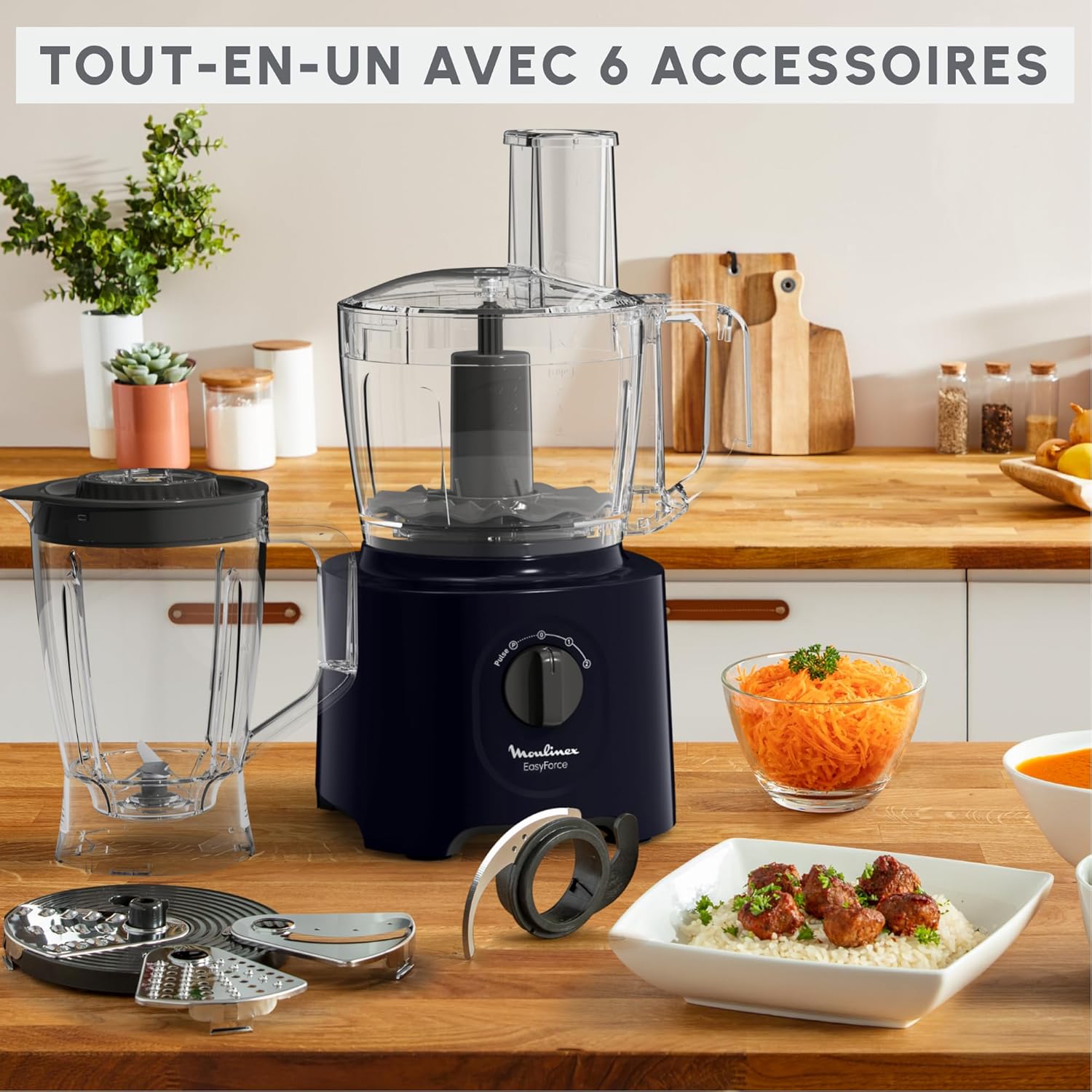

Figure 3.1: The Moulinex Easy Force Food Processor with all its accessories, including the main bowl, various discs, blades, and the blender attachment.

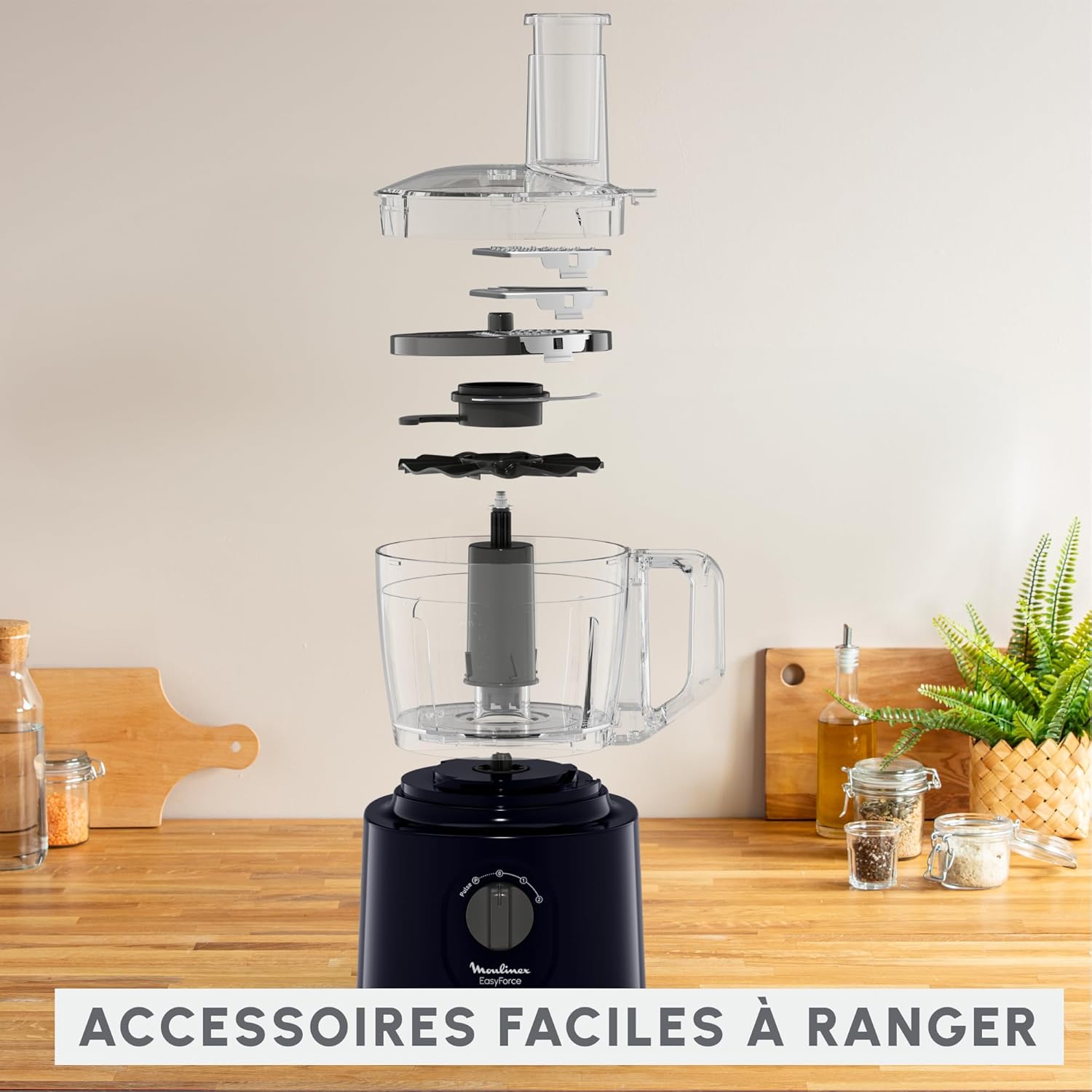

Figi 3.2: Yon eksplozyon view illustrating the various components and how they assemble, also demonstrating the compact storage capability.

4. Asanble ak Enstalasyon

Follow these steps to correctly assemble your food processor before use.

1. Mete baz motè a sou yon sifas ki plat e ki estab.
2. Fit the main processing bowl onto the motor base, aligning the bowl handle with the locking mechanism on the base. Turn clockwise until it locks into place.
3. Insert the desired accessory (e.g., chopping blade, slicing disc) onto the central shaft inside the bowl.
4. Place the lid onto the bowl, ensuring the lid's locking tab aligns with the handle of the bowl. Turn clockwise until it clicks securely. The appliance will not operate if the bowl and lid are not correctly locked.
5. For the blender, ensure the blade unit is securely attached to the blender jug, then place the jug onto the motor base and twist to lock.

Figure 4.1: The food processor assembled and ready for use, demonstrating the slicing function with cucumbers.

5. Operasyon Enstriksyon

The Moulinex Easy Force offers intuitive operation with its clear speed settings and versatile accessories.

5.1 Anviwònman vitès

The appliance features a control dial with two continuous speed settings (1 and 2) and a 'Pulse' function.

• Vitès 1: Ideal for lighter tasks, softer ingredients, and gentle mixing.
• Vitès 2: Suitable for harder ingredients, heavier loads, and faster processing.
• Pèl (P): Provides short bursts of maximum power, useful for controlled chopping, blending, or when you need quick, intermittent processing. Hold the dial in the 'P' position for as long as needed, then release.

Figure 5.1: The control dial allows for easy selection of two speeds and a pulse function, making operation intuitive for all users.

5.2 Using the Chopping Blade

Insert the chopping blade onto the central shaft. Add ingredients to the bowl. Secure the lid. Select speed 1 or 2, or use the Pulse function for controlled chopping of herbs, nuts, or vegetables.

5.3 Using the Slicing and Grating Discs

Place the desired disc (slicing, grating, or parmesan) onto the central shaft. Secure the lid. Turn on the appliance to speed 2. Feed ingredients through the feeder tube using the pusher. Do not force ingredients.

5.4 Using the Kneading Tool

Attach the kneading tool to the central shaft. Add flour and other ingredients for dough. Secure the lid. Use speed 1 or 2 for kneading. Do not overload the bowl.

5.5 Using the Emulsifying Disc

Place the emulsifying disc onto the central shaft. Add ingredients for whipping cream, egg whites, or making mayonnaise. Secure the lid. Use speed 2 for best results.

5.6 Itilizasyon blenndè a

Ensure the blender blade unit is securely attached to the jug. Add liquids and soft ingredients to the blender jug. Secure the lid. Place the blender onto the motor base and lock it. Select speed 1 or 2, or use Pulse for smoothies, milkshakes, or soups.

Figure 5.2: The included 1.8-liter blender is perfect for preparing smoothies, milkshakes, soups, and other liquid recipes.

6. Netwayaj ak antretyen

Regular cleaning ensures the longevity and hygienic operation of your Moulinex Easy Force Food Processor.

1. Toujou debranche aparèy la anvan w netwaye.
2. Disassemble all removable parts: bowl, lid, accessories, and blender jug.
3. Most accessories (bowl, lid, blades, discs, blender jug) are dishwasher-safe. Place them on the top rack of your dishwasher.
4. For hand washing, use warm, soapy water and a non-abrasive sponge. Be extremely careful when handling sharp blades. Rinse thoroughly and dry immediately.
5. Siye baz motè a ak anonsamp cloth. Never immerse the motor base in water or rinse it under running water.
6. Asire w ke tout pati yo fin sèk anvan ou remonte oswa estoke.

Figure 6.1: Most accessories are dishwasher-safe, simplifying the cleaning process after use. The motor base should always be wiped clean.

7. Depo

The Moulinex Easy Force is designed for compact storage, allowing you to keep your kitchen tidy.

• Ensure the appliance and all accessories are clean and dry before storing.
• The main processing bowl is designed to store most accessories (chopping blade, kneading tool, emulsifying disc, grating disc, slicing disc, parmesan disc) inside, saving space.
• Store the blender attachment separately or alongside the main unit if space permits.
• Sere aparèy la nan yon kote ki sèk epi an sekirite, lwen limyè solèy dirèk ak tanperati ekstrèm.

Figure 7.1: Its compact design ensures the appliance fits easily into kitchen cabinets, ideal for any kitchen size.

Figure 7.2: The appliance measures approximately 41 cm in height and 23 cm in width, providing a clear understanding of its physical footprint.

NAN. Depanaj

If you encounter any issues with your Moulinex Easy Force Food Processor, refer to the table below for common problems and solutions.

9. Espesifikasyon teknik

Detailed specifications for the Moulinex Easy Force Food Processor FP247810.

10. Garanti ak sipò

Moulinex angaje l pou l bay pwodwi ak sipò kalite siperyè.

10.1 Angajman Reparabilite

Moulinex offers a Angajman reparasyon 15 ane a yon pri ki jis for this appliance. This commitment is supported by a global network of 6200 repairers, contributing to environmental protection and waste reduction by extending the product's lifespan.

Figure 10.1: Moulinex commits to 15-year repairability at a fair price, supporting environmental protection and waste reduction.

10.2 Sipò pou Kliyan

For any questions, concerns, or to locate a repair center, please refer to the contact information provided in your product's packaging or visit the official Moulinex website for your region. Please have your model number (FP247810) and purchase details ready when contacting support.
