1. Entwodiksyon
Thank you for choosing the WORKPRO 7.2V Cordless Rotary Tool. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your tool. Please read it thoroughly before use and retain it for future reference.
The WORKPRO 7.2V Cordless Rotary Tool is a versatile and compact device designed for various DIY and craft projects. Its lightweight design and variable speed settings make it suitable for tasks such as sanding, engraving, cutting, drilling, grinding, and polishing.
Figure 1: WORKPRO 7.2V Cordless Rotary Tool with included accessories and storage bag.
2. Enfòmasyon sou Sekirite
Toujou obsève prekosyon sekirite debaz yo pou diminye risk dife, chòk elektrik, ak aksidan pèsonèl lè w ap itilize zouti elektrik.
- Li tout enstriksyon yo: Familyarize w avèk operasyon zouti a ak règleman sekirite yo.
- Mete pwoteksyon pou je: Toujou mete linèt sekirite oswa linèt sekirite ak plak pwotèj bò.
- An sekirite pou pyès travay la: Toujou clamp oubyen byen sere pyès la pou anpeche l deplase pandan operasyon an.
- Kenbe yon zòn travay pwòp: Zòn ankonbre envite aksidan.
- Evite anviwònman danjere: Pa sèvi ak zouti elektrik nan damp oswa kote ki mouye, oswa ekspoze yo a lapli. Kenbe zòn travay byen limen.
- Kenbe timoun yo lwen: Tout vizitè yo ta dwe rete nan yon distans ki san danje nan zòn travay la.
- Abiye byen: Do not wear loose clothing or jewelry. They can be caught in moving parts. Non-skid footwear is recommended. Wear protective hair covering to contain long hair.
- Sèvi ak bon zouti: Pa fòse zouti oswa atachman an fè yon travay pou li pa te fèt.
- Dekonekte pouvwa: Disconnect the tool from its power source before making adjustments, changing accessories, or storing it.
- Pa depase: Kenbe bon pye ak balans tout tan.
- Kenbe zouti ak swen: Kenbe zouti byen file ak pwòp pou pi bon pèfòmans ak pi an sekirite. Swiv enstriksyon pou lubrifyan ak chanje Pwodwi pou Telefòn.
- Tcheke pou pati ki domaje: Anvan plis itilize zouti a, yon gad oswa yon lòt pati ki domaje ta dwe ak anpil atansyon tcheke pou detèmine ke li pral fonksyone byen epi fè fonksyon li gen entansyon.
- Do Not Operate While Charging: For safety reasons, do not use the tool while it is being charged.
3. Pwodwi souview
The WORKPRO 7.2V Cordless Rotary Tool is designed for precision work. Understanding its components is key to effective operation.

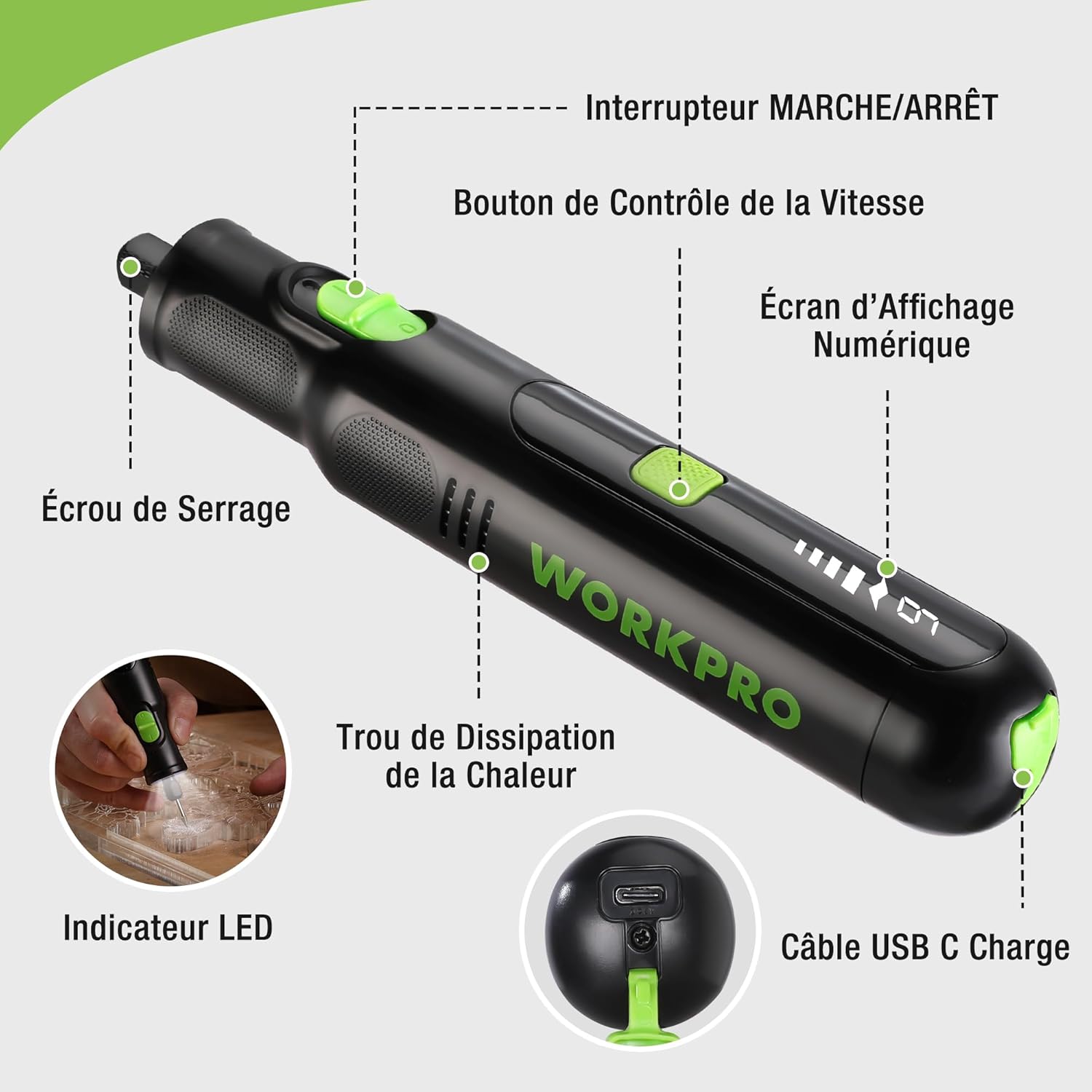

Figi 2: Konpozan kle nan zouti wotasyon an.
Eleman:
- ON / OFF switch: Aktive epi dezaktive zouti a.
- Bouton kontwòl vitès: Ajiste vitès wotasyon zouti a.
- Ekran ekspozisyon dijital: Shows the current speed setting.
- Nwa Collet: Secures the accessory bits in place.
- Twou Dissipation Chalè: Ensures proper cooling of the motor during operation.
- Endikatè ki ap dirije: Provides illumination for the work area.
- USB-C chaje pò: Pou rechaje batri entèn lan.
Pwodwi pou Telefòn enkli:
Your WORKPRO rotary tool comes with 117 diverse accessories, enabling a wide range of applications. These include:
Figi 3: Plis paseview nan 117 akseswa ki enkli yo.
- Grinding/Sharpening: Grinding stones and wheels for material shaping and sharpening.
- Eskilti: Diamond bits for detailed carving and engraving.
- Polisaj: Wool felt wheels, felt wheels, screw mandrels, and metal brushes for achieving smooth, shiny finishes.
- Fraisage: Milling bits for precise material removal.
- Koupe: Cutting discs and saw blades for various cutting tasks, along with a cutting disc holder.
- Ponçage: Sandpaper, rubber sanding drums, and sanding bands for surface preparation and finishing.
- Collets: 2.35mm and 3.2mm collets to accommodate different shank sizes.
- Perçage: 2.35mm and 3.2mm drill bits for small-scale drilling.
- Kle: For securing and loosening collet nuts.
4. Enstalasyon
4.1 Chaje Zouti a
The tool is equipped with a 7.2V 1100mAh Lithium-ion rechargeable battery. Before first use, fully charge the tool.
- Connect the provided USB-C charging cable to the tool's USB-C charging port.
- Connect the other end of the USB cable to a compatible USB power source (e.g., computer, USB wall adapter).
- The digital display will indicate charging status. A full charge typically takes approximately 2 hours.
- Yon fwa konplètman chaje, dekonekte kab la chaje.
Note: For optimal battery life, it is recommended to store the tool with the battery charged between 50% and 75%. Recharge the tool at least once every 3 to 6 months if not used regularly.
Figure 4: Charging the rotary tool via USB-C.
4.2 Enstale Pwodwi pou Telefòn
The WORKPRO rotary tool features an automatic spindle lock design for easy and secure accessory changes.
- Ensure the tool is turned OFF.
- Unscrew the collet nut at the front of the tool.
- Select the appropriate collet size for your desired accessory (2.35mm or 3.2mm). Insert the collet into the tool if not already present.
- Insert the shank of the accessory bit into the center of the collet nut. Ensure the bit is fully seated.
- Hand-tighten the collet nut. For a secure fit, use the included wrench to tighten the collet nut firmly. Do not overtighten.
Figure 5: Two-step accessory replacement process.
Figure 6: Detailed installation steps for various accessories.
Note: The automatic spindle lock engages when the tool is off, allowing for accessory changes without needing to press a separate button. A slight clicking sound when the tool stops is normal due to this mechanism.
5. Operasyon Enstriksyon
5.1 Limen/Etenyen
To turn the tool ON, slide the ON/OFF switch to the 'ON' position. To turn it OFF, slide the switch to the 'OFF' position.
5.2 Ajisteman Vitès
The tool features 6 variable speed settings, ranging from 5000 RPM to 30000 RPM. Press the Speed Control Button to cycle through the speeds. The current speed setting will be displayed on the digital screen.
- Speed I: 5000 RPM
- Speed II: 10000 RPM
- Speed III: 15000 RPM
- Speed IV: 20000 RPM
- Speed V: 25000 RPM
- Speed VI: 30000 RPM
Choose the appropriate speed for your task and material. Lower speeds are generally suitable for polishing, delicate work, and softer materials, while higher speeds are for cutting, grinding, and harder materials.
Figure 7: Variable speed settings and powerful motor.
5.3 Limyè LED entegre
The tool includes an integrated LED light that illuminates the work area, improving visibility in dimly lit spaces and for detailed tasks.
Figure 8: Using the LED light for precision engraving.
5.4 Aplikasyon
The WORKPRO rotary tool is highly versatile and can be used for:
- Koupe: Use appropriate cutting discs for various materials.
- Eskilti/Gravure: Utilize diamond bits for intricate designs on wood, plastic, or soft metals.
- Polisaj: Apply felt wheels and polishing compounds to restore shine to surfaces.
- Ponçage: Use sanding bands and drums for smoothing rough edges or preparing surfaces.
- Perçage: Employ small drill bits for precision holes.
Figi 9: Egzamples of versatile applications.
6. Antretyen
6.1 Netwayaj
- Toujou dekonekte zouti a nan nenpòt sous kouran anvan ou netwaye li.
- Sèvi ak yon mou, damp twal pou siye deyò zouti a. Pa sèvi ak pwodui chimik ki agresif oswa pwodui netwayaj abrazif.
- Use a small brush or compressed air to clear dust and debris from the heat dissipation holes and around the collet area.
6.2 Swen ak Depo Batri
- To prolong battery life, avoid completely discharging the battery regularly.
- For long-term storage, ensure the battery is charged to approximately 50-75%. Recharge the tool every 3 to 6 months to prevent deep discharge and maintain battery health.
- Store the tool in a cool, dry place, away from direct sunlight and extreme temperatures.
6.3 Depo Akseswa
Keep all accessories organized in the provided storage bag or a suitable container to prevent loss and damage.
NAN. Depanaj
This section addresses common issues you might encounter with your WORKPRO rotary tool.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Zouti a pa limen. | Batri a dechaje. | Charge the tool fully using the USB-C cable. |
| Tool stops unexpectedly during use. | Battery is low or tool is overloaded. | Recharge the battery. Reduce pressure on the tool or use a lower speed setting for the task. |
| Clicking sound when turning off. | Normal operation of the automatic spindle lock. | This is a normal function and does not indicate a fault. |
| Accessory bit is loose or wobbles. | Collet nut not tightened sufficiently or incorrect collet size. | Ensure the correct collet size is used for the accessory. Tighten the collet nut firmly with the included wrench. |
| Reduced performance or short runtime. | Battery degradation or improper charging/storage. | Ensure proper charging and storage practices are followed (refer to Section 6.2). If the issue persists, the battery may need replacement. |
8. Espesifikasyon
Below are the technical specifications for the WORKPRO 7.2V Cordless Rotary Tool (Model W123024A).
| Karakteristik | Spesifikasyon |
|---|---|
| Mak | WORKPRO |
| Nimewo Modèl | W123024A |
| Voltage | 7.2 Volts |
| Kalite batri | Lityòm-ion (1 enkli) |
| Kapasite batri | 1100 mAh |
| Maksimòm vitès wotasyon | 30000 RPM |
| Vitès Varyab | 6 (5000-30000 RPM) |
| Tan pou chaje | Apeprè. 2 èdtan |
| Runtime (Max Speed) | Apeprè. 45 minit |
| Pwa | 227 gram |
| Dimansyon (L x W x H) | 25.2 x 16.8 x 5.5 cm |
| Karakteristik espesyal | Cordless, Integrated LED Light, Automatic Spindle Lock |
| Konpozan ki enkli | 117 Pwodwi pou Telefòn |
| Manifakti | Konpayi Endistriyèl Hang Zhou Great Star, LTD |
9. Garanti ak sipò
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. WORKPRO is committed to providing quality products and customer satisfaction.
If you encounter any issues or have questions regarding your WORKPRO 7.2V Cordless Rotary Tool, please contact the seller or WORKPRO customer support through their official website or contact channels. Please have your model number (W123024A) and purchase details ready when seeking support.
